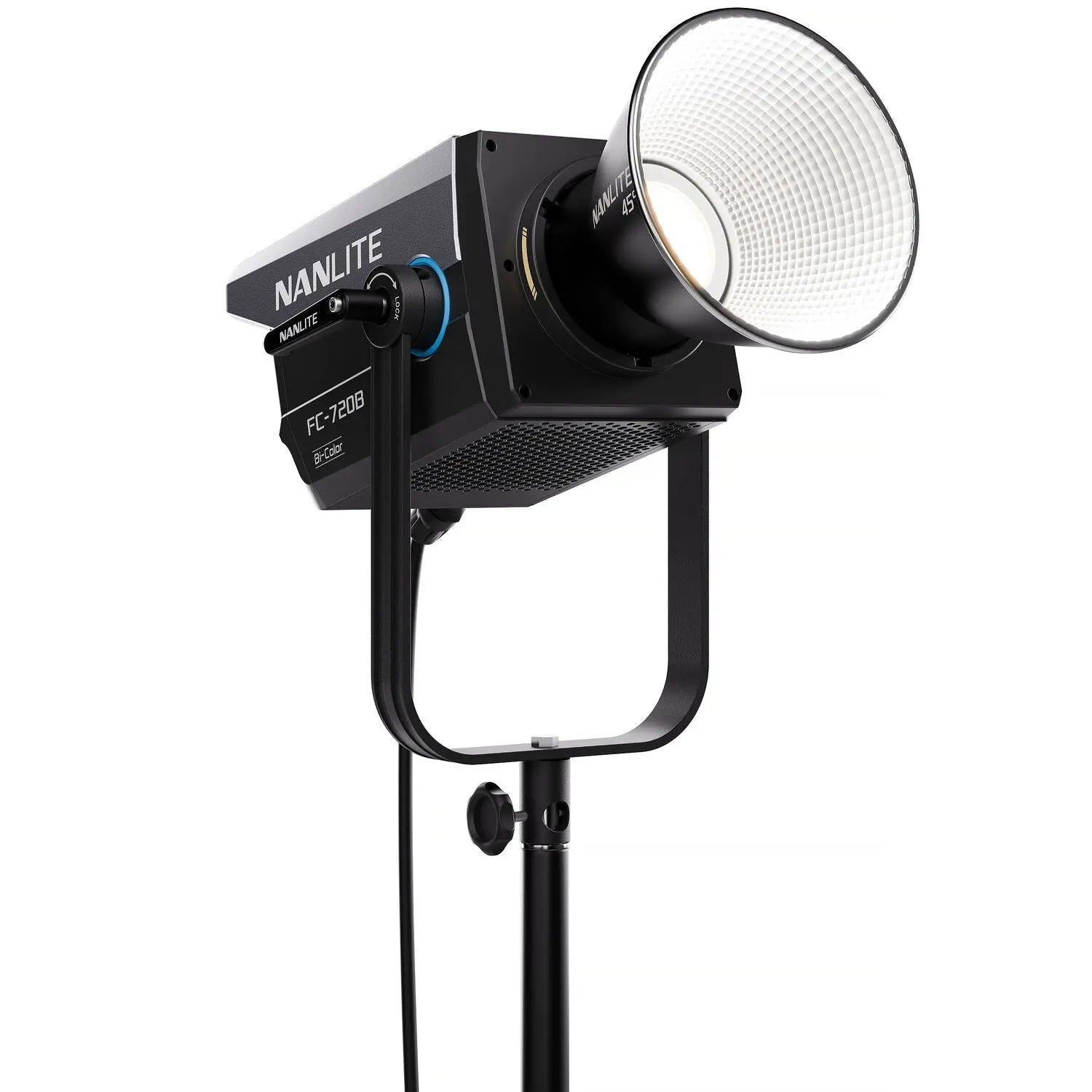

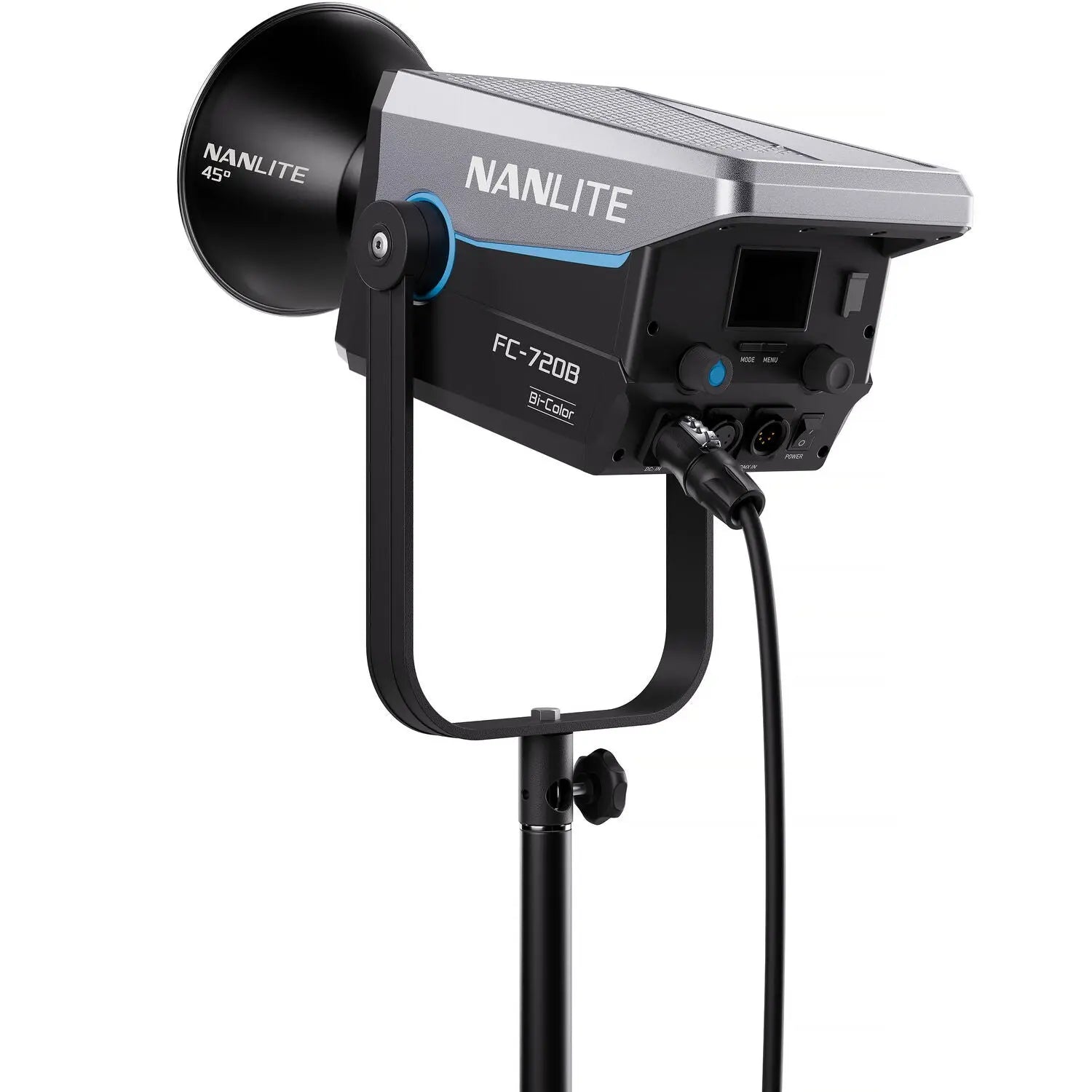

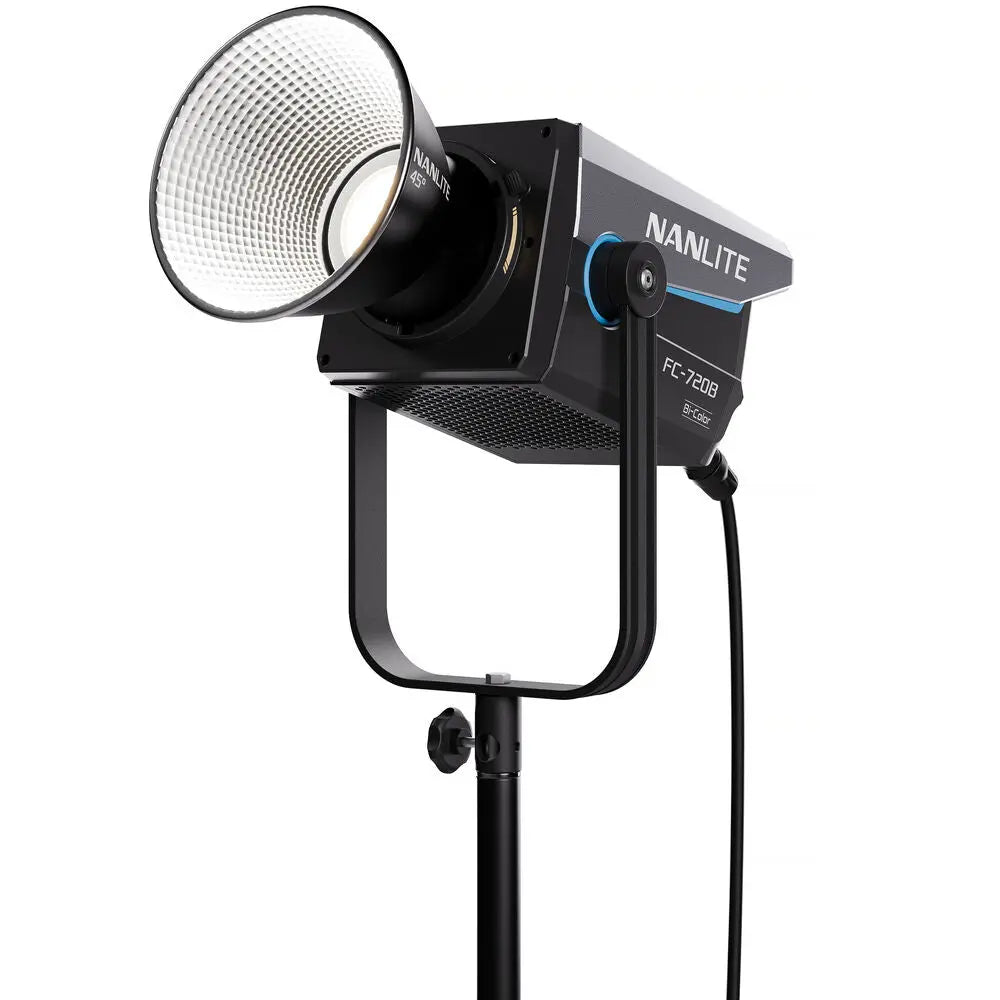

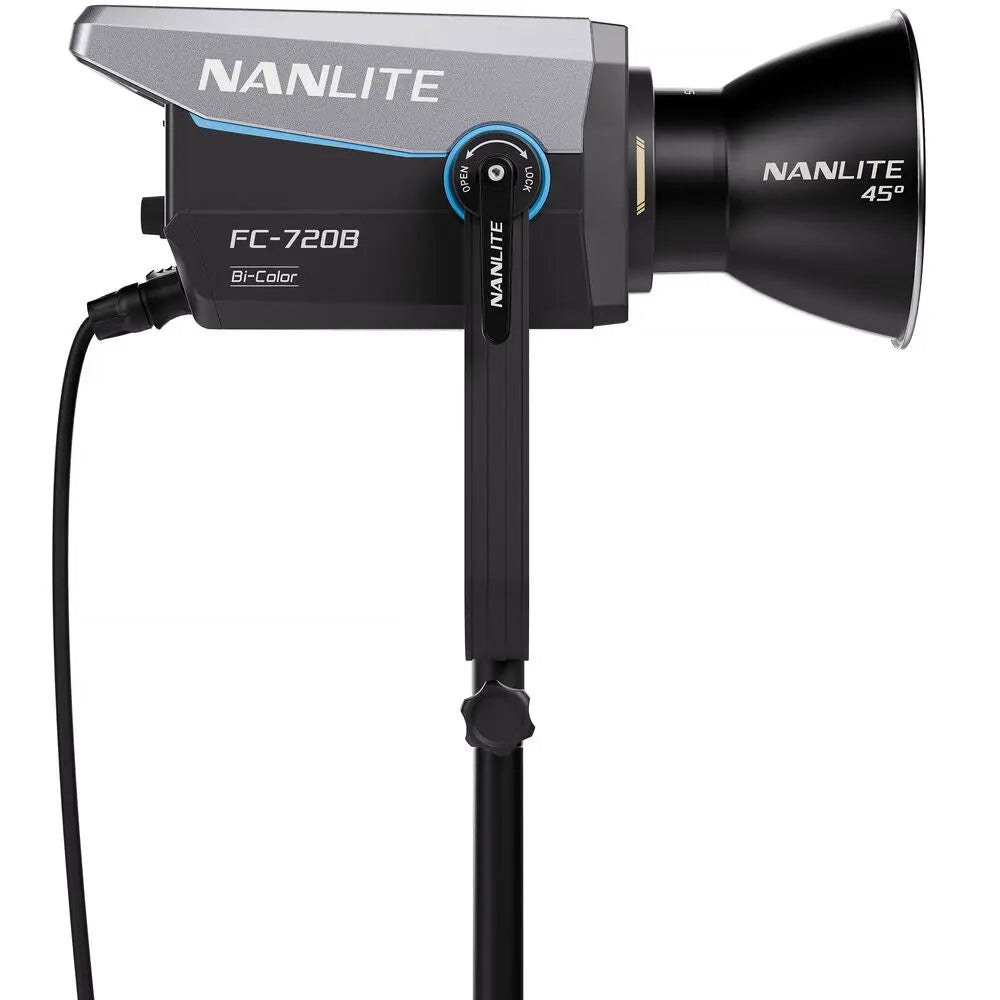

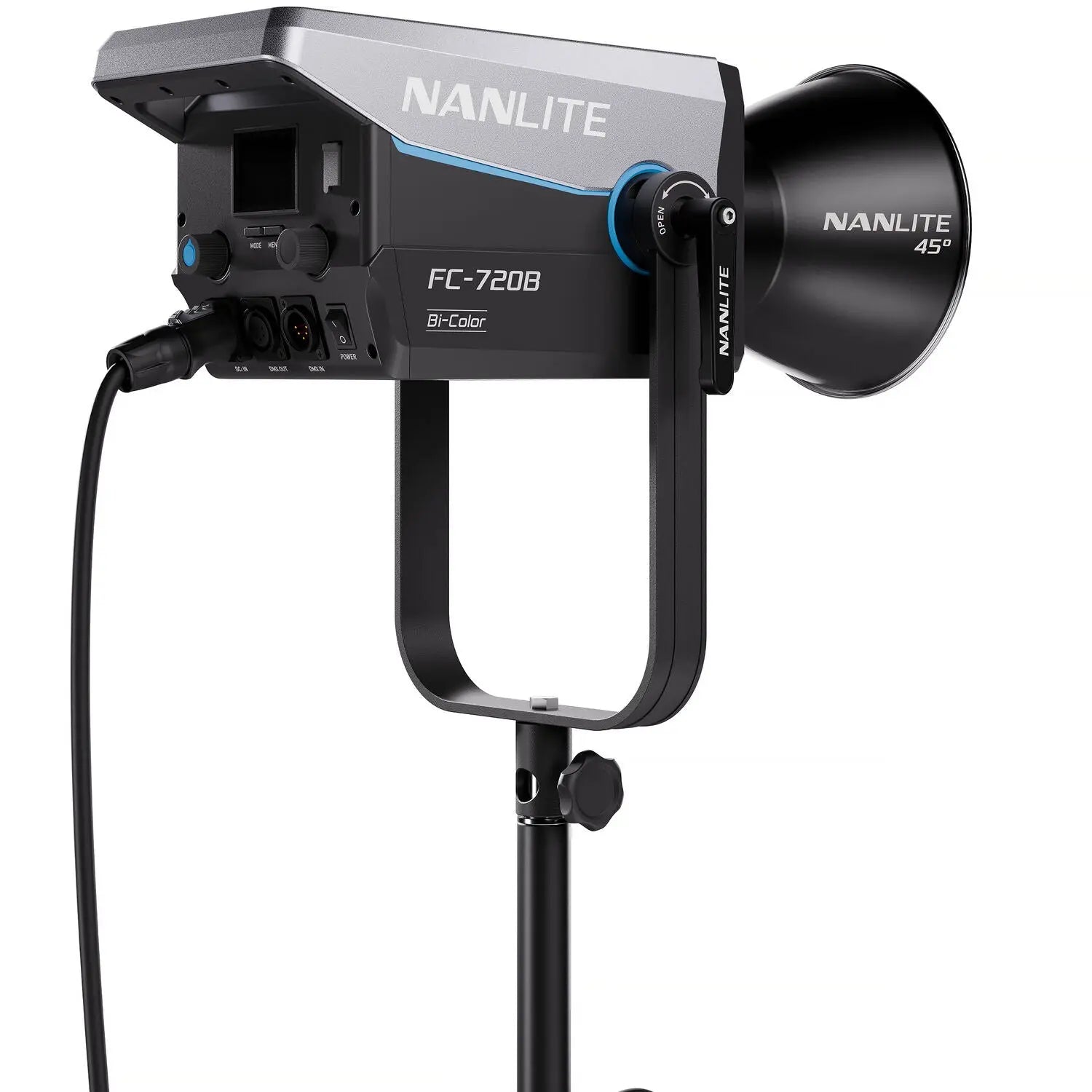

Nanlite FC720B Bi-Color LED Spotlight

Designed to give you the full flexibility of a bi-color fixture, the FC-720B Bi-Color LED Spotlight from Nanlite is a powerful, compact, AC-powered light with a Kelvin range of 2700 to 6500K. Featuring an innovative wing-shaped top housing, the FC-720B stands out from other Nanlite fixtures. Delivering impressive brightness, it ensures faithful color reproduction with a CRI of 96 and a TLCI of 98, and provides advanced features with intuitive onboard and remote control.

Advanced Features

• Bluetooth and 2.4 GHz wireless connections
• DMX/RDM capability for professional lighting setups
• Smart fan modes to minimize noise on-set
• Bowens accessory mount for a wide range of light modifiers
• Separate light head and power supply for lightweight handling

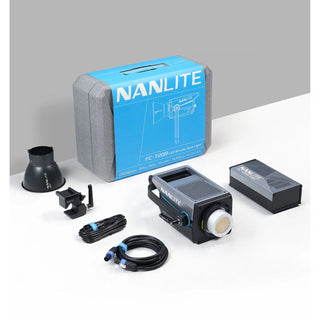

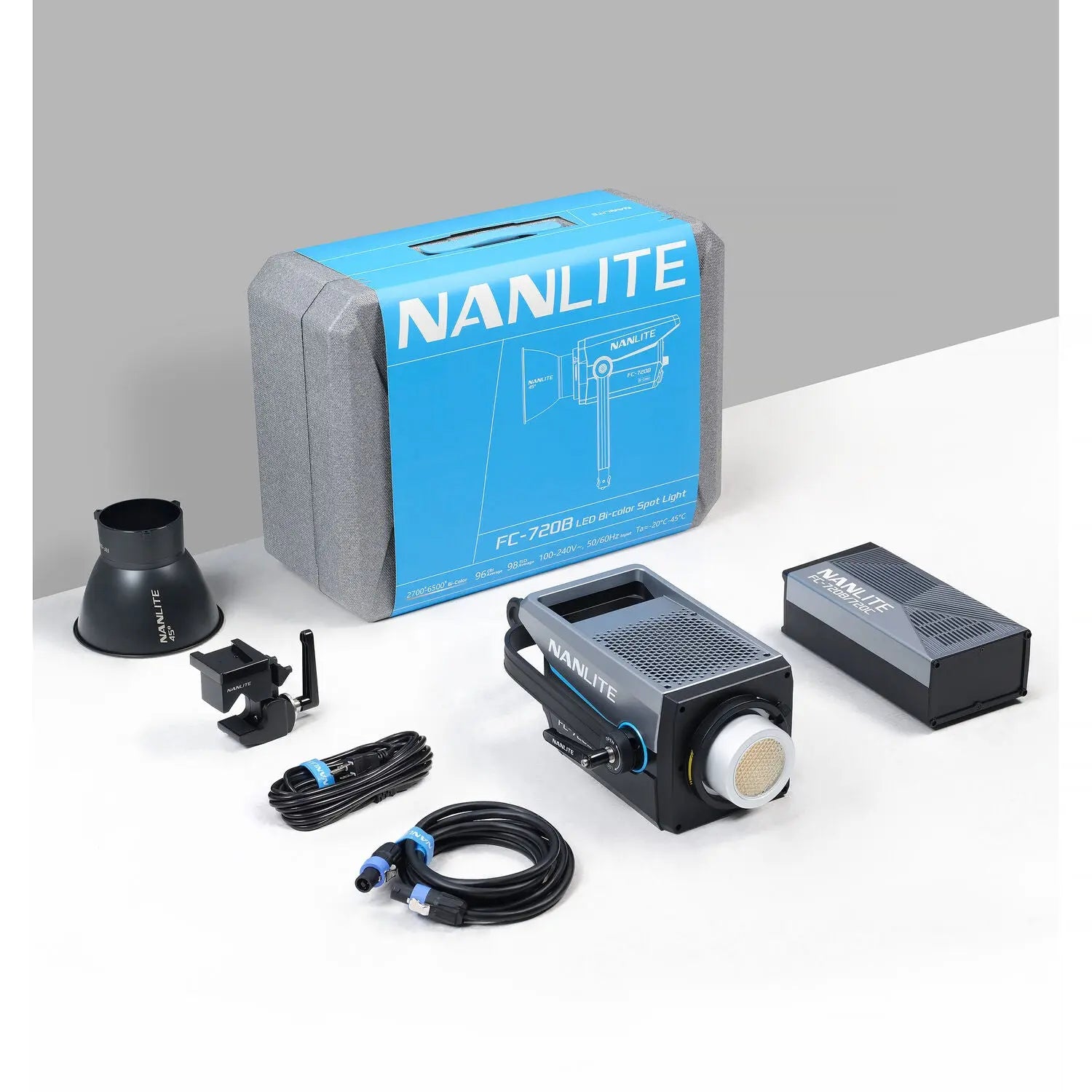

• Reflector and robust carry case included for extended output and portability

Bi-Color Output with Advanced Details

• Maximum output mode for full power, constant output mode for uniform intensity across the CCT range
• Dimming adjustable from 0–100% in 0.1% increments for precise control
• At 5600K, outputs up to 133,800 lux at 3.3' (1 m) with included reflector

Multiple Control Options

• Local control via intuitive knobs and onboard display
• Remote control via smartphone using the NANLINK app
• DMX/RDM port enables seamless integration into DMX-controlled environments

12 Practical Lighting Effects

• CCT loop, INT loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, firework, explosion, welding
• Customizable presets can be saved via the NANLINK app

Smart Fan Modes

• Adjustable fan speeds to suit on-set sound requirements, avoiding audio interference

AC Operation

• Included 110–240 VAC power supply for plug-and-play operation

Easy Positioning Yoke

• One-sided lock yoke allows 360° rotation and wide tilt range
• 5/8" receiver accepts standard light stands

Bowens Mount

• Near-universal Bowens-style mount with umbrella holder
• Compatible with a wide variety of light modifiers

Travel-Ready Case

• Corrosion-resistant carry case with efficient shock protection for safe transport and storage

Additional Details

• Light head dimensions: 13 x 9.5 x 5.9"
• Light head weight: 9.5 lb / 4.32 kg
• Power consumption: 750 W

Nanlite FC-720B LED Monolight / Spot Light

General Specifications

• Item Type: 1x LED Monolight / Spot Light
• Included Light Modifier: 1x Reflector
• Included Storage Case: Yes
• Display: Yes
• Environmental Resistance: No

Photometrics

• 75° at 3200K:
  • 4134 fc / 44,500 Lux at 3.3' / 1 m (Unmodified)
  • 462 fc / 4980 Lux at 9.8' / 3 m (Unmodified)
  • 175 fc / 1885 Lux at 16.4' / 5 m (Unmodified)
• 75° at 5600K:
  • 4710 fc / 50,700 Lux at 3.3' / 1 m (Unmodified)
  • 527 fc / 5680 Lux at 9.8' / 3 m (Unmodified)
  • 198 fc / 2135 Lux at 16.4' / 5 m (Unmodified)
• 45° with Reflector at 3200K:
  • 10,869 fc / 117,000 Lux at 3.3' / 1 m
  • 1030 fc / 11,090 Lux at 9.8' / 3 m
  • 369 fc / 3980 Lux at 16.4' / 5 m
• 45° with Reflector at 5600K:
  • 12,430 fc / 133,800 Lux at 3.3' / 1 m
  • 1178 fc / 12,690 Lux at 9.8' / 3 m
  • 425 fc / 4580 Lux at 16.4' / 5 m
• Color Temperature: 2700–6500K
• Color Modes: Daylight, Tungsten
• Color Accuracy: CRI 96, TLCI 98, TM-30 Rf 95, TM-30 Rg 100
• Dimming: App-Controlled / Built-In Dimmer / DMX / RDM, 0–100%
• Cooling System: Fan
• Beam Angle: 75° Unmodified, 45° with Reflector
• Built-In Flash: No
• Preprogrammed Effects: Yes
• Umbrella Mount: Yes
• Front Accessory Mount: Bowens S

Connectivity

• Wireless Remote Control: Bluetooth, Radio/RF
• Mobile App Compatible: Yes (Android & iOS)
• App Name: NANLINK
• Functionality: Remote Control

Power & I/O

• Power Source: AC Power (Cable Included) *Requires Power Supply/Controller (Included)
• Inputs/Outputs:
  • Light Fixture: 1x AC Power Input, 1x XLR 5-Pin Female DMX Output, 1x XLR 5-Pin Male DMX Output
  • Power Supply/Controller: 1x Power Output to Fixture, 1x AC Power Input
• Input Power: 48 VDC, 100–240 VAC, 50/60 Hz
• Included Adapter / Cable: 1x USA Type-A/B Plug to IEC Cable (6 m / 19.6'), 1x Unspecified Cable
• Power Pass-Thru: No
• Power Consumption: 750 W

Mounting

• Yoke Type: Manually-Operated
• Fixture Mounting: 1x 5/8" Receiver (via Yoke)

Physical

• Dimensions:
  • Fixture: 13.9 x 9.52 x 6.44" / 35.3 x 24.18 x 16.36 cm
  • Power Supply/Controller: 11.23 x 5.51 x 3.9" / 28.52 x 14 x 9.9 cm
• Weight:
  • Fixture: 9.52 lb / 4.32 kg
  • Power Supply/Controller: 4.67 lb / 2.12 kg
