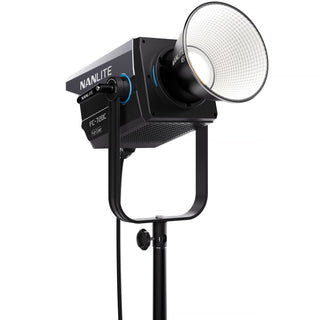

Nanlite FC720C RGB LED Spotlight

Creatively light your scenes with the versatile, full-color FC-720C RGB LED Spotlight from Nanlite. This powerful 720W RGBW LED spotlight offers an extremely wide Kelvin range of 2400 to 12,000K, plus full-spectrum RGB color control for unique lighting. Its compact, AC-powered design features a separate power supply, keeping both components lightweight and portable. Nanlite's innovative wing-shaped top housing distinguishes the FC-720C from standard LED fixtures, delivering impressive light output with faithful color reproduction (CRI 95, TLCI 94) and advanced intuitive controls both onboard and remotely.

Advanced Features

• Bluetooth wireless connectivity and DMX/RDM capability for flexible control
• Smart fan modes for silent operation during filming
• Light head separated from power supply for lightweight handling

Bright Light Output

• Up to 119,000 lux at 3.3' (1 m) with included reflector at 5600K
• Dimming adjustable from 0–100% in 0.1% increments for precise lighting control

RGBW Capability

• Full HSI control and RGBW mode for individual red, green, blue, and white adjustment
• Green-to-magenta shift ±150, gel presets, and versatile color options

Faithful Color Reproduction

• CRI 95, TLCI 94, TM-30 Rf 92, TM-30 Rg 100
• Optimized skin tones and accurate colors for video and photography

Multiple Lighting Effects

• Built-in effects include HUE loop, CCT loop, INT loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, fireworks, explosion, and welding

Multiple Control Options

• Local control via intuitive knobs and onboard display
• Remote control via smartphone using the NANLINK app
• Locking DMX/RDM port for seamless integration into DMX-controlled setups

AC Operation

• Included 100–240 VAC power supply allows plug-and-play operation from standard outlets
• Power supply includes safety strap for mounting on a light stand

Smart Fan Modes

• Adjustable fan speeds to minimize noise for on-set audio recording

Easy Positioning Yoke

• One-sided lock yoke allows 360° rotation and wide tilt range
• 5/8" receiver for standard light stands

Bowens Mount & Light Modifier Compatibility

• Universal Bowens-style mount plus umbrella holder
• Supports wide variety of light modifiers for creative control

Travel-Ready Case

• Hard foam carry case included for safe transport and storage

Nanlite FC-720C LED Monolight / Spot Light

General Specifications

• Item Type: 1x LED Monolight / Spot Light
• Included Light Modifier: 1x Reflector
• Included Storage Case: Yes
• Display: Yes
• Environmental Resistance: No

Photometrics

• 75° at 3200K:
  • 4134 fc / 41,200 Lux at 3.3' / 1 m (Unmodified)
  • 462 fc / 4740 Lux at 9.8' / 3 m (Unmodified)
  • 175 fc / 1780 Lux at 16.4' / 5 m (Unmodified)
• 75° at 5600K:
  • 4710 fc / 43,700 Lux at 3.3' / 1 m (Unmodified)
  • 527 fc / 5040 Lux at 9.8' / 3 m (Unmodified)
  • 198 fc / 1890 Lux at 16.4' / 5 m (Unmodified)
• 45° with Reflector at 3200K:
  • 10,869 fc / 110,200 Lux at 3.3' / 1 m
  • 1030 fc / 10,750 Lux at 9.8' / 3 m
  • 369 fc / 3880 Lux at 16.4' / 5 m
• 45° with Reflector at 5600K:
  • 12,430 fc / 119,000 Lux at 3.3' / 1 m
  • 1178 fc / 11,400 Lux at 9.8' / 3 m
  • 425 fc / 4110 Lux at 16.4' / 5 m
• Color Temperature: 2400–12,000K
• Color Modes: RGB, Daylight, Tungsten
• Color Accuracy: CRI 95, TLCI 94, TM-30 Rf 92, TM-30 Rg 100
• Dimming: App-Controlled / Built-In Dimmer / DMX / RDM, 0–100%
• Cooling System: Fan
• Beam Angle: 75° Unmodified, 45° with Reflector
• Built-In Flash: No
• Preprogrammed Effects: Yes
• Umbrella Mount: Yes
• Front Accessory Mount: Bowens S

Connectivity

• Wireless Remote Control Type: Bluetooth, Radio/RF
• Mobile App Compatible: Yes (Android & iOS)
• App Name: NANLINK
• Functionality: Remote Control

Power & I/O

• Power Source: AC Power (Cable Included) *Requires Power Supply/Controller (Included)

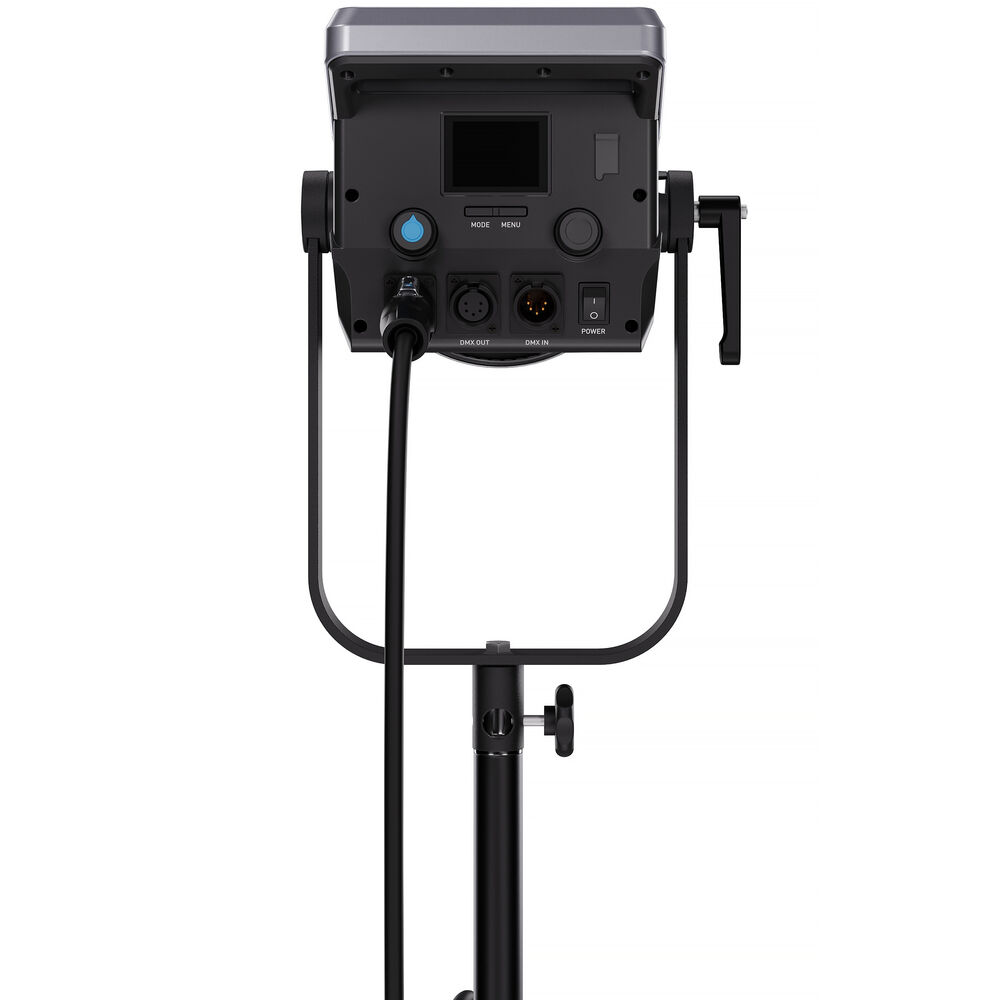

• Inputs/Outputs:
  • Light Fixture: 1x AC Power Input, 1x XLR 5-Pin Female DMX Output, 1x XLR 5-Pin Male DMX Output
  • Power Supply/Controller: 1x Power Output to Fixture, 1x AC Power Input
• Input Power: 48 VDC, 100–240 VAC, 50/60 Hz
• Included Adapter / Cable: 1x USA Type-A/B Plug to IEC Cable (6 m / 19.6'), 1x Unspecified Cable
• Inline Switch: No
• Power Pass-Thru: No
• Power Consumption: 750 W

Mounting

• Yoke Type: Manually-Operated
• Fixture Mounting: 1x 5/8" Receiver (via Yoke)

Physical

• Dimensions:
  • Fixture: 13.9 x 9.52 x 6.44" / 35.3 x 24.18 x 16.36 cm
  • Power Supply/Controller: 11.23 x 5.51 x 3.9" / 28.52 x 14 x 9.9 cm
• Weight:
  • Fixture: 9.77 lb / 4.43 kg
  • Power Supply/Controller: 4.67 lb / 2.12 kg
