Crystal Video Technology Pro Z Full HD SDI/HDMI Zero-Latency Wireless Video Transmission System

Crystal Video Technology Pro Z Full HD SDI/HDMI Zero-Latency Wireless Video Transmission System

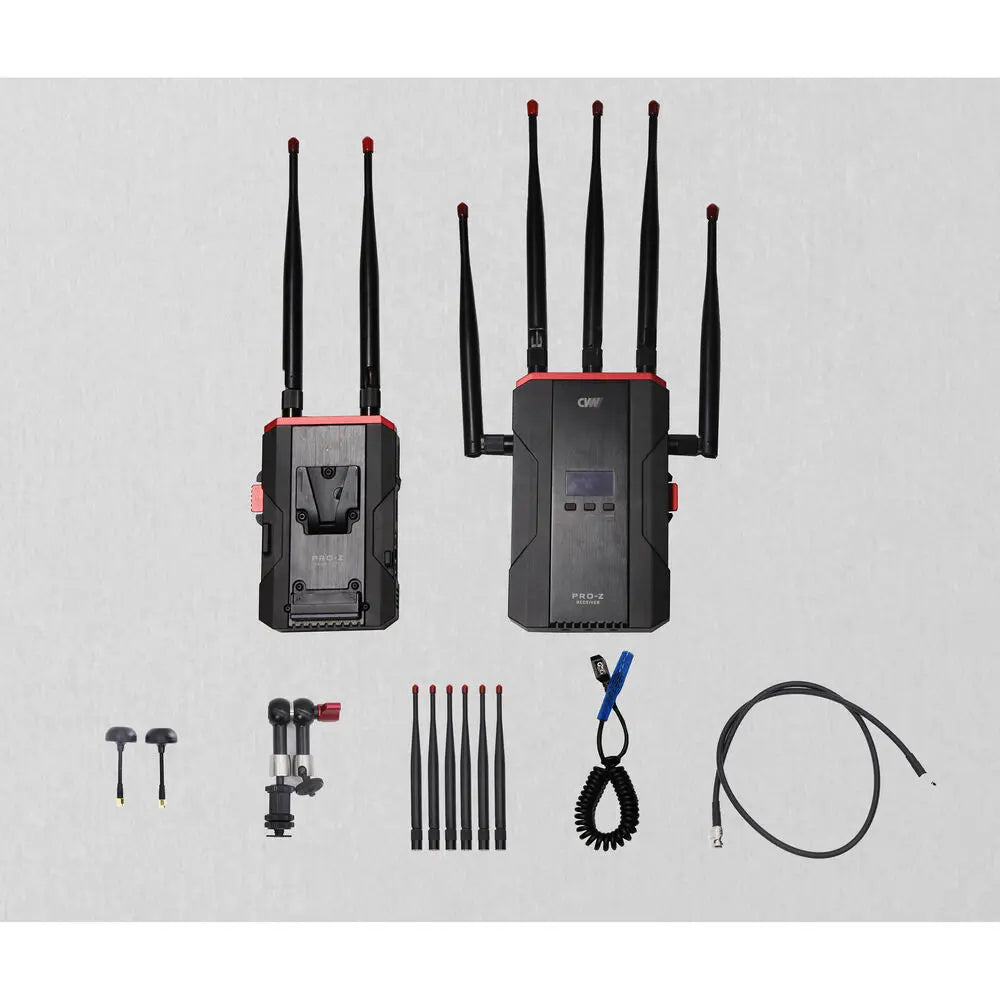

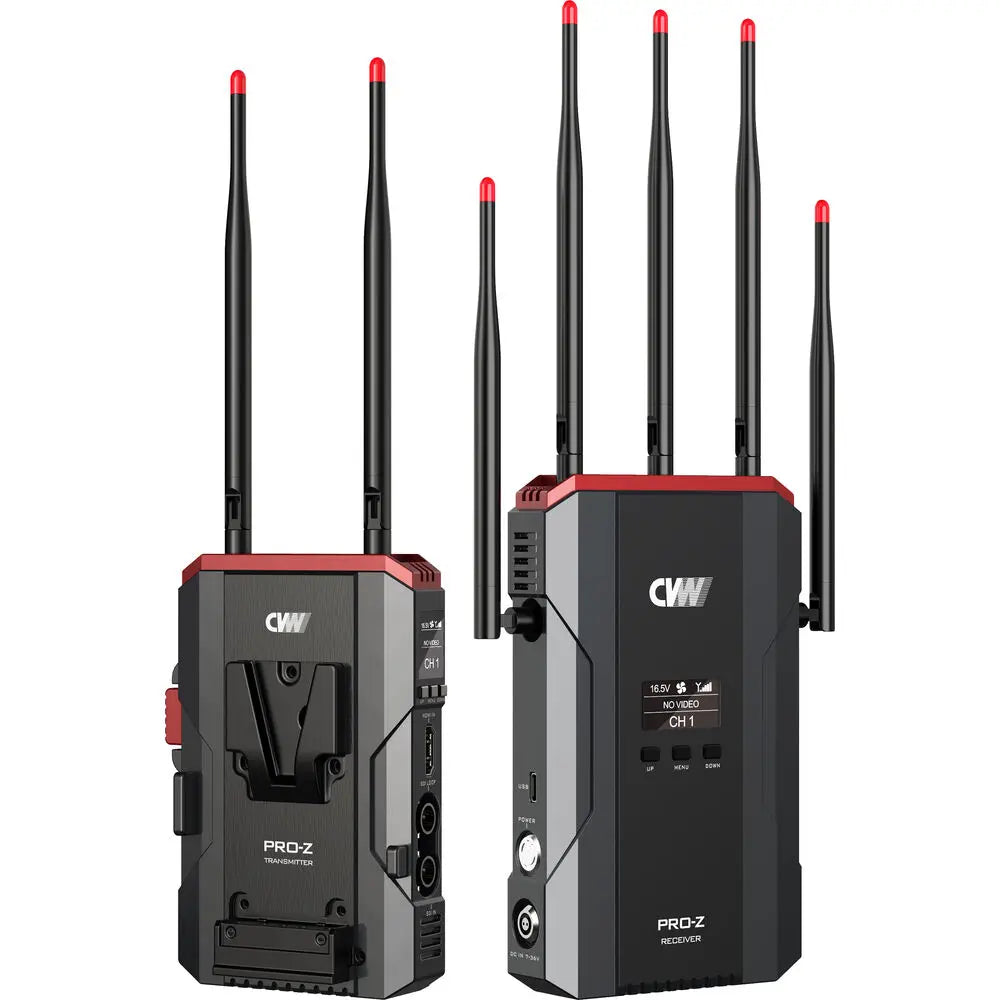

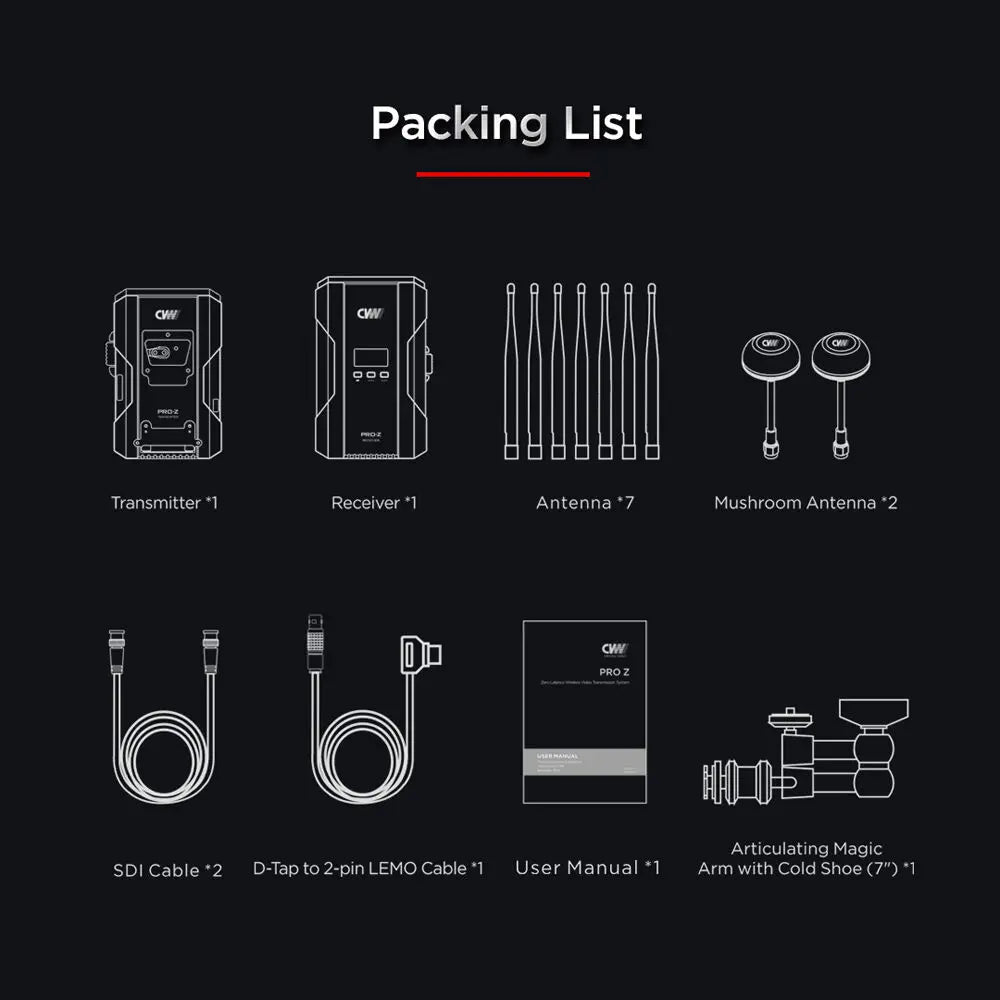

The Crystal Video Pro Z Full HD Wireless Video Transmission System delivers uncompressed, zero-latency video monitoring over long distances, making it ideal for professional film sets, live broadcasts, and outdoor events. The system includes both a transmitter and a receiver, offering HDMI and SDI input/output support for versatile compatibility with cameras, monitors, and switchers.

Capable of transmitting video up to 1080p60 10-bit 4:2:2, the system maintains high-quality images with no delay. With a powerful range of up to 800m line of sight, the Pro Z system is well-suited for large-scale productions or environments that require remote viewing. The transmitter also features an SDI loop-out, enabling local monitoring while transmitting to a remote receiver.

The system uses channel scanning to ensure a stable connection with minimal interference. It supports multicast mode, enabling one transmitter to send video to multiple receivers simultaneously—perfect for directors, camera assistants, or client monitors.

The system supports multiple power options, including V-mount battery plates, USB-C, or DC power adapters, offering maximum flexibility on set. The transmitter’s V-mount passthrough allows simultaneous powering of both the transmitter and your camera from a single battery.

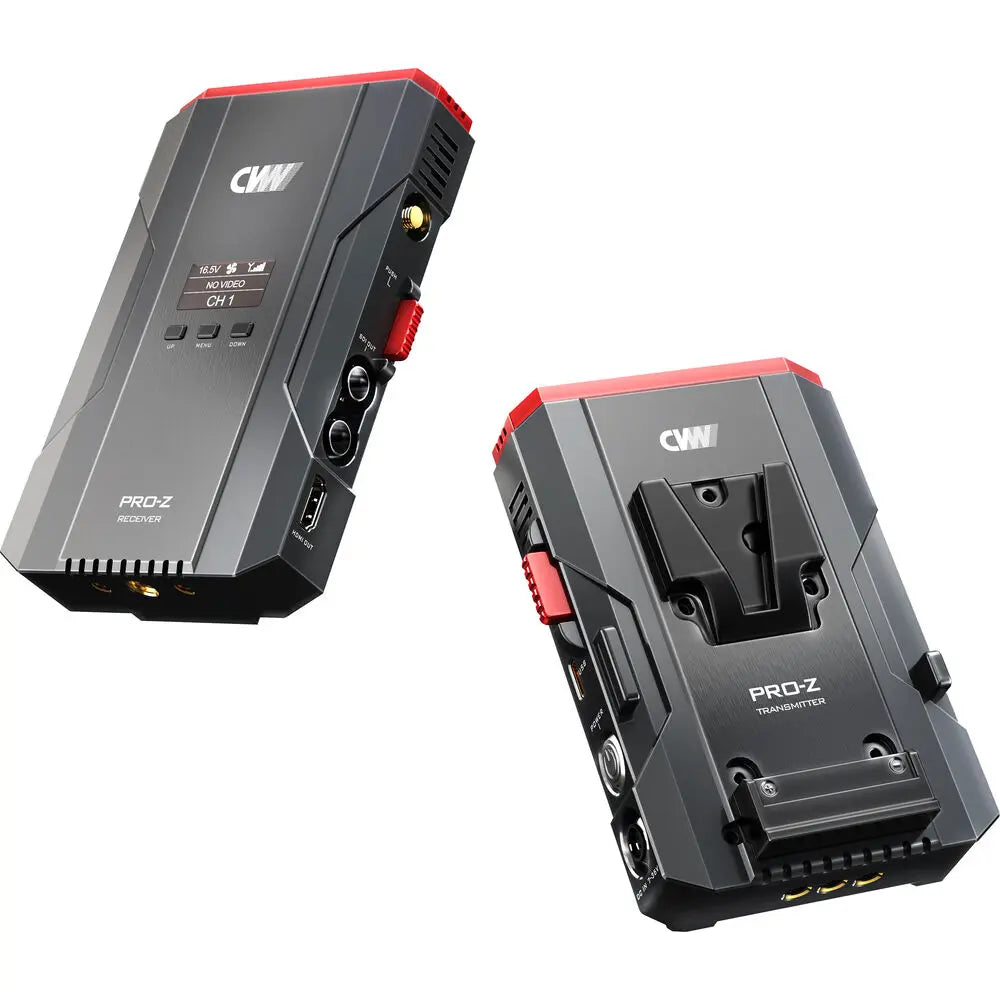

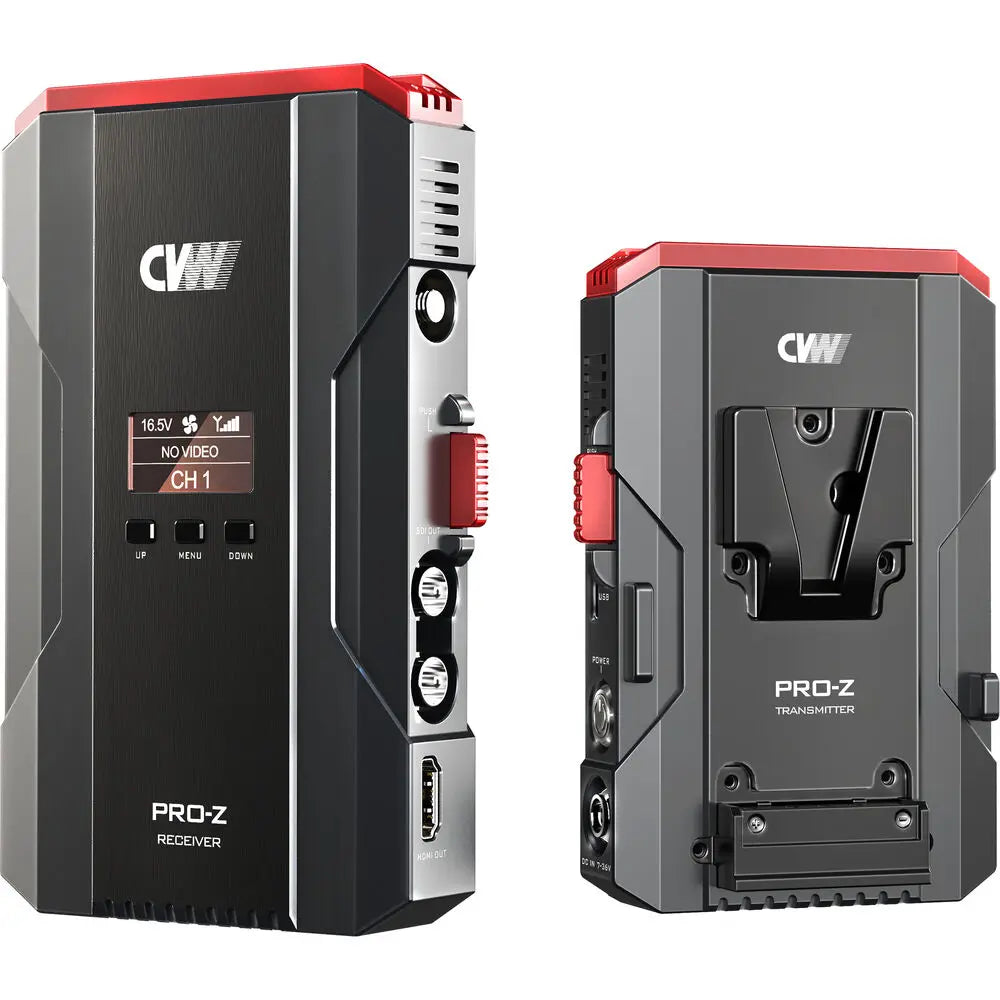

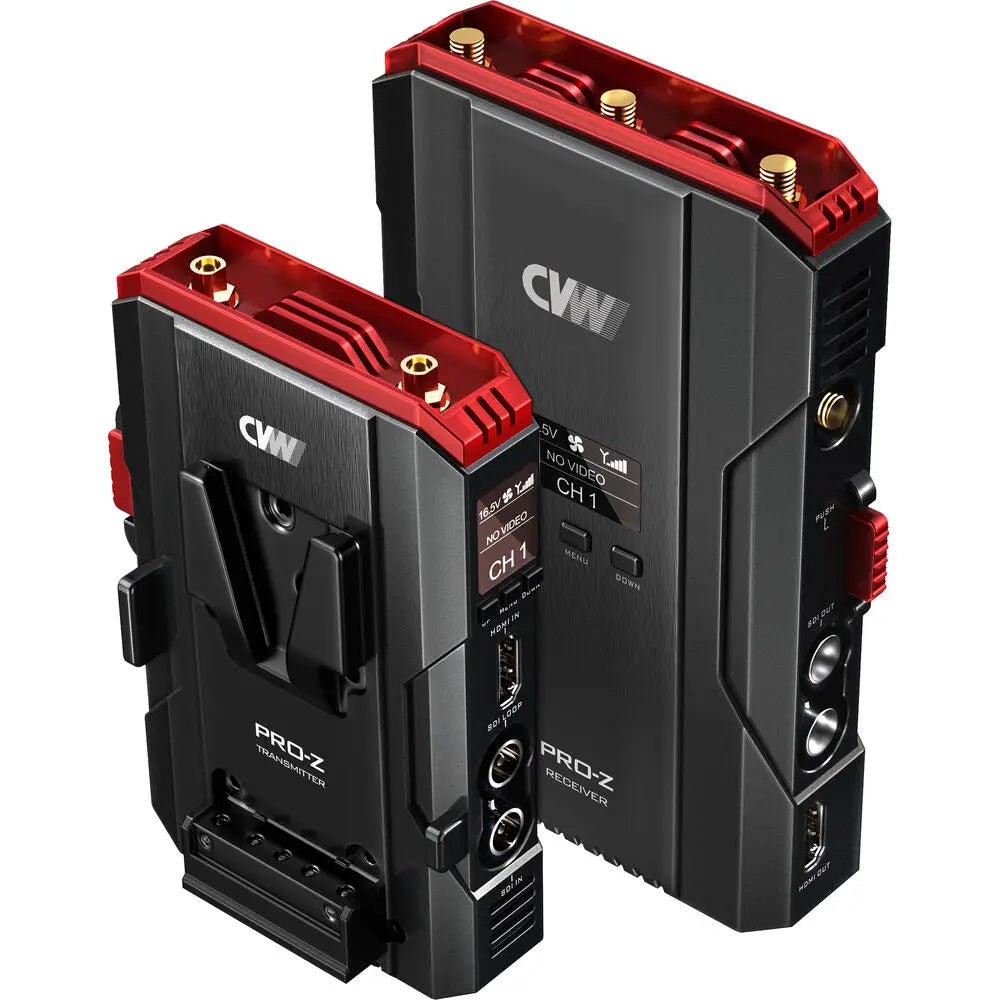

Constructed from rugged aluminium and designed without a cooling fan, the system is both silent and durable, making it reliable even in warm environments where audio capture is crucial. The compact, low-profile design features omnidirectional antennas and a bright OLED display, enabling real-time monitoring of signal status and channel settings.

Inputs/Outputs

• Antenna I/O:
  • Transmitter: 2x RP-SMA Female

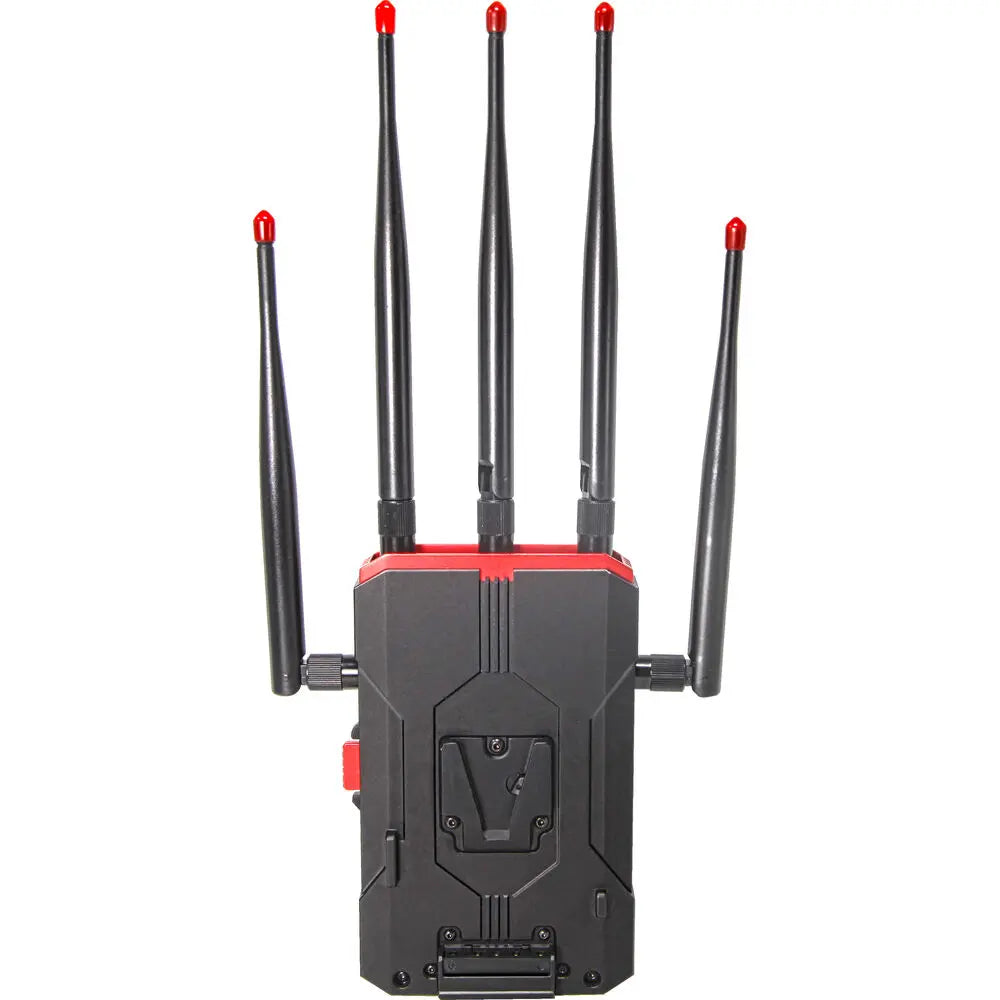

  • Receiver: 5x RP-SMA Female
• Video I/O:
  • Transmitter: 1x BNC (3G-SDI) Input
  • Transmitter: 1x HDMI Input
  • Transmitter: 1x BNC (3G-SDI) Loop Output
  • Receiver: 2x BNC (3G-SDI) Output
  • Receiver: 1x HDMI Output
• Embedded Audio: SDI: 2-Channel, HDMI: 2-Channel
• Audio I/O: No
• Power I/O:
  • Transmitter: 1x LEMO 0B 2-Pin (36 VDC) Input
  • Receiver: 1x LEMO 0B 2-Pin (36 VDC) Input
• Other I/O:
  • Transmitter: 1x USB-C
  • Receiver: 1x USB-C

Wireless

• Wireless Range: 2624.7' / 800 m (Line-of-Sight)
• RF Sensitivity: -70 dBm
• Wi-Fi: No
• Bluetooth: No
• Mobile App Compatible: No
• Cellular Support: No

Format Support

• Video Format: HDMI/SDI
  • 1080p: 60/50/30/25/24/23.98
  • 1080PsF: 25/24/23.98
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50
  • 576p, 576i, 480p, 480i
• Audio Format: 2-Channel PCM Audio
• Wireless Video Compression: Uncompressed
• Timecode Support: Yes

Power

• Input Power: 7 to 36 VDC
• Battery: Receiver/Transmitter: 1x V-Mount on Fixed Plate
• Power Consumption:
  • Transmitter: 12 W
  • Receiver: 8 W

Mounting

• Tripod/Accessory Mounting:
  • 3x 1/4"-20 Female
  • 1x 3/8"-16 Female
  • 1x V-Lock

General

• Environmental Resistance: No
• Operating Conditions: 22 to 82°F / -10 to 50°C
• Storage Conditions: -40 to 176°F / -40 to 80°C
• Dimensions:
  • Transmitter: 5.3 x 3.6 x 1" / 134 x 92.5 x 24.5 mm
  • Receiver: 6.5 x 4.2 x 1" / 165 x 106 x 26 mm
