Zoom H6studio 6-Track Handy Recorder with 32-Bit Float Recording

Zoom H6studio 6-Track Handy Recorder with 32-Bit Float Recording

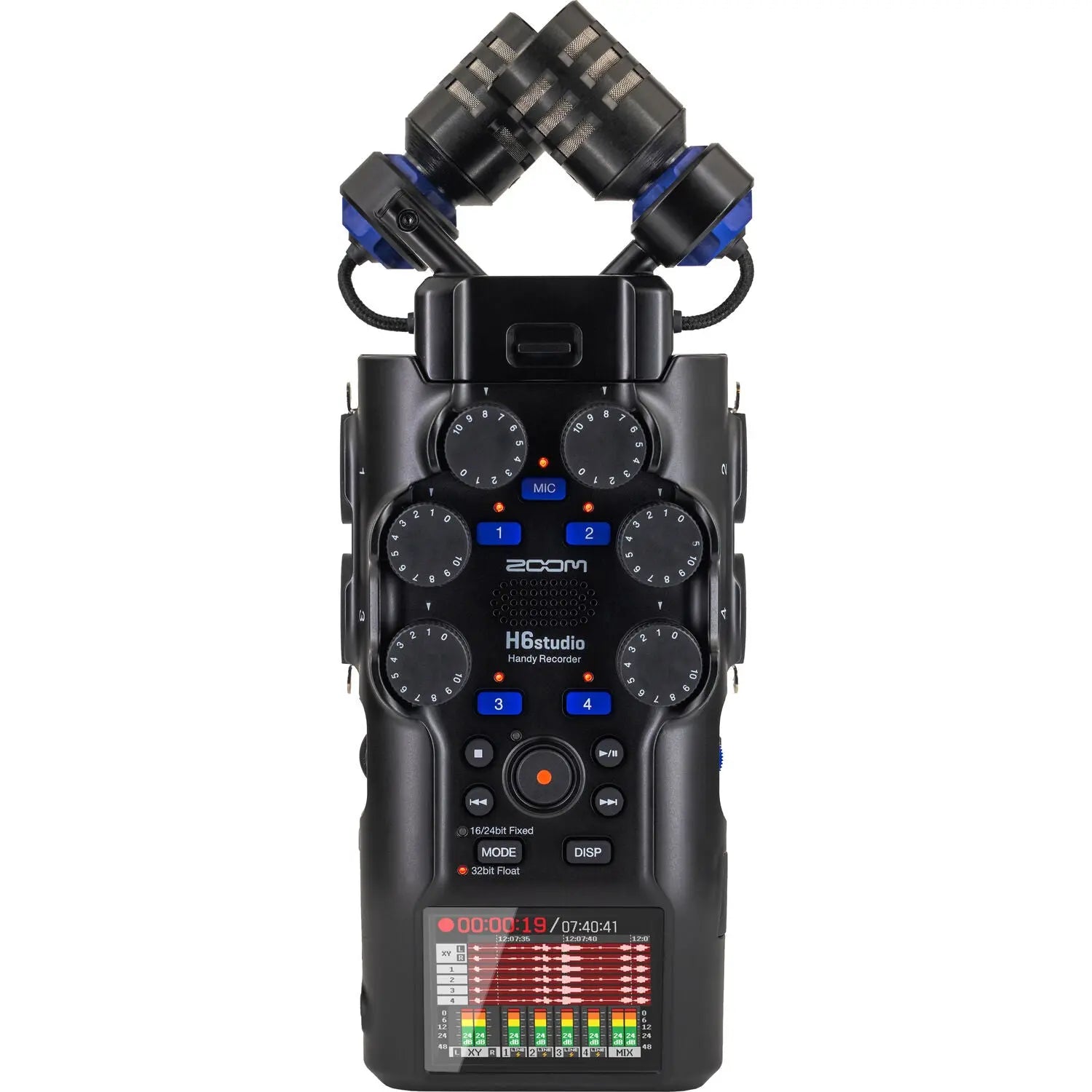

The Zoom H6studio brings studio-grade sound to any environment. Featuring large-diaphragm XY microphones, four ultraclean F-Series preamps, and 32-bit float recording with dedicated gain knobs, it’s the most advanced Handy Recorder Zoom has ever made. Built with F-Series technology, the H6studio ensures every take is pristine, whether you’re capturing music, film audio, podcasts, or field recordings.

Pro Audio Every Time You Press Record

The H6studio’s F-Series preamps deliver exceptional clarity with an impressive –127 dBu EIN. Dual A/D converters and 32-bit float recording provide 132 dB of dynamic range, so even the most delicate details are preserved without distortion.

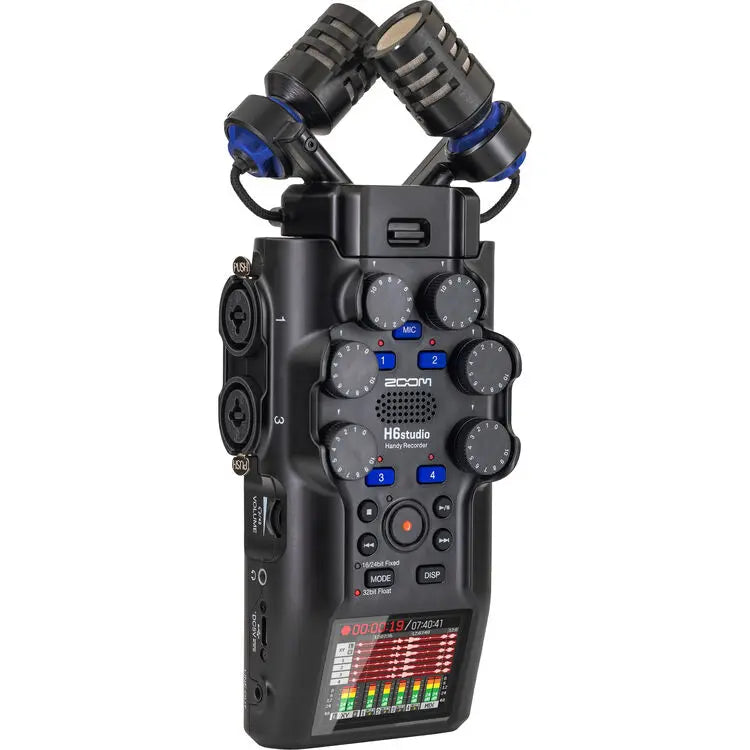

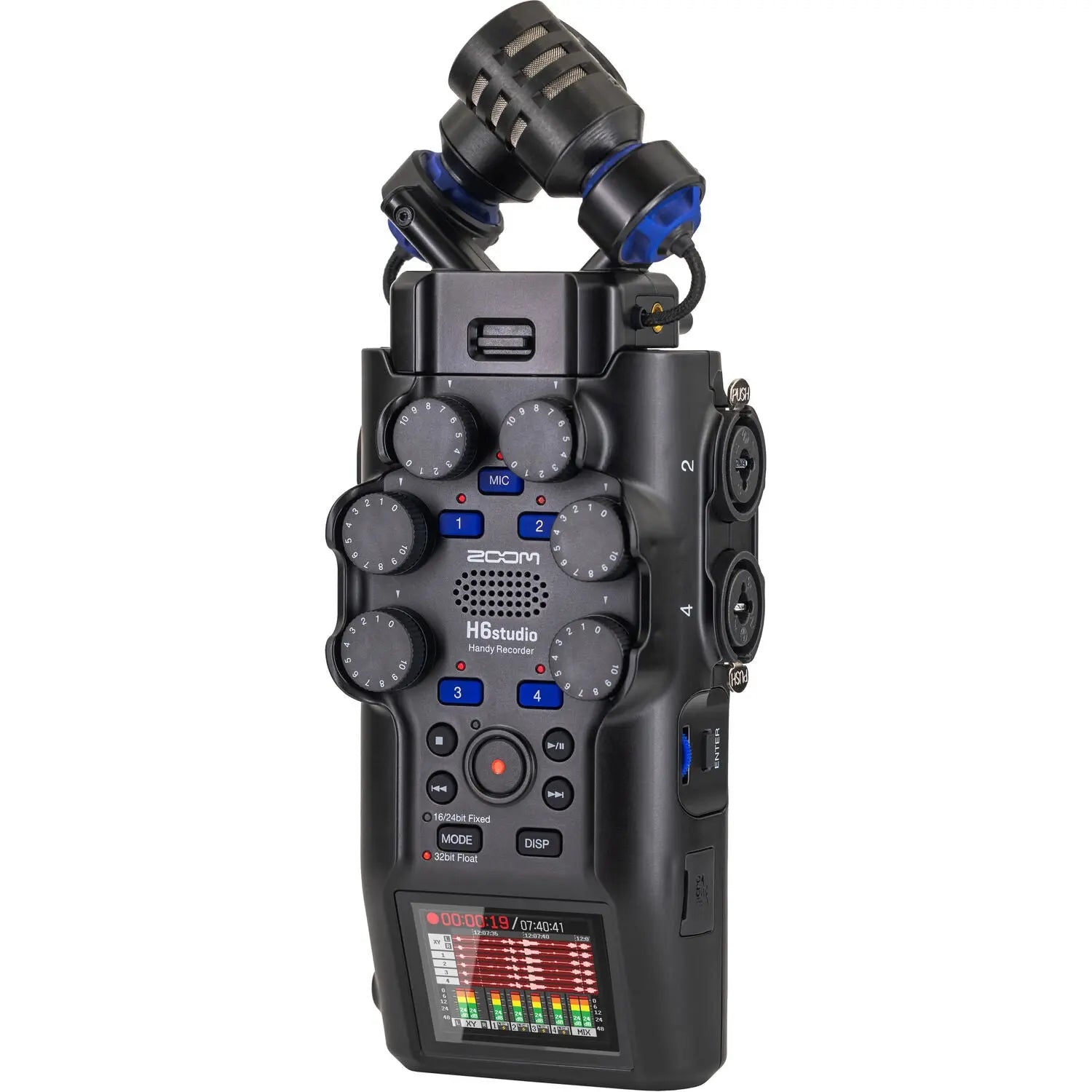

The 19.4 mm X/Y microphones capture a flat, natural frequency response and handle up to 140 dB SPL—enough for everything from quiet acoustic performances to roaring jet engines. Their stacked 90° arrangement minimizes phase cancellation, producing a clean, focused stereo image.

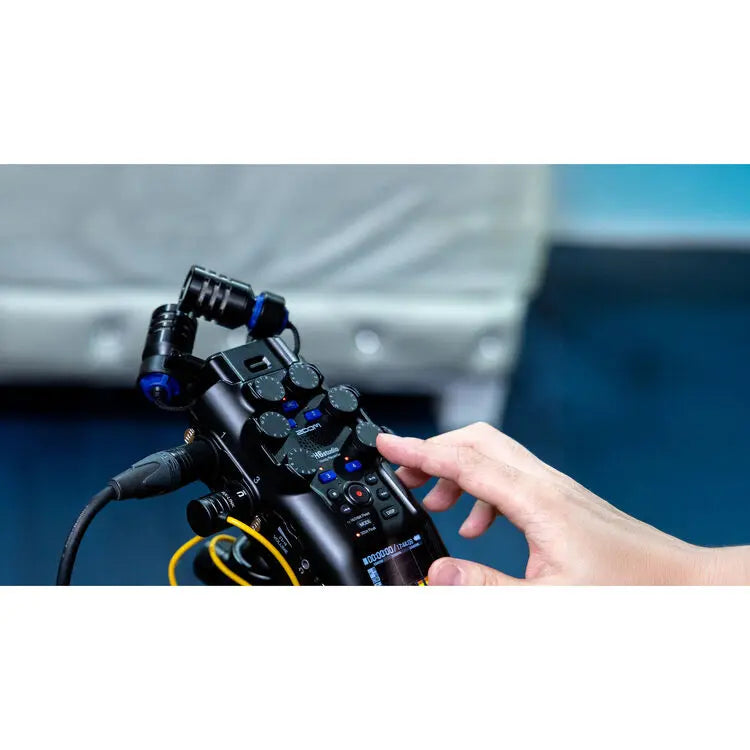

For maximum flexibility, the H6studio lets you toggle between 32-bit float for limitless headroom and 16-/24-bit formats for instantly usable files. Dedicated gain knobs and a format switch make adapting to different workflows fast and intuitive.

Recording Power and Flexibility

The H6studio captures up to eight tracks simultaneously—six individual inputs plus a stereo mix—at sampling rates from 44.1 to 192 kHz (8 tracks @ 96 kHz, 6 tracks @ 192 kHz). RF shielding blocks interference from smartphones and Wi-Fi, while shock-mounted capsules reduce handling noise.

Lookahead limiters deliver clean, peak-free results in 16-/24-bit mode and smooth performance in 32-bit float. Four locking XLR/TRS inputs provide +48V phantom power and +4 dBu line-level support, with an additional stereo mini jack for plug-in powered microphones.

The Capsule System 3.0 expands flexibility with support for 32-bit float and a wide range of interchangeable microphone and input modules, including the WLM-1 dual-channel wireless system.

Features and Accessibility

The H6studio makes monitoring simple with real-time peak and waveform displays, plus multiple output options including a powerful headphone jack, stereo line out, and onboard speaker for instant playback.

A full suite of recording tools is built in, including:

• Mono mode
• Low-cut filter
• File normalization
• Variable-speed playback
• A-B repeat
• Start tone for syncing audio to video

Record directly to microSDHC/microSDXC cards with capacities up to 2 TB.

For extended sessions, the H6studio runs up to 15 hours on four AA batteries or can be powered via USB or AC adapter. Accessibility features offer audible menu navigation in multiple languages, ensuring ease of use for visually impaired users.

USB Audio Interface and Timecode

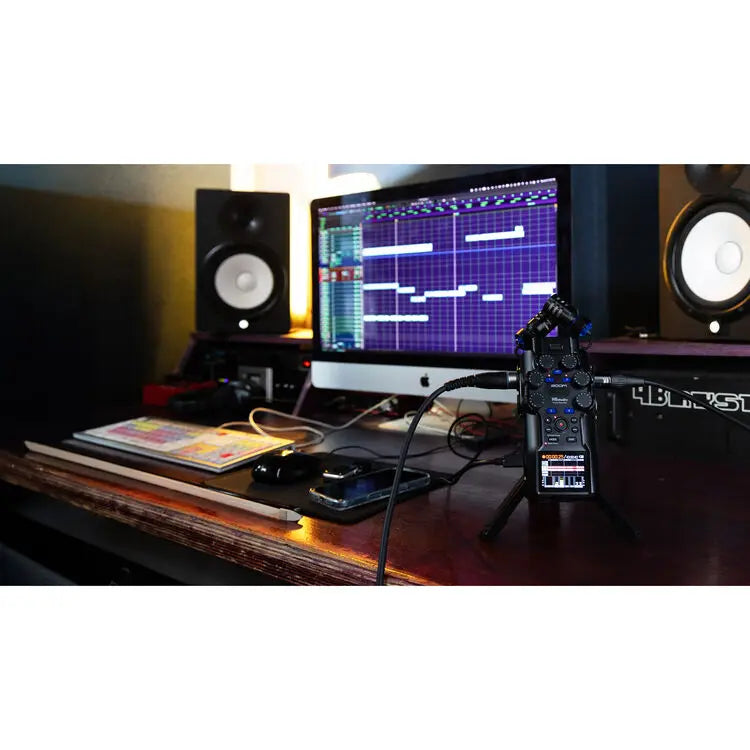

Use the H6studio as a 6-in / 2-out USB audio interface for Mac, Windows, iOS, and Android—supporting 32-bit float and 16/24-bit recording. Stream and simultaneously record a backup to the microSD card.

The optional TCA-1 timecode adapter generates and outputs timecode or jams to an external clock with 0.5 ppm accuracy. You can also receive wireless timecode from the ATOMOS UltraSync BLUE using the TCA-1 or the BTA-1 Bluetooth adapter (both available separately).

The BTA-1 also enables remote operation via the Zoom Handy Control & Sync app for iOS—letting you control start/stop functions, manage multiple recorders, and synchronize timecode effortlessly.

Portable Recorder

• Form Factor: Handheld Recorder
• Number of Tracks: 8 (6 Inputs + Stereo Mix)
• Number of Input Channels: 6 (6 × Mono)
• Maximum Sampling Rate: 192 kHz / 32-Bit Float
• Microphone: Built-In Cardioid Stereo Pair, A/B Configuration
• Number of Microphone Inputs: 6
• Built-In Speaker: Yes, 250 mW
• Display: 2" Color LCD
• Memory Card Support: microSDHC, microSDXC (up to 2 TB)
• Internal Storage: No
• Special Features: None

Recording

• Audio File Formats: BWF, iXML, WAV
• Sample Rates: 44.1 / 48 / 96 / 192 kHz
• Bit Depth: 16 / 24-Bit or 32-Bit (Floating Point)
• Signal Processing & FX: Limiter
• Timecode Support: Yes
• Recording Time:
  • WAV 48 kHz / 32-Bit: 15 Hours (Stereo)
  • WAV 192 kHz / 32-Bit: 2 Hours (All Channels)
• Included Software: No

Connectivity

• Analog I/O:

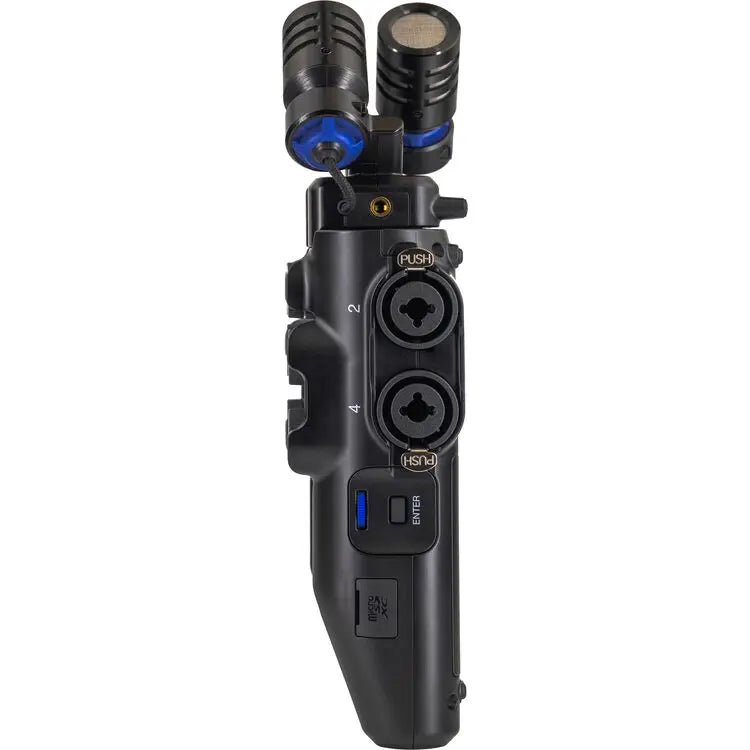

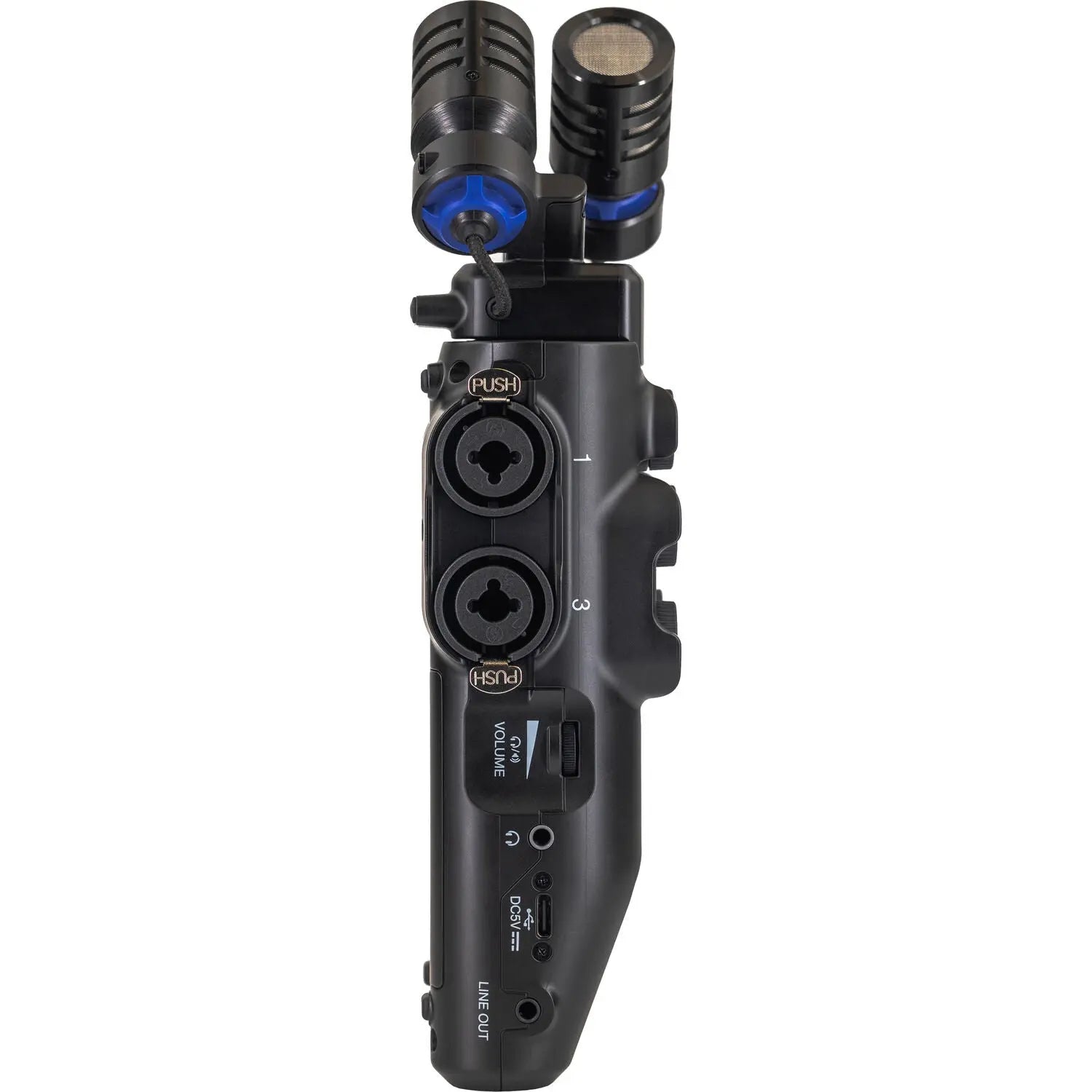

  • 4 × Combo XLR-1/4" 3-Pin Inputs
  • 1 × 1/8" / 3.5 mm TRS Input
• Digital I/O: No
• Phantom Power: +48 V
• System Connection: USB-C
• Audio Interface Capability: Multi-Track
• Wireless: Bluetooth (via optional adapter)
• Mobile App Compatible: Yes (Android & iOS)

Performance

• Gain/Trim Range: +60 dB
• Max Input Level: Mic Inputs: 140 dB
• Max Output Level: +1 dBu
• Headphone Output Power: 20 mW per Channel into 32 Ω
• Dynamic Range: Mic Inputs: 123 dB
• Impedance:
  • Mic Inputs: ≥ 3 kΩ
  • Line Inputs: ≥ 3 kΩ
• Microphone Sensitivity: –41 dB/Pa
• Microphone Max SPL: 140 dB SPL

Power

• Power Options: Battery, USB Bus Power, or AC/DC Adapter

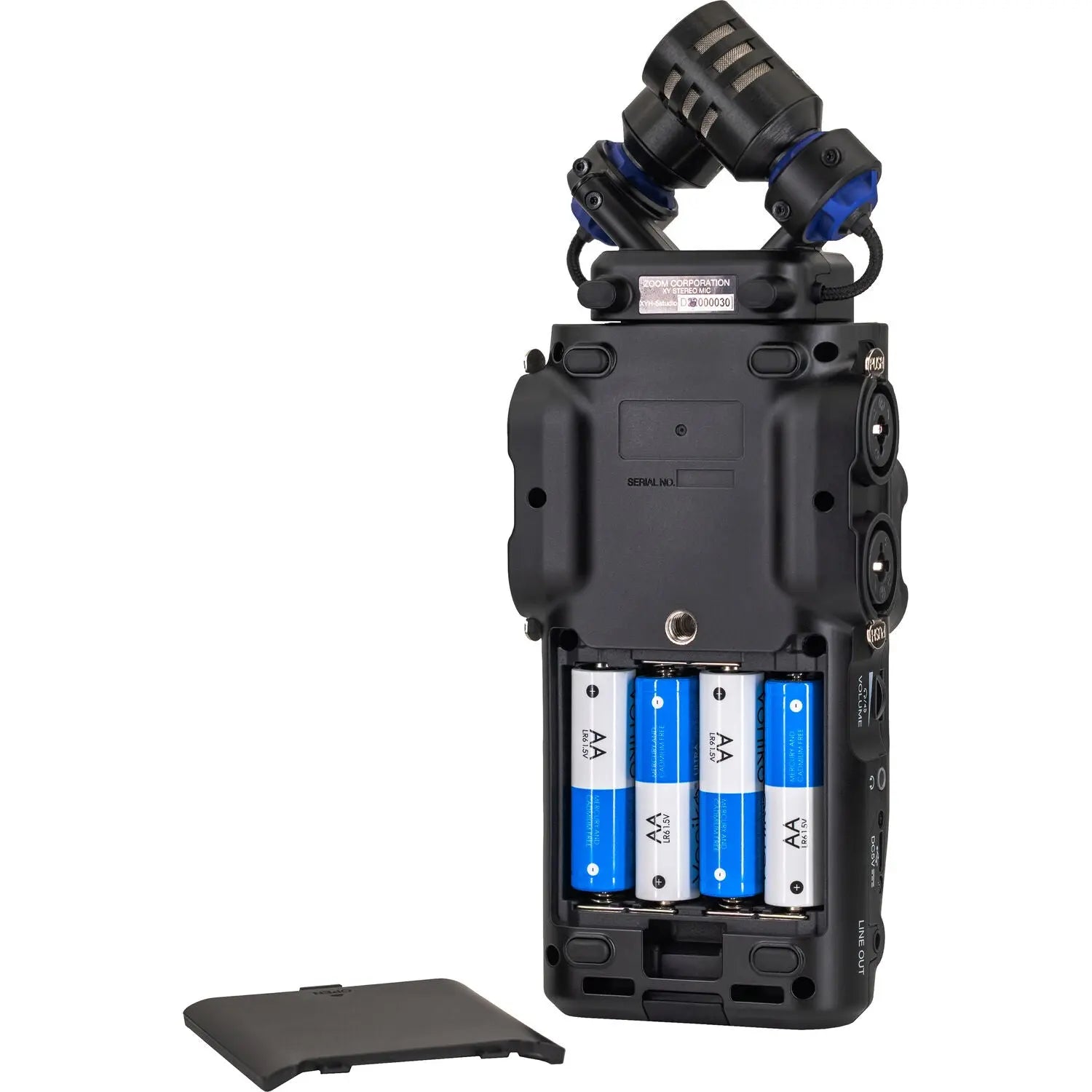

• Battery Type: 4 × AA
• Approximate Battery Life: 15 Hours (Alkaline, 2 Channels)
• AC/DC Power Adapter: 5 VDC (Not Included)
• Input Power: 5 VDC

Physical

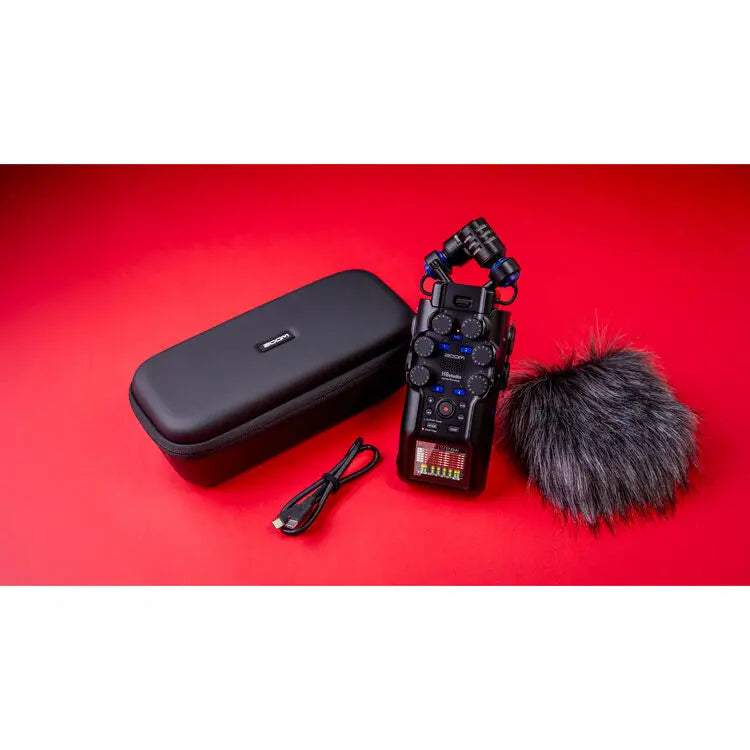

• Included Accessories: Microphone
• Dimensions: 3.3 × 2.1 × 8.7" / 83 × 54.5 × 221 mm
• Weight: 16.8 oz / 477 g (with Batteries)
