AJA Ki Pro Ultra 12G DCI/UHD/HD Recorder and Player (SDI, HDMI)

AJA Ki Pro Ultra 12G DCI/UHD/HD Recorder and Player (SDI, HDMI)

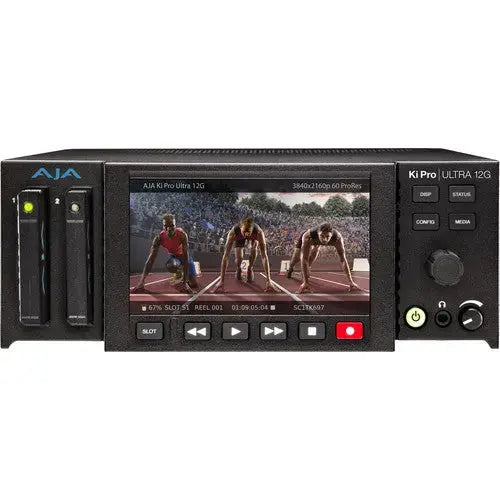

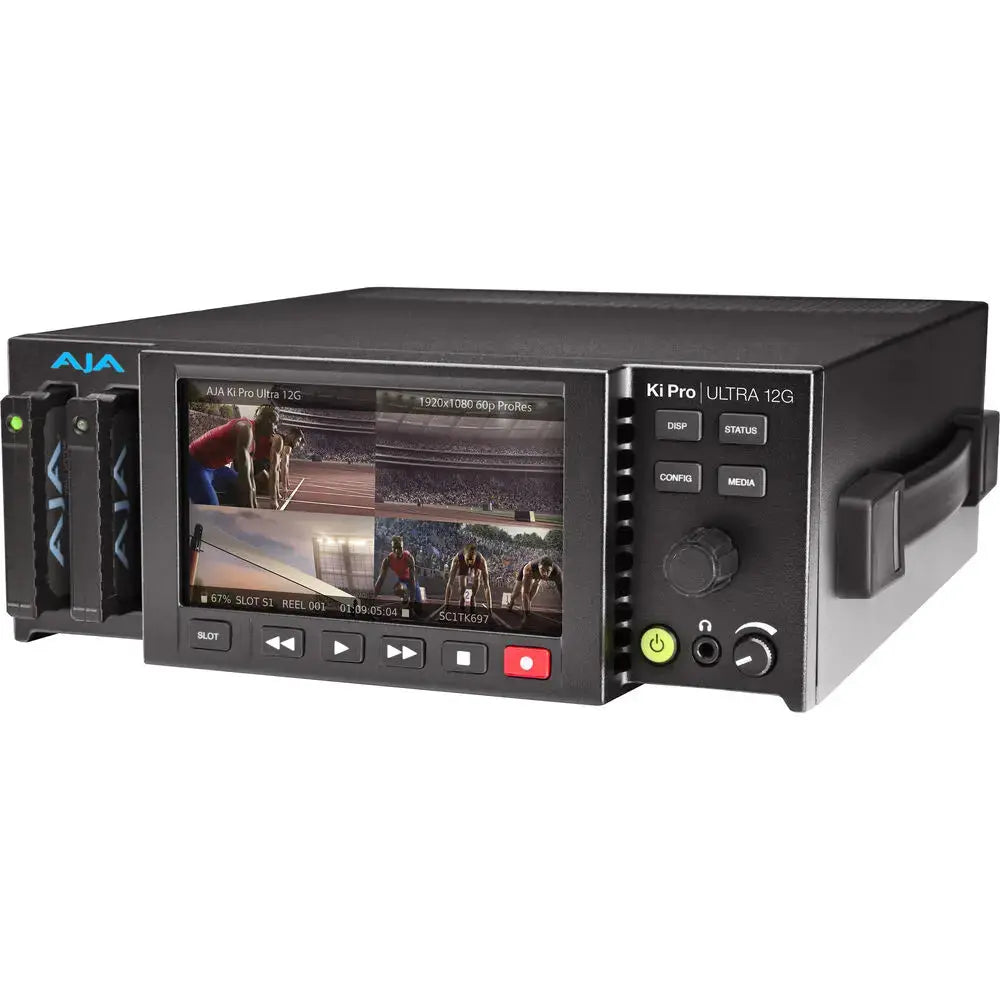

The Ki Pro Ultra 12G DCI/UHD/HD Recorder and Player is a portable media recorder with a built-in 4.8" LCD screen that is well suited to location as well as studio recording and playback. It supports recording a single 4K stream, either DCI or UHD 4K, as well as multiple HD streams in ProRes. Avid DNxHR and DNxHD recording are supported for a single channel in either 4K or HD. The Ultra 12G features a 12G-SDI input and output, as well as three 3G-SDI inputs and outputs. It also features a dedicated SDI monitor out, with overlays available in the menu system, and a rotary menu select knob with push-button VTR controls.

An integrated Ethernet connector allows you to control the Ki Pro Ultra 12G via a computer and web browser, and there's a DB-9 connector for RS-422 control. The unit will easily integrate into a control room or OB van. Two media slots for AJA Pak media allow you to record endlessly as the Ki Pro will switch over to the empty recording media when the fist AJA Pak is full. The half-rack width and two rack height make this a highly portable unit and also suitable for rack-mounting with optional accessories. The redundant XLR power inputs allow for catastrophic failure of one power source with a second one as a backup, so you don't lose a frame when recording.

Display

Panel Type TFT LCD

Display Size 4.8" / 12.2 cm

Resolution 1280 x 720

Aspect Ratio 16:9

Touchscreen No

Pixels Per Inch (ppi) 305 ppi

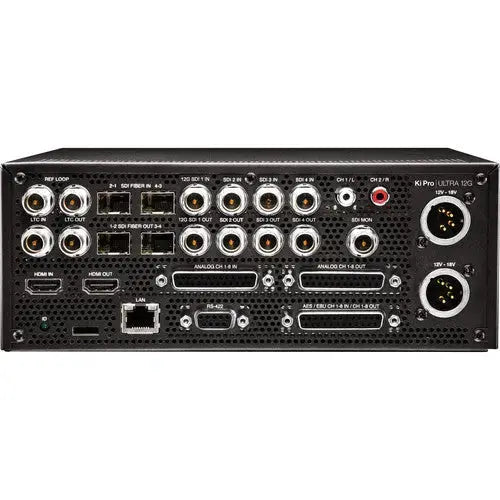

I/O

Video

1 x BNC (12G-SDI) Input

3 x BNC (3G-SDI) Input

1 x BNC (12G-SDI) Output

3 x BNC (3G-SDI) Output

1 x BNC (3G-SDI) Monitor Output

1 x HDMI Type A (HDMI 2.0) Input

1 x HDMI Type A (HDMI 2.0) Output

2 x SFP (12G-SDI) Input

2 x SFP (12G-SDI) Output

Embedded Audio

SDI: 16-Channel

Fibre: 16-Channel

HDMI: 8-Channel

Audio

1 x DB-25 TASCAM Input

1 x DB-25 TASCAM Output

1 x DB-25 TASCAM Input/Output

1 x 2RCA Output

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker None

Power I/O 2 x XLR 4-Pin (18 VDC) Input

Other I/O

1 x LAN (RJ45) Input/Output

2 x Genlock (BNC) Input

2 x Genlock (BNC) Output

1 x RS-422 (DE-9/DB-9)

File System Support HFS+, exFAT

Format Support

Video Format SDI/Fiber (10/12-Bit 4:4:4/4:2:2)

DCI 4K: 60/59.94/50/30/29.97/25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 30/29.97/25

1080PsF: 29.97/25/24/23.98

720p: 60/59.94/50

HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K

HDMI (4:2:0 YCC) UHD 4K

Timecode Support Yes

Recording

Pulldown Conversion None

Camera Trigger None

Pre-Roll Record None

Encoding Formats

Up to 4096 x 2160

ProRes 4444 XQ, 4444, 422 HQ, 422, LT, Proxy

Up to 4096 x 2160

DNxHR HQ, SQ, LB

Up to 1920 x 1080

DNxHD 220x MXF, 145 MXF

1920 x 1080

DNxHD 36

Closed Caption Support CEA-708, CEA-608

Reference Input Blackburst, Looping (Non-Terminating), Tri-Level Sync

Power

DC Input Power 12 to 18 VDC

Battery Type None

Operating Current 5.4 A

Power Consumption 60 W (Typical) 65 W (Maximum)

General

Dimensions 9.34 x 8.64 x 3.31" / 23.72 x 21.95 x 8.41 cm

Weight 5.6 lb / 2.54 kg
