Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control

Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control Overview

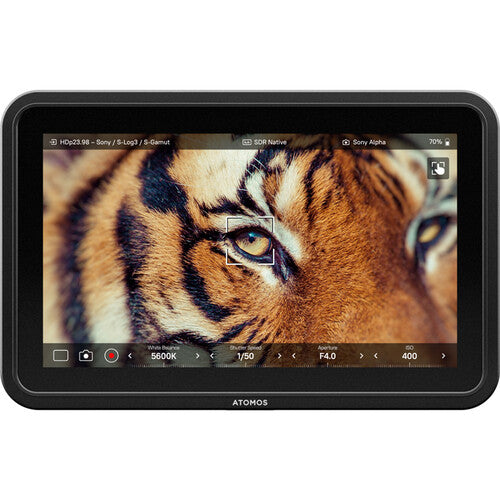

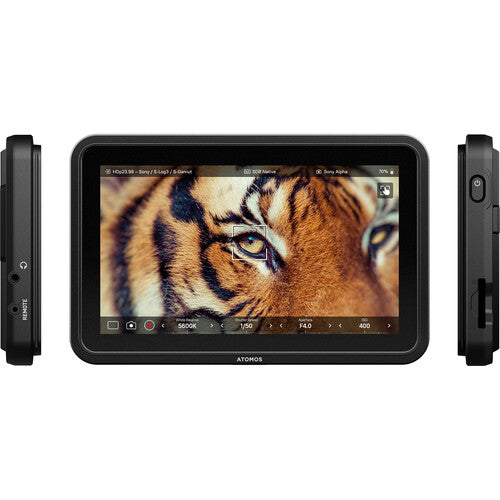

The Atomos Shinobi 7 II 4K HDMI HDR Monitor with Camera Control is a bright, professional 7-inch on-camera monitor designed for filmmakers and video professionals who need accurate, daylight-viewable monitoring and comprehensive camera control. Featuring a 1920 x 1080 IPS LCD display with a 2800 cd/m² backlight, the Shinobi 7 II provides excellent visibility in bright outdoor conditions without requiring a monitor hood. The display supports HDR monitoring of up to 10 stops of dynamic range and comes factory colour calibrated for accurate image representation.

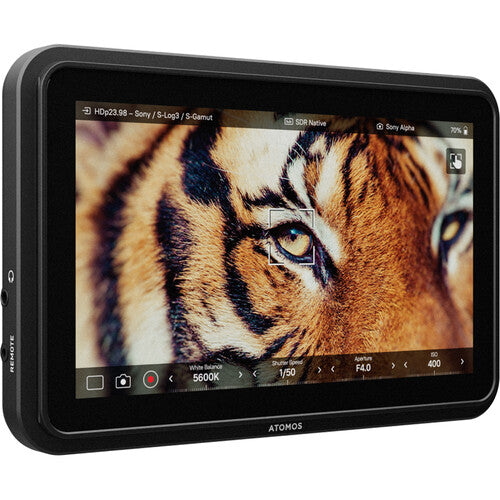

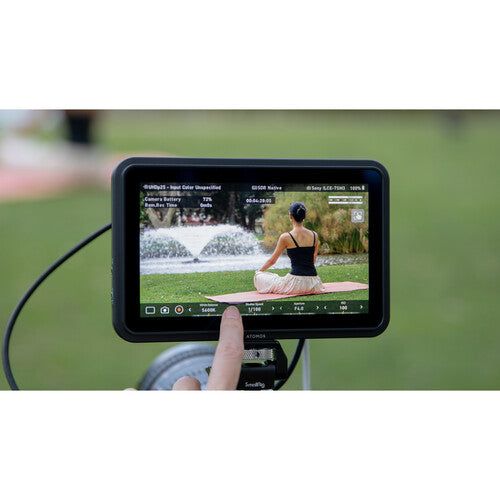

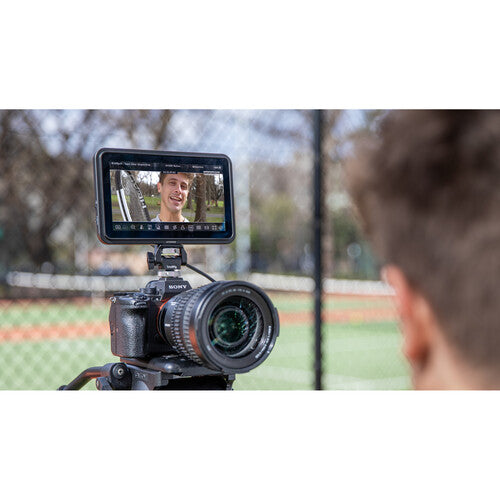

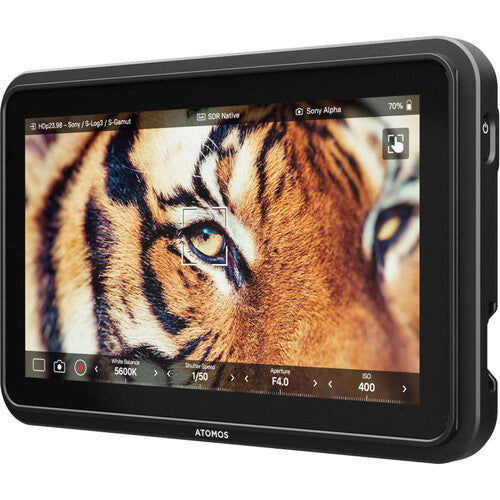

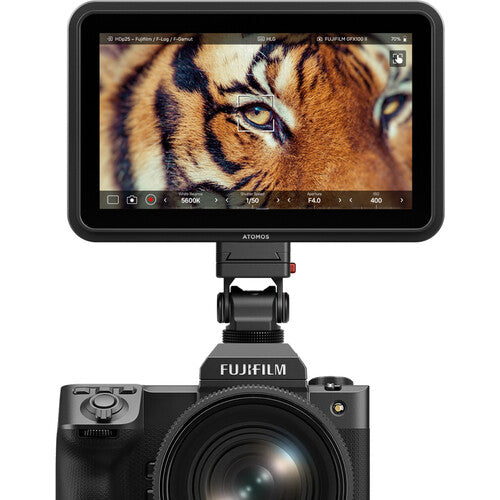

With HDMI 2.0 input and output, the Shinobi 7 II supports monitoring DCI and UHD 4K footage at up to 30 fps and can output up to 4K30. A USB-C control connection provides camera control for compatible Canon, FUJIFILM, Nikon, Panasonic and Sony cameras, allowing you to adjust settings such as focus point, white balance, aperture, shutter speed/angle and ISO directly from the touchscreen. The monitor can also trigger the camera's shutter, making it useful for HDR bracketing, focus stacking and other still-image workflows.

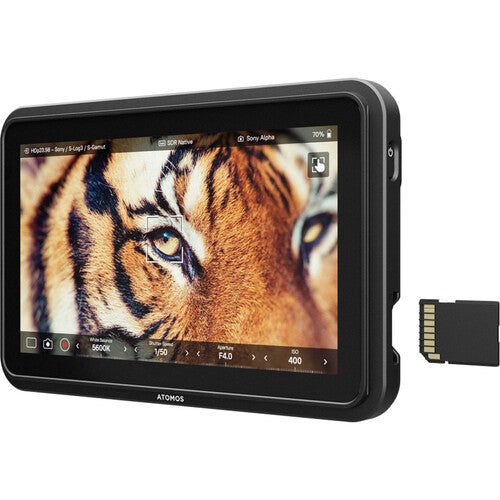

The Shinobi 7 II provides a comprehensive range of professional monitoring tools through the latest AtomOS firmware. These include waveform, histogram, RGB parade, vectorscope, focus peaking, zebra, false colour, EL Zone, frame guides, safe areas, anamorphic de-squeeze, zoom and MultiScope analysis. You can load custom 3D LUTs via the SD card slot and apply them to input and output signals; the same slot can also be used for firmware updates.

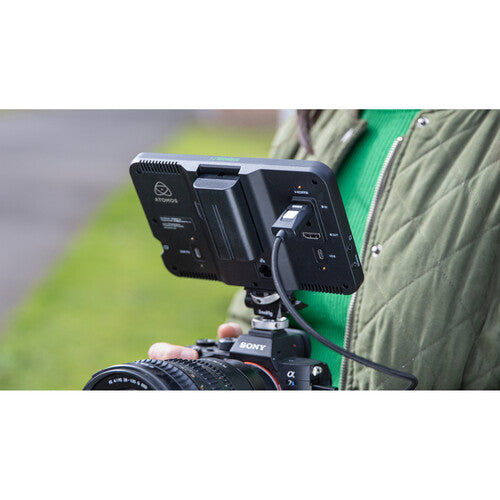

For production audio, the Shinobi 7 II supports embedded audio through HDMI as well as 3.5mm analogue audio input and output, providing convenient monitoring and audio embedding options. The USB-C port can also connect to a compatible calibration probe for on-device display calibration, while the monitor's centred L-series battery slot and 36W USB-C PD input provide flexible powering options for location and studio workflows.

Built for demanding production environments, the Shinobi 7 II combines a large, high-brightness display with advanced HDR monitoring, camera control and professional image analysis tools. Its support for a wide range of Log formats and colour gamuts makes it a versatile monitoring solution for cinema cameras, mirrorless cameras and professional video production setups.

Panel Type: IPS-Type LCD

Display Size: 7.0" / 17.8 cm

Native Resolution: 1920 x 1080

Aspect Ratio: 16:9

Touchscreen: Yes

Maximum Brightness: 2800 nits / cd/m²

Colour Support: 1.07 Billion Colours (10-Bit)

HDR Support: Yes: Advanced HDR

Colour Gamut: 100% Rec. 709

LUT Support: Yes

Image Controls: Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

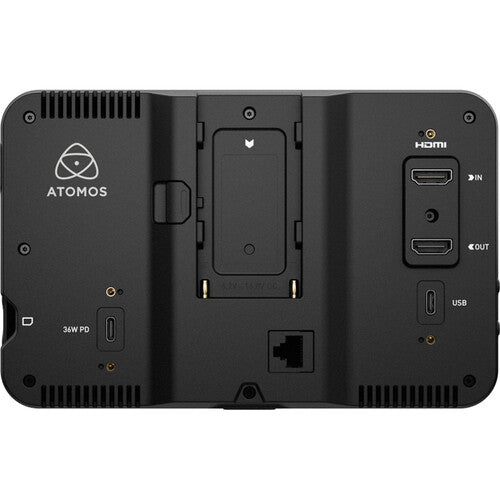

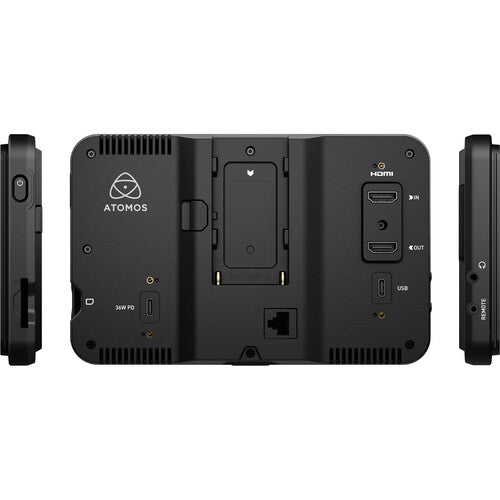

Video I/O: 1 x HDMI 2.0 Input, 1 x HDMI 2.0 Output

Embedded Audio: HDMI: 2-Channel

Audio I/O: 1 x 3.5 mm Line Input, 1 x 3.5 mm Headphone Output

Built-In Speaker: No

Power I/O: 1 x USB-C (16.8 VDC) Input

Other I/O: 1 x RJ45 (LAN) Input/Output, 1 x USB-C (Calibration) Input/Output (Shared with Camera Control)

Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC (LUT/Firmware Update Only)

Wireless: No

Wi-Fi: No

Bluetooth: No

Mobile App Compatible: No

Video Format: HDMI (8/10-Bit 4:2:2), DCI 4K, UHD 4K, DCI 2K, 1080p, 1080i, 720p

DCI 4K: 30/29.97/25/24/23.98 fps

UHD 4K: 30/29.97/25/24/23.98 fps

DCI 2K: 30/29.97/25/24/23.98 fps

1080p: 60/59.94/50/29.97/25/24/23.98 fps

1080i: 60/59.94/50 fps

720p: 60/59.94/50 fps

Input Power: 6.2 to 16.8 VDC

Battery: 1 x L-Series Mount on Fixed Plate

Power Consumption: 13 W (Maximum)

Tripod/Accessory Mounting: Top/Bottom, 1 x 1/4"-20 Female, 1 x 3/8"-16 Female

Environmental Resistance: No

Operating Conditions: Up to 40°C

Material of Construction: Plastic

Dimensions: 188 x 120 x 23 mm

Weight: 401 g
