BEHRINGER WING DIGITAL MIXING CONSOLE BLACK

BEHRINGER WING DIGITAL MIXING CONSOLE BLACK Overview

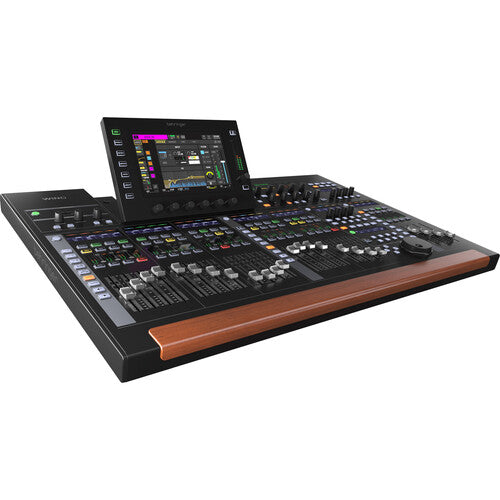

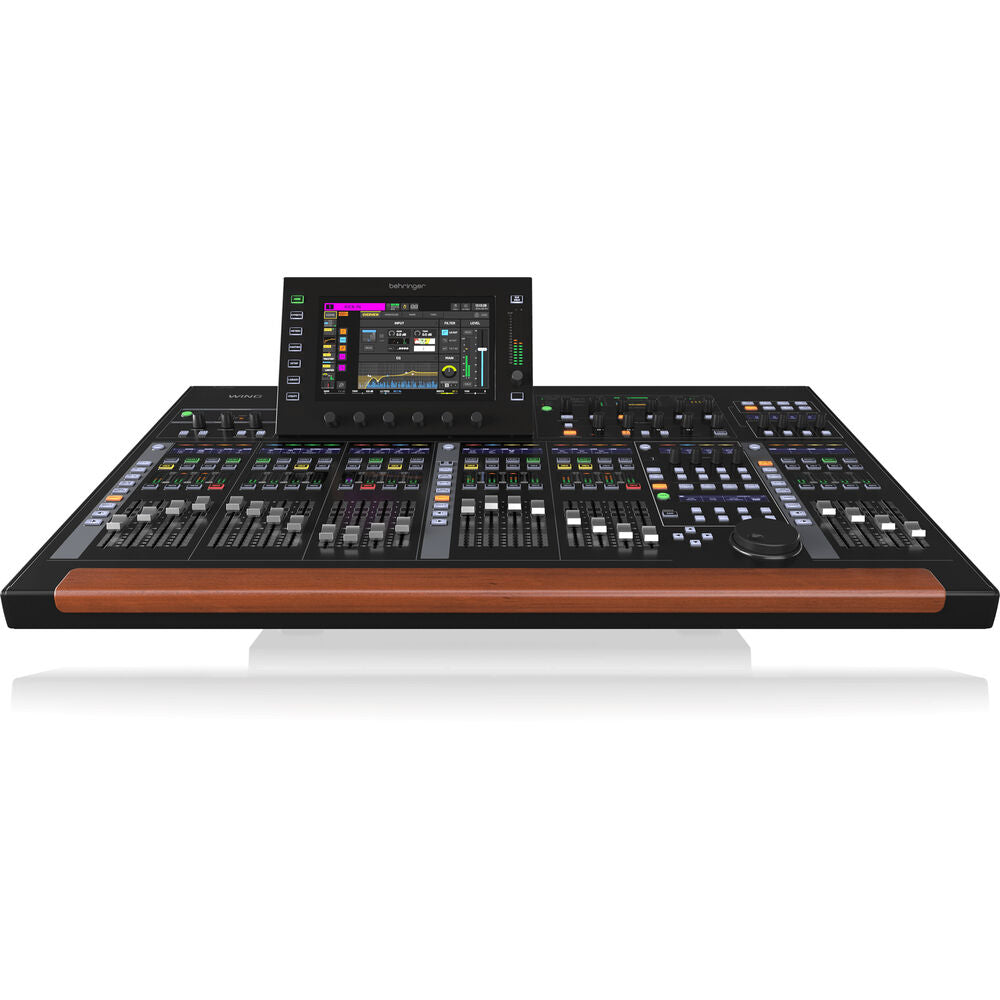

The Behringer WING Digital Mixer is a powerful 48-stereo-channel digital mixing console designed to deliver professional live sound performance with an intuitive workflow, extensive connectivity, and advanced processing capabilities. Combining a hands-on control surface with modern digital mixing technology, the WING is ideal for live performances, touring, houses of worship, theatres, broadcast, and complex production environments.

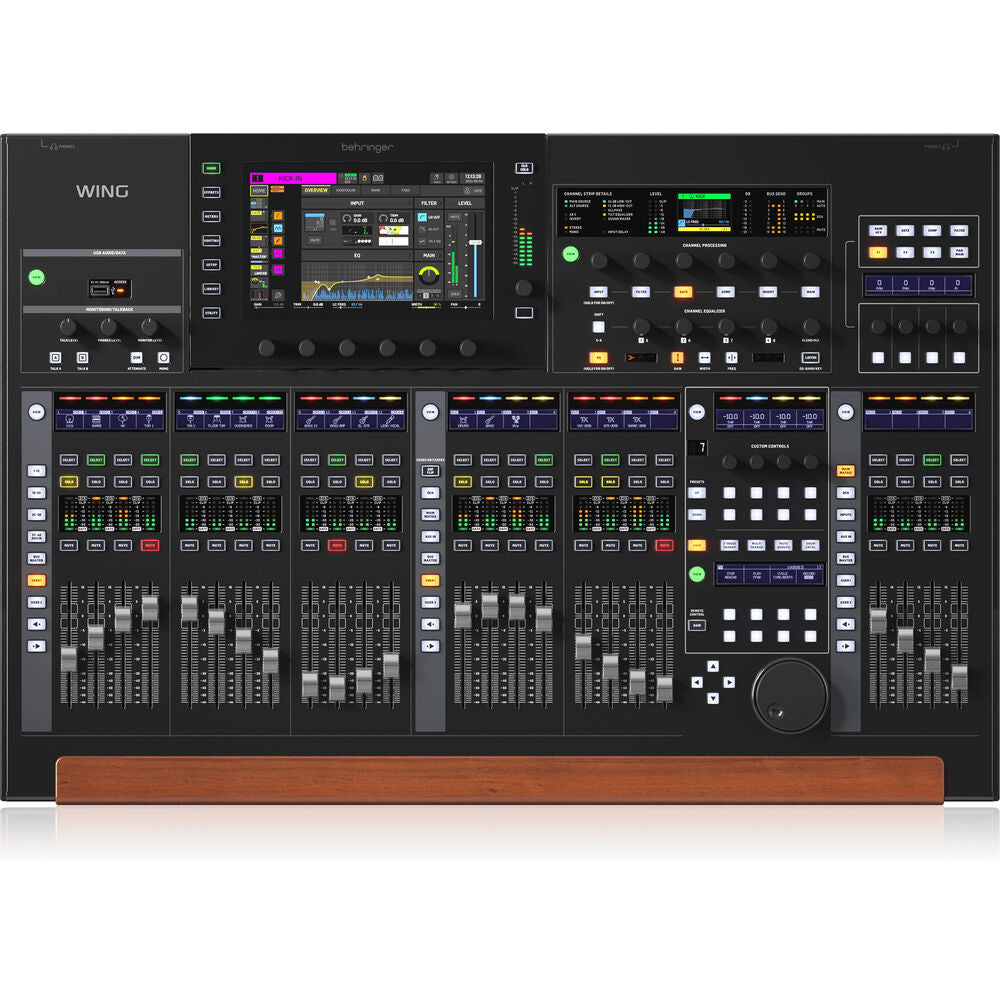

The WING provides a highly responsive mixing experience with 24 motorised 100 mm faders, a capacitive touchscreen, adjustable display wheel, and touch-sensitive rotary controls for fast and precise operation. At the heart of the console are eight MIDAS PRO microphone preamps, delivering premium audio quality and exceptional clarity, while extensive digital I/O options provide flexible integration with a wide range of professional audio systems.

Designed for efficient workflow, the WING introduces an intuitive Sources-based architecture, allowing users to focus on the actual audio sources rather than traditional routing complexities. The console supports up to 48 stereo channels, with flexible channel processing and advanced signal management for demanding live productions.

The WING features 16 true-stereo effects processors and over 80 professional effects and emulations, including models inspired by legendary studio hardware such as Pultec EQs, SSL bus compressors, Neve EQs, LA-2A compressors, 1176 limiters, DBX160 processors, Elysia mPressor, Empirical Labs Distressor, and more. With 40-bit internal processing, double the effect engines and insert points compared to the X32 series, the WING delivers improved accuracy, greater dynamic range, and studio-quality processing without requiring external hardware.

Advanced show management allows users to save and recall individual effects parameters, channel configurations, console settings, or complete show files. This makes the WING ideal for productions requiring fast and reliable changes between performances, including live concerts, theatre productions, and multi-event environments.

For recording and playback, the WING includes the WING LIVE card, enabling up to 64-channel simultaneous recording directly to dual SD cards. This allows engineers to capture performances, perform virtual soundchecks, or use separate SD cards for recording and playback workflows. The expansion system can also be upgraded with a WING Dante card to provide full 64 × 64 Dante networking capability for large-scale audio installations.

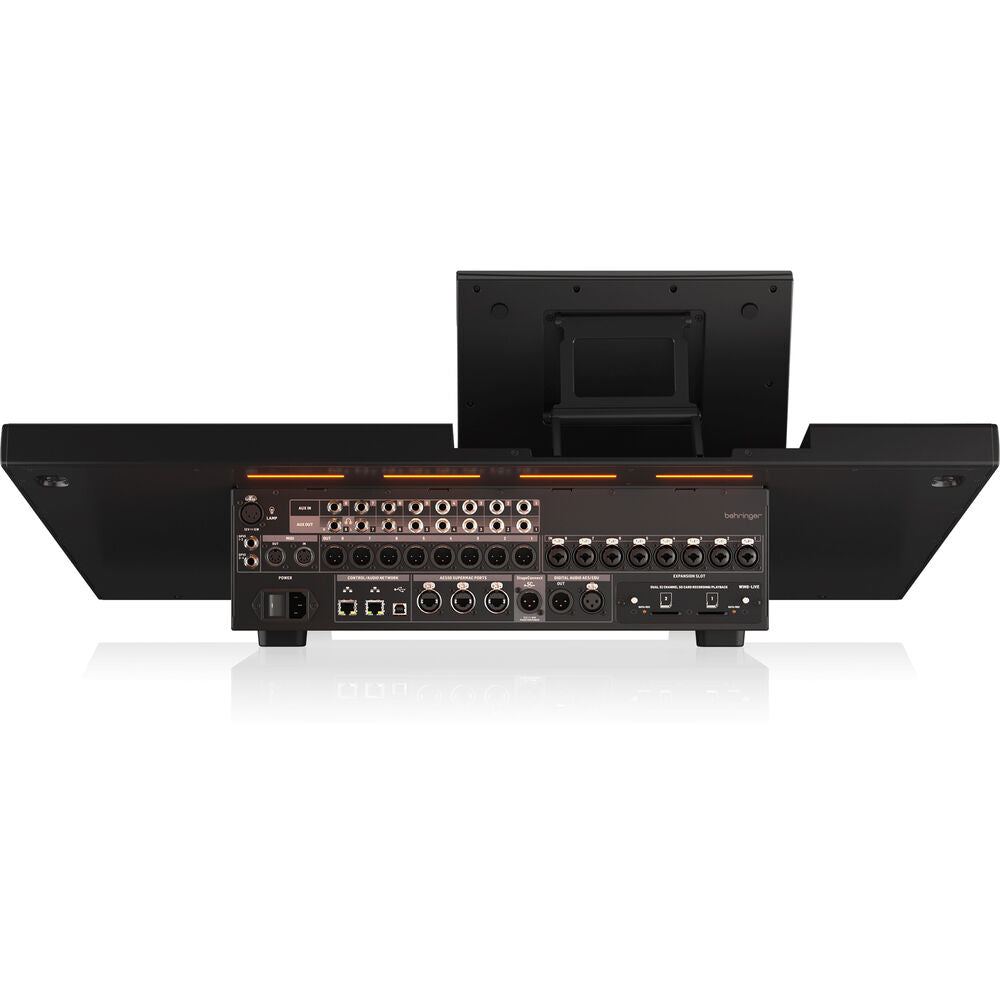

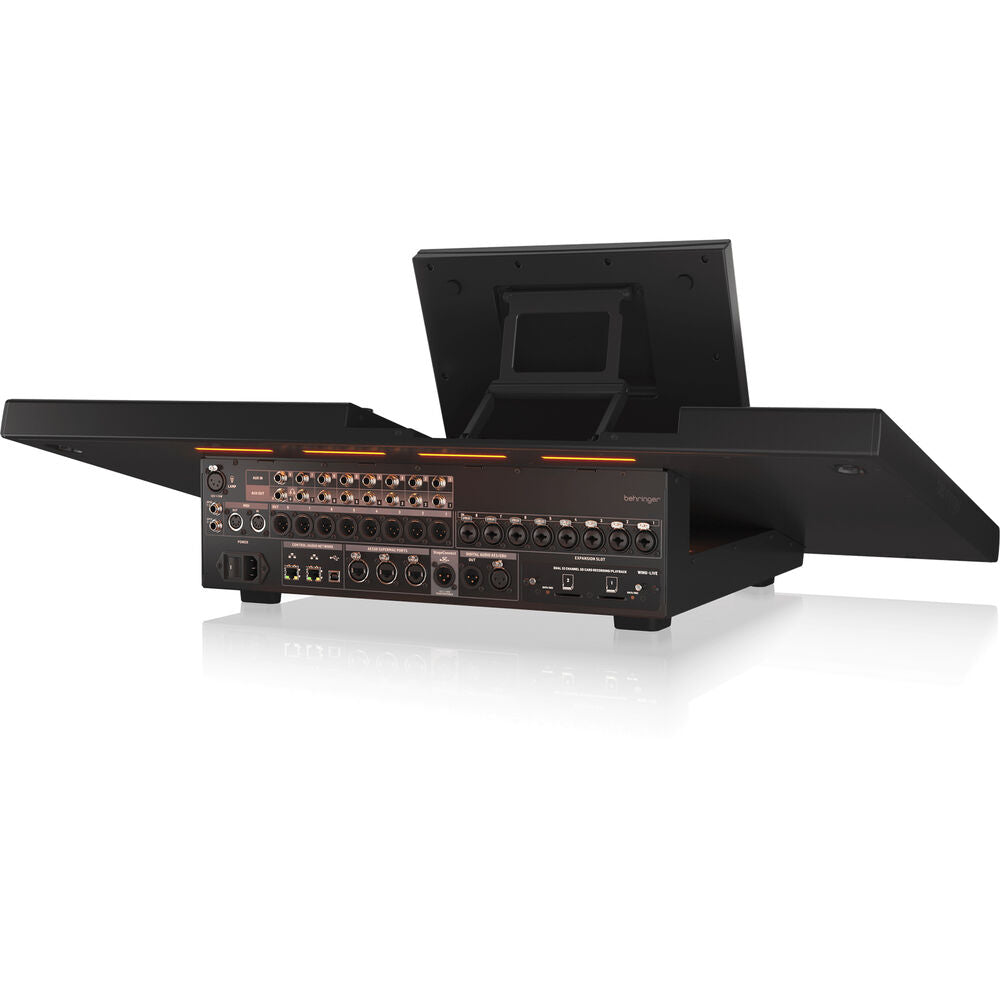

The built-in 48-in/48-out USB audio interface provides direct connection to a computer-based DAW for recording, mixing, and production workflows. Optional expansion cards and advanced networking options allow the WING to integrate seamlessly into professional audio environments.

The WING also supports StageConnect technology, providing up to 32 channels of 24-bit digital audio at 44.1/48 kHz over a single XLR or DMX cable. This enables simple connection to compatible I/O interfaces, hubs, and personal monitoring systems, with long cable runs of over 30 m (100 ft) possible using standard 3-pin XLR DMX cables. The StageConnect Configurator app helps calculate channel requirements, power needs, and cable lengths for complex setups.

Combining premium MIDAS preamps, powerful DSP processing, flexible recording options, and an intuitive control surface, the Behringer WING Digital Mixer is a comprehensive solution for professional live sound engineers and production teams seeking a versatile and expandable digital mixing platform.

```
