BirdDog 4K 12G-SDI NDI Encoder/Decoder

BirdDog 4K 12G-SDI NDI Encoder/Decoder

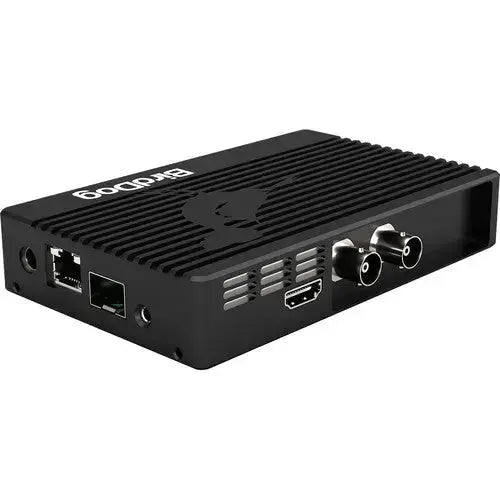

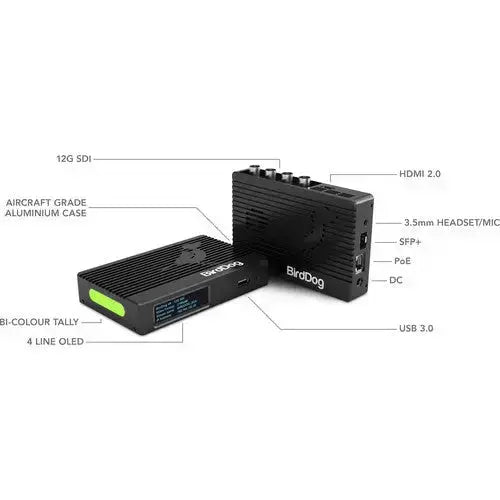

Based on BirdDog's custom NDI silicon chip, the BirdDog 4K 12G-SDI NDI Encoder/Decoder supports up to UHD 4K/60 video input for distribution on NDI networks in full-bandwidth I-frame compression. The compact device is housed in an aircraft-grade aluminium case and features a 12G-SDI input and 12G-SDI and HDMI 2.0 individual outputs. It also has a built-in cross converter that allows the SDI input to be looped out via the HDMI output.

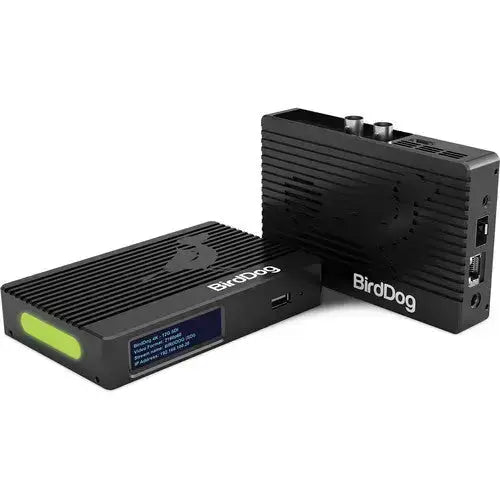

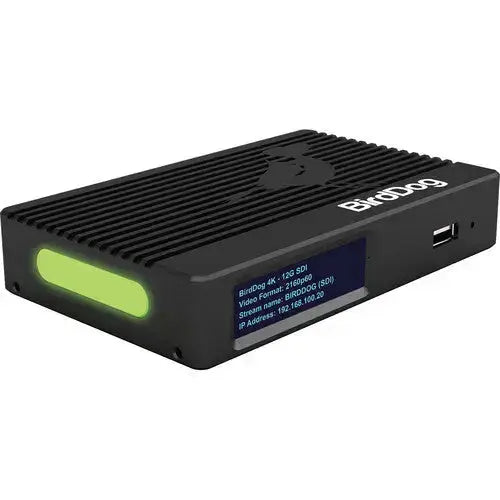

Another major feature is an SFP+ expansion slot that supports SFP+ modules for fibre connectivity and Ethernet protocols from 1-10GbE. A tally system with a large bicolour tally light is also built for indicating which camera is life to on-air talent. The tally system also allows user-selectable tally borders to loop out. The device is complete with a 3.5mm audio input/output, a 4-line OLED display, and a USB 3.0 interface. It can be powered by a standard power supply or over PoE+.

The 4K 12G-SDI NDI Encoder/Decoder comes with the BirdDog Comms Lite audio intercom software, which supports up to four BirdDog devices. Comms Lite is Windows compatible and offers features such as director push to talk, mute camera operator, auto-detect NDI sources, monitor camera audio, and shortcut to the web console. For a more complete version of the application, an optional upgrade is available to Comms Pro. The Encoder/Decoder is also compatible with the optional BirdDog Central software, which helps you decode NDI back to SDI or HDMI.

BirdDog BD4K Specs

Input

Video Input Connectors 1 x BNC (12G-SDI)

Input Video Format SDI UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps 1080p: 23.98/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps

Audio Input Connectors 1 x 1/8" / 3.5 mm TRS

Embedded Audio Input SDI: 2-Channel

Output

Video Output Connectors 1 x HDMI (HDMI 2.0) 1 x BNC (12G-SDI)

Output Video Format SDI UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps 1080p: 23.98/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps HDMI UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps 1080p: 23.98/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94/60 fps

Audio Output Connectors 1 x 1/8" / 3.5 mm TRS Stereo

Embedded Audio Output SDI: 2-Channel HDMI: 2-Channel

Connectivity

Other I/O 1 x USB Type-A PoE

Expansion Slots 1 x SFP+ Slot

Tally Light Yes

Power

Power Connector 1 x Barrel (12 VDC) Input 1 x RJ45 Input

PoE Support PoE+ 802.3at

Power Consumption Device: 16 W

General

Dimensions 5.31 x 3.35 x 0.98" / 13.5 x 8.5 x 2.5 cm

Weight 0.57 lb / 260 g
