Blackmagic ATEM 4 M/E Broadcast Studio 4K
- Unit price
- / per
Main Features
- Supports HD/UltraHD 4K @ 10-bit
- 20 x 12G-SDI Inputs
- Tri-Sync/Blackburst Ref. Sync Input
- Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in HD/4K HD
- 16 Upstream & 2 Downstream Keyers
- 24-Input x 2-Channel Audio Mixer
- Hardware or Software Mac/Windows Control
Blackmagic ATEM 4 M/E Broadcast Studio 4K
- Unit price
- / per
Try these products
Adding product to your cart
Main Features
- Supports HD/UltraHD 4K @ 10-bit
- 20 x 12G-SDI Inputs
- Tri-Sync/Blackburst Ref. Sync Input
- Built-In Frame Synchronizers
- Two Independent Multi-View Outputs
- Program Outputs in HD/4K HD
- 16 Upstream & 2 Downstream Keyers
- 24-Input x 2-Channel Audio Mixer
- Hardware or Software Mac/Windows Control
You may also like
You may also like
-
What's in the box
- ATEM 4 M/E Broadcast Studio 4K
- SD card with software and manual
- 1 Year Warranty
Blackmagic ATEM 4 M/E Broadcast Studio 4K
The Blackmagic Design ATEM 4 M/E Broadcast Studio 4K is a live switcher designed for HD and UHD 4K broadcast productions. Twenty 12G-SDI inputs support UHD 4K video up to 59.94 fps, and are backward compatible with 1080p, 1080i, or 720p sources as well (inputs do not feature scaling, so all sources must be of the same resolution). All inputs are frame synchronized, so non-genlocked sources can be used. Audio is supported via all SDI inputs plus 2 sets of dedicated analog stereo inputs via XLR and RCA. For in-the-box mixing, connect a computer running ATEM software control, and have immediate control of all audio channel inputs. Connections for timecode, reference, and control are also available. SDI outputs are available for program and preview, and they can operate at either HD or UHD resolutions, just like the inputs. Two preview outputs allow you to spread your multi-view over two displays.
Like its namesake, the ATEM 4 M/E Broadcast Studio 4K features four mix-effects buses for creating advanced effects to boost production value. Within each mix-effects bus, there are 4 built-in upstream keyers, for a total of 16 keyers, enabling your production to take advantage of many video and graphics layers simultaneously. Two downstream keyers for bugs, logos, and global lower-thirds are also available. The built-in DVE processing lets you adjust video streams with control over size and rotation, plus, 3D borders, drop shadows, and lighting effects are also available.
Other connectivity includes Ethernet for adding control surfaces, or for remote control over a network. USB connectivity allows for the ATEM switcher's firmware to be updated in the future, and for internal settings. The entire chassis of the ATEM 4 M/E Broadcast Studio 4K fits inside a standard 19" equipment rack, only requiring 2 RU of space. Internal redundant power supplies require separately available standard IEC cables for power.
Creative Transitions
ATEM live production switchers have a choice of transitions including Cut, Mix, Dip and Wipe patterns. Key frame based DVE moves, flying graphics and animated stingers are also integrated. Every transition is instantly available and you get full control of the transition type, pattern, length and more.
Upstream Keyers
ATEM live production switchers include powerful upstream keying for broadcast effects. Layer live video, titles, graphics and animation over live video or graphic backgrounds with incredible quality using chroma, luma, linear and pattern keying. The ATEM 4 M/E Broadcast Studio 4K features 16 total upstream keyers for advanced layering.
Downstream Keyers
ATEM switchers feature two downstream keyers so you can insert high quality graphics like logos, bugs and titles over the live 'on air' program output. Downstream keyers are the last layers of keying so they overlay all video switched to the main program. You can also easily bypass the downstream keyers by using the clean feed aux outputs. This means you can record the clean feed as your master and use the downstream keyers for overlays that you only want on air.
DVE
Digital video effects, or DVE, lets you control size, position, rotation of an incoming video stream and features 3D borders, drop shadows and lighting. You can save customized DVE positions and automatically trigger the picture to animate full screen or zoom.
Audio Mixer
Open the audio mixer control tab on your Mac or Windows device and you get complete multi track mixing control with level meters You can precisely direct camera and external audio with level and balance adjustments, enable and disable channels or activate audio follow video mode instantly. You can also connect to Mackie standard USB audio mixer panels, giving you hardware feedback and the feel of flying faders and meter displays.
SuperSource
In addition to the mix-effects buses, keyers, and video effects, SuperSource layering provides an additional 4 independent DVE channels so you can resize and position live cameras, video replays, broadcast graphics and more. SuperSource is like having an additional multi-layer VFX switcher built in. For example, you would be able to take four video feeds and incorporate them picture-in-picture for live interviews during your broadcast.
Multiview Flexibility
Multi view makes it easy to see your cameras, graphics, preview and program outputs on single screen. That means you don't need lots of monitors to see all your individual cameras. Use the two multiview outputs to spread up to 16 inputs across two screens.
Switchable TV Standards
With the ATEM 4 M/E Broadcast Studio 4K you have the flexibility to work in different standards at any time. If your other equipment only supports HD, the ATEM 4 M/E Broadcast Studio 4K has the processing capabilities for switching to 4K when you're ready.
Internal Media Players
You can store broadcast quality RGBA graphics in the media pool ready for instant playback via the ATEM media players. The two media players appear as input sources to your switcher. You can transition to graphics as full frame video or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG and TIFF are supported.
Photoshop CC Plugin
With the included Photoshop CC plug-in, you can create graphics live and then instantly download them into the ATEM media pool. Designers can create professional broadcast graphics such as logos, lower thirds, scorecards and other real-time graphics that can be downloaded directly to instantly change live graphics as they come in. -
Connections
Total Video Inputs 20
Total Video Outputs 13
Total Aux Outputs 6
SDI Rates 1.5G, 3G, 6G, 12G
Total Audio Inputs 2 x XLR. 2 x RCA.
Total Audio Outputs 2 x XLR Program 2 x XLR Monitor.
Timecode Connections 1 x XLR Timecode in and 1 x XLR Timecode out.
Reference Input Tri-Sync or Black Burst.
Video Input Re-sync On all 20 inputs.
SDI Video Inputs 20 x 10-bit HD/Ultra HD 4K switchable. 2 channel embedded audio.
Extra Audio Outputs 1 x XLR Timecode and 1 x XLR Talkback.
SDI Audio Outputs 2 Ch embedded into SDI output on all outputs.
Extra Audio Inputs 1 x XLR Timecode and 1 x XLR Talkback.
SDI Program Outputs 3 x 10-bit HD/Ultra HD 4K switchable.
Down Converted SDI Program Output 1 x 10-bit (From Ultra HD 4K to HD).
SDI Preview Outputs 1 x 10-bit HD/Ultra HD 4K switchable.
Quantity of Multi Views 2 x SDI.
Multi View Outputs 2 x SDI.
Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Tally Output Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Computer Interface 1 x USB 2.0 port.
Standards
SD Video Standards None.
HD Video Standards: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 1080i50, 1080i59.94
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
SDI Compliance SMPTE: 292M, SMPTE 424M, SMPTE 2082.
Video Sampling 4:2:2
Color Precision 10-bit.
Color Space REC 601, REC 709, REC 2020.
Product Specifics
Upstream Keyers 16 with Chroma/Linear/Luma key.
Downstream Keyers 2
Chroma Keyers 16
Talkback Support None
Mix Minus Support None
Linear/Luma Keyers 19
Transition Keyer (Stinger/DVE) 1 Stinger, 1DVE .
Total Number of Layers 26
Pattern Generators 19
Color Generators 2
DVE with 3D Borders & Drop Shadow 1
Control Panel Software or optional hardware panel.
Routable Windows 16
Tally Red for program and green for preview indication.
Windows Source Labels Yes
Multi View Monitoring
Multi View Monitoring 2 x 10 Views for 20 total views.
Multi View Video Standard Select HD or Ultra HD.
Media Player
Media-players 4
Media Pool Still Image Capacity 64 with fill and key.
Media Pool Clip Capacity 2 with fill and key.
Media-player Clip Length in 720 HD 3200 frames.
Media-player Clip Length in 1080 HD 1440 frames.
Media-player Clip Length in Ultra HD 360 frames.
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format TGA Sequence.
Media Pool Audio File Format WAV, MP3 and AIFF.
Display
Interface Minimum monitor resolution of 1366 x 768.
Front panel Built in HD LCD monitor for video and 42 LED buttons for Aux switching.
Processing
Processing Delay < 7 Lines
Audio Mixer
24 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Dedicated analog outputs for monitoring.
4K to HD Down Conversion Yes, program x 1.
Software
Control Panel Included ATEM Software Control Panel included free for Mac OS X 10.11 El Capitan or macOS Sierra 10.12 or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software Updates Using USB 2.0 connection directly connected to Mac OS X or Windows computers. Includes ATEM Setup Utility.
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility
Operating Systems
Mac Icon macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows Icon Windows 8.1 or Windows 10.
Power Requirements
Power Supply 2 x Internal 110 - 240 AC.
Power Usage 300W
Physical Specifications
LxWXH - 482mmx235mmx90mm
Physical Installation
Physical Installation 2 Rack Unit Size.
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing
12 Month Limited Manufacturer's Warranty.
-
-
Showcased Accessories
See All Video MonitoringBlackmagic DesignBlackmagic Design SmartView 4K 2 15.6" DCI 4K Broadcast Monitor (6 RU)
SKU#: HDL-SMTV4K12G2Main Features
- 15.6" 3840 x 2160 Active-Matrix TFT LCD
- Supports up to DCI 4K60 Video
- 2 x Multi-Rate 12G-SDI Inputs
- 1 x Optical Fiber SDI Socket
- SDI Loop-Through Output, Tally Input
- Dual 3D LUT Support
- Peaking, Zoom & Adjustable Markers
- H/V Delay, Blue Only & Frame Markers
- Front Panel & Ethernet Control
- Upscales SD/HD to UHD
$1,949.00
- Unit price
- / per
$1,949.00
- Unit price
- / per
$1,949.00
- Unit price
- / per
$1,949.00
- Unit price
- / per
Estimated Order-to-Ship Time: 1-2 Days iThis item is anticipated to ship from our supplier to us within 1-2 business days of ordering. Once your order is processed, we'll ensure prompt shipment. A Videoguys Australia sales representative will contact you if any unexpected delays arise.See All BNC to BNC Cables$449.95
- Unit price
- / per
$449.95
- Unit price
- / per
$449.95
- Unit price
- / per
Estimated Order-to-Ship Time: 2-3 Days iThis item is anticipated to ship from our supplier to us within 2-3 business days of ordering. Once your order is processed, we'll ensure prompt shipment. A Videoguys Australia sales representative will contact you if any unexpected delays arise.Video Monitoring
See All Video MonitoringBlackmagic DesignBlackmagic Design SmartView 4K 2 15.6" DCI 4K Broadcast Monitor (6 RU)
SKU#: HDL-SMTV4K12G2Main Features
- 15.6" 3840 x 2160 Active-Matrix TFT LCD
- Supports up to DCI 4K60 Video
- 2 x Multi-Rate 12G-SDI Inputs
- 1 x Optical Fiber SDI Socket
- SDI Loop-Through Output, Tally Input
- Dual 3D LUT Support
- Peaking, Zoom & Adjustable Markers
- H/V Delay, Blue Only & Frame Markers
- Front Panel & Ethernet Control
- Upscales SD/HD to UHD
$1,949.00
- Unit price
- / per
$1,949.00
- Unit price
- / per
$1,949.00
- Unit price
- / per
$1,949.00
- Unit price
- / per
Estimated Order-to-Ship Time: 1-2 Days iThis item is anticipated to ship from our supplier to us within 1-2 business days of ordering. Once your order is processed, we'll ensure prompt shipment. A Videoguys Australia sales representative will contact you if any unexpected delays arise.Blackmagic DesignBlackmagic Design SmartView Duo Rackmountable Dual 8" LCD Monitors
SKU#: HDL-SMTVDUO2Main Features
- 3G/HD/SD-SDI Inputs, Both with Loop-Out
- Integrated Tally for Live Broadcast
- Ethernet Input for Adjustments
- Upgradeable Firmware via USB
- 2K, 1080i/p, 720p & 50/60 Hz SD Support
- 10-Bit Color & 4:2:2 / 4:4:4 Sampling
- 800 x 480 Resolution
$849.00
- Unit price
- / per
$849.00
- Unit price
- / per
$849.00
- Unit price
- / per
$849.00
- Unit price
- / per
Estimated Order-to-Ship Time: 1-2 Days iThis item is anticipated to ship from our supplier to us within 1-2 business days of ordering. Once your order is processed, we'll ensure prompt shipment. A Videoguys Australia sales representative will contact you if any unexpected delays arise.BNC to BNC Cables

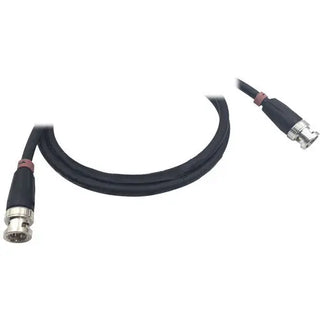

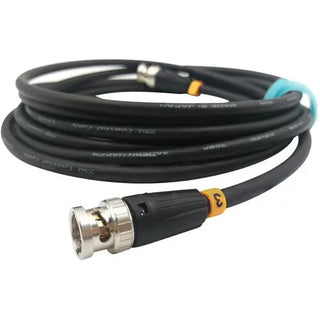

See All BNC to BNC Cables$449.95
