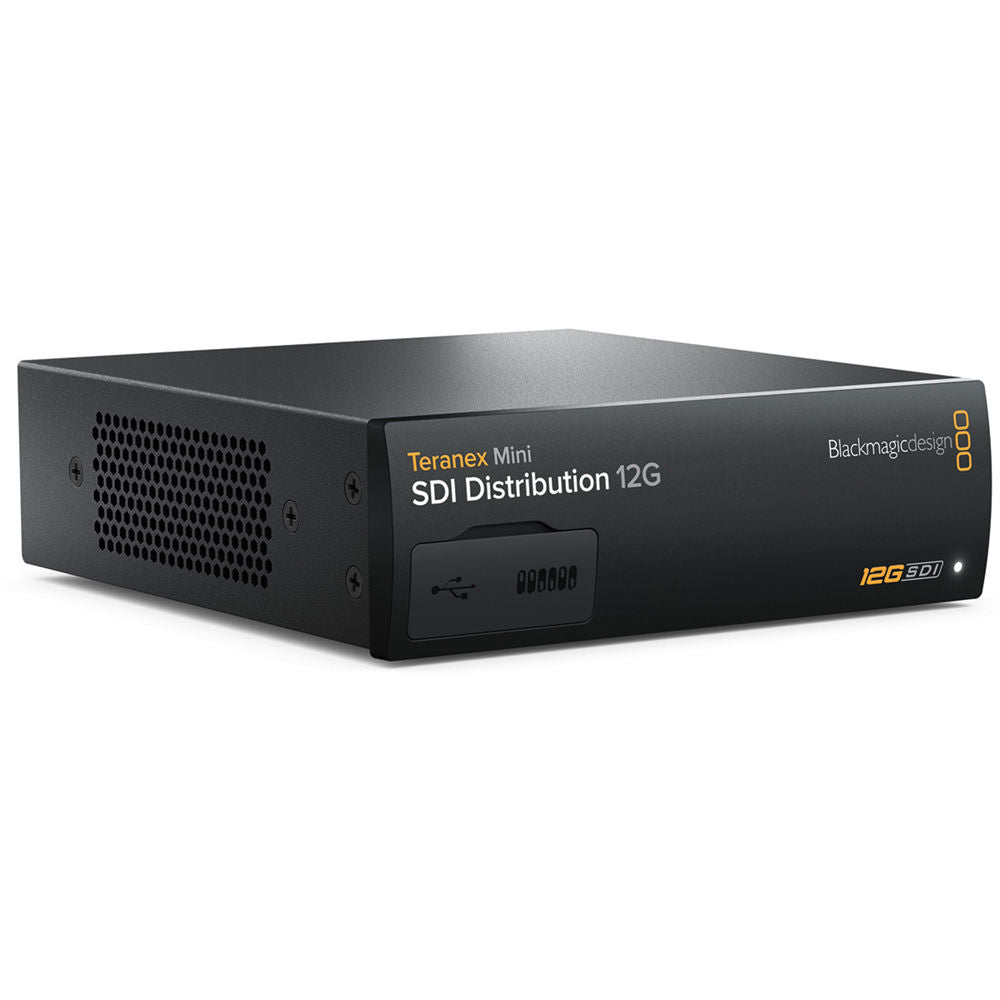

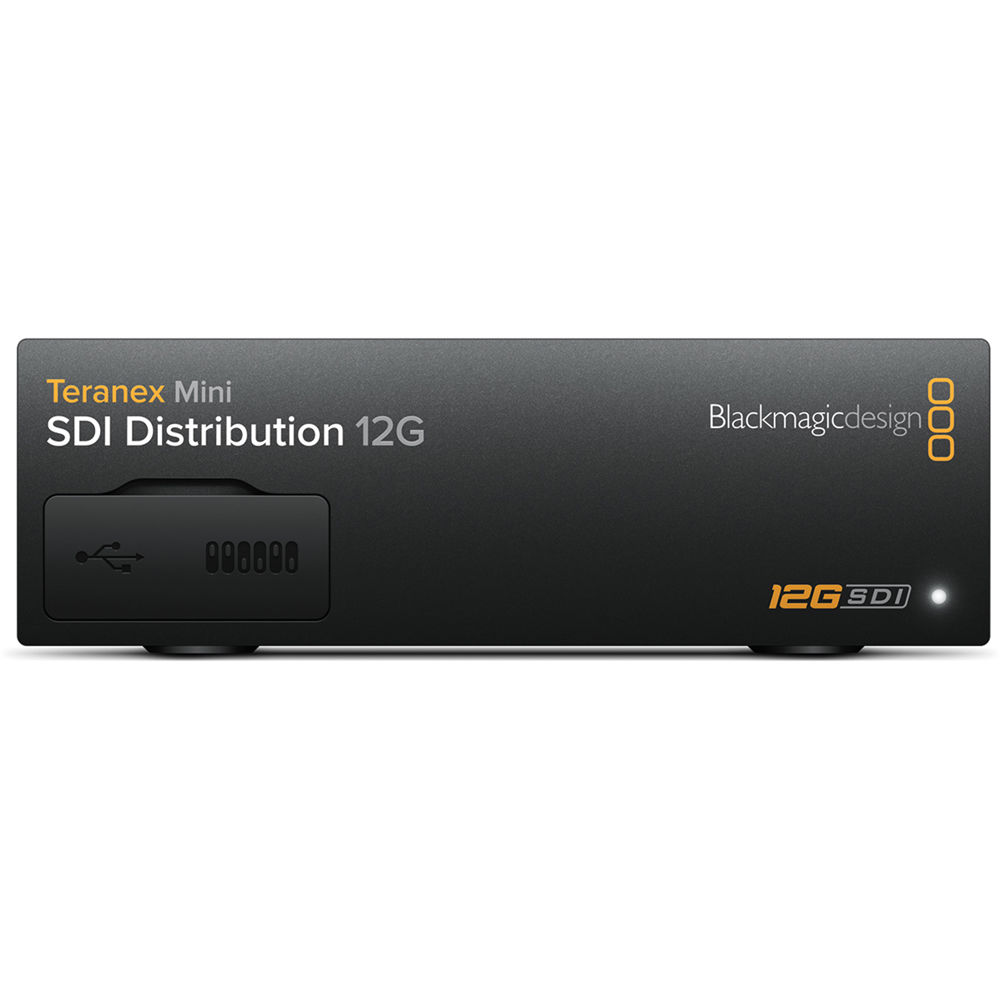

Blackmagic Design Teranex Mini SDI Distribution 12G

SKU: CONVNTRM/EA/DA

Estimated dispatch: 3-5 business days Orders are typically shipped within this timeframe. We’ll keep you updated if anything changes.

Overview

The Blackmagic Design Teranex Mini SDI 12G Distribution is a professional SDI distribution solution that allows a single SDI video input to be distributed to up to eight SDI outputs. It is ideal for sending one video signal simultaneously to multiple devices such as monitors, switchers, recorders and encoders. Featuring multi-rate...

Product Highlights

Main Features

Distribute Signal to Multiple Devices
1 x 12G-SDI Input up to 4K
8 x 12G-SDI Outputs to Match Input
4K/2K/HD/SD Automatic Switching
Reclocking, 16-Channel Audio Support

Read Full Description

What's in the box

Teranex Mini - SDI Distribution 12G
Software SD Card

Blackmagic Design Teranex Mini SDI Distribution 12G

Name: Blackmagic Design Teranex Mini SDI Distribution 12G
Brand: Blackmagic Design
SKU: CONVNTRM/EA/DA
Price: 839.0 AUD
Availability: InStock

SKU: CONVNTRM/EA/DA

Estimated dispatch: 3-5 business days Orders are typically shipped within this timeframe. We’ll keep you updated if anything changes.

Tax Included

$839.00

Unit price: per

Estimated dispatch: 3-5 business days Orders are typically shipped within this timeframe. We’ll keep you updated if anything changes.

Tax Included

$839.00

Unit price: per

4 x

$209.75

from

$10

4 x

$209.75

Quantity

Tax included.Shipping calculated at checkout.

Write a Review

Ask a Question

Overview

Product Highlights

Main Features

Distribute Signal to Multiple Devices
1 x 12G-SDI Input up to 4K
8 x 12G-SDI Outputs to Match Input
4K/2K/HD/SD Automatic Switching
Reclocking, 16-Channel Audio Support

Read Full Description

What's in the box

Teranex Mini - SDI Distribution 12G
Software SD Card

Blackmagic Design Teranex Mini SDI Distribution 12G Overview
The Blackmagic Design Teranex Mini SDI 12G Distribution is a professional SDI distribution solution that allows a single SDI video input to be distributed to up to eight SDI outputs. It is ideal for sending one video signal simultaneously to multiple devices such as monitors, switchers, recorders and encoders.

Featuring multi-rate 12G-SDI connections with full SDI reclocking, the unit automatically supports SD, HD and 4K video formats up to 2160p60, making it suitable for a wide range of broadcast and professional video applications.

Features

Distributes 1 SDI input to 8 SDI outputs

Multi-rate 12G-SDI technology

Full SDI reclocking for reliable signal distribution

Automatically supports SD, HD and 4K video formats

Supports video up to 2160p60

Suitable for distributing SDI signals to multiple monitors, switchers and encoders

Compact solution for professional broadcast and video production environments

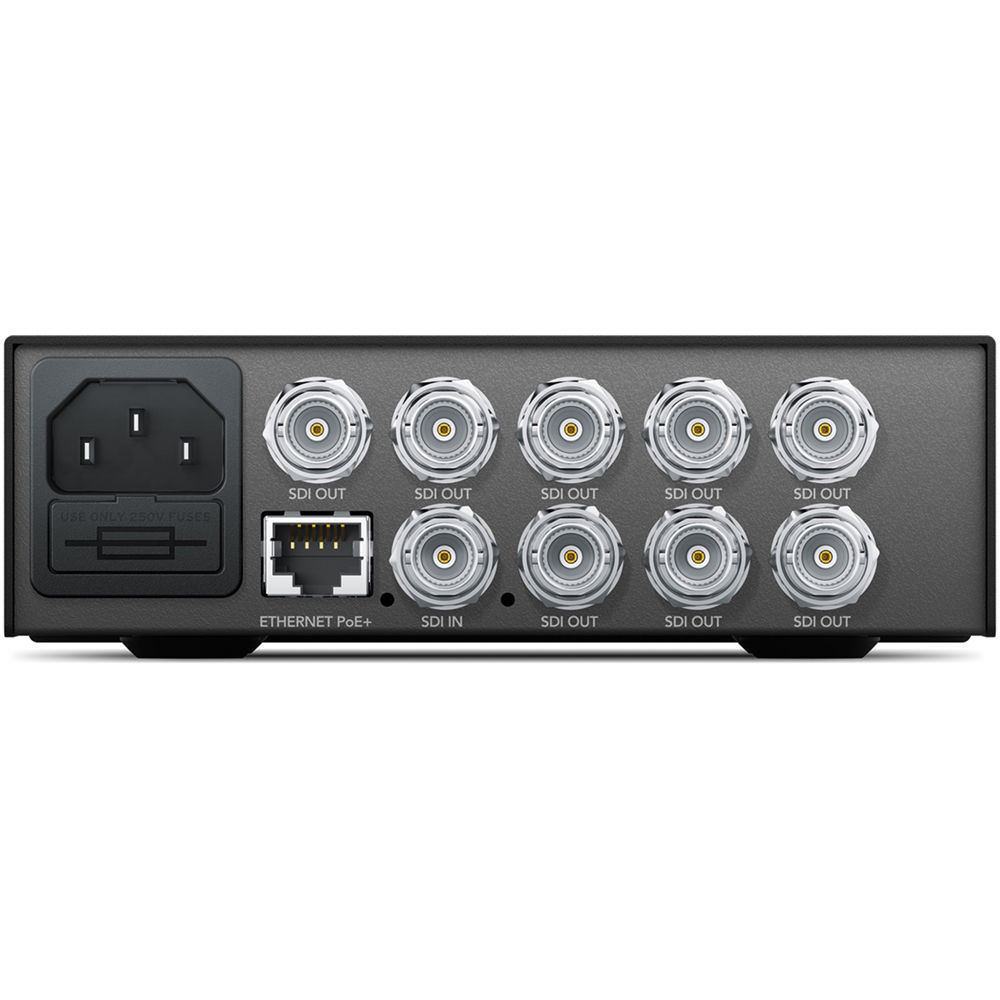

Interfaces

Input: 1 x BNC (12G-SDI) Female

Output: 8 x BNC (12G-SDI) Female

Embedded Audio: SDI: 16-Channel

Ethernet: 1 x RJ45 (10/100 Mbps) Input/Output

Firmware: 1 x Mini-USB Input

Standards

Video Standard Compliance: SMPTE 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Reclocking: Yes

HDR Support: No

HDCP Support: No

EDID Support: No

Transmission

Video Format:

4096 x 2160: 23.98 / 24 / 25 fps

3840 x 2160: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps

2048 x 1080p: 23.98 / 24 / 25 fps

2048 x 1080PsF: 23.98 / 24 / 25 fps

1920 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps

1920 x 1080PsF: 23.98 / 24 / 25 / 29.97 / 30 fps

1280 x 720p: 50 / 59.94 / 60 fps

720 x 576i: 50 fps

720 x 480i: 59.94 fps

SDI Sampling: 4:4:4 / 4:2:2

Audio Format: Unspecified digital signal, 48 kHz / 24-Bit

Power

Power Input: 1 x IEC C14

Power Supply: 100 to 240 VAC

Power Consumption: 16 W

ESD Protection: No

Operating Conditions

Operating Temperature: 32 to 104°F / 0 to 40°C

Operating Humidity: Up to 90%

Storage Temperature: -4 to 140°F / -20 to 60°C

Storage Humidity: Up to 90%

Physical

Dimensions: 6.7 x 5.5 x 1.8" / 170.2 x 139.7 x 45.7 mm

Weight: 1.28 lb / 580.6 g

```
