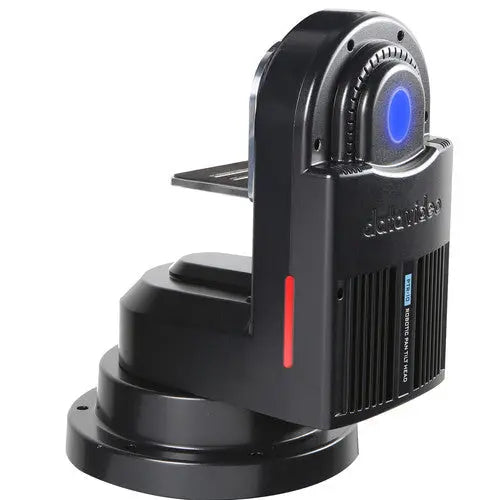

Datavideo PTR-10 MKII Robotic Pan and Tilt Head

The Datavideo PTR-10 MK II Robotic Pan Tilt Head brings professional PTZ-style remote control functionality to standard non-PTZ cameras, transforming traditional camera setups into fully controllable remote production systems. Designed for cameras weighing up to 8 lb, it delivers smooth, precise pan, tilt, and zoom control while maintaining compatibility with a wide range of broadcast and production workflows.

More than just a motorised head, the PTR-10 MK II integrates seamlessly with PTZ control ecosystems, allowing operators to manage camera movement, zoom, and focus via VISCA, DVIP, RS-422, RS-232, or IR remote control. It also supports lens control via LANC and other protocols, making it highly adaptable across Sony, Canon, Panasonic, and JVC camera systems.

The unit can be mounted on standard tripod legs, or installed on walls or ceilings using optional brackets, making it suitable for studio, live event, and fixed installation environments. It also supports video pass-through to external monitors, switchers, and control systems such as the RMC-180 series and RMC-300A, enabling full integration into professional broadcast workflows.

Built with a robust aluminium chassis, the PTR-10 MK II includes a built-in tally light, LED status indicators, selectable D-Tap power output for cameras and accessories, and a 1/4"-20 mounting plate for secure camera attachment. Its flexible power and control options make it a compact yet powerful solution for remote-controlled production setups.

Key Features

• PTZ-Style Control for Standard Cameras: Adds remote pan, tilt, and zoom functionality to non-PTZ cameras
• Wide Camera Compatibility:
  • Supports Sony, Canon, Panasonic, and JVC cameras
  • Compatible with Datavideo block cameras
• Advanced Control Protocols:
  • VISCA, DVIP, RS-422, RS-232, and IR remote control
  • Compatible with RMC-180 and RMC-300A controllers
• Integrated Lens Control: Supports zoom and focus control via LANC and other supported protocols
• Flexible Mounting Options:
  • Mounts on standard tripods
  • Optional wall and ceiling mounting support
• Professional Video Integration: 3G-SDI and HDMI connectivity for seamless routing to switchers, monitors, and production systems
• Built-In Tally System: Integrated tally light for live production cueing
• Power Distribution Capability:
  • D-Tap output for powering camera and accessories
  • Selectable voltage via DIP switch
  • Includes lockable camera power connector cable
• Durable Construction: Sturdy aluminium design built for studio and live production environments
• Broadcast-Ready Workflow: Ideal for live events, studios, education, and fixed installations

Datavideo PTR-10 Robotic Pan Tilt Head – Specifications

Pan & Tilt

• Pan Range: 340°
• Tilt Range: ±45°
• Pan Speed: 0.12° ~ 15°/sec
• Tilt Speed: 0.06° ~ 10°/sec
• Preset Positions: Pan: 50 / Tilt: 50

Camera Load

• Load Capacity: 8.82 lb / 4 kg

Video Support

• SDI: 6G-SDI
• HDMI: 1.4

Control

• Protocols: VISCA, DVIP
• Control Units: IR remote, RMC-180 (optional), RMC-300A (optional)
• Output Control Interfaces: RS-232, RS-422, BX-Lens, LANC

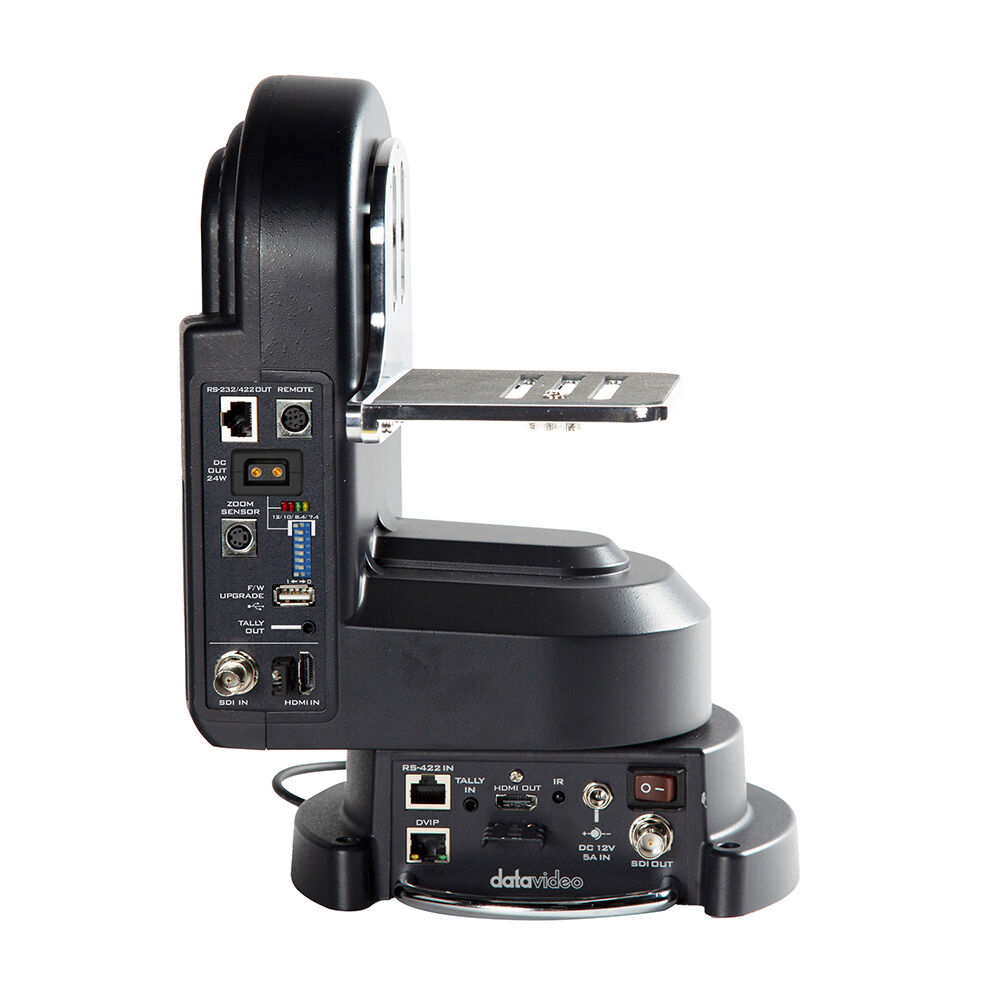

Connections

Video

• 1 x SDI Input (BNC)
• 1 x SDI Output (BNC)
• 1 x HDMI Input (Type-A)
• 1 x HDMI Output (Type-A)

Control

• Remote Camera Port: 1 x 8-Pin Mini-DIN
• RS-232/422 Input: 1 x RJ45
• RS-232/422 Output: 1 x RJ45
• Tally Port: 1 x Port
• Zoom Sensor: 1 x 4-Pin Mini-DIN
• DC Out: 1 x D-Tap

Power

• Input Voltage: 12–18 VDC
• Power Draw:
  • With Camera: 5A
  • Without Camera: 3A
• Output Voltage: 12V / 10V / 8.4V / 7.4V
• Max Output Power: 24W

Environmental

• Operating Temperature: 0°C – 40°C / 32°F – 104°F
• Operating Humidity: 10% – 80%
• Storage Temperature: -10°C – 60°C / 14°F – 140°F
• Storage Humidity: 5% – 80%

Physical

• Dimensions: 30 x 23 x 19 cm / 11.81 x 9.06 x 7.48 in
• Weight: 3.4 kg / 7.5 lb
