Epiphan AV.io HD+ USB 3.1 Gen 1 Video Grabber

Epiphan AV.io HD+ USB 3.1 Gen 1 Video Grabber

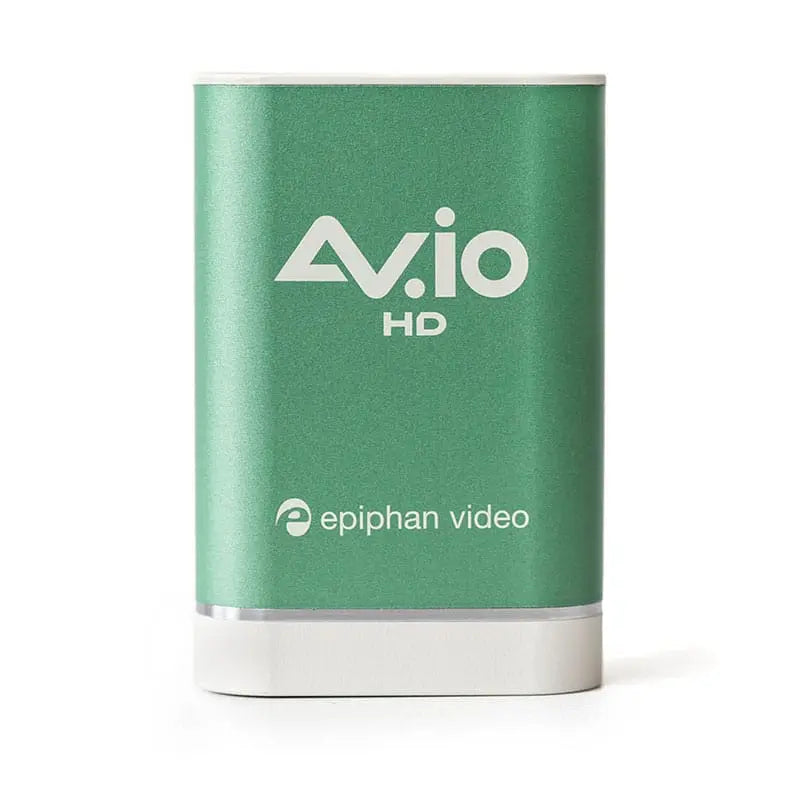

Transfer up to a 1080p / WUXGA DVI video signal to your computer with the robust and compact Epiphan AV.io HD Video Grabber. Using included adapters, do the same with HDMI and VGA signals.

The AV.io HD is a UVC device that shows up on your computer as a webcam. As a UVC device, it's designed to integrate with a capture software on your computer, and it's seamlessly compatible with all the popular capture software, including Wirecast, Skype, QuickTime, Adobe FMLE, and VLC media player, Windows Camera, and any conferencing software. The captured data can be used for a variety of purposes, like high-end streaming, webcam applications requiring higher image quality than standard webcams offer, and recording, such as if a doctor needs to capture an ultrasound.

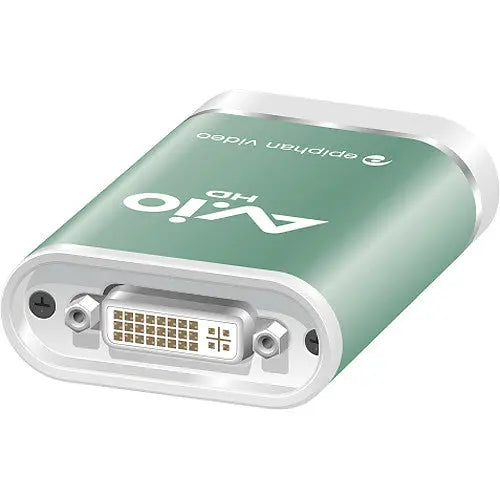

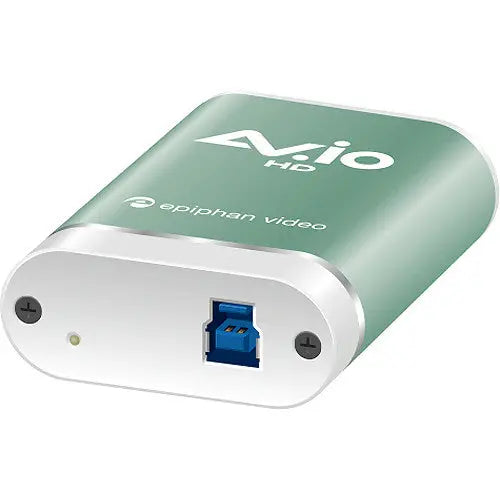

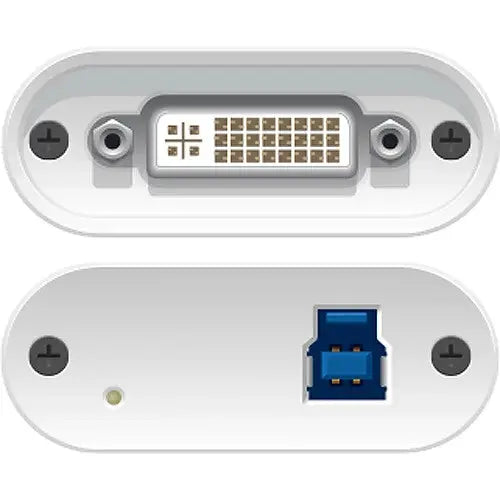

This sleek capture device features a DVI input and USB 3.0 output (USB 2.0 backwards-compatible) and includes a DVI-to-HDMI adapter and DVI-to-VGA adapter cable. It supports up to 1080p and 1920 x 1200 WUXGA resolution on both input and output at up to 60 fps. Connect cameras, mobile devices, home entertainment devices, and other DVI, HDMI, and VGA sources, and transmit the content to your computer uncompressed and with near-zero latency.

The AV.io HD is auto-detected on Windows, Mac, and Linux systems, allowing for easy integration. This device has a tough build and can be relied on for long-term use. It has a metal exterior that's strong enough to withstand being dropped as well as stepped on. A DVI cable and USB 3.0 cable are also included, so you have everything you need right out of the box.

System Requirements

Operating System:
Windows 7, 8.1, 10
Mac OS X 10.10 +
Linux distribution with kernel 3.5.0 or higher

Drivers

OS Driver:
UVC and UAC device

Input

1 x DVI-I (VGA and HDMI compatible using included adapter cables)

Output

1 x USB 3.0 (USB 2.0 backward compatible)

Maximum Input Resolution

Up to 1920 x 1200, including 1080p

Output Resolutions

1920 x 1200, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768, 960 x 540, 848 x 480, 640 x 480, 640 x 360, all in YUV 4:2:2 at 15, 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps

*The 3rd-party software you use will set the frame size and bit rate.

Supported Audio

16-bit and 24-bit PCM encoded audio via HDMI input at 32, 44.1, and 48 kHz sampling rates

Audio Output

16-bit 48 kHz stereo sampling rates

Latency

Near-zero, but 3rd-party applications may cause capture delay

HDCP

High-bandwidth digital content protection (HDCP) is a form of digital copy protection intended to prevent illegal copying of video and audio content. AV.io HD cannot capture from video sources protected by HDCP.

Dimensions

3.5 x 2.4 x 0.91" (9 x 6 x 2.3 cm)
