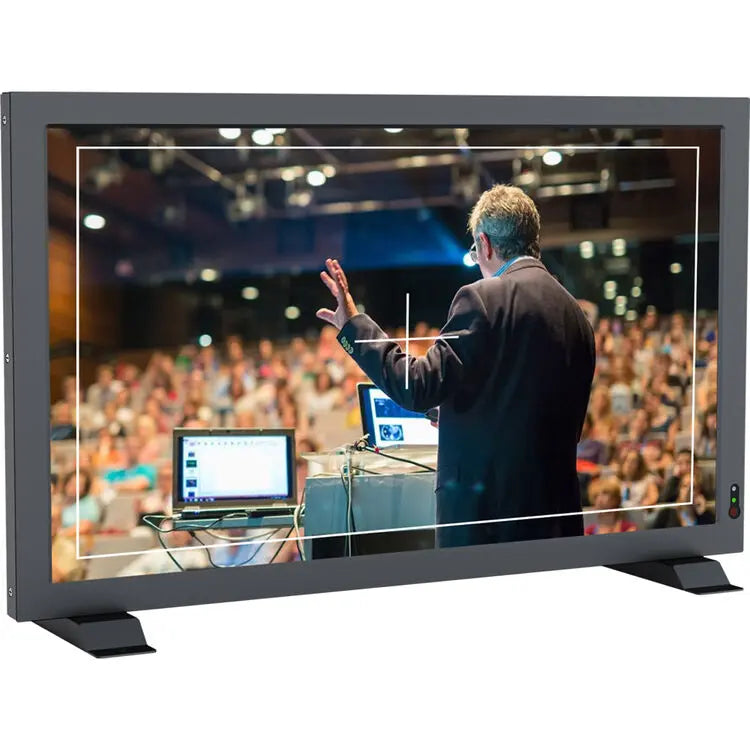

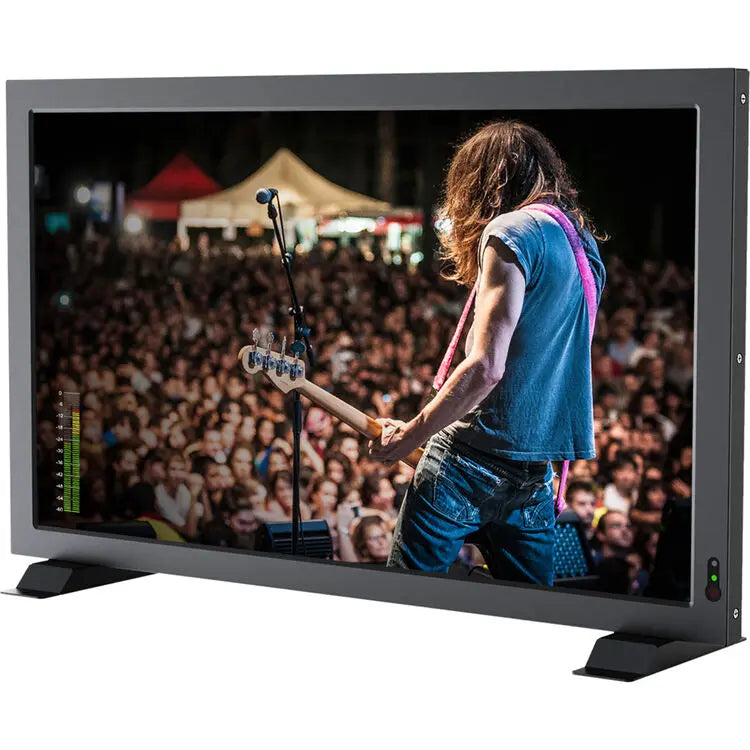

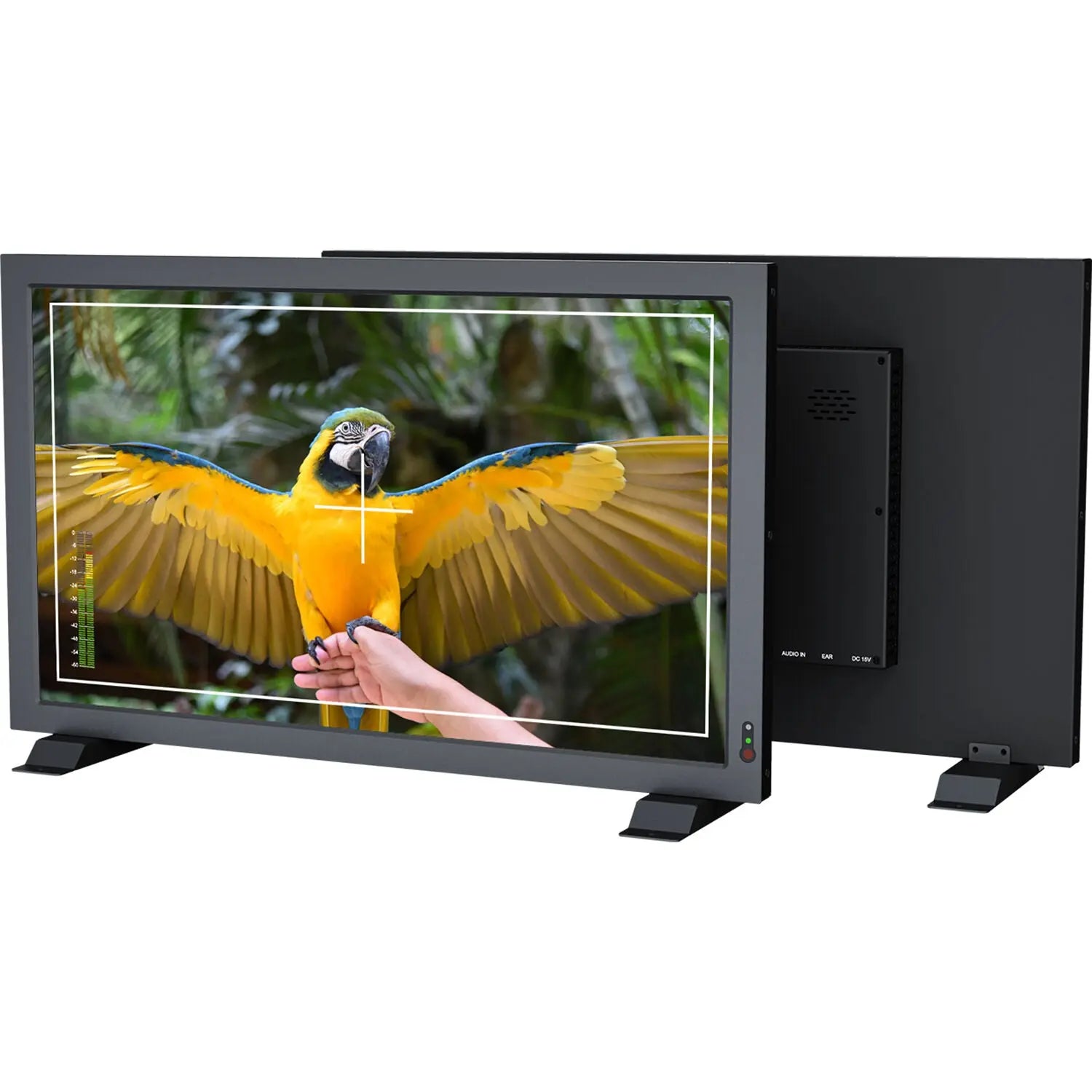

Lilliput PVM210S 21.5" 3G-SDI/HDMI Professional Production Monitor

Lilliput PVM210S 21.5" 3G-SDI/HDMI Professional Production Monitor

The Lilliput PVM210S 21.5" 3G-SDI/HDMI Professional Production Monitor is a versatile broadcast and production display designed for studio environments, live production, video monitoring, and professional field workflows. Featuring a Full HD 21.5" LCD panel with support for UHD 4K input signals, the monitor delivers sharp image quality, accurate colour reproduction, and reliable performance for professional video applications.

With a native resolution of 1920 x 1080, a wide 170° viewing angle, a 1500:1 contrast ratio, and a high 1000 cd/m² brightness, the PVM210S provides clear, vibrant monitoring even in bright production environments. HDR support and Rec.709 colour space compatibility help ensure accurate colour representation for broadcast, editing, and on-set monitoring workflows.

The monitor supports UHD 4K video input up to 3840 x 2160p30 through its HDMI connection and includes professional 3G-SDI input and loop-through output support for resolutions up to 1080p60. Additional VGA and composite RCA inputs provide compatibility with a wide range of legacy and modern video equipment, making it suitable for studios, switcher setups, production racks, and multi-camera workflows.

Integrated audio functionality supports embedded 24-bit 48 kHz audio via HDMI and SDI, while built-in stereo speakers and a 3.5mm headphone output provide convenient audio monitoring directly from the display. Bluetooth support further enhances flexibility for select wireless applications.

Designed for professional installation and production use, the PVM210S features VESA mounting compatibility and includes a desktop stand for immediate setup. The monitor ships with a DC power adapter, HDMI cable, VGA cable, and AV cables, providing everything needed for integration into a professional broadcast or content production environment.

Display

• Panel Type: LCD
• Display Size: 21.5" / 54.6 cm
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Viewing Angle: Horizontal: 170° / Vertical: 170°
• Touchscreen: No
• Maximum Brightness: 1000 nits / cd/m²
• Contrast Ratio: 1500:1
• HDR Support: Yes: Hybrid Log Gamma
• LUT Support: No

Inputs/Outputs

• Video I/O:
• 1x HDMI 1.4b Input
• 1x BNC (3G-SDI) Input
• 1x VGA (RGBHV) Input
• 1x RCA (Composite) Input
• 1x BNC (3G-SDI) Output
• Embedded Audio: HDMI: 8-Channel / SDI: 16-Channel
• Audio I/O: 1x 2RCA Line Input, 1x 1/8" / 3.5 mm Headphone Output
• Built-In Speaker: Stereo
• Power I/O: 1x Barrel Input
• Other I/O: 1x USB-A Input
• Media/Memory Card Slot: No

Wireless

• Wireless: No
• Wi-Fi: No
• Bluetooth: Yes
• Mobile App Compatible: No

Format Support

• HDMI Video Formats:
• UHD 4K: 30/25/24
• 1080p: 60/50/30/25/24
• 1080i: 60/50
• 720p: 60/50
• SDI Video Formats:
• 1080p: 60/30/25/24
• 1080i: 60/50
• 720p: 60/50

Power

• Input Power: 12 to 24 VDC
• Battery: No
• Power Consumption: 36 W (Maximum)

Mounting

• VESA Mounting-Hole Pattern: 75 x 75 mm, 100 x 100 mm

General

• Environmental Resistance: No
• Operating Conditions: 32 to 122°F / 0 to 50°C
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Dimensions: 20.7 x 12.3 x 0.8" / 524.8 x 313.3 x 19.8 mm
• Weight: 10.6 lb / 4.8 kg
