Logitech Extend BYOD Meeting Room System

Logitech Extend BYOD Meeting Room System

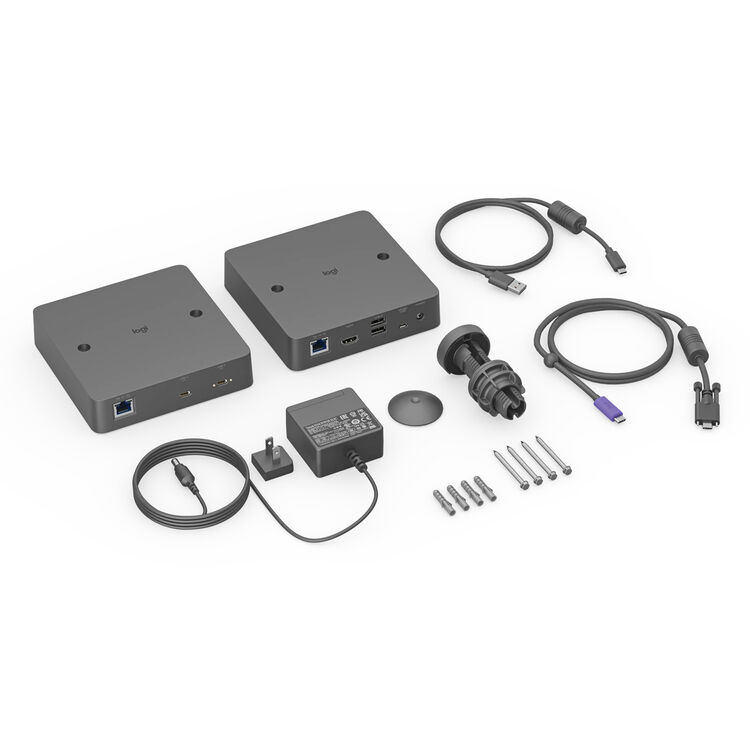

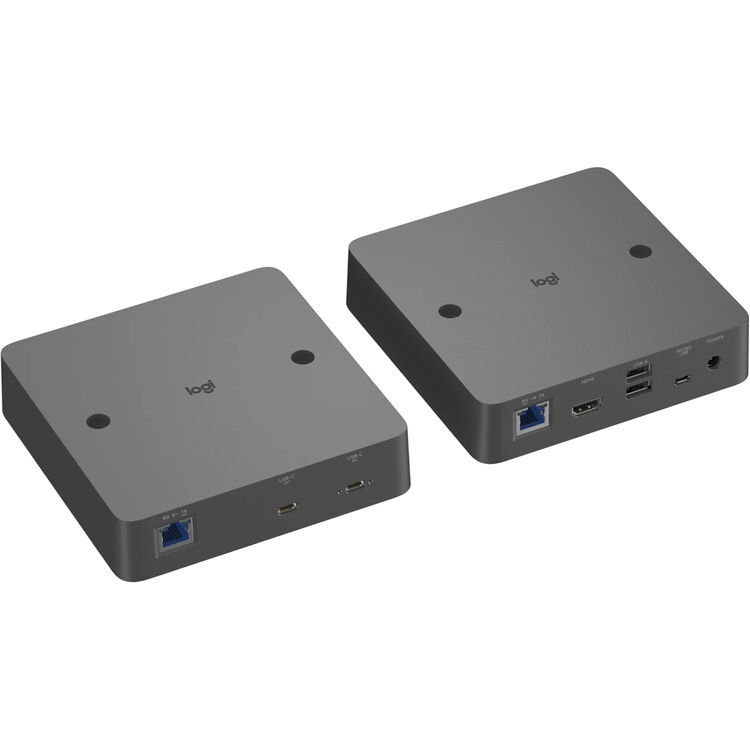

Make it easy to bring your own device (BYOD) to any meeting room to join a video conference with the Extend BYOD Meeting Room System from Logitech. This transmitter/receiver set features a laptop/table transmitter that connects a laptop via USB-C and transmits video and data for your conference over Ethernet. The receiver accepts the signal and outputs the laptop's video onto a display or Rally series conferencing system via HDMI. With Logitech's Sync device management software, setup is quick and easy.

The transmitter can be powered via the laptop's USB-C port, or it can be powered via an optional USB-C power adapter. The receiver is powered via the included power supply and features two USB-A 2.0 ports for optional cameras, a microUSB management port, and an HDMI 2.0 output that supports video up to 4K60 4:4:4. Extend can connect to the Rally Bar, Rally Bar Mini, and Rally Bar Huddle in Android/Laptop BYOD passthrough enabled.

Easy BYOD Meetings
With Logitech Extend, anyone can walk into an Android or BYOD-based meeting room, plug in with the USB-C cable, and launch a meeting from their laptop or mobile device.

Quick connections. No Additional Drivers.
Use the USB-C cable to quickly plug in a laptop or mobile device and run meetings using a preferred video platform. No need to install additional software.

Two Use Cases, One Solution

Bring your Own Device (BYOD) Pass-through

Use Extend in Android-based rooms with the Rally Bar family. It allows the meeting host to bypass the designated video provider and conduct the meeting from their own device.

BYOD Extension

Use Extend for BYOD meetings with the Rally Bar family and other Logitech conference cameras by connecting a laptop or mobile device to conduct meetings using the in-room conference camera and display.

FOR PC-BASED ROOMS - Deploy Logitech Swytch for PC-based room solutions for a single-cable connection to the room's conference camera and display.

Compatibility

• Displays: HDMI 1.4 or higher
• AV Devices: USB-A 2.0 or higher
• Laptops with USB-C port with DisplayPort Alt Mode
• Conferencing Cameras: Rally Bar, Rally Bar Mini, Rally Bar Huddle, MeetUp, MeetUp 2, and more
• Laptop Operating Systems: Windows 10, Windows 11, macOS (latest 2 versions)
• For the latest feature support and compatibility with cameras and operating systems, visit the Logitech Extend website.

General

Connectivity & Interfaces

Physical Dimensions

Transmitter (TX)

Receiver (RX)
