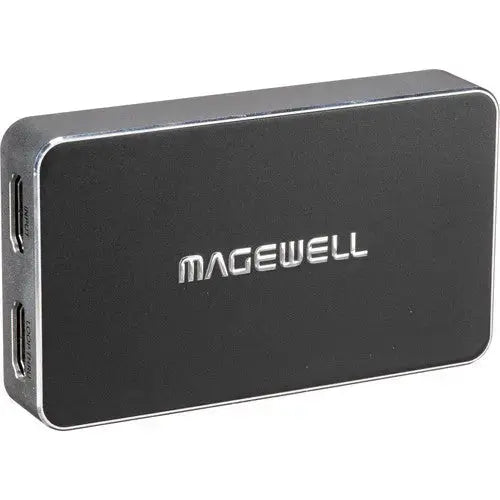

Magewell USB Capture HDMI Plus

SKU: 320400000
📋 Special Order Item This item is specially ordered from our supplier and not stocked locally. Lead times may vary. As it’s sourced specifically for your order, cancellations or refunds for change-of-mind are not available.
Magewell USB Capture HDMI Plus
Magewell USB Capture HDMI Plus
Magewell USB Capture HDMI Plus
Magewell USB Capture HDMI Plus

Main Features

  • Capture Device with Built-In Auto Scaler
  • Supports Input Resolutions up to 4K
  • Scales to 2K for Recording/Streaming

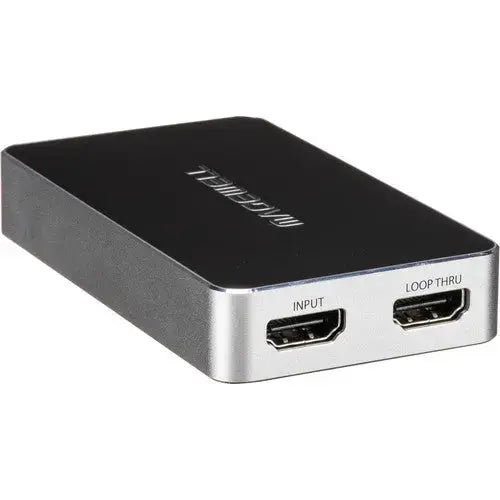

  • Loop-Through HDMI Port for Monitoring

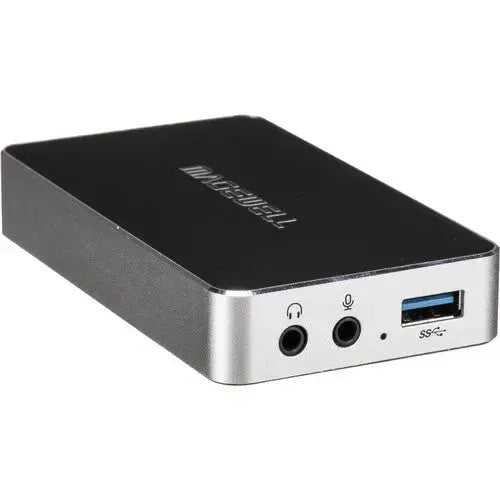

  • Mic / Headphone Jacks
  • Compatible with Windows, Mac, and Linux
  • Can Be Operated 24/7
  • Deinterlacing, Image Control
The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording...
More Details

Special Notice

Please use the included Magewell USB 3.0 cable, which is a custom accessory. Using any other similar cable might cause capture problems and even damage the capture device.

Magewell USB Capture HDMI Plus

SKU: 320400000
📋 Special Order Item This item is specially ordered from our supplier and not stocked locally. Lead times may vary. As it’s sourced specifically for your order, cancellations or refunds for change-of-mind are not available.
Fast Shipping
Secure payment
Tax Included
$789.00
📋 Special Order Item This item is specially ordered from our supplier and not stocked locally. Lead times may vary. As it’s sourced specifically for your order, cancellations or refunds for change-of-mind are not available.
Tax Included
$789.00

4 x

$197.25

from

$10

4 x

$197.25
Tax included.

What's in the box

  • Custom USB 3.0 Cable
Write a Review
Ask a Question

Main Features

  • Capture Device with Built-In Auto Scaler
  • Supports Input Resolutions up to 4K
  • Scales to 2K for Recording/Streaming
  • Loop-Through HDMI Port for Monitoring
  • Mic / Headphone Jacks
  • Compatible with Windows, Mac, and Linux
  • Can Be Operated 24/7
  • Deinterlacing, Image Control
The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording...
More Details

Special Notice

Please use the included Magewell USB 3.0 cable, which is a custom accessory. Using any other similar cable might cause capture problems and even damage the capture device.

  • Magewell USB Capture HDMI Plus

    The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.

    The USB Capture HDMI Plus is compatible with Windows, Mac, and Linux. It works plug-and-play and can be operated 24 hours a day, 7 days a week.

    HDMI Features

    • 297 MHz HDMI receiver
    • Support for up to 4096 x 2160 4:4:4/4:2:2 input at 30 fps or 4:2:0 at 60 fps input signals
    • For 4:2:0 input signals, the horizontal and vertical resolution are reduced to 1/2 for capturing
    • For 4:4:4/4:2:2 input at more than 170 MHz, the horizontal resolution is reduced to 1/2 for capturing
    • Adaptive HDMI equalizer support for cables lengths up to 98 ft
    • Customized EDID support
    • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
    • Full colourimetry support
    • Support for 2 channel ISC60958 audio streams
    • Support for extraction of audio formation information and channel status data, video timing information, 3D format information
    • Support for Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D modes

    Analog Audio Features

    • Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo jack
    • Capture of analog audio via 3.5mm microphone interface
    • Integrate the functions of a USB audio card
    • Playback audio via 3.5mm headphones interface
    • Support for recording the playback audio of the computer

    Video Processing Features

    • Video processing pipelines with 160 megapixels processing bandwidth
    • Video cropping
    • Video scaling
    • Video deinterlacing (Weave, Blend Top & Bottom Field, Top Field Only, Bottom Field Only)
    • Auto or manual selection of input and output aspect ratios
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
    • Auto or manual selection of input colour format and quantization range
    • Auto or manual selection of output colour format, quantization range, and saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 colour formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full, and "Extended Gamut" saturation range
    • Video frame rate conversion
    • Vertical flip and mirror
