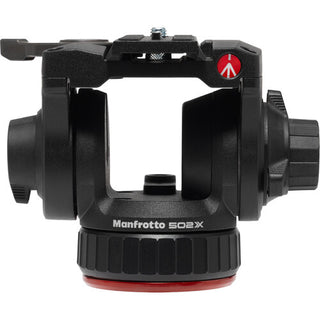

Manfrotto 502X Fluid Video Head with 75mm Flat Base

Manfrotto 502X Fluid Video Head with 75mm Flat Base Overview

The Manfrotto 502X Fluid Video Head with 75mm Flat Base is a professional fluid head designed to deliver smooth, controlled cinematic camera movements with compact camcorders, mirrorless cameras and DSLRs. With a payload capacity of up to 8 kg, it offers a robust, versatile solution for a wide range of video applications.

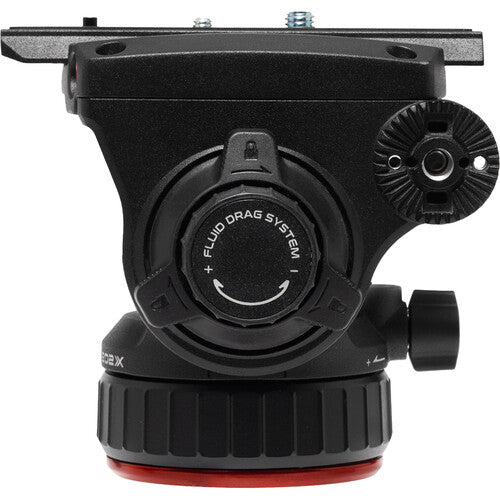

The head features a spring-loaded counterbalance system that supports cameras up to 4.4 kg, helping maintain smooth, controlled movement during operation. Independent pan and tilt locks provide precise control, while continuous variable drag lets you adjust resistance from zero to maximum for customised movement.

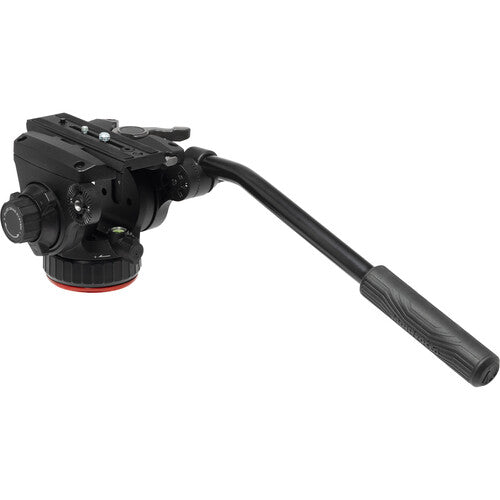

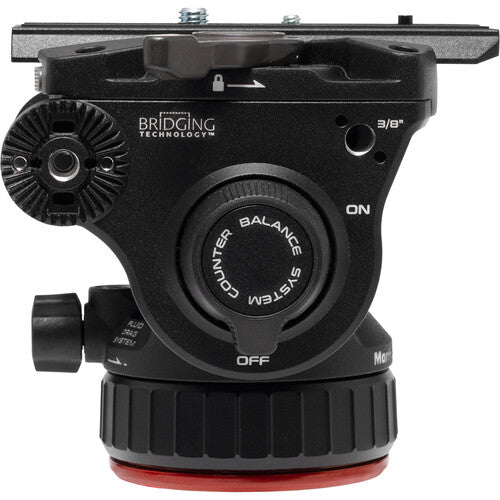

Manfrotto's bridging technology protects the pan friction control from accidental knocks while keeping adjustments intuitive and easy to set. The included pan bar provides comfortable, precise control for smooth pans and tilts.

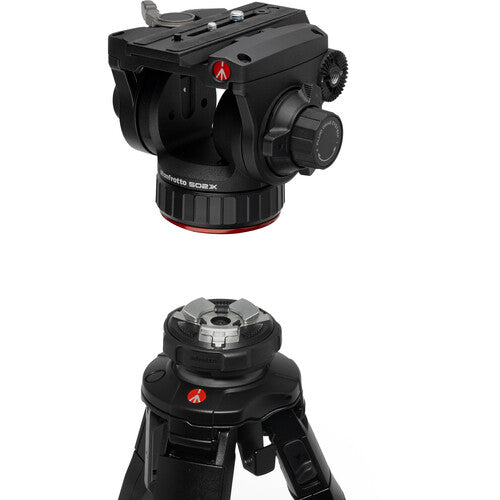

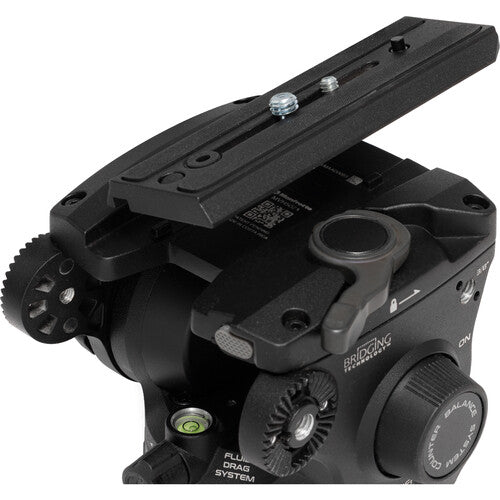

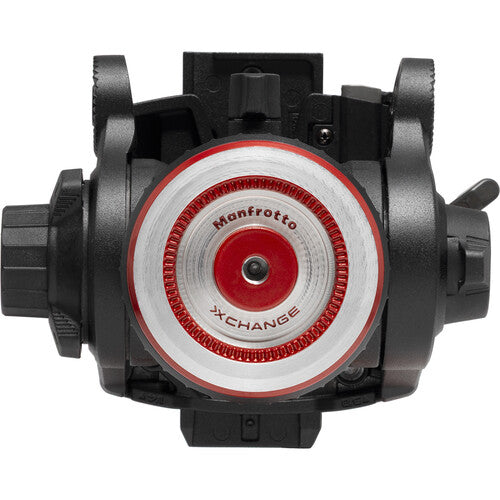

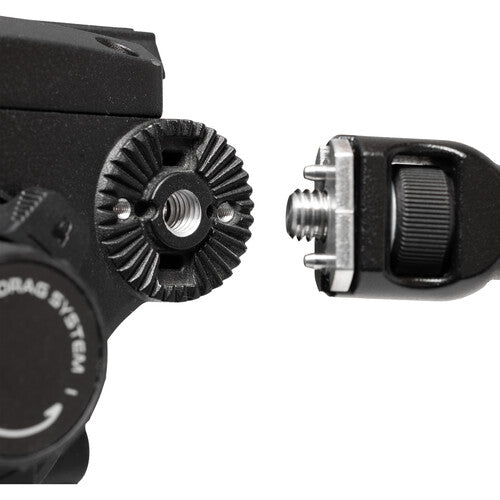

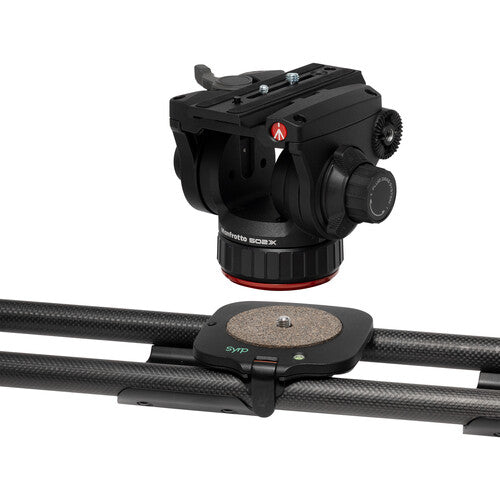

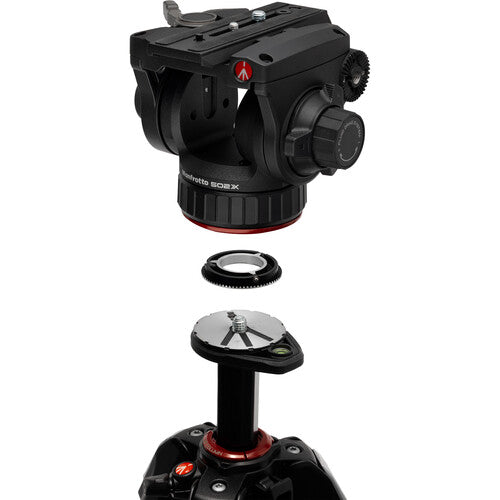

A 75mm flat base provides a 3/8"-16 attachment and is XCHANGE compatible, offering flexible mounting across a wide range of professional support systems. The included top-load sliding plate makes attaching and removing your camera quick and convenient, while the 3/8"-16 Easy Link connection with anti-rotation functionality provides additional accessory mounting flexibility.

Head Type: Fluid Head

Top Mounting: 504PLONG Quick Release Plate with 1/4"-20 & 3/8"-16 Screws

Base Mount: 75 mm Half Ball with Threaded Flat Base

Pan & Tilt: Pan & Vertical Tilt Only with Independent Pan & Tilt Locks and Drag Control

Tilt Range: 160° (-70 to +90°)

Counterbalance: Spring-loaded (9.7 lb / 4.4 kg)

Load Capacity: 17.6 lb / 8 kg

Accessory Mounting: 2 x Pan Handle Fitting

Bubble Level: No

Dimensions: Base Diameter: 75 mm; Height: 132 mm

Weight: 1.7 kg
