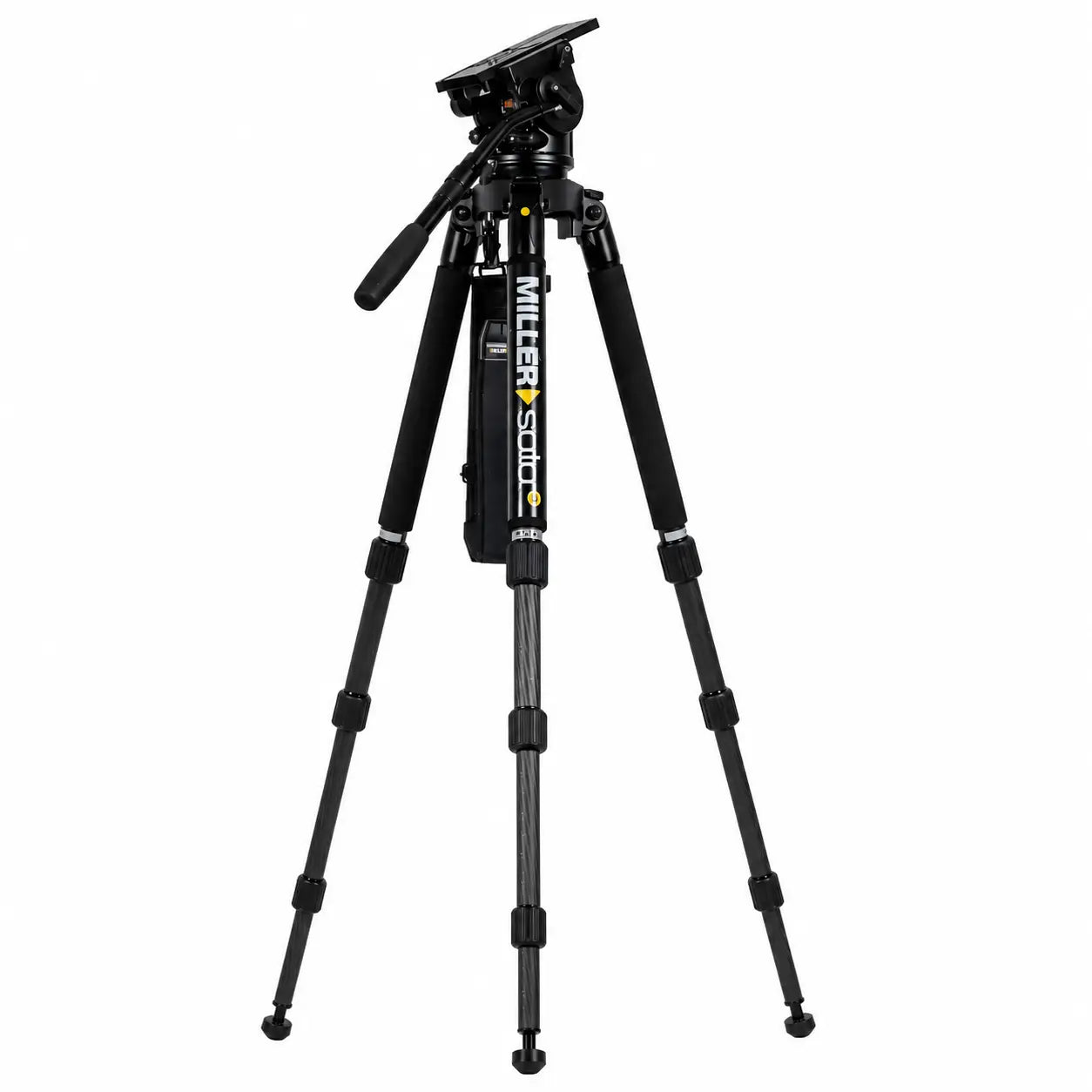

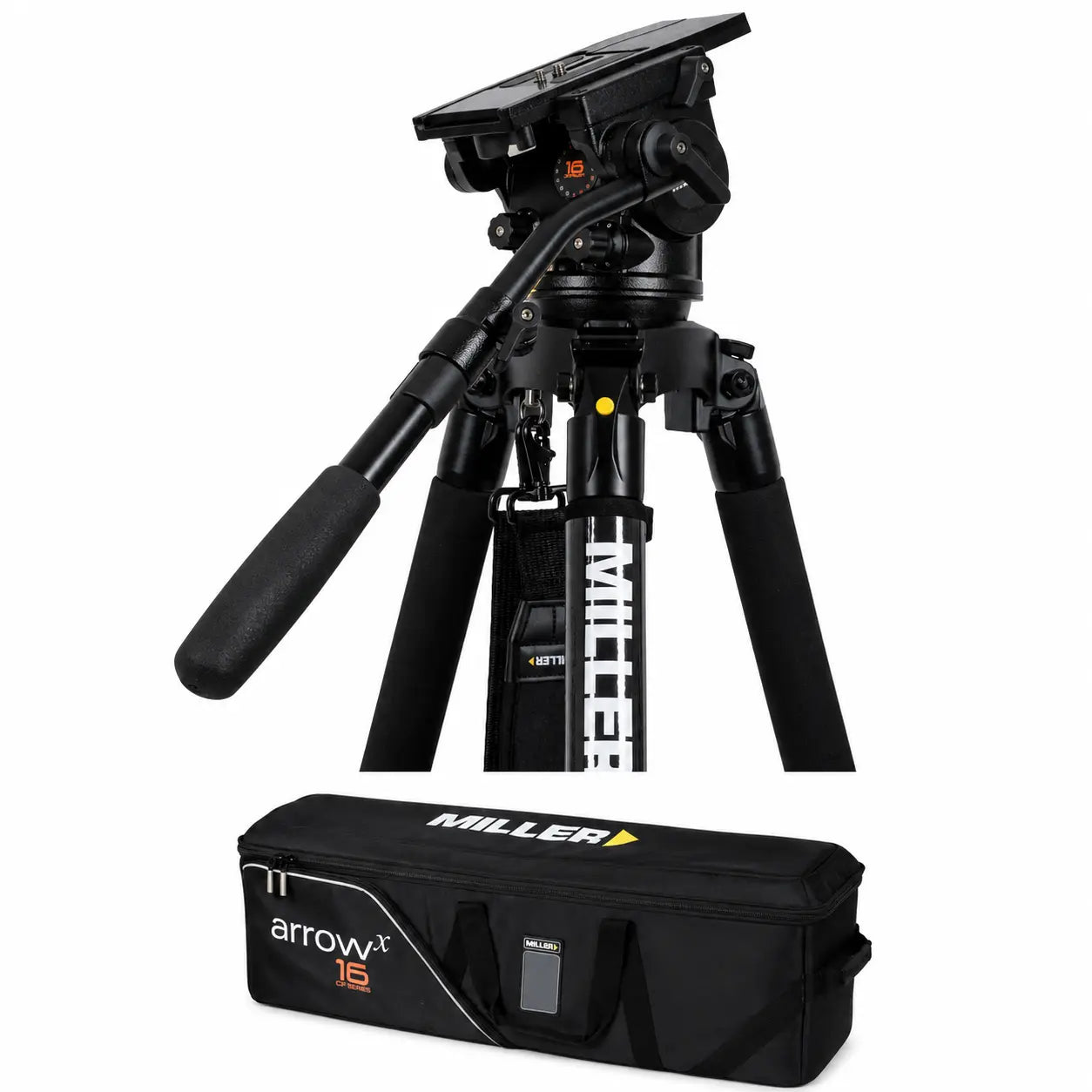

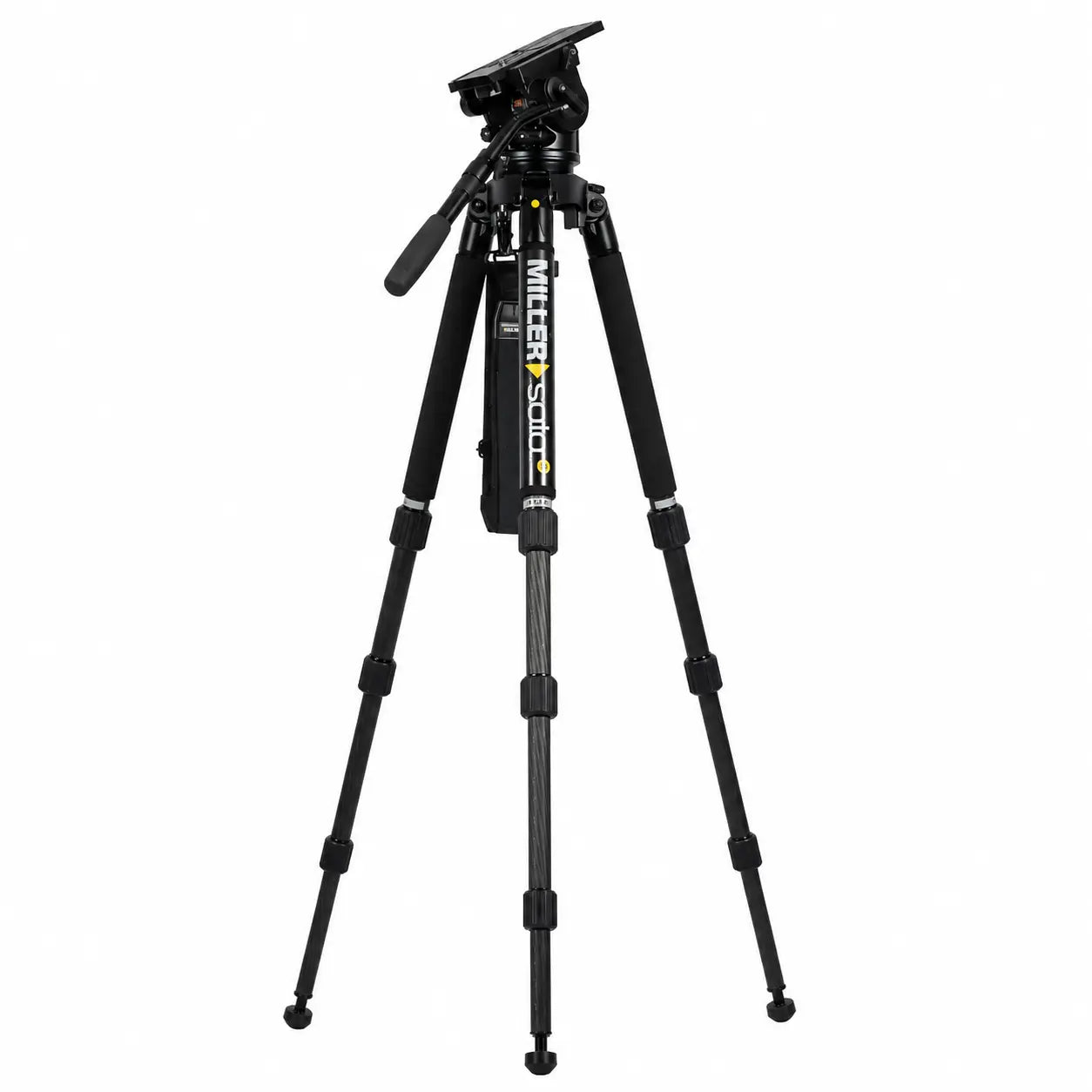

Miller 3068 ArrowX 3 Solo-Q 100 3 Stage CF Tripod System

Miller 3068 ArrowX 3 Solo-Q 100 3 Stage CF Tripod System

The Miller Arrowx 3 Solo-Q 100 3-Stage Tripod System combines the advanced Arrowx 3 fluid head with the lightweight Solo-Q 100 carbon fibre tripod to deliver a professional support solution for ENG, documentary, broadcast, and field production. Designed for fast-paced shooting environments, this versatile tripod system supports camera payloads from 2.2 lb to 41.9 lb, making it ideal for everything from compact cinema cameras to fully rigged broadcast setups.

Featuring an impressive height range of 15.4" to 80.4", the Arrowx 3 system eliminates the need to carry multiple tripod setups on location. The Arrowx 3 fluid head incorporates Miller’s advanced 16-step CB Plus counterbalance system with full and half-step adjustments for precise balance control across varying camera configurations and temperature conditions.

The fluid head also includes five selectable pan and tilt drag settings plus a zero-drag mode for free movement and secure transport. Centrally located controls and an illuminated bubble level allow for fast and intuitive operation in any shooting environment.

The Solo-Q 100 tripod features lightweight carbon fibre construction, quick-lock three-stage legs, and three selectable leg angles with integrated safety locks. The spreader-less design allows for rapid deployment and flexible positioning on uneven terrain while maintaining excellent torsional rigidity and stability.

• Arrowx 3 fluid head with Solo-Q 100 carbon fibre tripod system
• Supports camera payloads from 2.2 lb to 41.9 lb
• Ideal for ENG, documentary, broadcast, and field production
• 16-step CB Plus counterbalance system with full and half-step adjustments
• Five selectable pan and tilt drag settings plus zero-drag mode
• Illuminated bubble level for low-light setup
• Sliding balance plate for fast camera positioning
• 3-stage carbon fibre tripod design for lightweight portability
• Quick-lock leg system for rapid setup and adjustment
• Three locking leg angle positions with integrated safety lock
• Spreader-less tripod design for flexible positioning on uneven surfaces
• Height range from 15.4" to 80.4"
• Total system weight of approximately 15.2 lb (6.9kgs)

Specifications

• Camera Mounting: 1/4"-20 & 3/8"-16 screws, quick release with sliding balance plate
• Head Type: Fluid head
• Drag Control: Yes
• Primary Material: Carbon fibre
• Load Capacity: 41.8 lb / 19 kg
• Maximum Working Height: 80.4" / 204.1 cm
• Minimum Working Height: 15.4" / 39 cm
• Closed Length: 32.5" / 82.5 cm
• Weight: 15.2 lb / 6.9 kg

Head

• Camera Mounting: 1/4"-20 & 3/8"-16 screws, quick release with sliding balance plate
• Head Type: Fluid head
• Base Mount: 100 mm half ball
• Counter Balance: Incremental 16-step

Pan & Tilt

• Drag Control: Yes
• Independent Pan Lock: Yes
• Independent Tilt Lock: Yes
• Vertical Tilt: +90° to -75°
• Lateral Tilt: No

Legs

• Primary Material: Carbon fibre
• Leg Lock: Twist lock
• Leg Sections: 4
• Independent Leg Spread: Yes
• Leg Positions: 3 positions

General

• Load Capacity: 41.8 lb / 19 kg
• Maximum Working Height: 80.4" / 204.1 cm
• Minimum Working Height: 15.4" / 39 cm
• Closed Length: 32.5" / 82.5 cm
• Accessory Mounting: 2 x pan handle fittings
• Bubble Level: Yes, illuminated
• Spreader Support: No
• Weight: 15.2 lb / 6.9 kg
