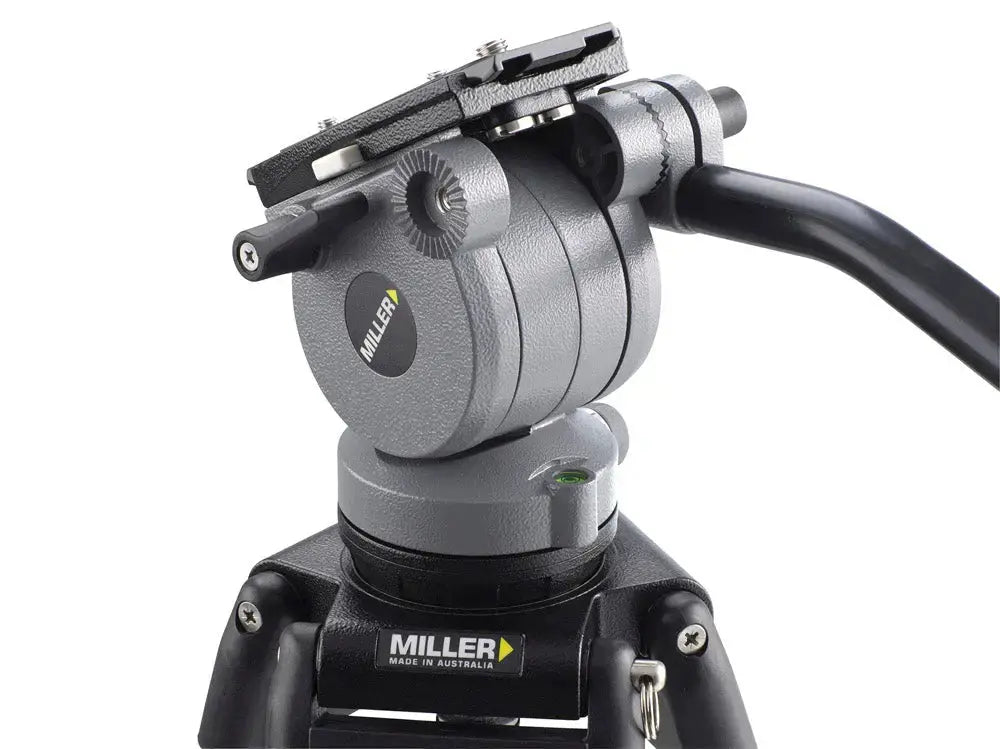

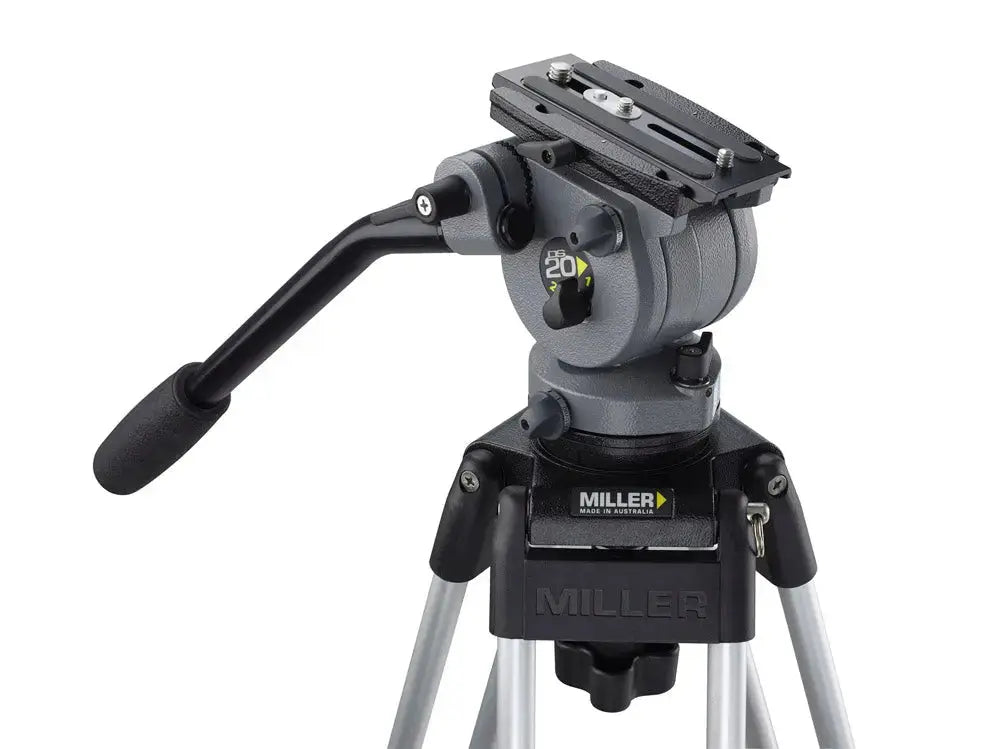

Miller DS20 Fluid Head

Miller DS20 Fluid Head

Superior DV shooting

The DS20 fluid head with a payload up to 10kg provides an economical alternative for HDV/P2HD/XDCAM EX cameras using additional on board accessories or configured for small studio use. The dual position counterbalance allows balancing of cameras both in standard configurations or heavier configurations.

Features:

    HDV/P2HD/XDCAM EX camcorders from 5-10kg / 11-22 lbs
    Fluid drag system consistant in all temperature ranges
    Selectable counterbalance system
    Pan/Tilt locks utilising floating calliper type disc brakes

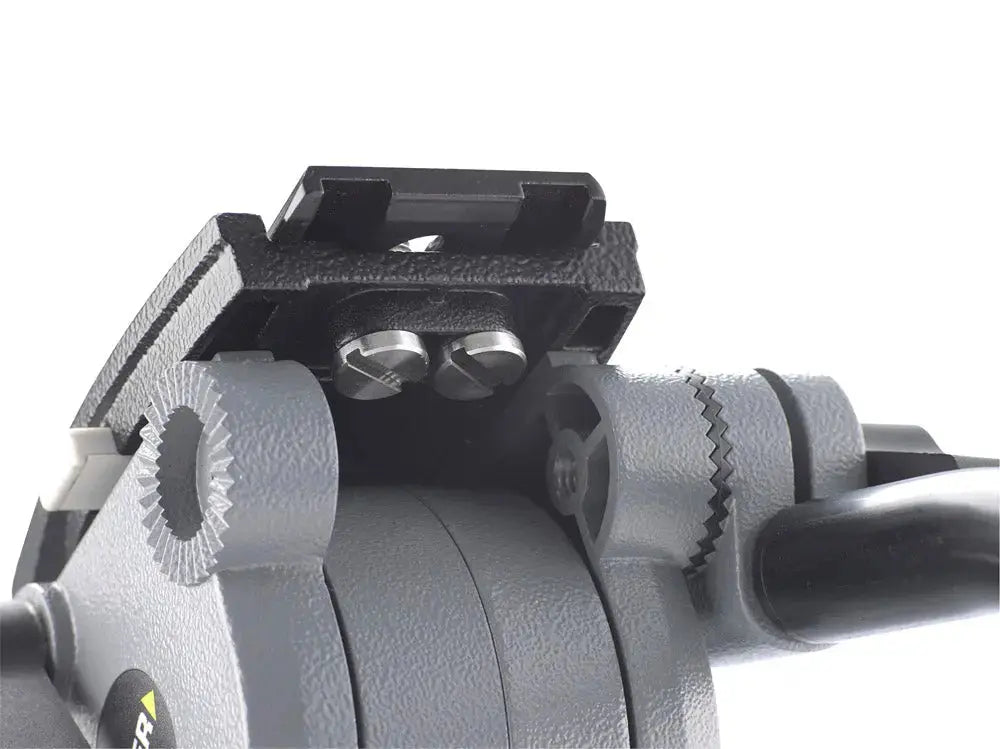

    Quick release, sliding camera plate choice: 1/4" & 3/8" screws or 1/4" & pin

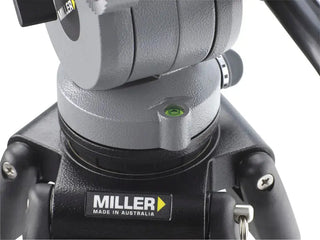

    75mm ball levelling with bubble level

Payload Range: 5 - 10kg (11-22 lbs)
Payload Capacity: 10.00 kg (22 lbs)
Weight: 1.75 kg (3.9 lbs)
Camera Platform Type: Quick release 60mm sliding camera plate
Camera Plate: Std 1/4" + pin & 1/4" & 3/8" screws
Mounting: 75mm Ball levelling
Tilt Drag: Fluid drag plate system with friction boost
Tilt Range: +90/-75°
Tilt Lock: Calliper disc brake system
Pan Drag: Fluid drag plate system with friction boost
Pan Range: 360 °
Pan Lock: Calliper disc brake system
Counter balance System: 2 selectable positions
Temperature Range: -40°C- +65°C
Pan Handle: Fixed lenght
Depth Including Camera Platform: 145 mm (5.7 in)
Body Width: 72 mm (2.8 in)
Height Above Bowl: 137 mm (5.4 in)
