SmallRig 5536 Adapter Plate for NP-F Type Batteries (Supports UPS)

SKU: 5536
✓ In stock – ready to dispatch
Place your order now and we’ll prepare it for dispatch as soon as possible.
We’ll confirm your dispatch date after ordering.

Overview

Here is a clear, polished overview written from your provided details.If you'd like it in clean HTML, marketing style, or shortened, just tell me! Overview – SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536 The SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536 is a versatile...

Product Highlights

  • Hot-Swap UPS Function: Accommodates two NP-F series batteries for uninterrupted power via hot-swapping.
  • Multiple Power Outputs: Features D-Tap, DC 5521, and USB-C ports to power multiple devices simultaneously.
  • Intelligent Power Management: Optimises battery usage with smart discharge/charge modes and clear status indicators.
  • Independent Power Control: Single press to check status and enable output; long press (2s) to disable all connected devices.
  • Versatile Mounting Options: Mounts via a V-mount plate or the bottom 1/4"-20 threaded holes.

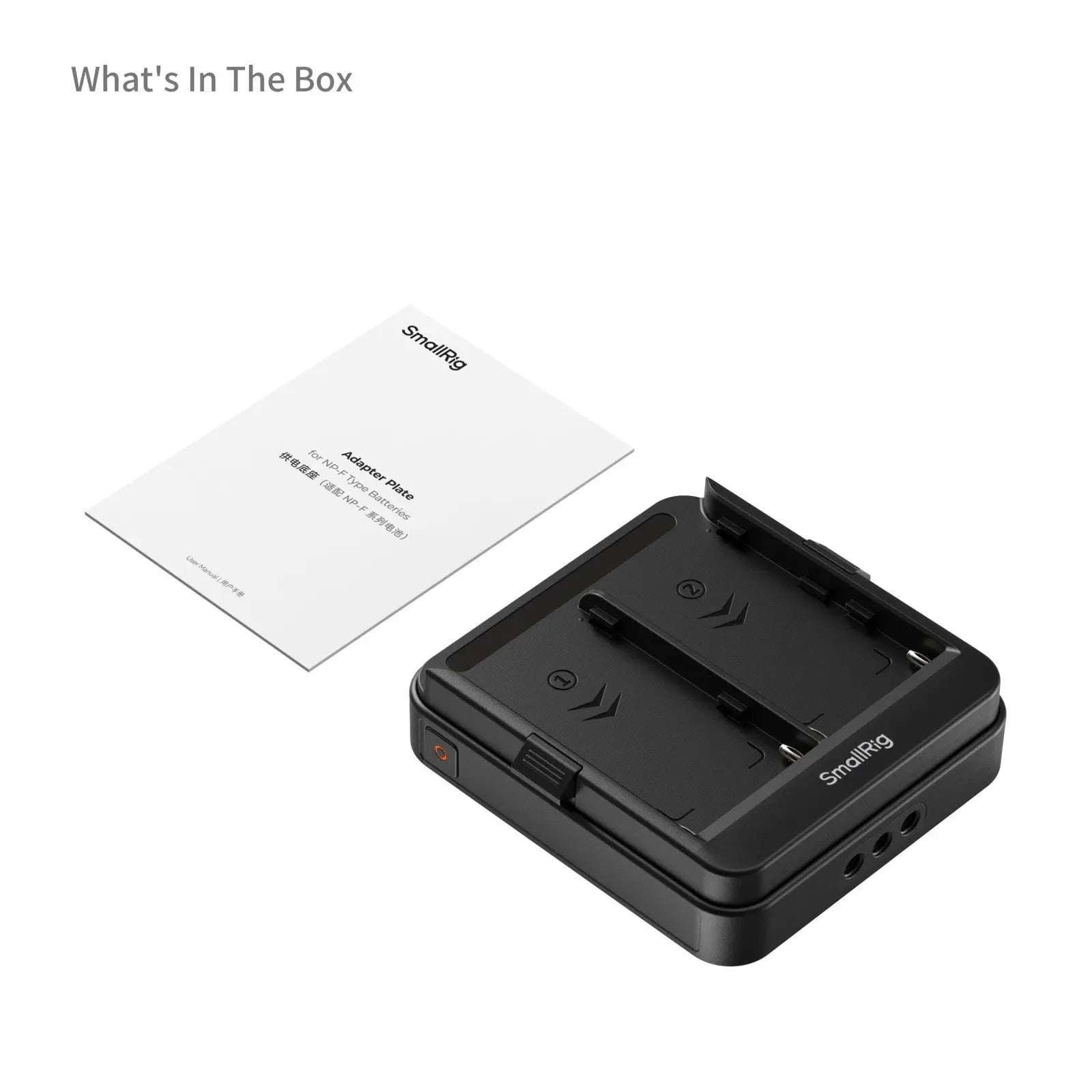

What's in the box

  • Adapter Plate x 1
  • User Manual x 1

SmallRig 5536 Adapter Plate for NP-F Type Batteries (Supports UPS)

SKU: 5536
✓ In stock – ready to dispatch
Place your order now and we’ll prepare it for dispatch as soon as possible.
We’ll confirm your dispatch date after ordering.
Tax Included
Regular price $109.90
Unit price
per
✓ In stock – ready to dispatch
Place your order now and we’ll prepare it for dispatch as soon as possible.
We’ll confirm your dispatch date after ordering.
Tax Included
Regular price $109.90
Unit price
per

4 x

$27.47

from

$10

4 x

$27.47
Tax included.Shipping calculated at checkout.
Write a Review
Ask a Question

Overview

Here is a clear, polished overview written from your provided details.If you'd like it in clean HTML, marketing style, or shortened, just tell me! Overview – SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536 The SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536 is a versatile...

Product Highlights

  • Hot-Swap UPS Function: Accommodates two NP-F series batteries for uninterrupted power via hot-swapping.
  • Multiple Power Outputs: Features D-Tap, DC 5521, and USB-C ports to power multiple devices simultaneously.
  • Intelligent Power Management: Optimises battery usage with smart discharge/charge modes and clear status indicators.
  • Independent Power Control: Single press to check status and enable output; long press (2s) to disable all connected devices.
  • Versatile Mounting Options: Mounts via a V-mount plate or the bottom 1/4"-20 threaded holes.

What's in the box

  • Adapter Plate x 1
  • User Manual x 1
  • SmallRig 5536 Adapter Plate for NP-F Type Batteries (Supports UPS)

    Here is a clear, polished overview written from your provided details.
    If you'd like it in clean HTML, marketing style, or shortened, just tell me!


    Overview – SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536

    The SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536 is a versatile dual-battery power solution designed for mirrorless cameras, video monitors, and other devices that use NP-F series batteries. Supporting one or two NP-F batteries, the plate enables continuous, uninterrupted power through its built-in hot-swap capability—allowing you to replace a depleted battery without shutting down connected devices.

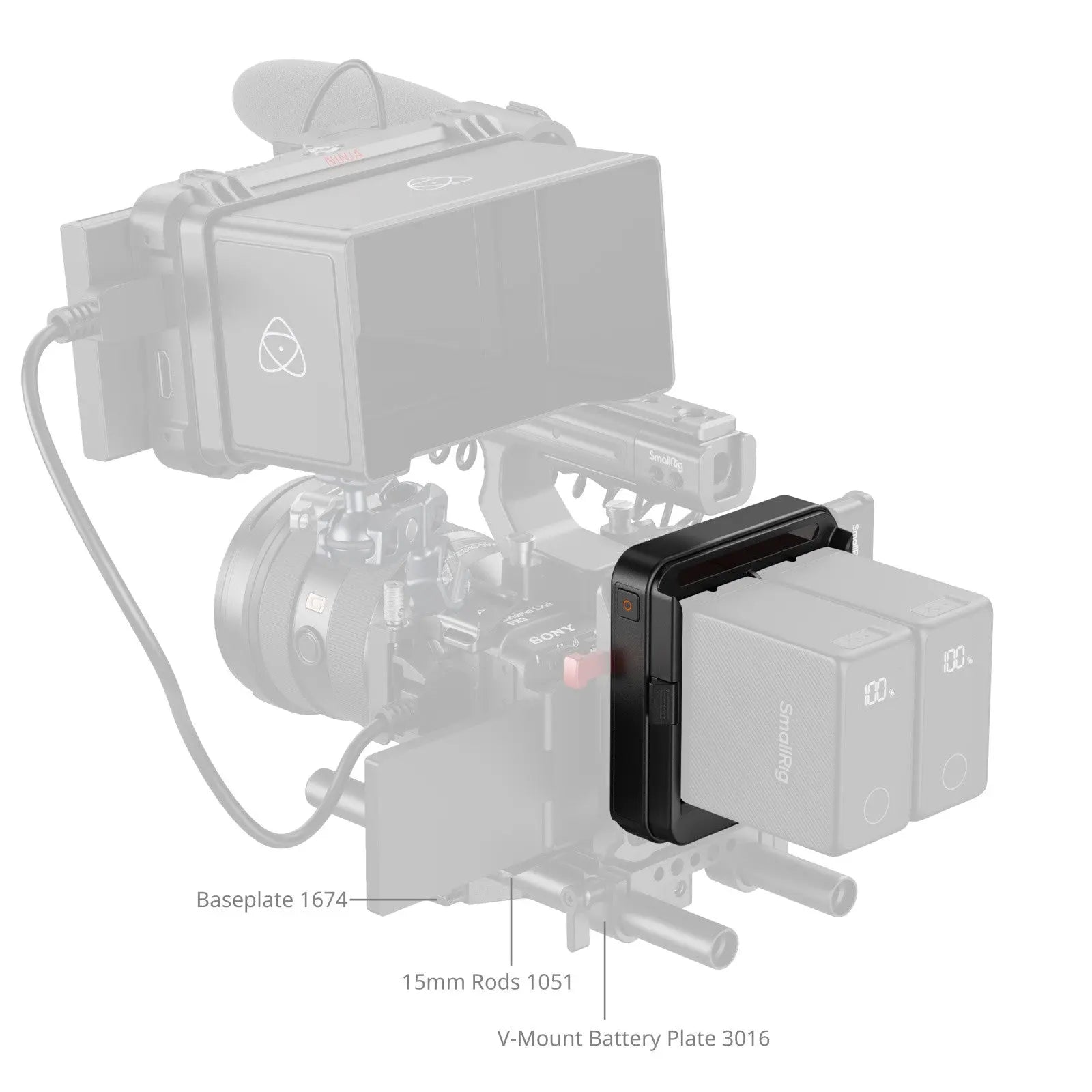

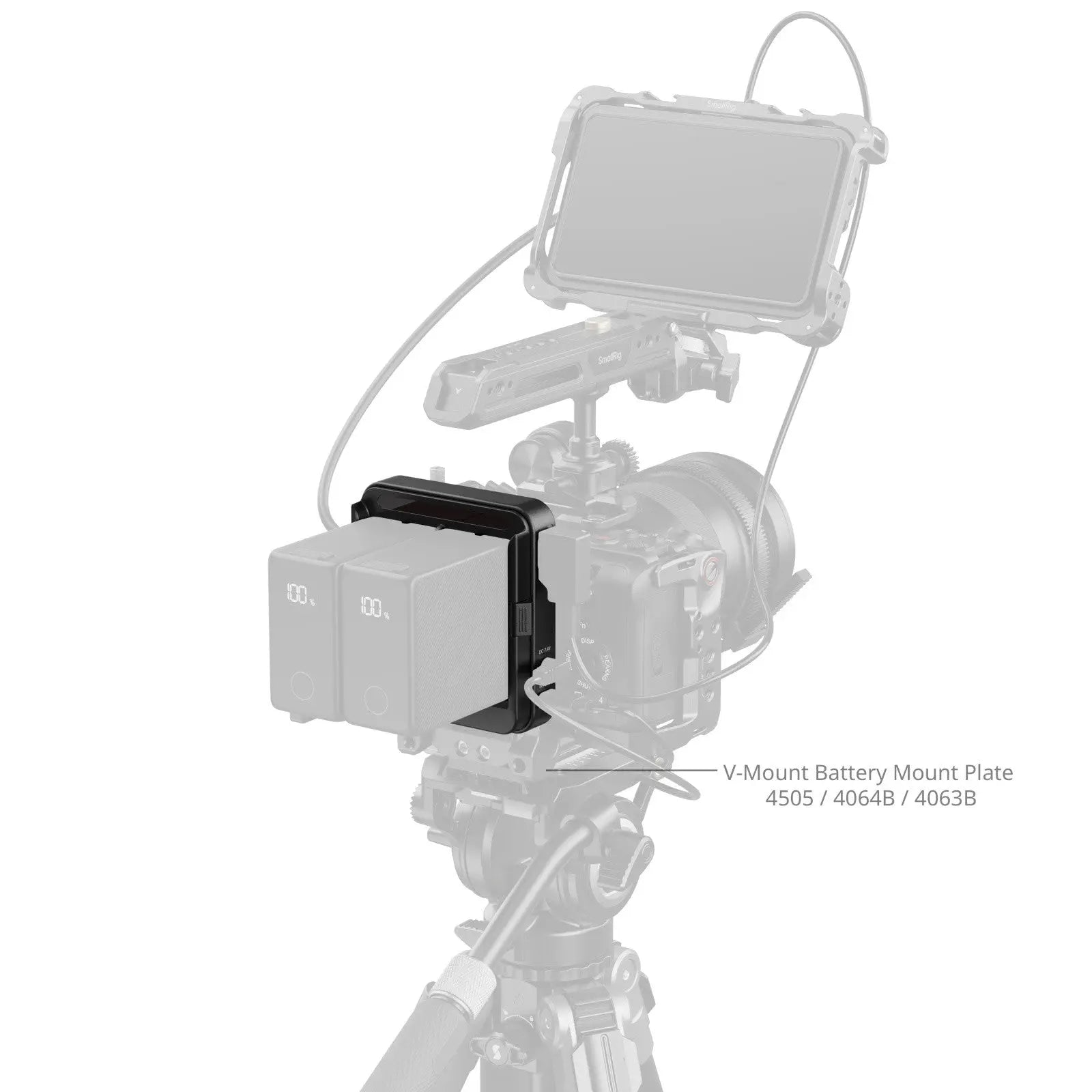

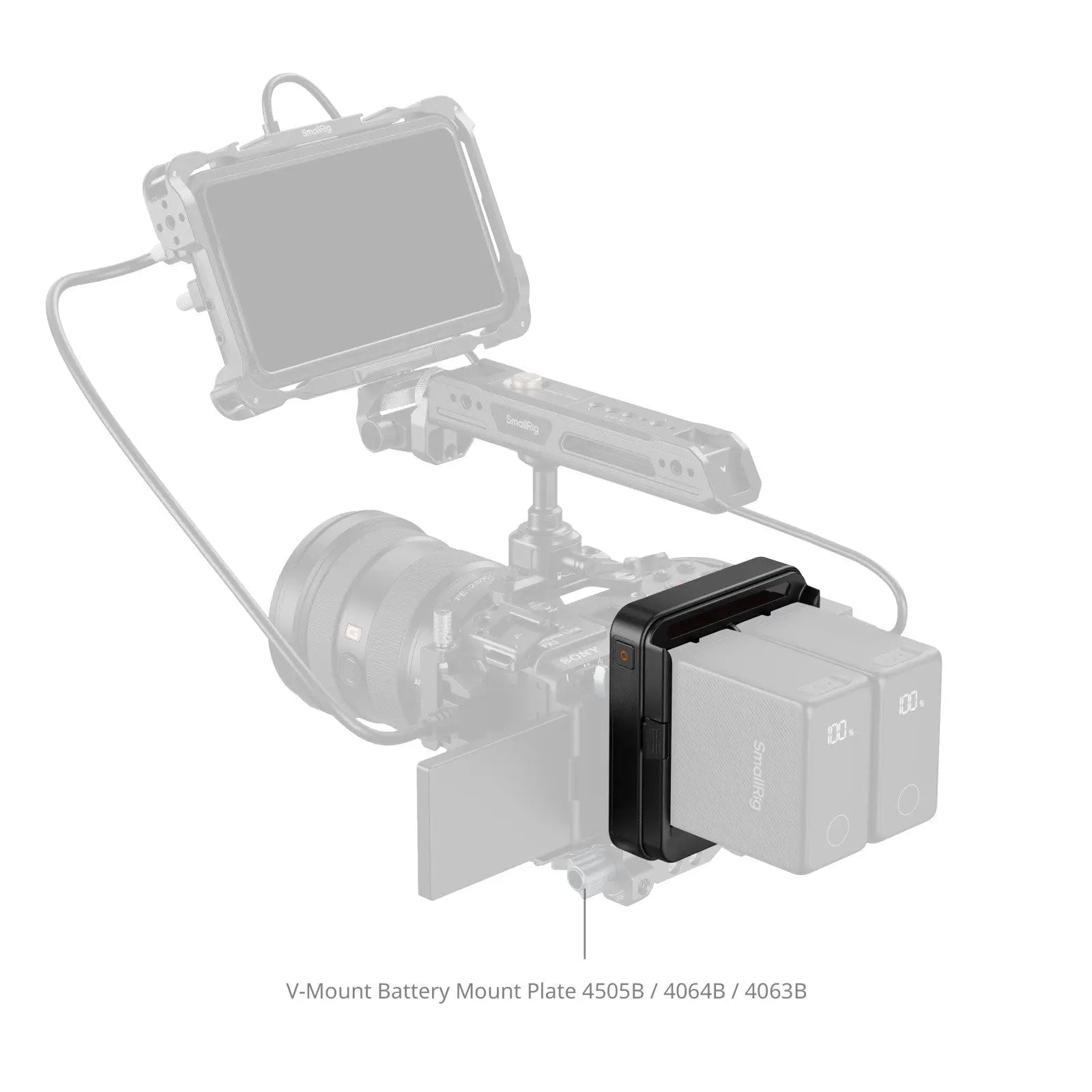

    Designed for flexible mounting, the plate attaches via a V-mount interface or 1/4"-20 threaded holes, making it suitable for cages, rigs, and accessories that support these standards.

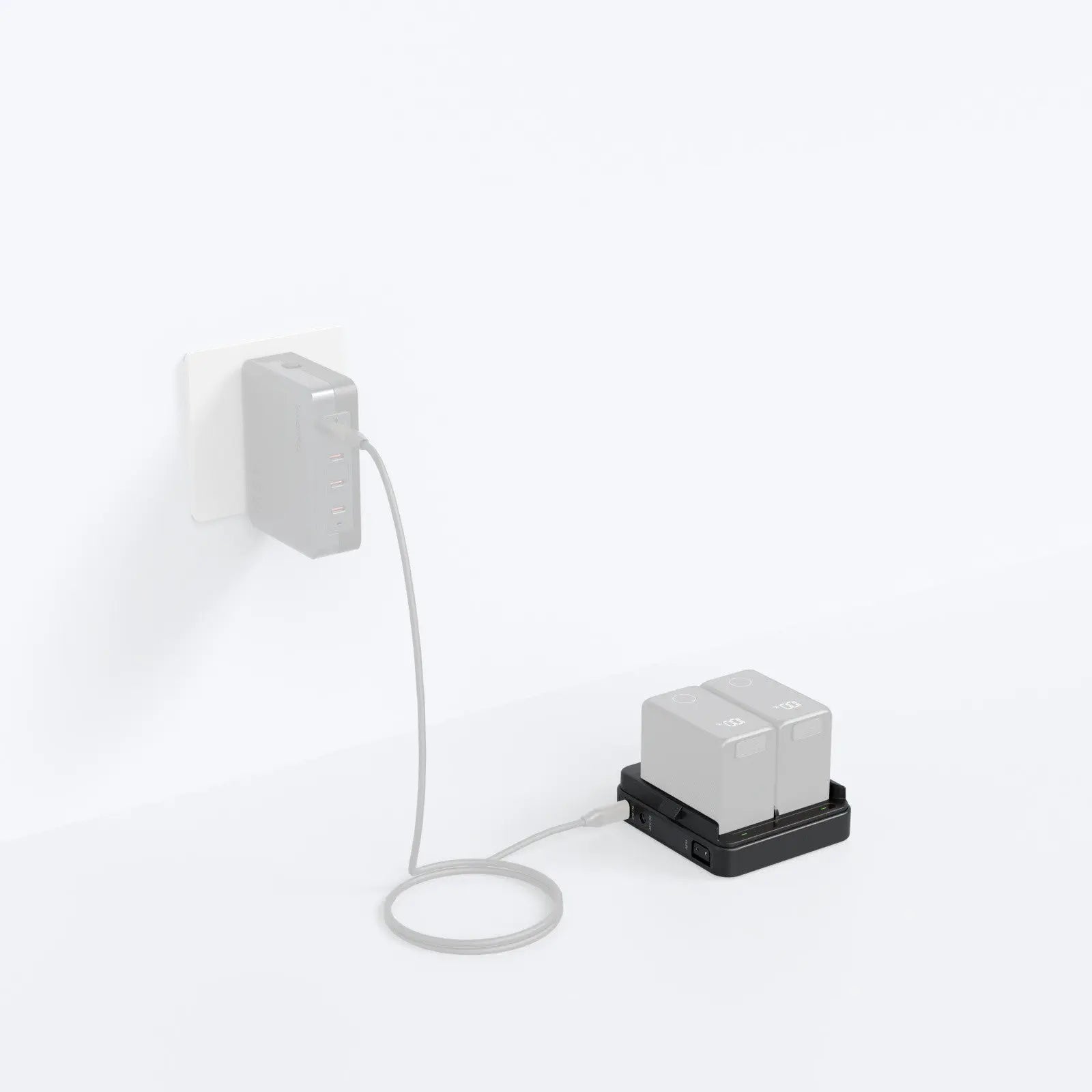

    Equipped with multiple output ports, including D-Tap, DC (5521), and USB-C, the 5536 can power several devices at once. The USB-C port supports up to 36W input, enabling the plate to function as a charging dock for NP-F batteries.

    Smart Power Management

    The integrated intelligent management chip optimizes both charging and discharging operations:

    • During Discharge:

      • Prioritizes draining the battery with the lower charge.
      • Switches to parallel output at low voltage for greater stability.
      • Supports hot-swapping and high-power loads.
    • During Charging:

      • Starts by charging the battery with the higher remaining capacity.
      • Switches to simultaneous charging for improved efficiency.

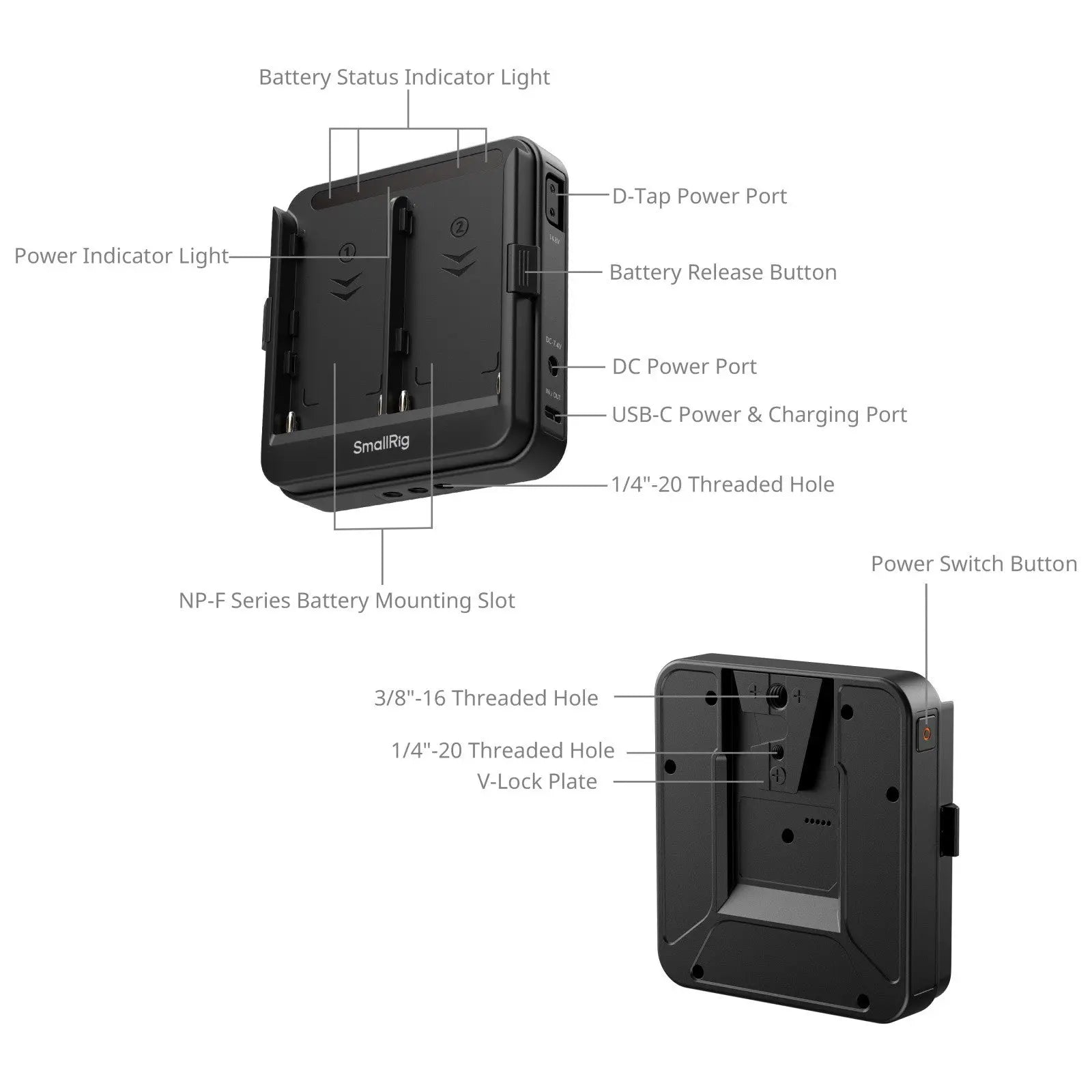

    User Controls & Indicators

    The 5536 features an independent power switch and clear LED indicators to simplify operation and monitor status at a glance.

    Power Switch

    • Single Press: Shows battery level and enables output.
    • Long Press (2s): Disables all output ports.

    Power Indicator (Red)

    • Lights when powered on; auto-off after ~10 seconds if no load is detected.
    • Solid Red: Normal operation.
    • Fast Blinking Red: Error (over-current, over-voltage, etc.).

    Battery Status Indicator

    • Active on power-on or while a load is connected.

    During Discharge:

    • Green (Solid): ≥ 20%
    • Red (Solid): 10%–20%
    • Red (Slow Blink): < 10%

    During Charge:

    • Green (Slow Blink): Charging
    • Green (Solid): Fully charged

    Note: For safety and best performance, remove the batteries or hold the power button for 2 seconds to disable output when not in use.

    Compatible With

    • NP-F550 / 570 / 750 / 770 / 950 / 970 and other NP-F type batteries
    • Accessories using a V-mount interface or 1/4"-20 screws

SmallRig 5536 Adapter Plate for NP-F Type Batteries (Supports UPS)

Here is a clear, polished overview written from your provided details.
If you'd like it in clean HTML, marketing style, or shortened, just tell me!


Overview – SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536

The SmallRig Adapter Plate for NP-F Type Batteries (Supports UPS) 5536 is a versatile dual-battery power solution designed for mirrorless cameras, video monitors, and other devices that use NP-F series batteries. Supporting one or two NP-F batteries, the plate enables continuous, uninterrupted power through its built-in hot-swap capability—allowing you to replace a depleted battery without shutting down connected devices.

Designed for flexible mounting, the plate attaches via a V-mount interface or 1/4"-20 threaded holes, making it suitable for cages, rigs, and accessories that support these standards.

Equipped with multiple output ports, including D-Tap, DC (5521), and USB-C, the 5536 can power several devices at once. The USB-C port supports up to 36W input, enabling the plate to function as a charging dock for NP-F batteries.

Smart Power Management

The integrated intelligent management chip optimizes both charging and discharging operations:

  • During Discharge:

    • Prioritizes draining the battery with the lower charge.
    • Switches to parallel output at low voltage for greater stability.
    • Supports hot-swapping and high-power loads.
  • During Charging:

    • Starts by charging the battery with the higher remaining capacity.
    • Switches to simultaneous charging for improved efficiency.

User Controls & Indicators

The 5536 features an independent power switch and clear LED indicators to simplify operation and monitor status at a glance.

Power Switch

  • Single Press: Shows battery level and enables output.
  • Long Press (2s): Disables all output ports.

Power Indicator (Red)

  • Lights when powered on; auto-off after ~10 seconds if no load is detected.
  • Solid Red: Normal operation.
  • Fast Blinking Red: Error (over-current, over-voltage, etc.).

Battery Status Indicator

  • Active on power-on or while a load is connected.

During Discharge:

  • Green (Solid): ≥ 20%
  • Red (Solid): 10%–20%
  • Red (Slow Blink): < 10%

During Charge:

  • Green (Slow Blink): Charging
  • Green (Solid): Fully charged

Note: For safety and best performance, remove the batteries or hold the power button for 2 seconds to disable output when not in use.

Compatible With

  • NP-F550 / 570 / 750 / 770 / 950 / 970 and other NP-F type batteries
  • Accessories using a V-mount interface or 1/4"-20 screws
