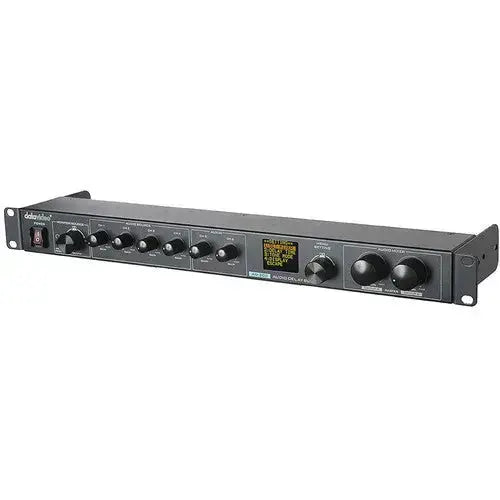

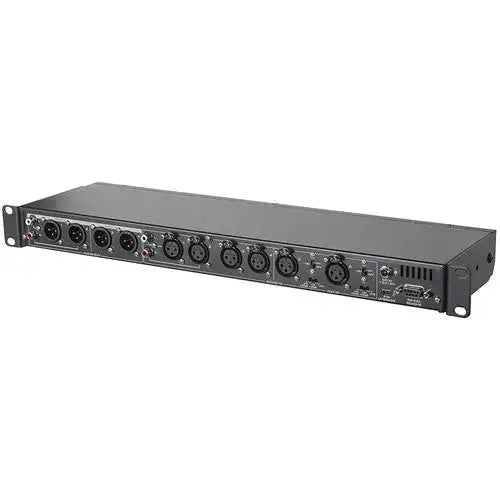

Datavideo AD-200 6 Channel Audio Delay/Mixer with Level Adjustment (1 RU)

AUX Section

Impedance 2 kOhms / 3 kOhms

Connector 2 x 3-pin XLR Female

Mic Gain Range 40 dB / 60 dB

Line Gain Range off to 12 ±3 dB

THD+N 0.01 %

Signal to Noise Ratio 80 min dB

Frequency Response 20 Hz - 20 kHz ±3 dB

Audio Input

Connectors 4 x 3-pin XLR female 2 x RCA, unbalanced (L/R)

Input Impedance 25 kOhms

Gain Range off to 12 ±3 dB

THD+N 0.01 %

Frequency Response 20 Hz - 20 kHz ±3 dB

Signal to Noise Ratio 80 dB

Impedance 15 kOhms

Audio Output

Connectors 4 x 3-pin XLR female 2 x RCA, unbalanced (L/R)

Impedance 65 Ohms

Gain Range off to 12 dB

Output Level 23 dBu

Headphones

Connector 3.5 mm phone jack

Signal to Noise Ratio 75 dB

THD+N 0.01 %

Frequency Response 20 Hz - 20 kHz (±3 dB)

General

Audio Delay 0-3 sec for audio inputs

Connectors Main Unit: 15-pin Sub-D, Front panel 9-pin Sub-D, RS232 remote 3.5 mm phone jack, audio output Control Unit: 15-pin Sub-D, Front panel 3.5 mm phone jack, audio input

Phantom Power 48 VDC

Power Consumption 12 V / 19 W

Dimensions Main Unit: 5.8 x 17.3 x 1.7" (147.0 x 440.0 x 45.4 mm) Control Unit: 3.5 x 17.3 x 1.8" (90.5 x 440.0 x 47.5 mm)

Weight Main Unit: 4 lb (1.8 kg) Control Unit: 2.4 lb (1.1 kg)

Packaging Info

Package Weight 9.55 lb

Box Dimensions (LxWxH) 20.3 x 10.5 x 8.1"
