Datavideo HDR-70 HD/SD Digital Video Recorder (Rack Mounted)

Datavideo HDR-70 HD/SD Digital Video Recorder (Rack Mounted)

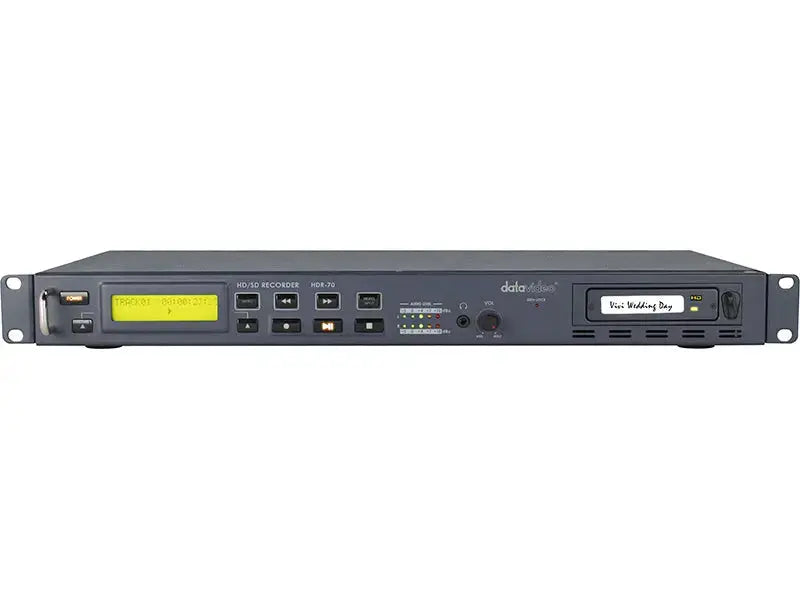

The DataVideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a rack mountable video recorder for studio control rooms or video production trucks. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-70 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-70 features two XLR inputs and outputs for balanced audio.

The included drive caddy supports available drives (both HDD and SSD) up to 500GB, and once removed from the HDR-70 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSata interface for off loading or editing directly from the drive. The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-70 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the cable connector features a locking collar so the power cable can't be accidentally unplugged.

HDR-70 Video Support

• NTSC and PAL video and HD video including 1080p, 1080i and 720p
• Reference In/Out Black Burst and Tri-level sync
• Timecode input/outputs, and gen-lock input and pass-through
• SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio
• The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.
• The front panel features local control buttons and a built-in headphone jack with volume knob

Features

• LCD menu screen
• Lockable drive bay.
• Timelapse recording feature
• Power on record/play
• Media files are made on the fly with no rendering required.
• In the event of power loss during recording, only the last two seconds of your recording are lost
• Removable rack mount ears (ships unattached)
• Removable rubber feet (ships attached)

Drive Enclosure

Material of Construction Painted aluminum

Interface (Inputs/Outputs) USB 2.0 eSata

Internal Interface SATA

Drive Compatibility HDD: Western digital, Fujitsu, Hitachi Compatible with SSD

Power 5VDC

Dimensions 6 x 5 x 1" (15.2 x 12.7 x 2.5 cm)

Weight 1 lb (0.5 kg)

Recorder

Signal System HD NTSC PAL

Supported Video Formats 1080p 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC PAL

Recording Formats HD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 SD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 Audio PCM, 24-bit, 8 channels, 48kHz

Data Rates HD 10 to 25Mb/s, 4:2:0 35 to 100Mb/s, 4:2:2 SD 8Mb/s, 4:2:0 15 to 50Mb/s, 4:2:2

Inputs Video: 1 x SD/HD-SDI Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels) GPI 1 x mini-XLR Timecode 1 x BNC Black Burst/Sync 1 x BNC

Outputs Video: 1 x SD/HD-SDI 1 x SD/HD-SDI (loop through) 1 x HDMI Audio: 2 x Balanced stereo mimi-XLR (analog, stereo pair 2-channels) Timecode 1 x BNC Black Burst/Sync 1 x BNC

Control Interface RS 422, RS 232 9-pin DIN

Recording Time 250GB Hard Drive 5 Mb/s: 111 hours 10 Mb/s: 55 hours 15 Mb/s: 37 hours 20 Mb/s: 27 hours 40 Mb/s: 15 hours 60 Mb/s: 9 hours 320GB Hard Drive 5 Mb/s: 142 hours 10 Mb/s: 70 hours 15 Mb/s: 47 hours 20 Mb/s: 35 hours 40 Mb/s: 19 hours 60 Mb/s: 12 hours 500GB Hard Drive 5 Mb/s: 220 hours 10 Mb/s: 111 hours 15 Mb/s: 74 hours 20 Mb/s: 55 hours 40 Mb/s: 27 hours 60 Mb/s: 18 hours

File Format MXF/OP1A

File System Format NTFS

Recording Limit 99 bins 99 clips per bin

Material of Construction Painted aluminum

Rack Height 2RU

Power Requirements 12VDC

Power Consumption 16W

Dimension L x W x H 17.3 x 11.4 x 1.9" (44 x 29 x 4.9 cm)

Weight 7 lbs. (3.17 kg)
