Amaran Ray 120c RGB LED Monolight

Amaran Ray 120c RGB LED Monolight

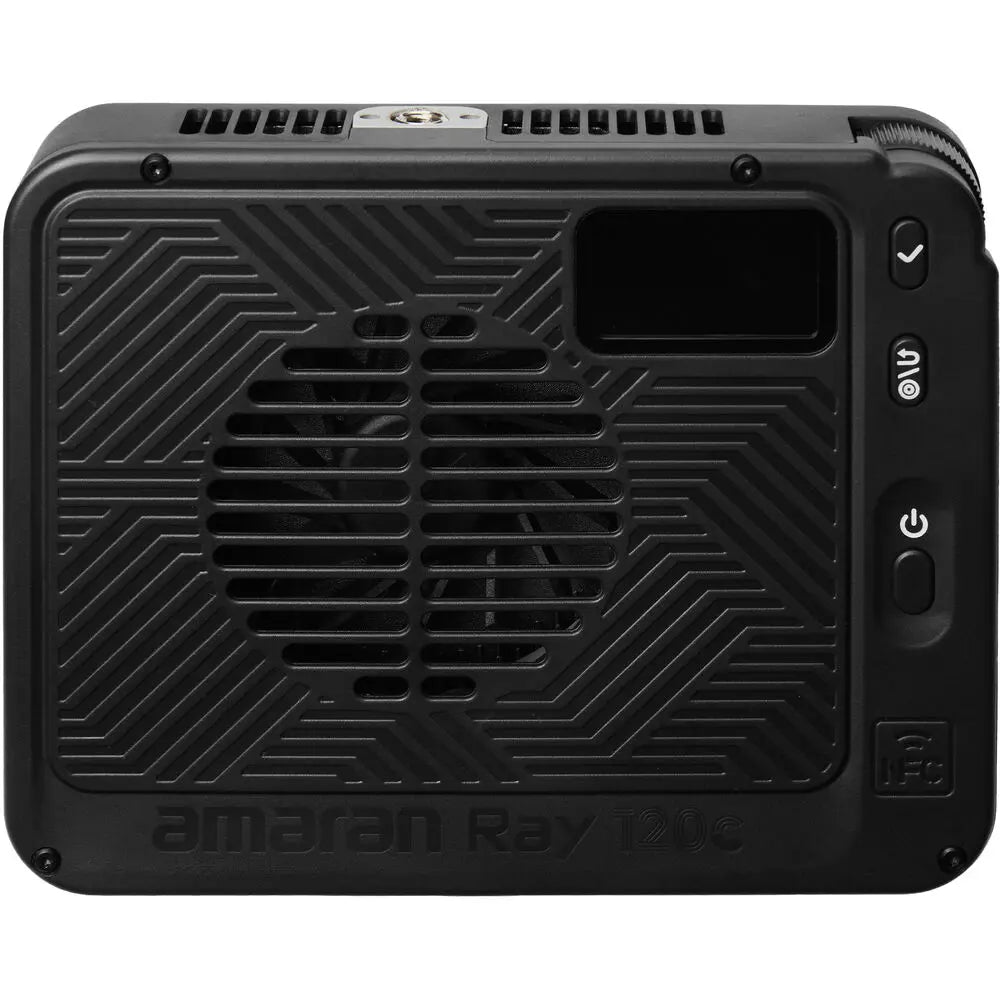

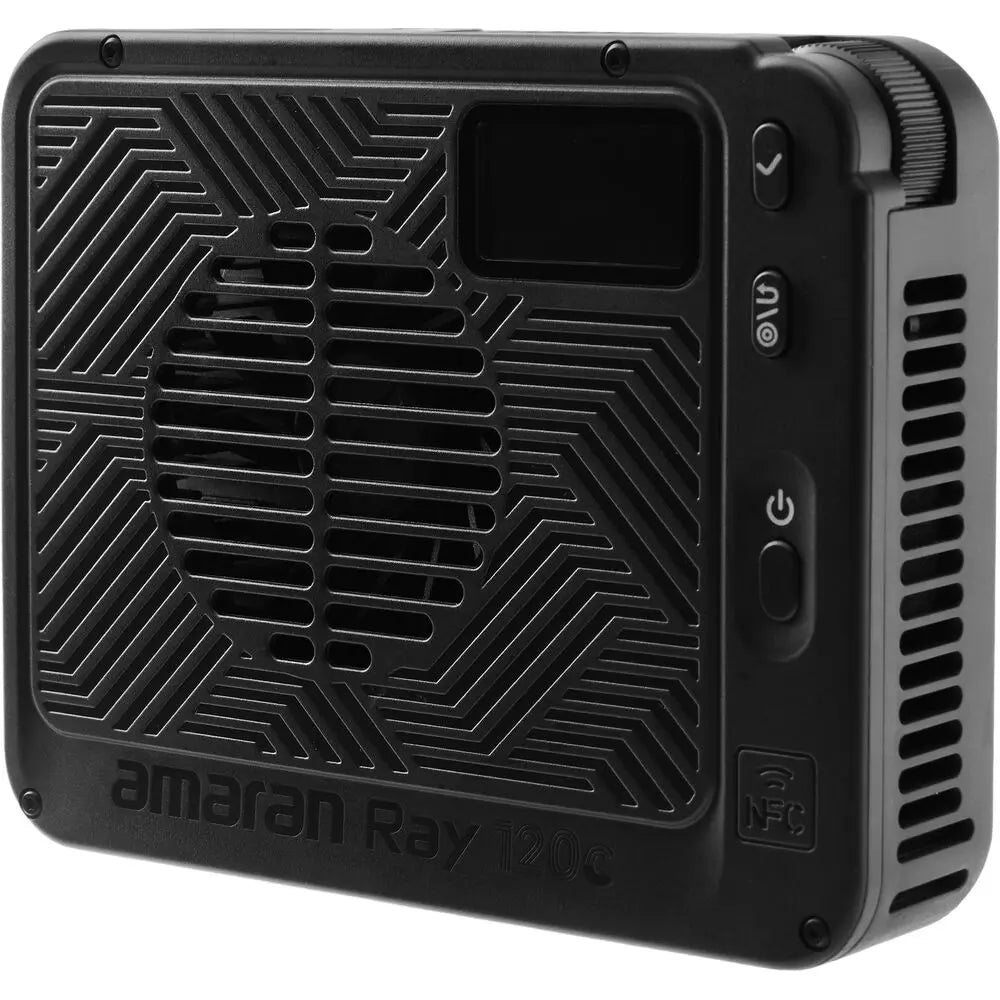

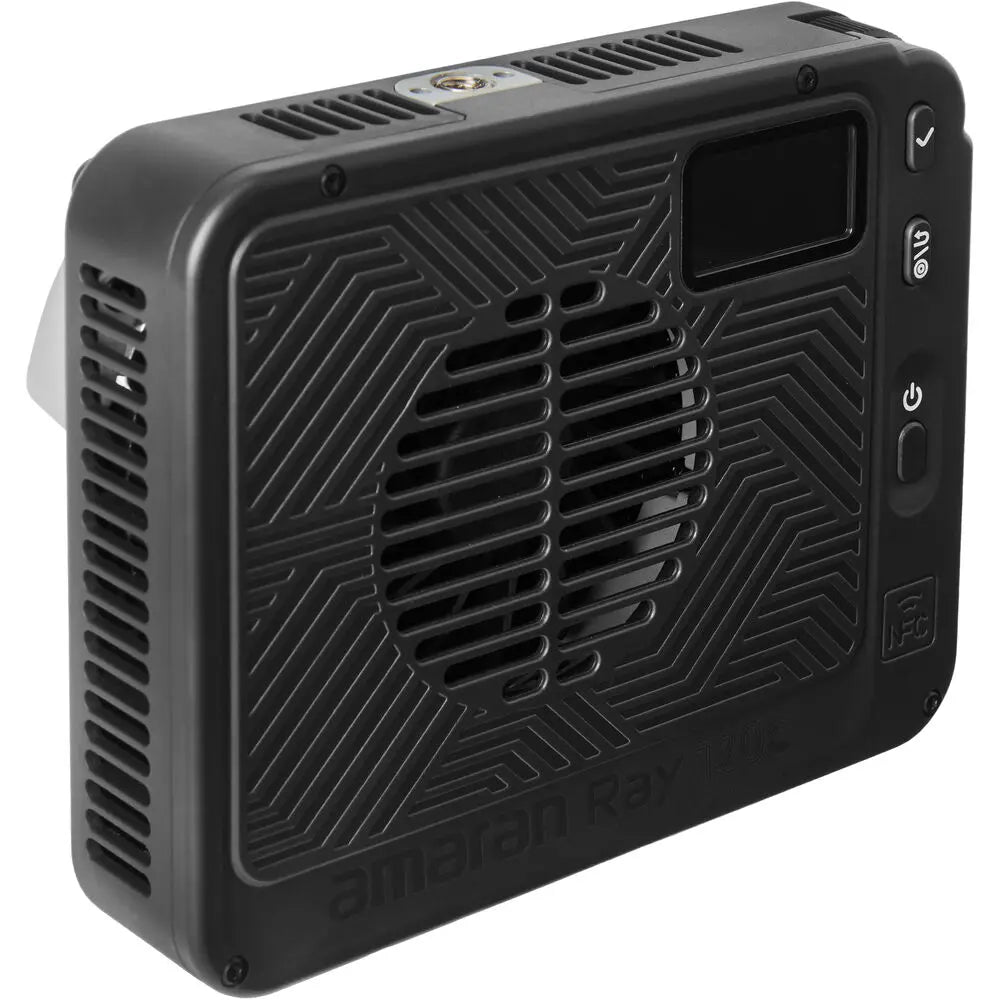

The Amaran Ray 120c RGB LED Monolight builds on the compact design of the Ray 60c while delivering a significant boost in output for creators who need more power on the move. Slim at just 5 cm and weighing only 590 g, this ultra-portable 120 W fixture is engineered for tight spaces, mobile shooting environments, and fast setups. Despite being 85% smaller in body volume than amaran’s 150c, it delivers noticeably higher brightness. Powered by the OmniColor light engine, the Ray 120c offers flexible power options and intuitive control via the FlowTurn knob, NFC one-tap app pairing, and full Bluetooth app integration. With an extended colour temperature range of 1800–20,000 K in CCT+ mode, full 360° colour selection through HSI and RGB modes, and high colour accuracy ratings (CRI 95, TLCI 95, SSI 80/87, TM-30 94/100), the Ray 120c is built for professional, true-to-life colour reproduction.

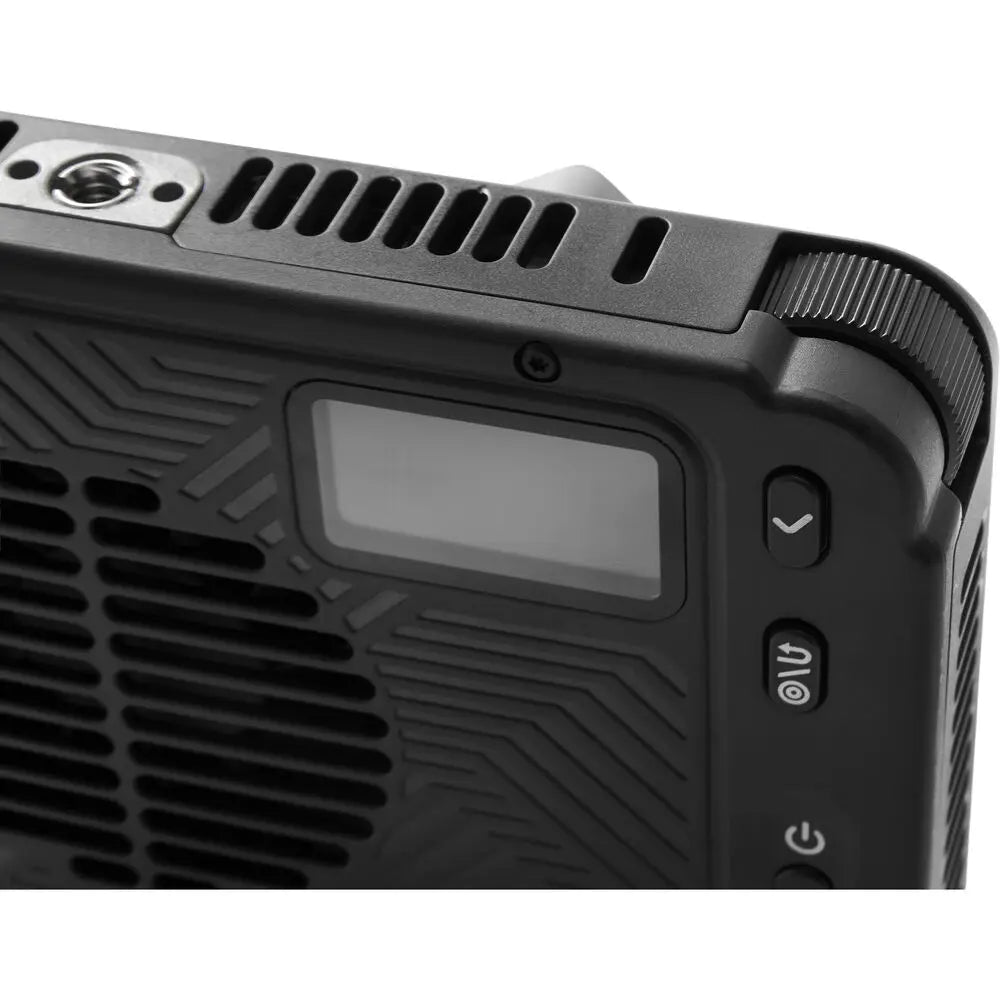

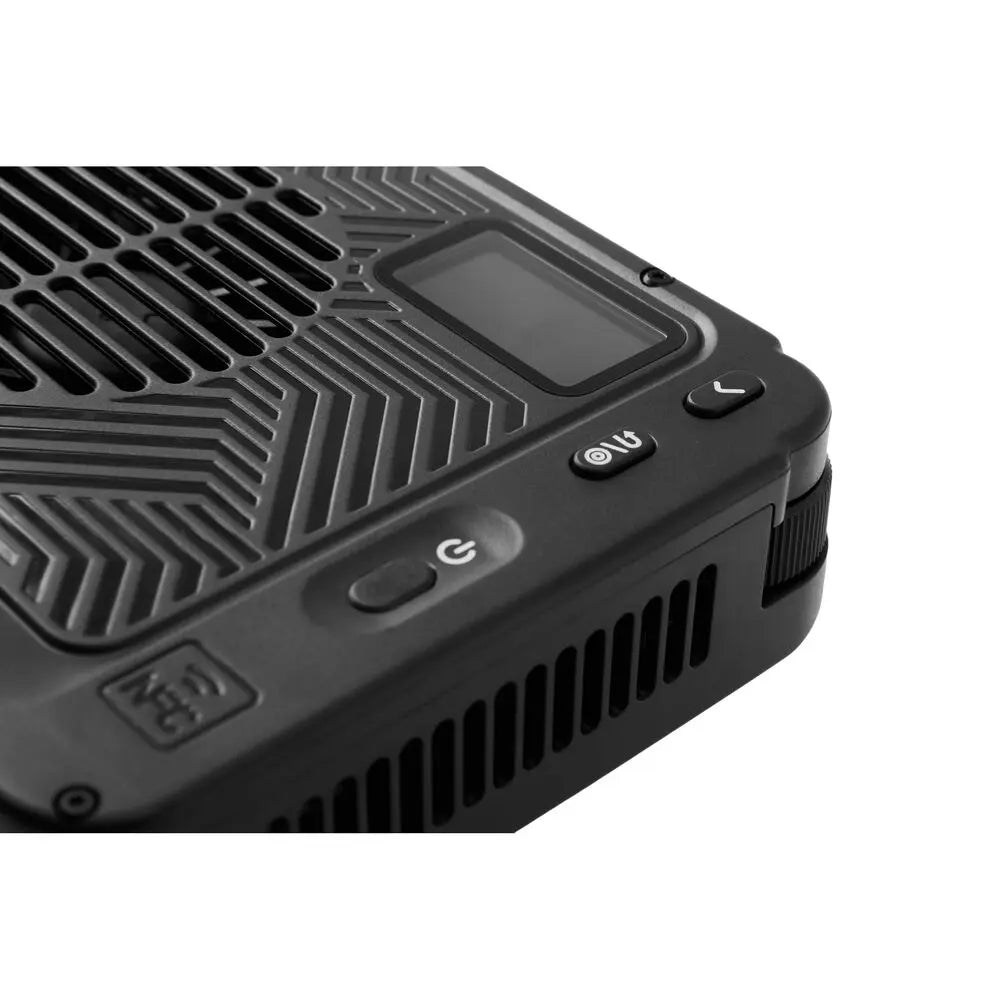

Despite its compact size, the Ray 120c delivers impressive output—up to 6850 lux at 1 m (3200 K) —with even more punch when paired with optional accessories like the Mini Reflector or Mini Fresnel. Brightness is fully adjustable from 0–100%, and the light includes 12 built-in FX presets, including lightning, fireworks, TV, fire, and paparazzi, for creative lighting scenarios. A streamlined interface with a TFT display, Quick Operation mode, and customisable shortcuts ensures fast on-the-fly adjustments, whether shooting in the studio or out in the field. Bluetooth app control extends up to 80 m, allowing seamless remote operation.

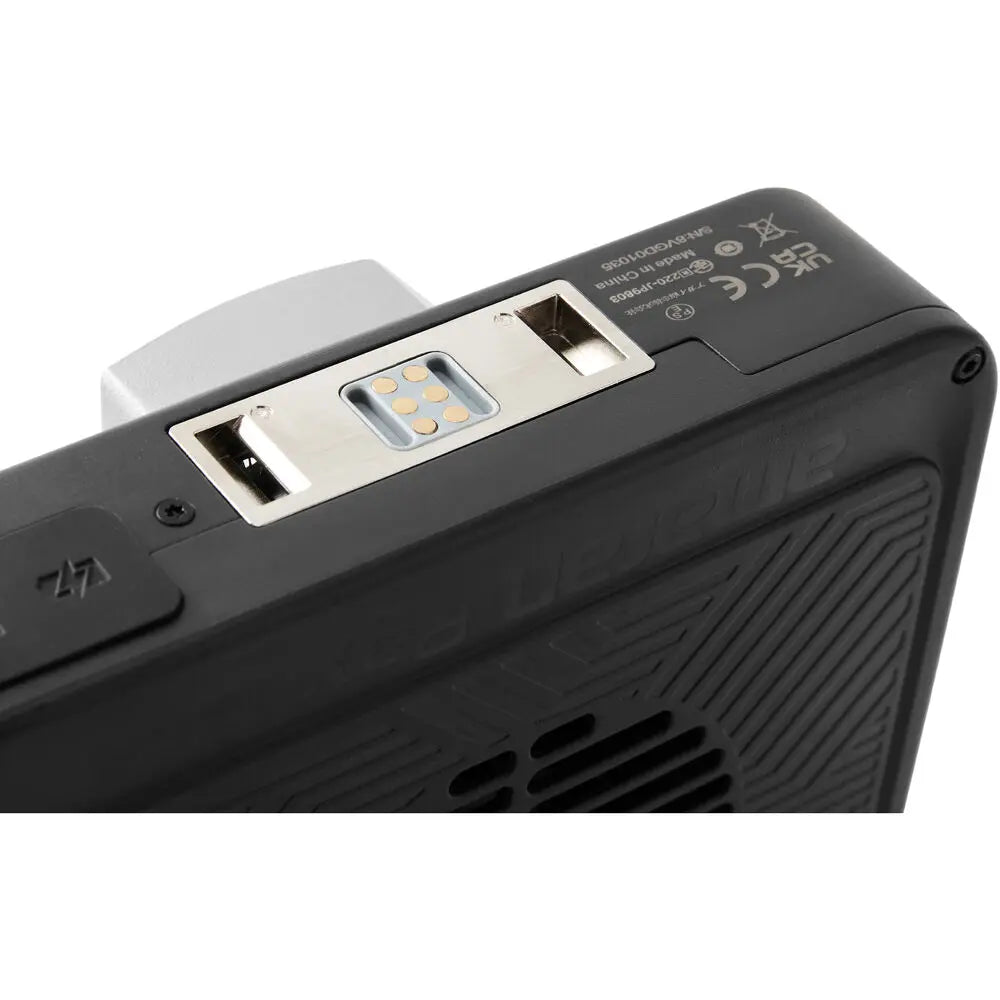

Designed for versatile and reliable use, the Ray 120c supports multiple power methods, including USB-C PD 3.0, 12–24 V DC input, and compatibility with the amaran Ace E-Lock for optional portable batteries. It can run entirely cable-free for up to 35 minutes at full power with the optional amaran Peak or for up to 46 minutes at 50% output using the Peak 75. The IP54 weather-resistant design protects against dust and splashes, making it ideal for outdoor shoots where wind, humidity, or light rain may pose a challenge. Quiet active cooling at just 28 dBA ensures clean audio capture in video environments, with selectable bright or silent fan modes.

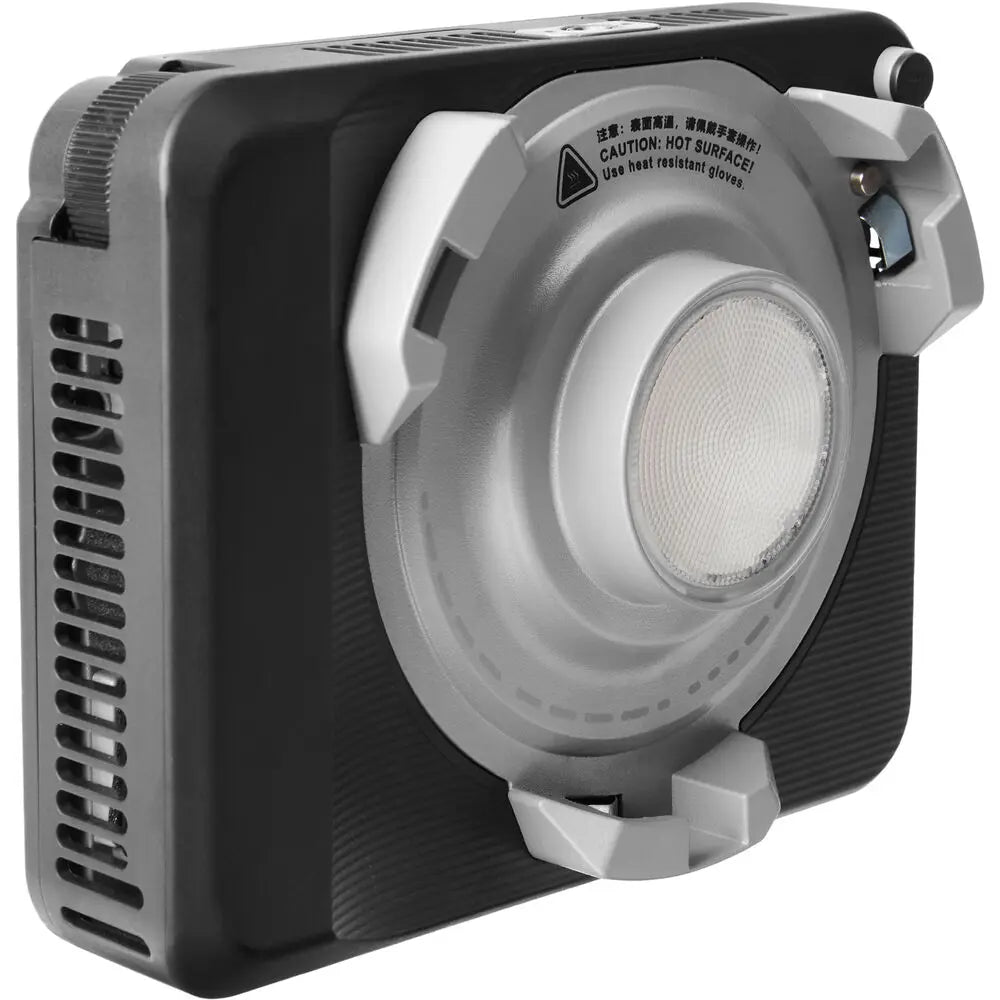

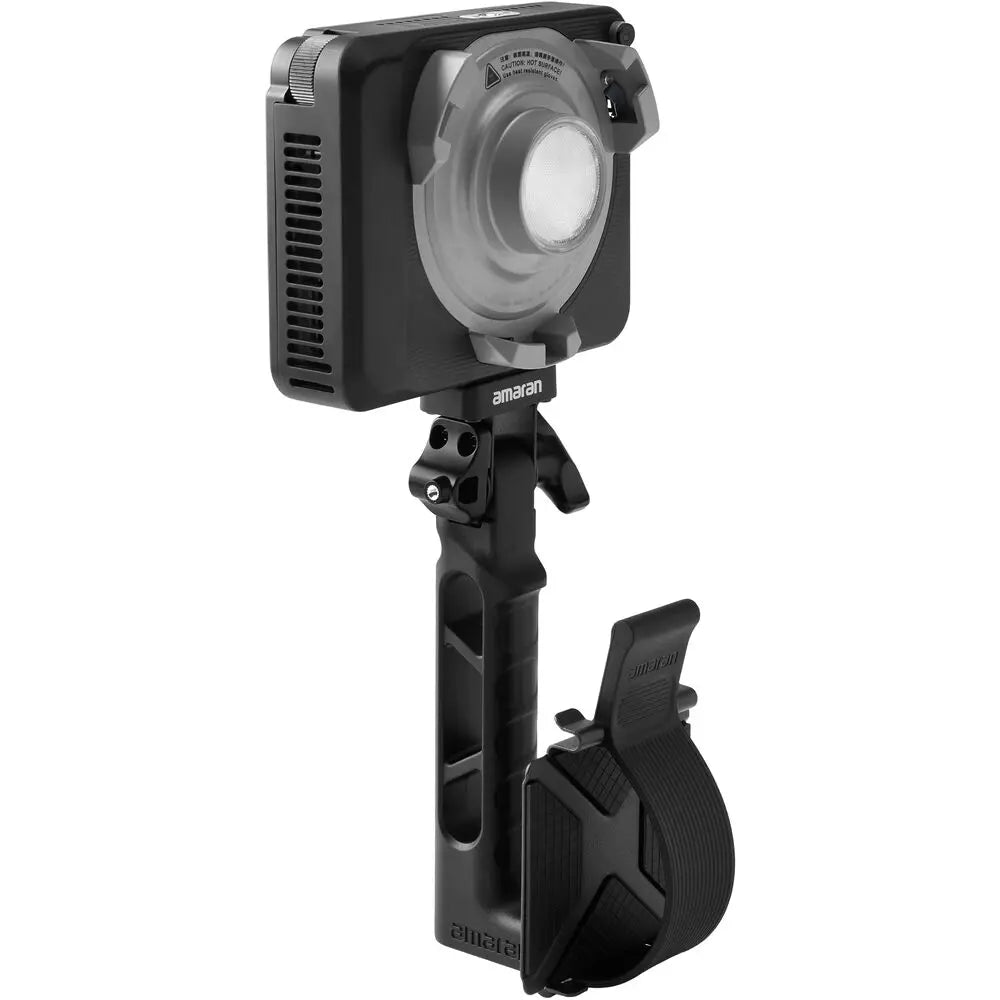

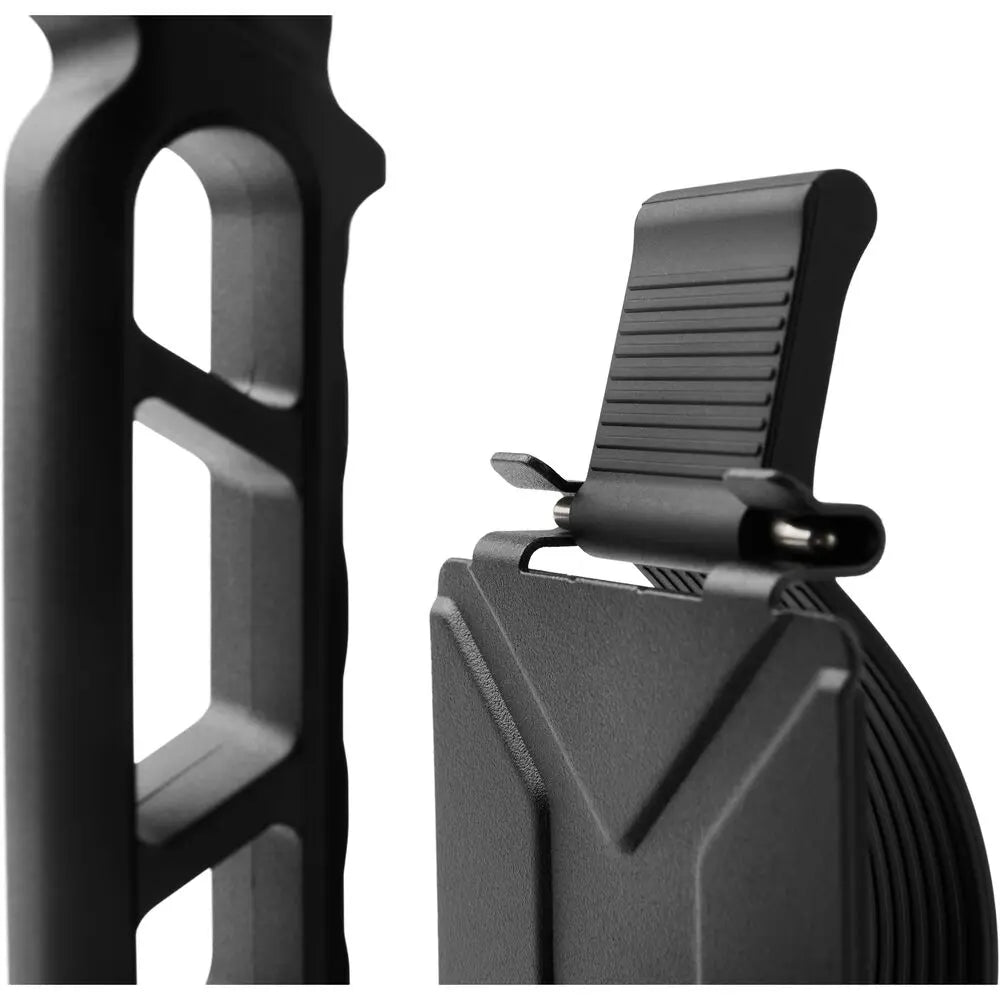

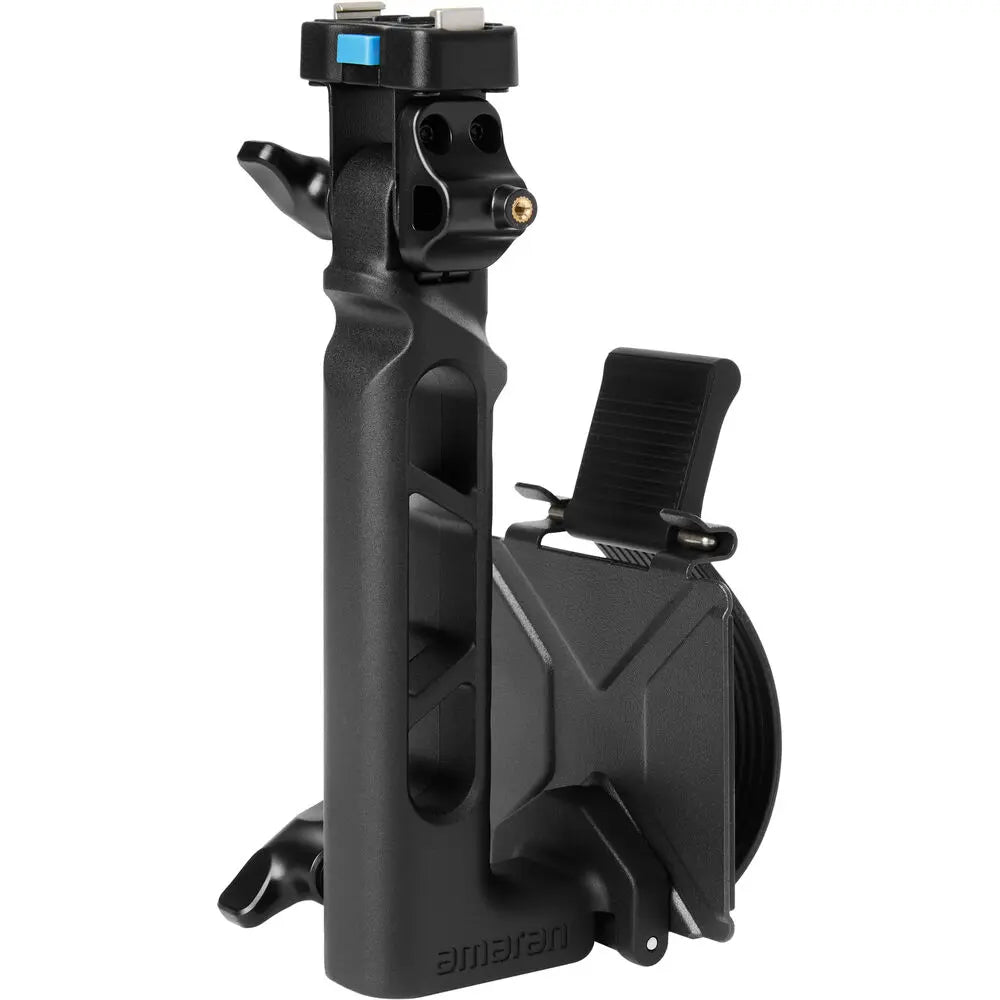

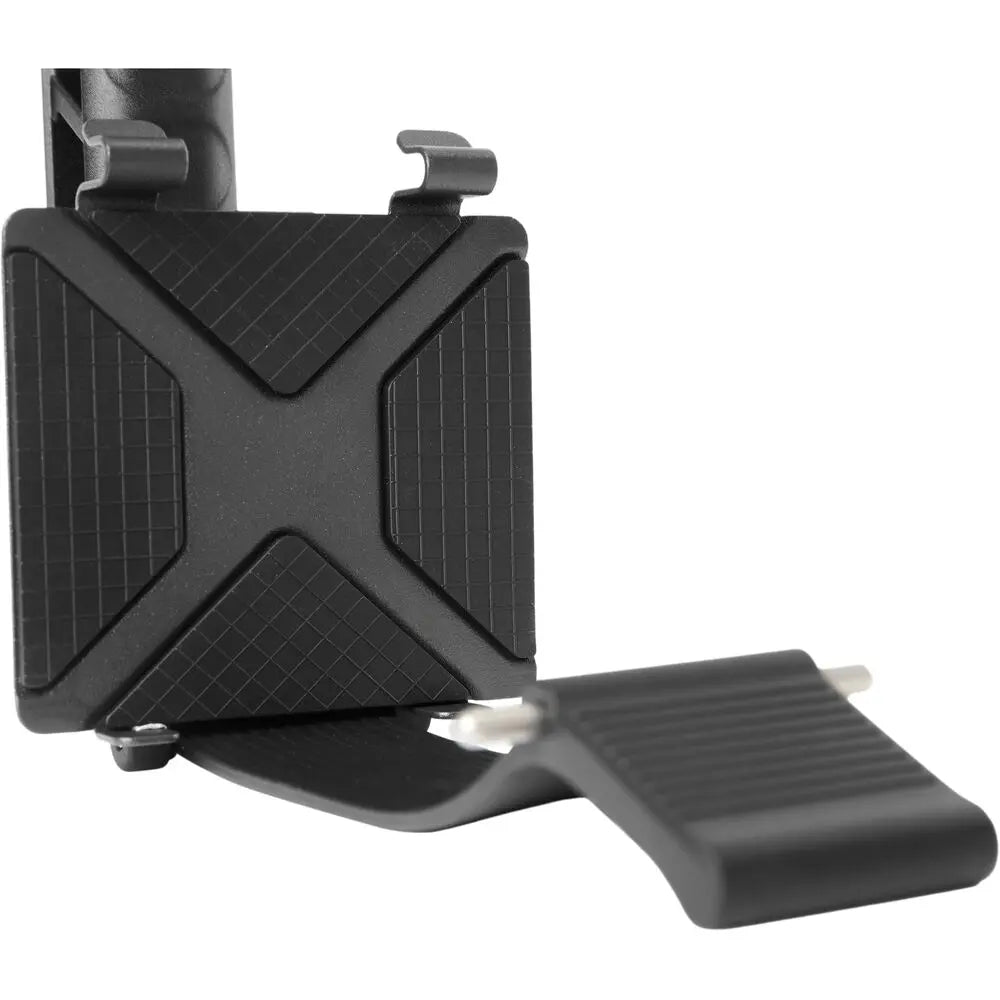

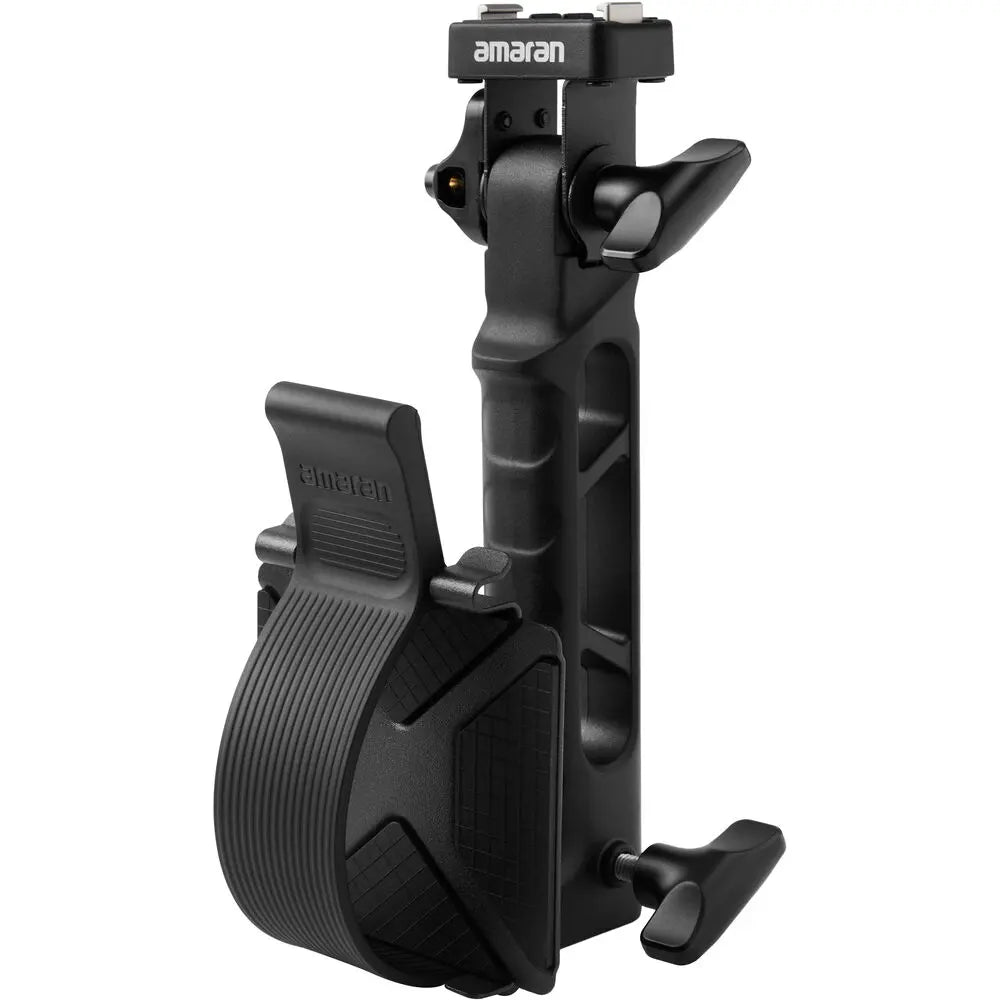

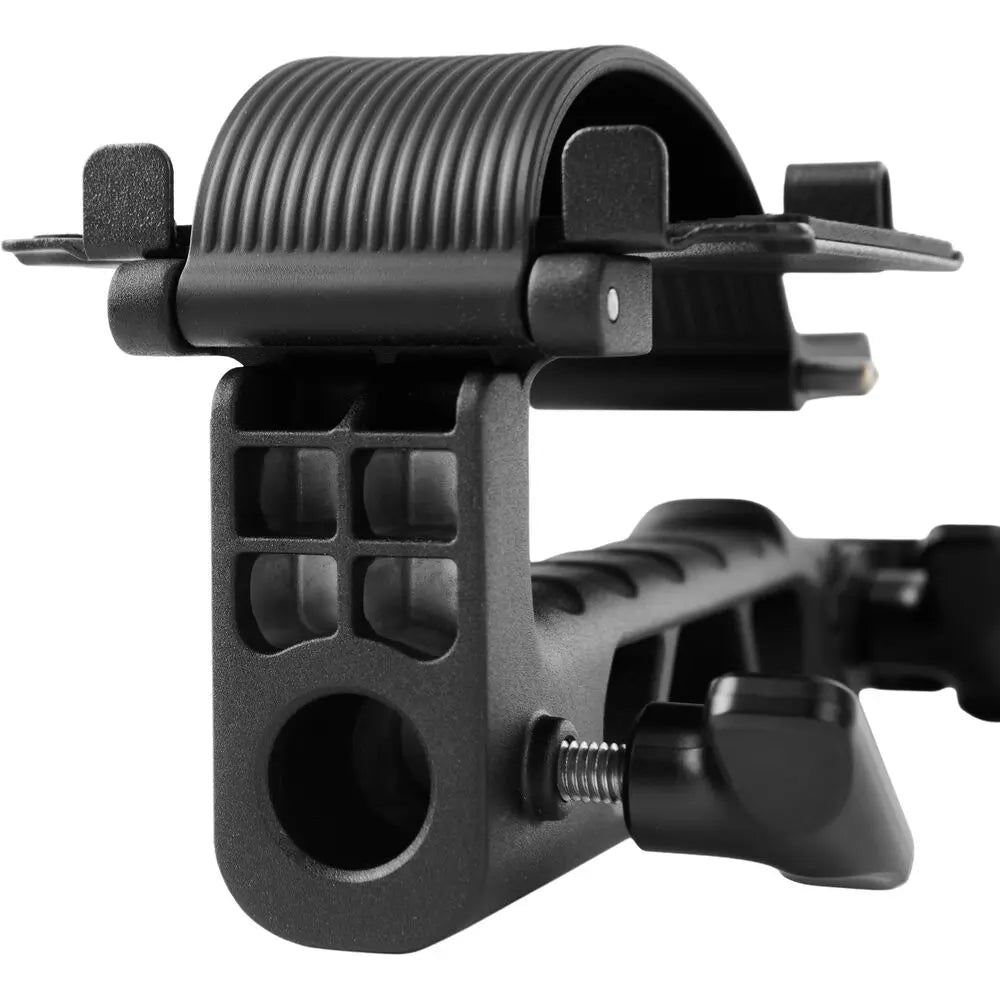

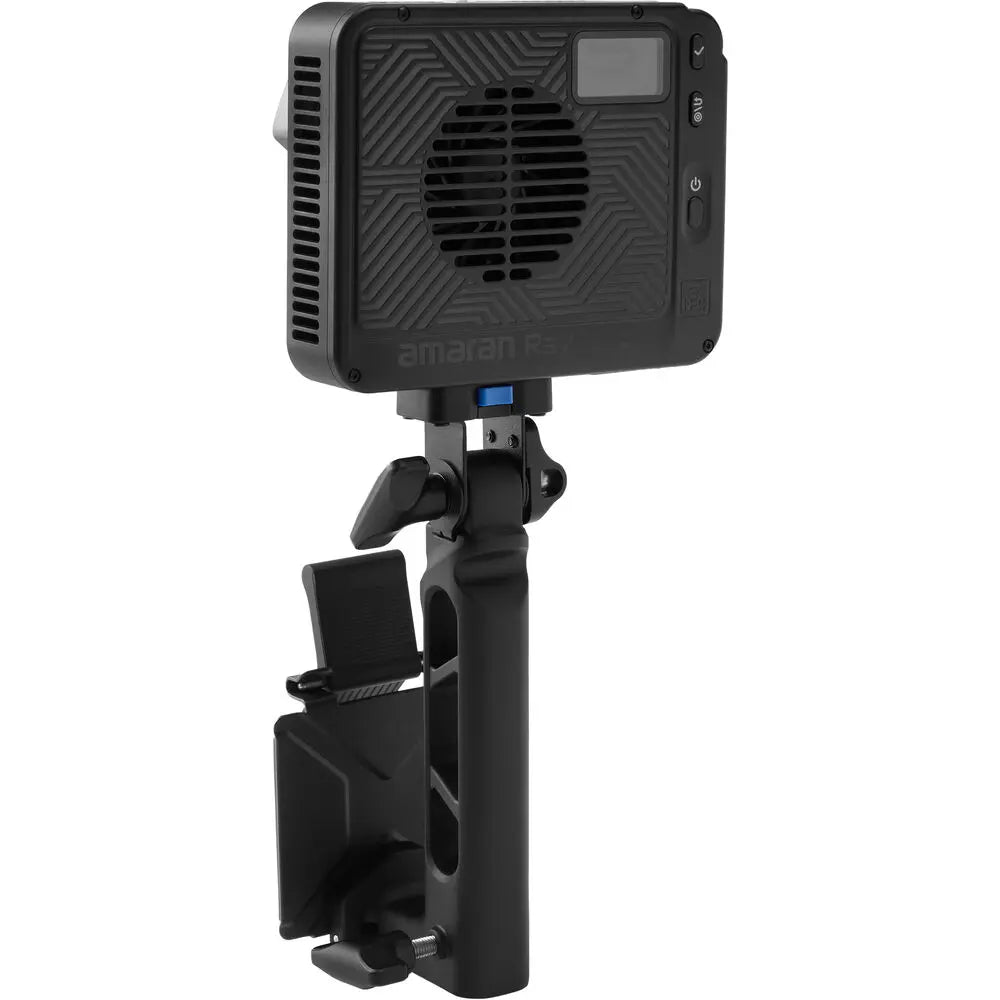

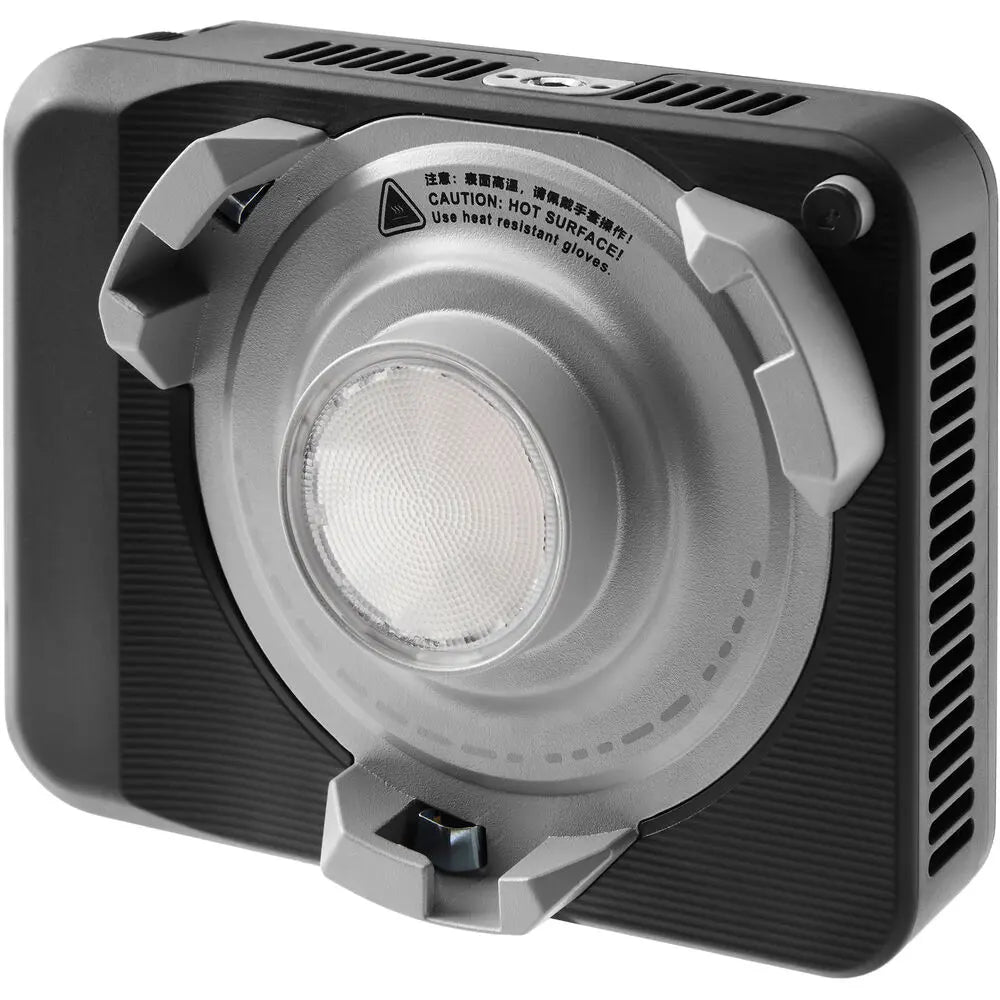

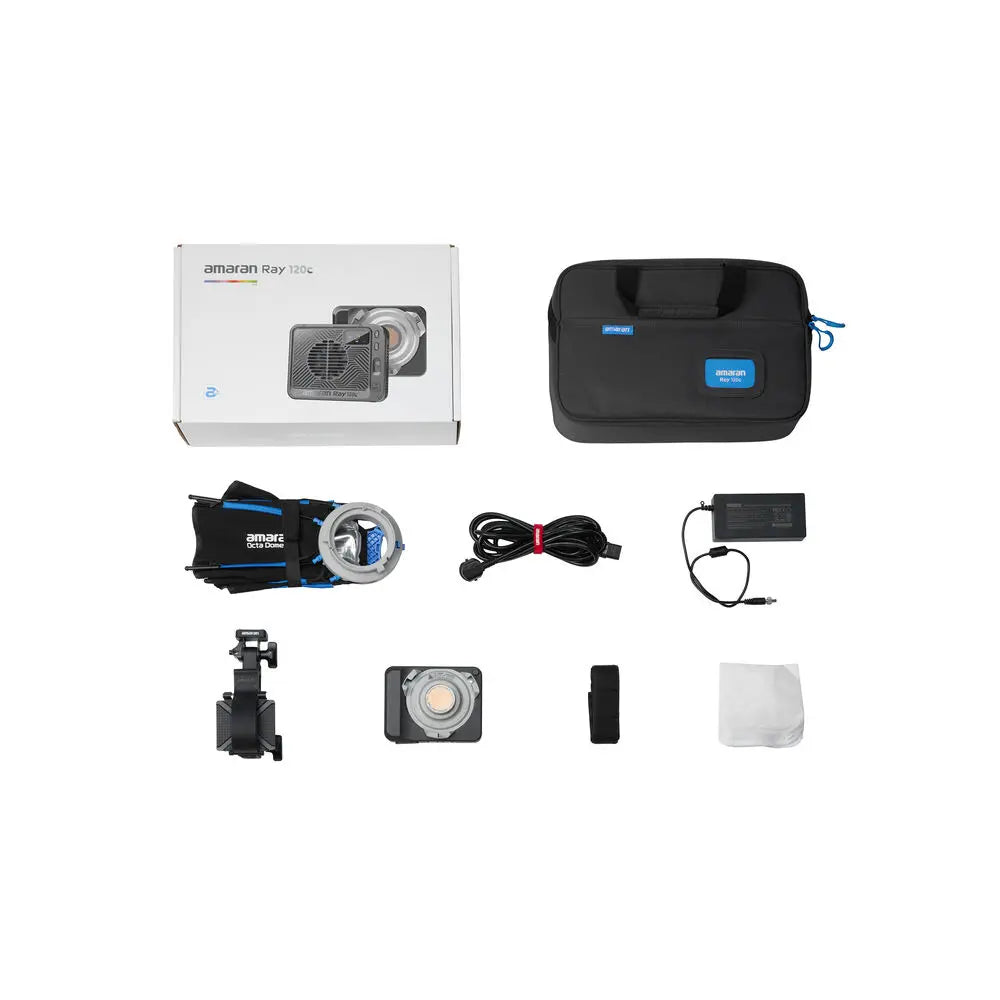

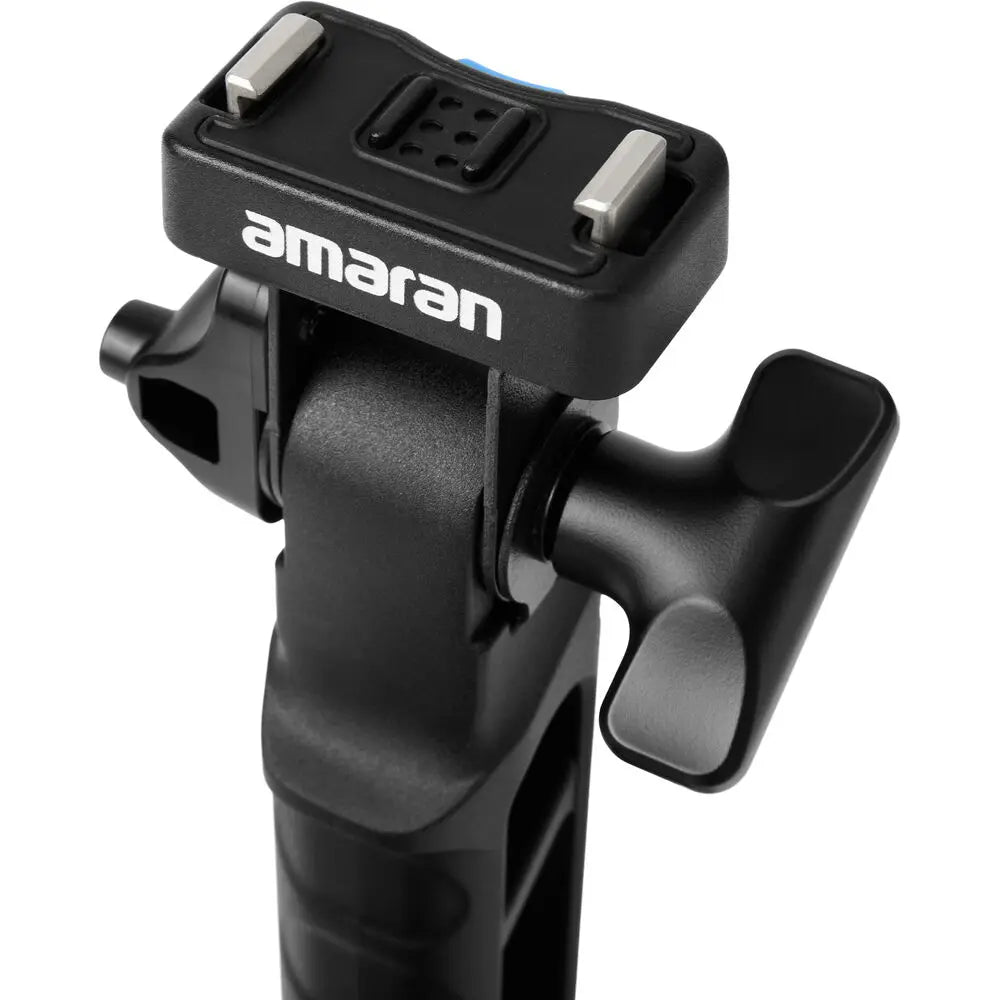

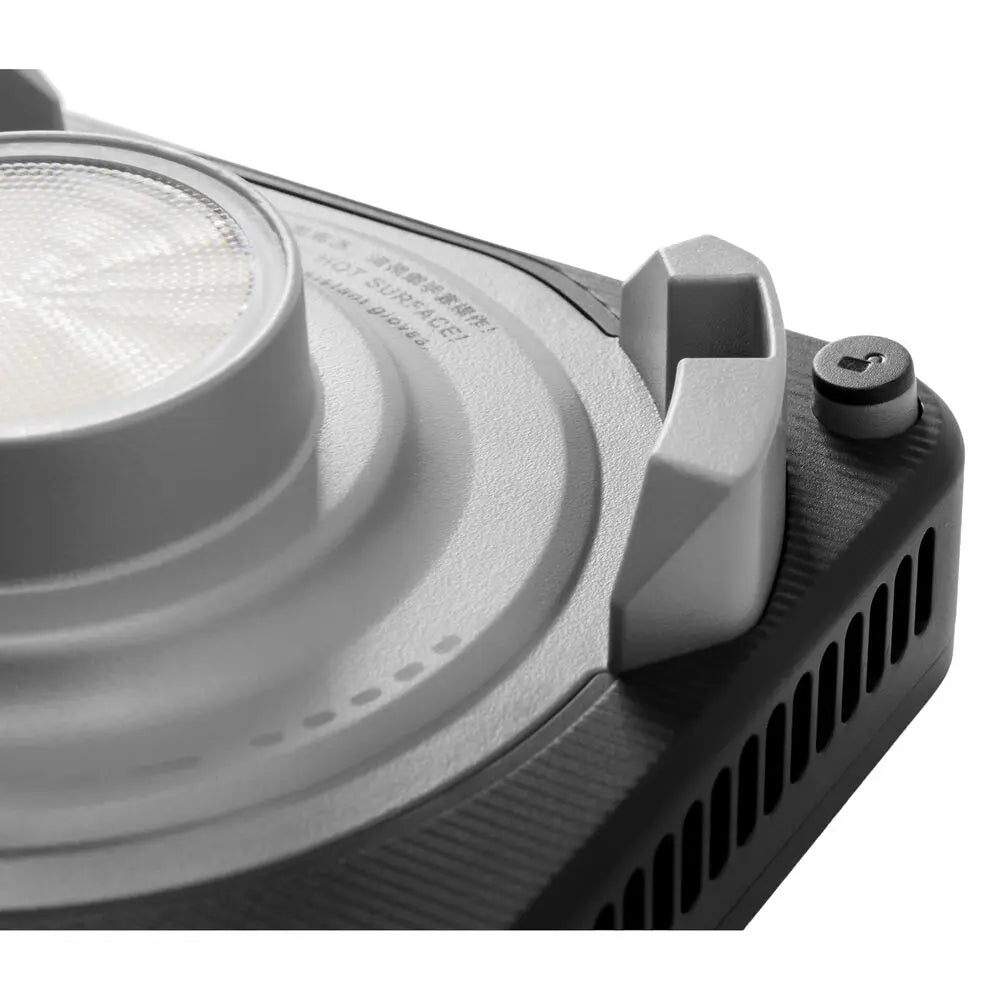

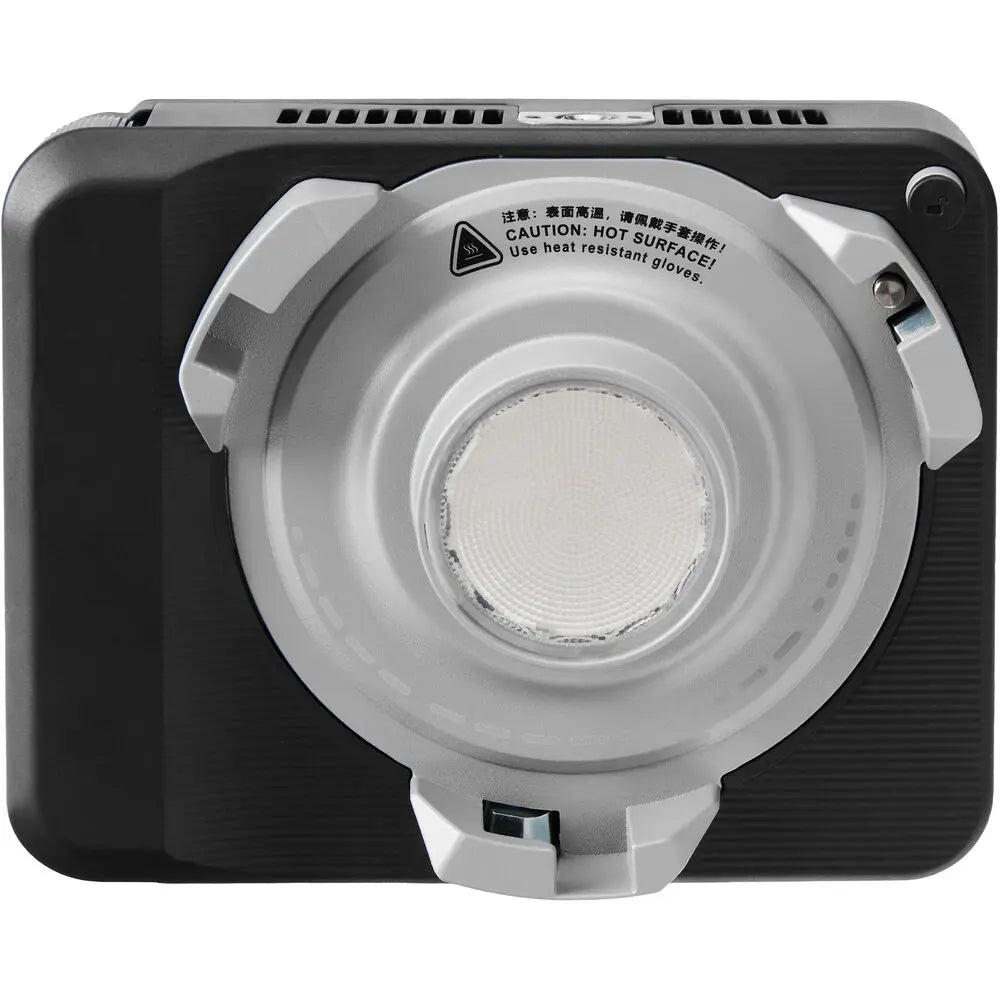

The Ray 120c features a durable, full-size Bowens mount compatible with a wide range of light modifiers. A built-in 1/4-20" thread provides additional mounting flexibility, and amaran includes a 30 cm one-snap Octa Dome softbox and an Ace Lock to Baby Pin Adapter Grip for quick stand mounting or handheld operation with a portable battery attached. With its powerful output, compact form factor, and broad creative capabilities, the Ray 120c is a highly adaptable lighting solution for filmmakers, content creators, and photographers working across indoor and outdoor environments.

Light Fixture

• Item Type: 1× COB LED Monolight
• Included Light Modifier:
  • 1× Softbox with Removable Grid
  • 1× Diffuser
• Included Storage Case: Yes
• Lumens: 8719

Photometrics

• 3200K (Unmodified):
  • 636 fc / 6850 lux at 1 m
  • 70 fc / 761 lux at 3 m
• 3200K (with Softbox):
  • 231 fc / 2497 lux at 1 m
  • 25 fc / 277 lux at 3 m
• 5600K (Unmodified):
  • 605 fc / 6520 lux at 1 m
  • 67 fc / 724 lux at 3 m
• 5600K (with Softbox):
  • 220 fc / 2378 lux at 1 m
  • 24 fc / 264 lux at 3 m

Colour

• Colour Temperature: 1800–20,000K; 2300–10,000K
• Colour Modes: RGB, Daylight, Tungsten
• Colour Accuracy:
  • CRI 95
  • TLCI 95
  • TM-30 Rf 94
  • TM-30 Rg 100
  • SSI 80 at 5600K
  • SSI 87 at 3200K
• Dimming: 0–100% (App-Controlled / Built-In)

Optical

• Cooling System: Fan
• Beam Angle: 70°
• Built-In Flash: No
• Preprogrammed Effects: Yes
• Umbrella Mount: Yes
• Front Accessory Mount: Bowens S

Connectivity

• Wireless Control: Bluetooth
• Mobile App Compatible: Yes (Android & iOS – “amaran” app)
• Wireless Range: 80 m

Power & I/O

• Power Source: AC to DC Adapter (Included); Battery (Not Included)
• Inputs/Outputs:

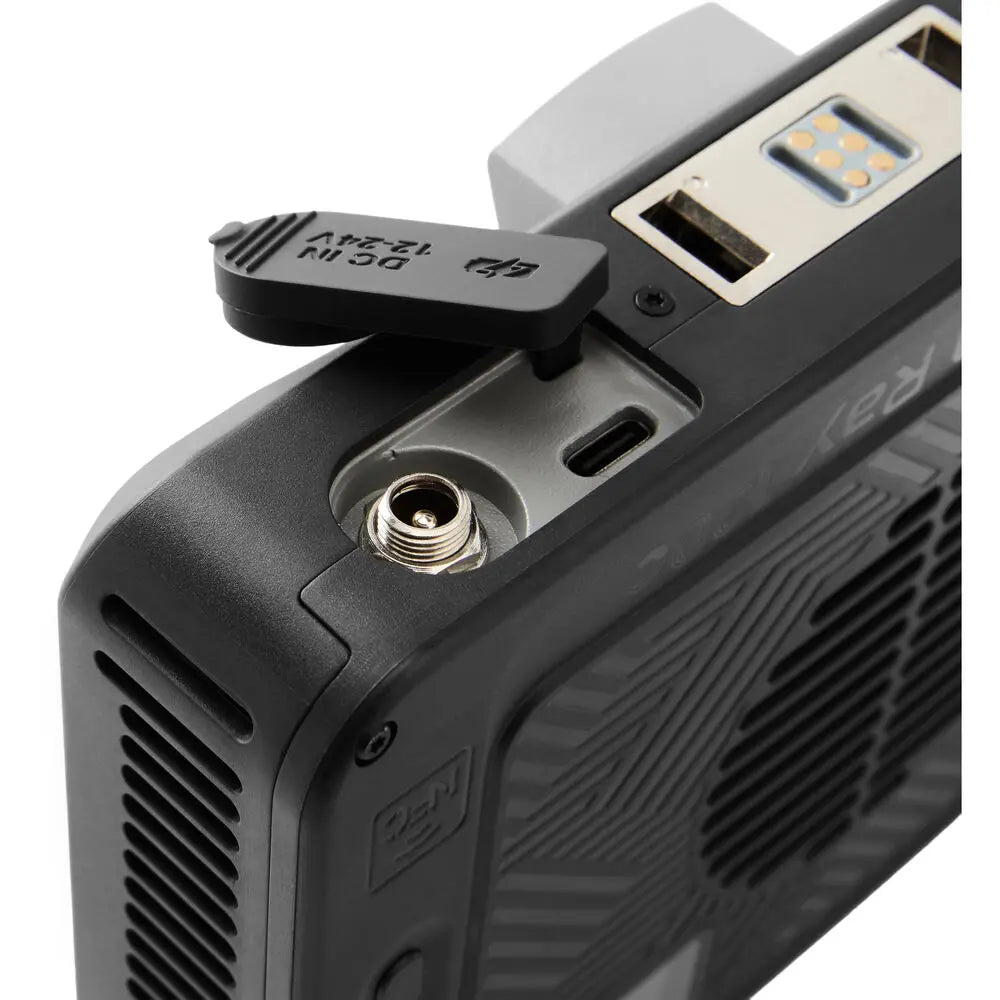

  • 1× Barrel/Coax Power Input (12–24 VDC)
  • 1× USB-C Battery/Power/Firmware I/O
• Battery: 1× Proprietary Rechargeable (Not Included)
• Input Power: 12–24 VDC; 100–240 VAC, 50/60 Hz at 2.5 A
• Included Adapter/Cable: USA Type-A/B Plug to Barrel AC to DC Adapter (4.5 m)
• Inline Switch: No
• Power Pass-Thru: No
• Power Consumption: 140 W (Maximum)

Mounting

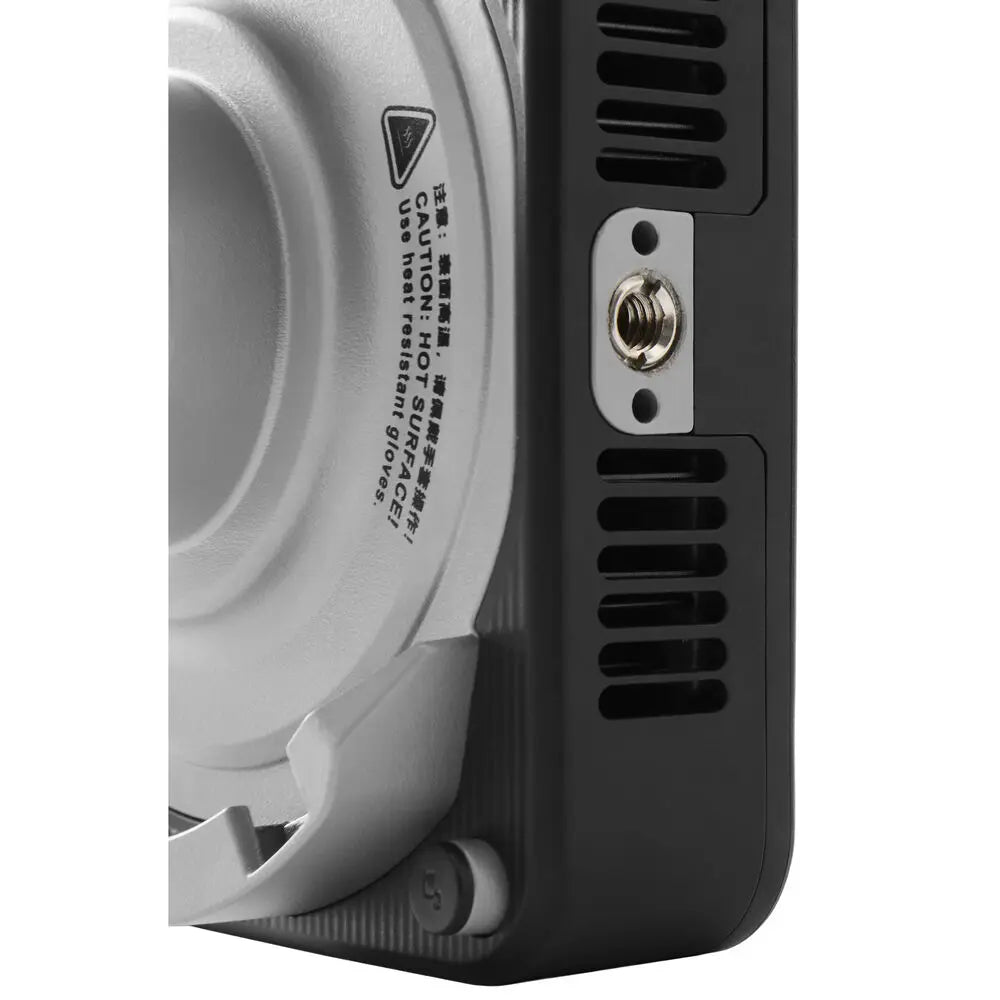

• Fixture Mounting: 1× 1/4"-20 Female Thread; Proprietary

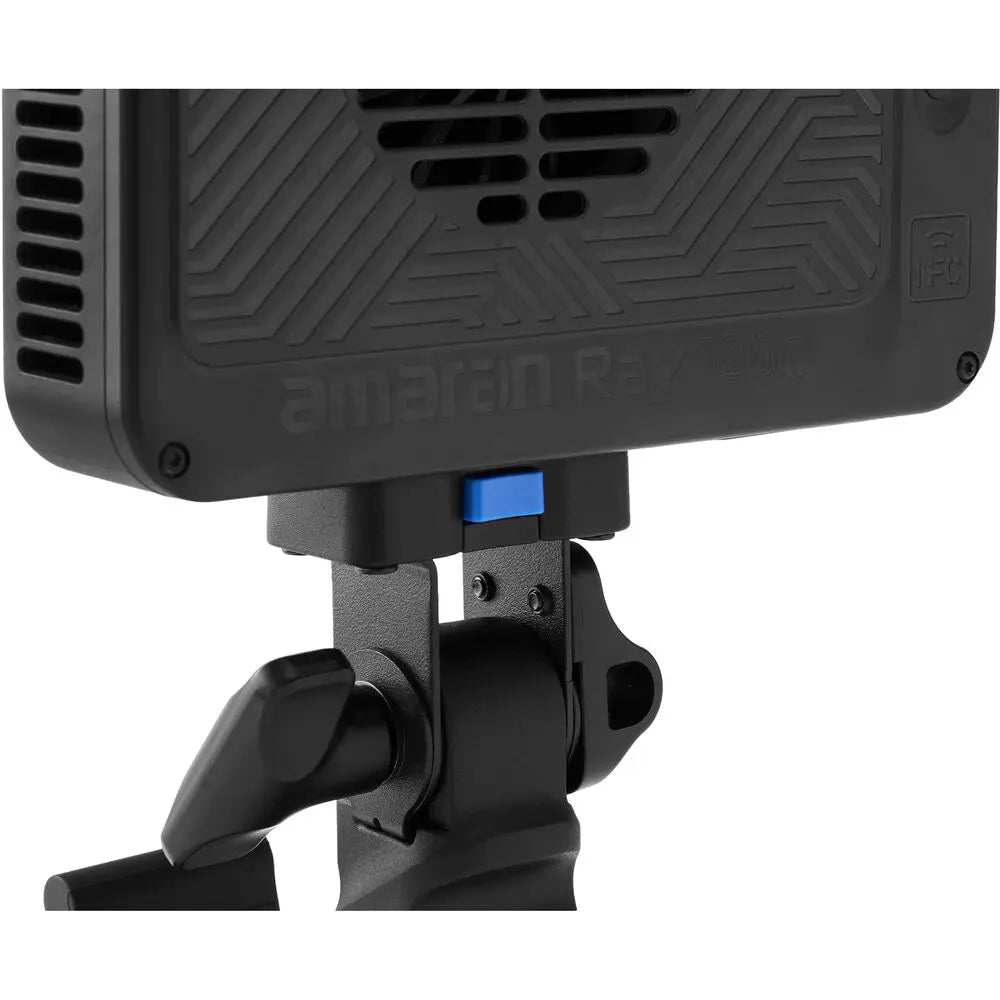

• Included Adapter: Swivel Mount (5/8" Receiver to Proprietary)

General

• Display: LCD
• Environmental Resistance: Dust/Water-Resistant (IP54)
• Operating Conditions: –10 to 40°C
• Storage Conditions: –20 to 80°C
• Dimensions (Fixture): 14.5 × 11.4 × 5.1 cm
• Weight (Fixture): 0.6 kg
