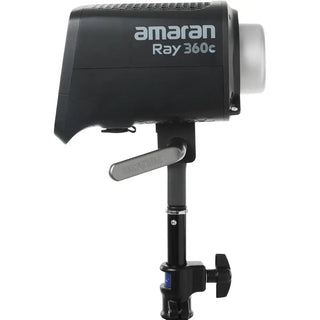

Amaran Ray 360c RGB LED Monolight

Amaran Ray 360c RGB LED Monolight

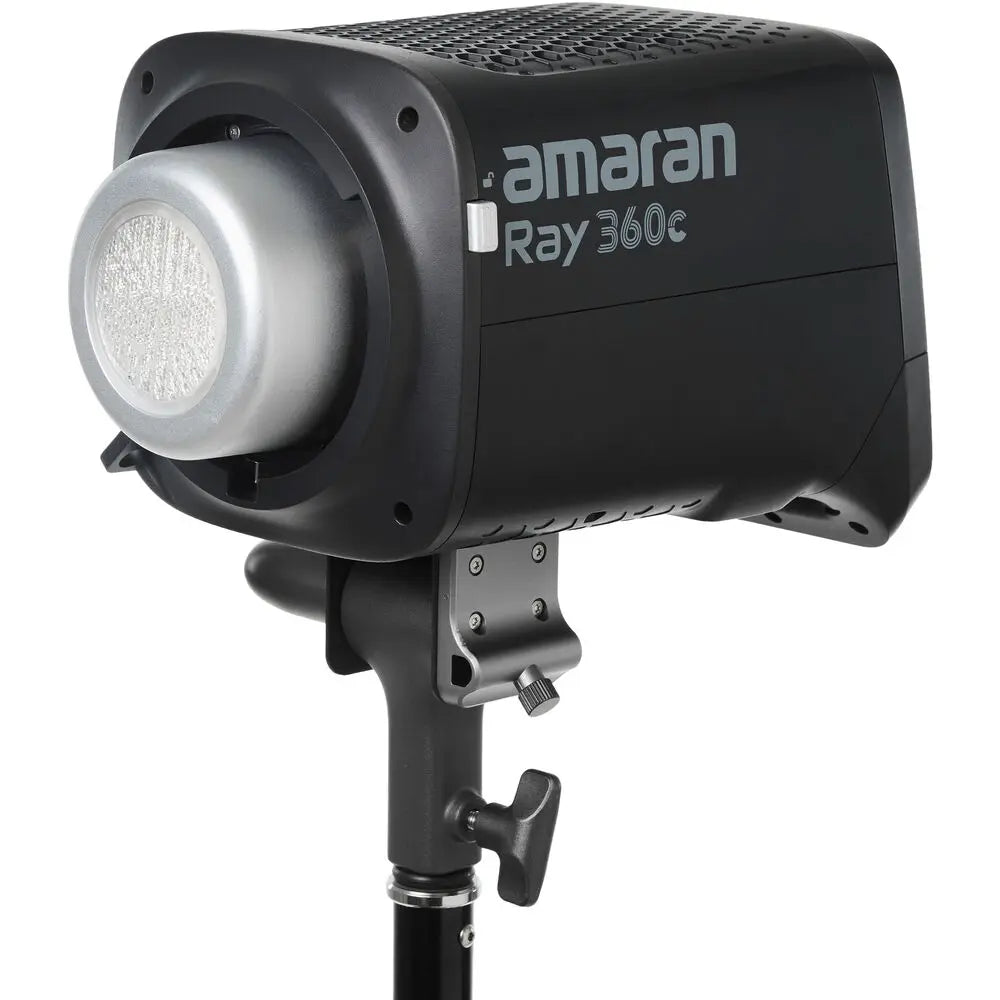

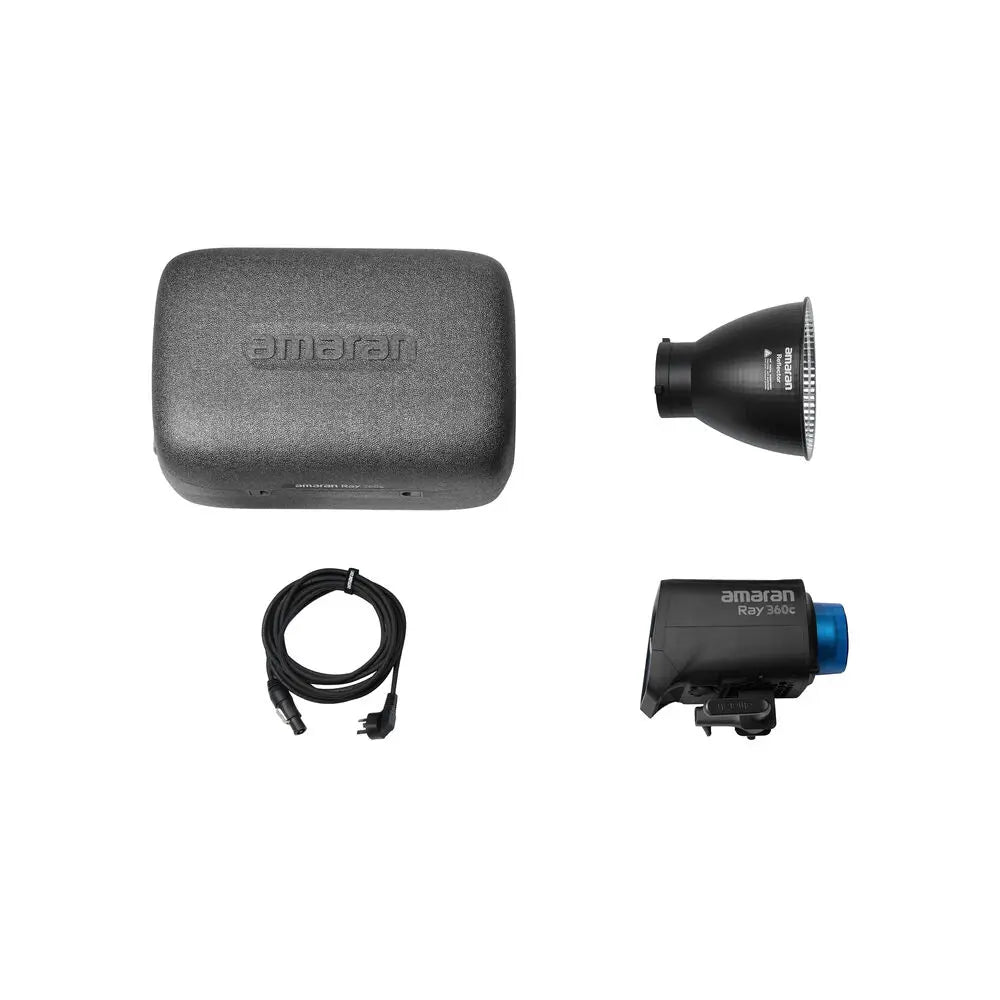

The Amaran Ray 360c RGB LED Monolight is a high-powered 360 W AC fixture designed for studio creators seeking full-colour flexibility and professional-grade output. Built around the OmniColor light engine, the Ray 360c delivers exceptional brightness and colour accuracy, with a wide CCT range of 1800–20,000 K in CCT+ mode, and complete 360° HSI and RGB colour control. Its all-in-one IP54-rated design is compact enough for tight studios, podcast setups, music video sets, and other creative environments, while still offering intuitive onboard control via the FlowTurn knob, NFC one-tap app pairing, and optional DMX integration via USB-C. The monolight comes with a reflector, a single AC power cable, and a case for convenient storage and rapid setup between shoots.

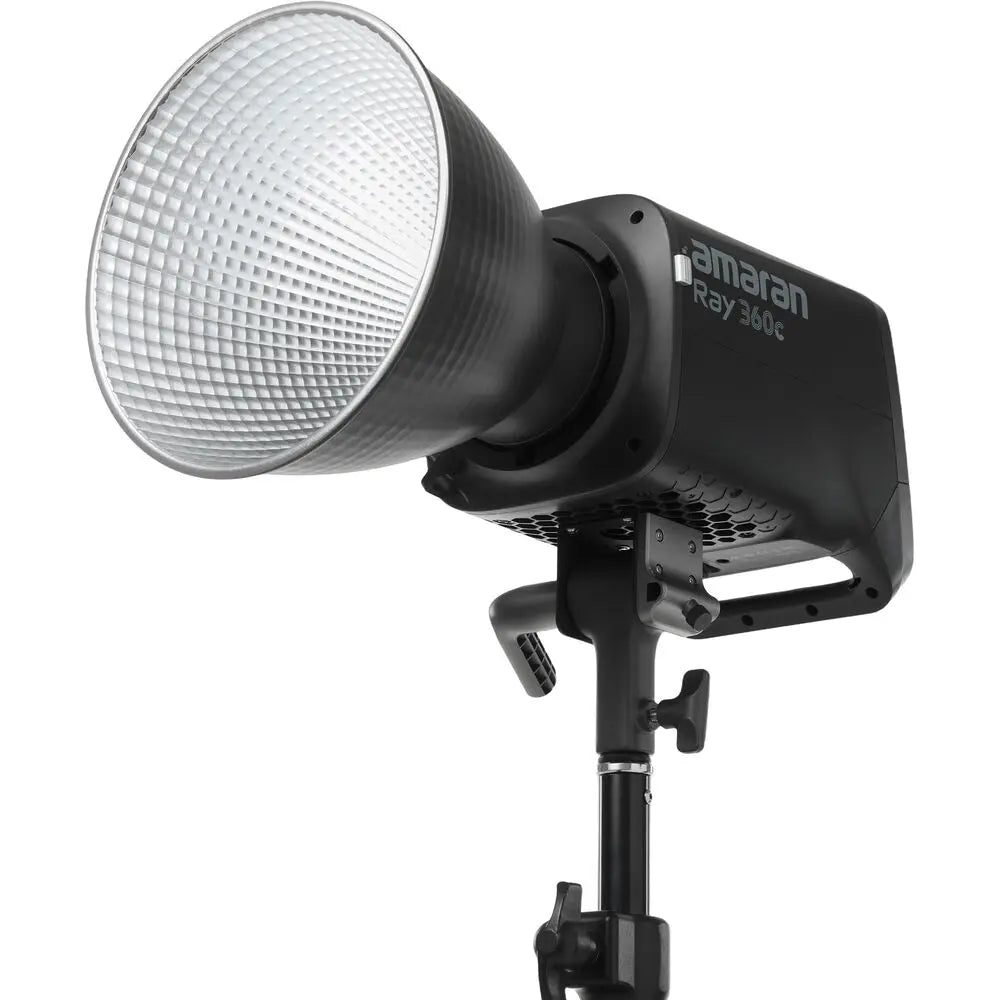

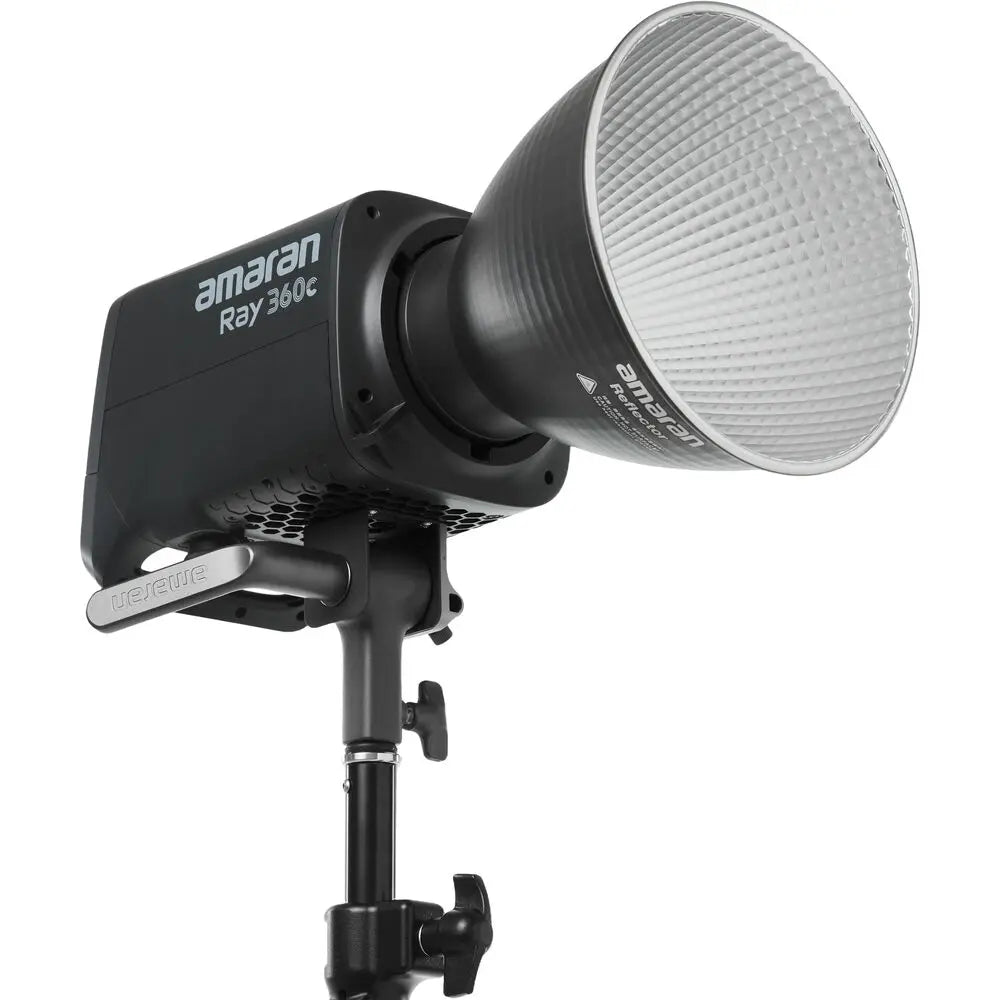

Delivering up to 17,130 lux at 1 m (4300 K) unmodified and up to 45,000 lux when paired with the included reflector, the Ray 360c offers professional-quality illumination. A separately available Fresnel expands creative possibilities with adjustable spot-to-flood control. With an output of 23,174 lumens, minimal green-magenta shift, and high colour fidelity ratings (CRI 95, TLCI 95, SSI 80/87, TM-30 94/100), the light produces true-to-life skin tones and consistent colours for video and photography.

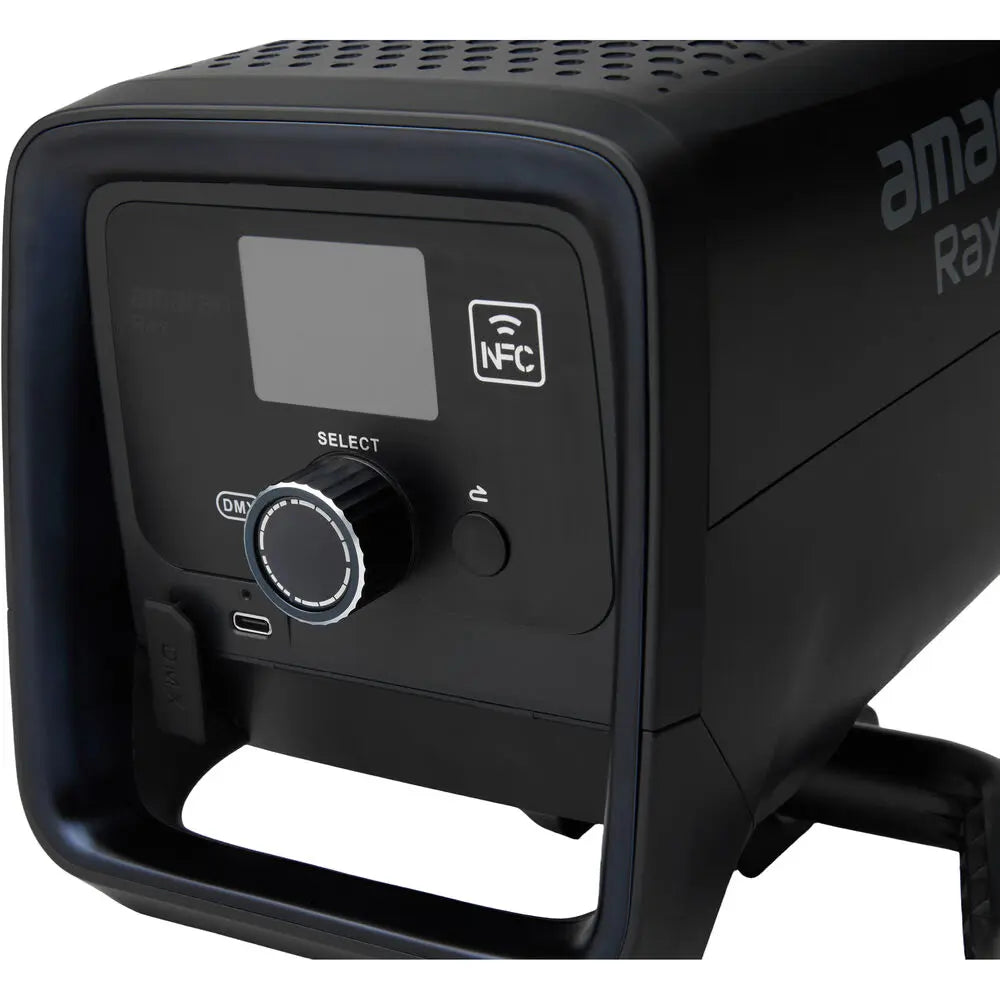

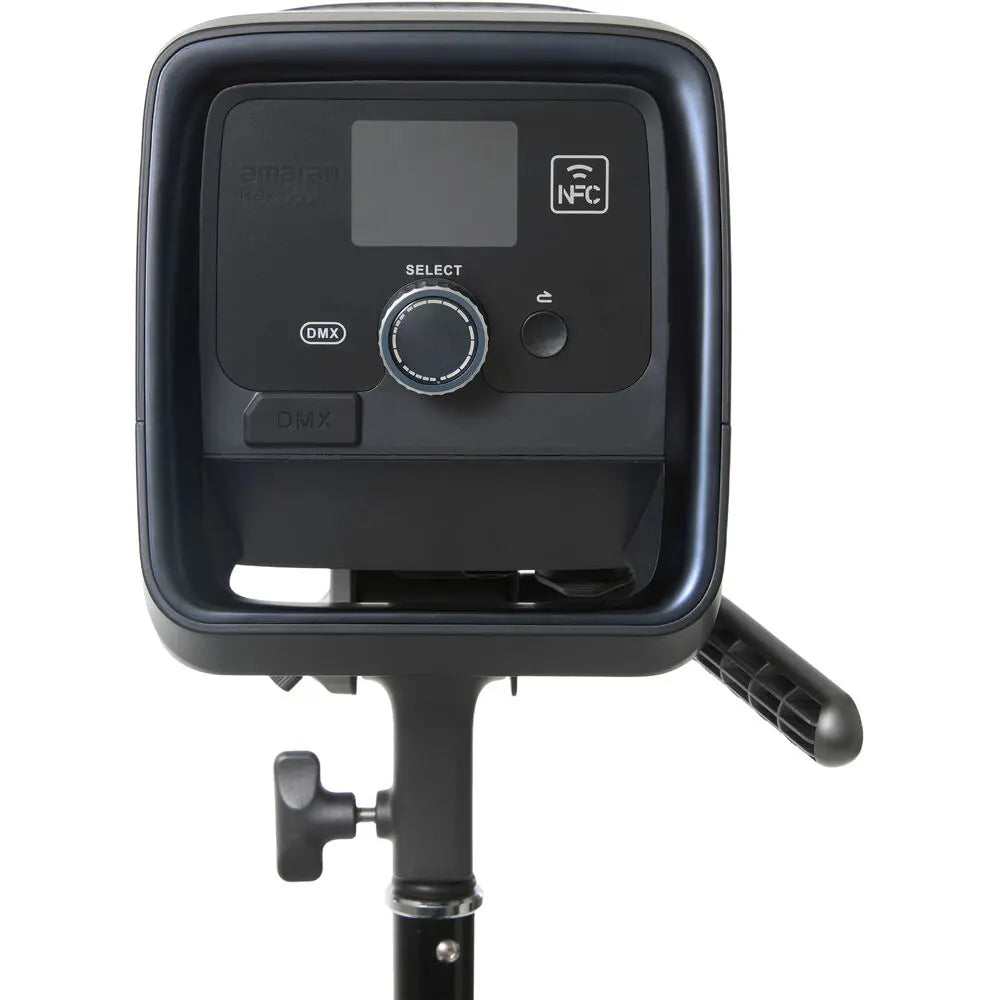

The Ray 360c supports 0–100% stepless brightness control and features 12 FX presets, including lightning, fireworks, TV, strobe, fire, and paparazzi effects. Quick Operation mode, customisable shortcuts, High-Speed Photography, and Studio modes make adjustments fast and intuitive, while a TFT display provides clear feedback. Bluetooth app control extends up to 80 m, and the built-in NFC allows one-tap pairing for simplified remote management.

For advanced studio workflows, the optional amaran USB-C to 5-pin DMX adapter enables integration with standard consoles and software, making multi-light setups and repeatable cues effortless. The Ray 360c’s integrated AC power supply eliminates the need for bulky external bricks, and its 5 m AC cable ensures flexible placement.

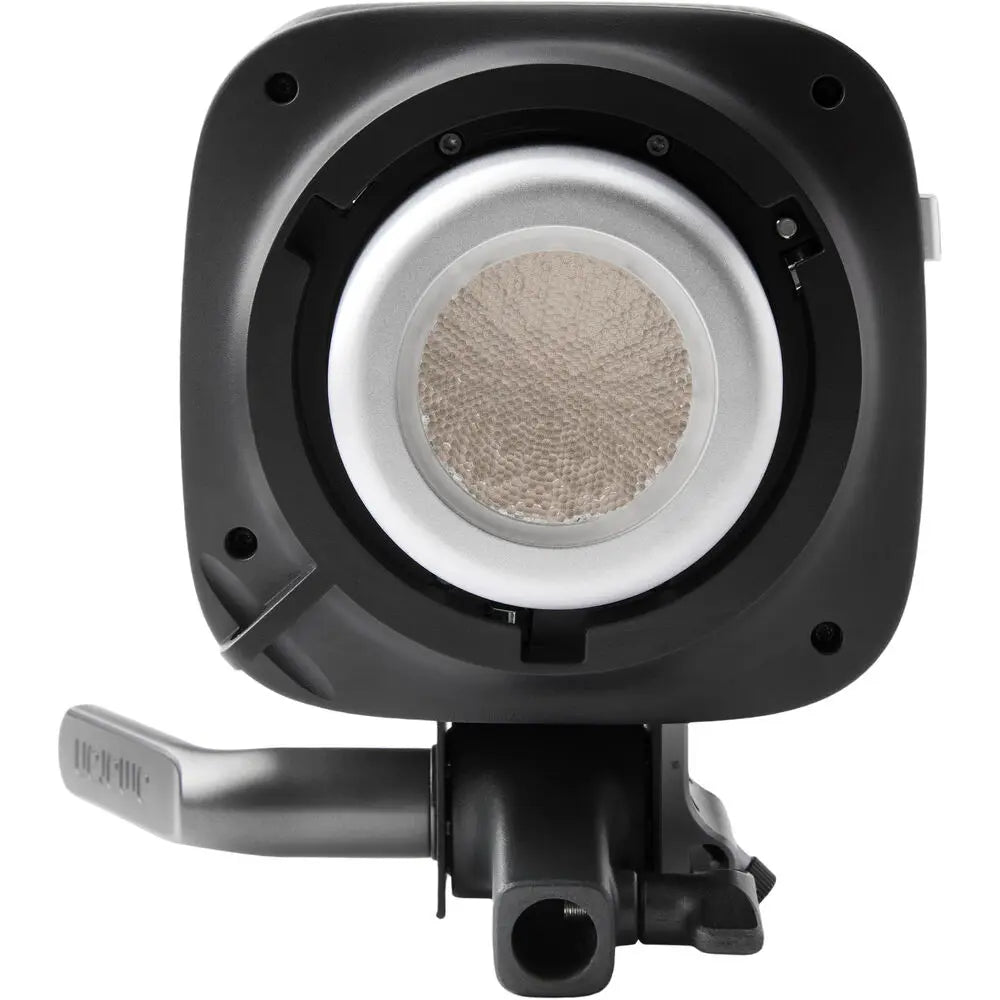

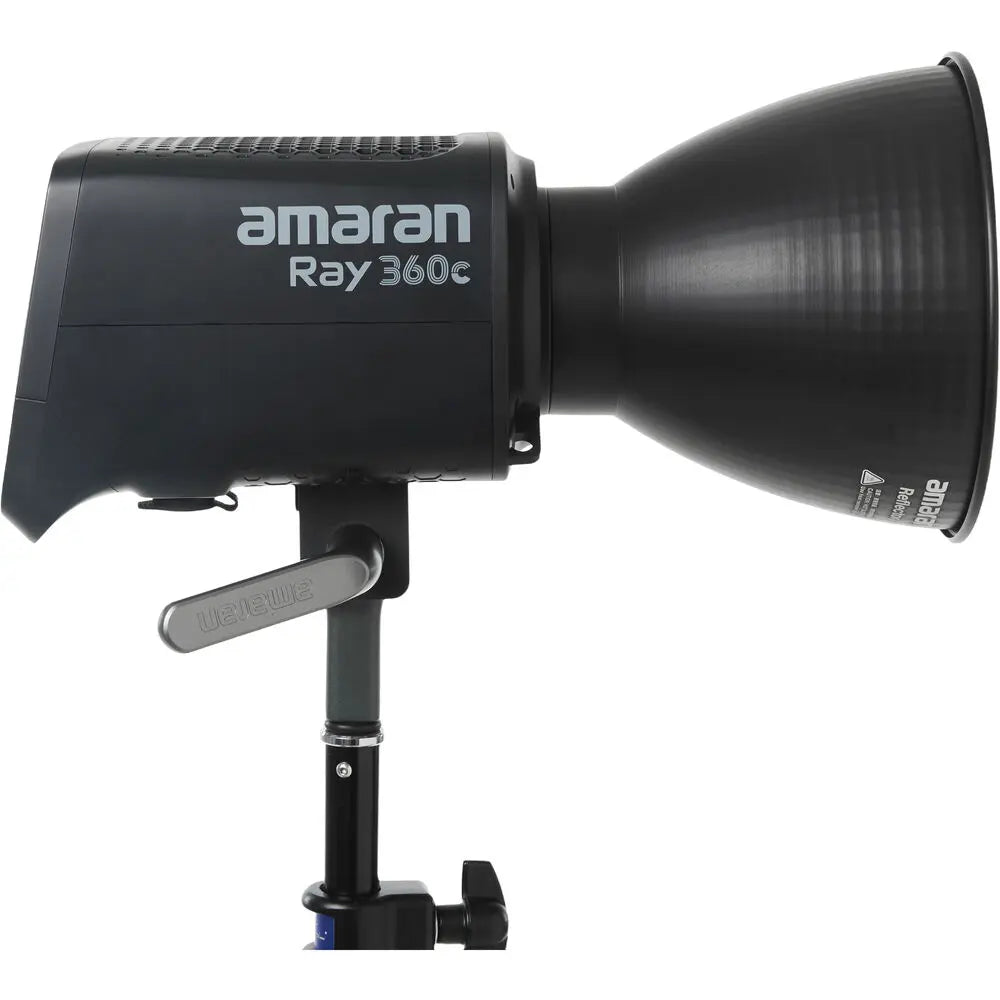

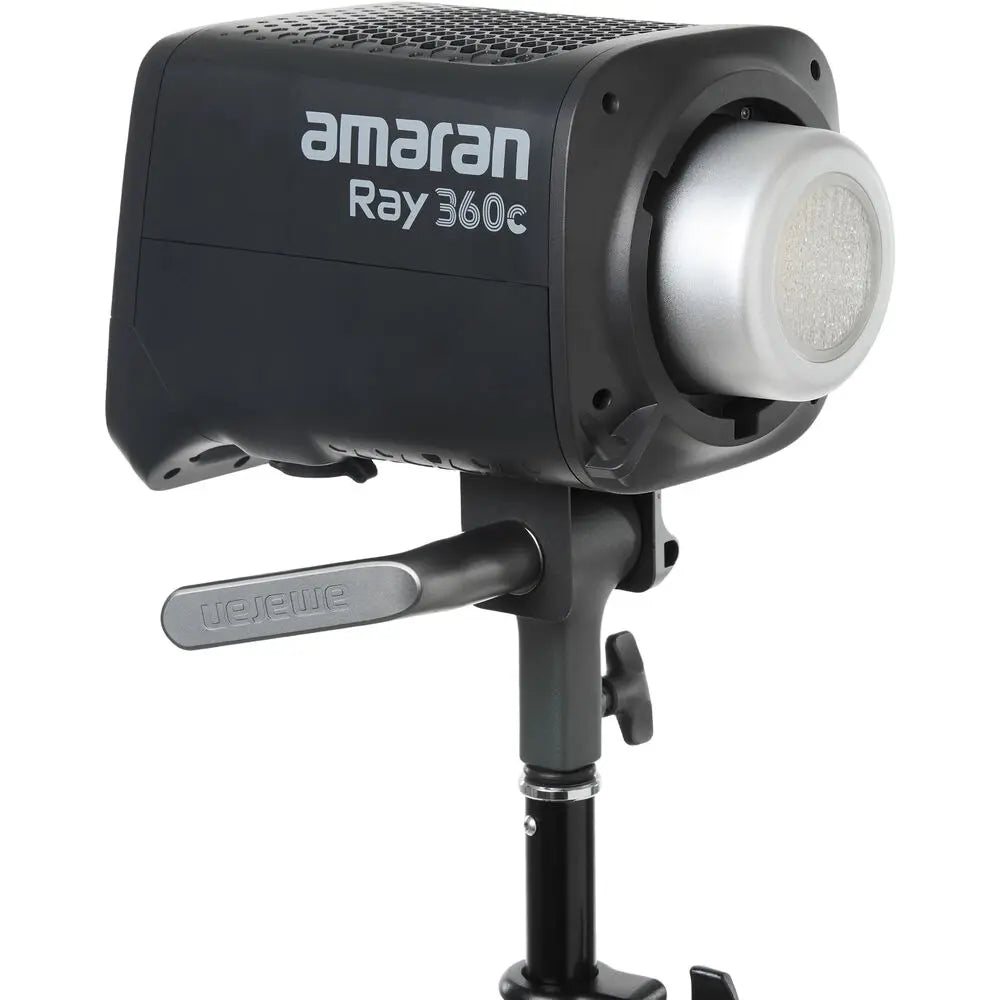

With quiet active cooling (28 dBA at maximum output) and selectable silent or smart fan modes, the Ray 360c is perfect for sound-sensitive studio environments. Its metal full-size Bowens mount is compatible with the included reflector, optional Fresnel, and other Bowens modifiers. At the same time, a built-in tilting bracket with a 5/8" receiver, umbrella holder, and safety chain bracket provides maximum mounting versatility and security. Compact, powerful, and highly adaptable, the Ray 360c is an essential lighting solution for professional creators in any studio setting.

Light Fixture

• Item Type: 1× COB LED Monolight

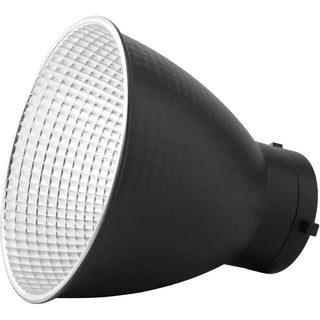

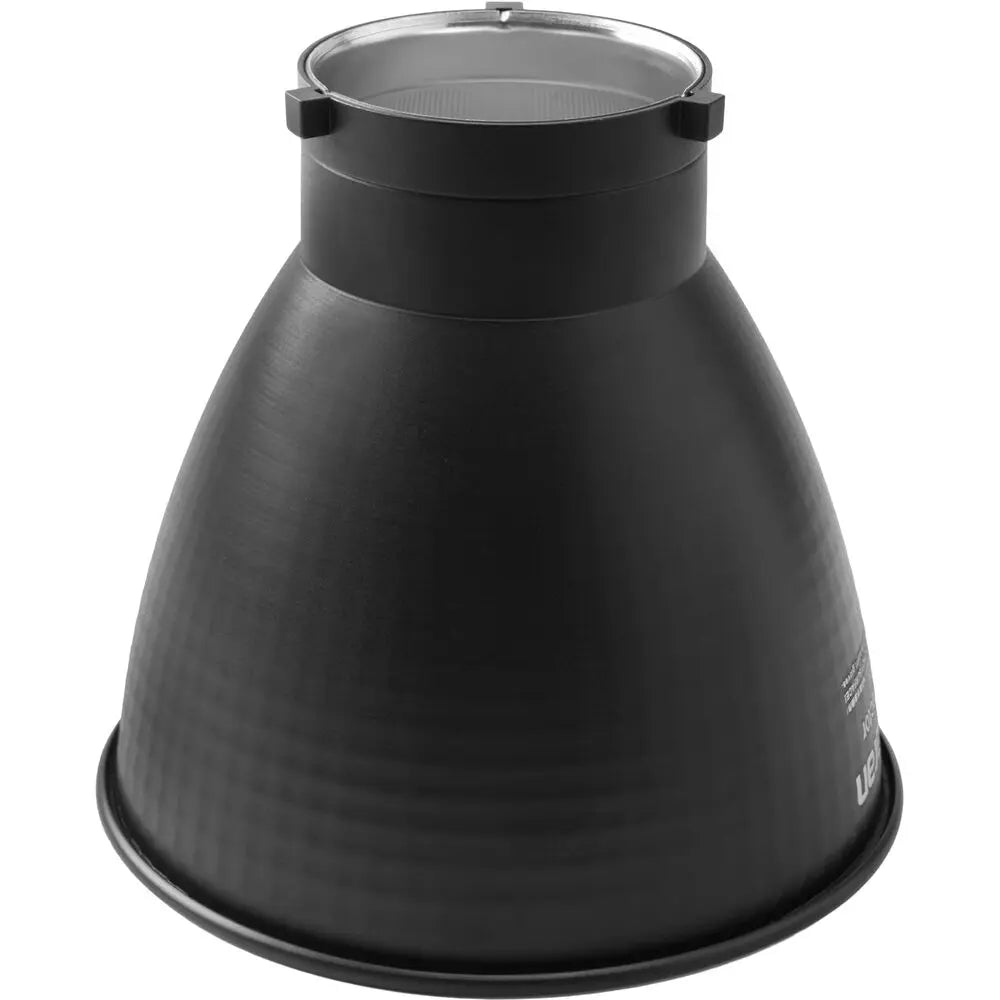

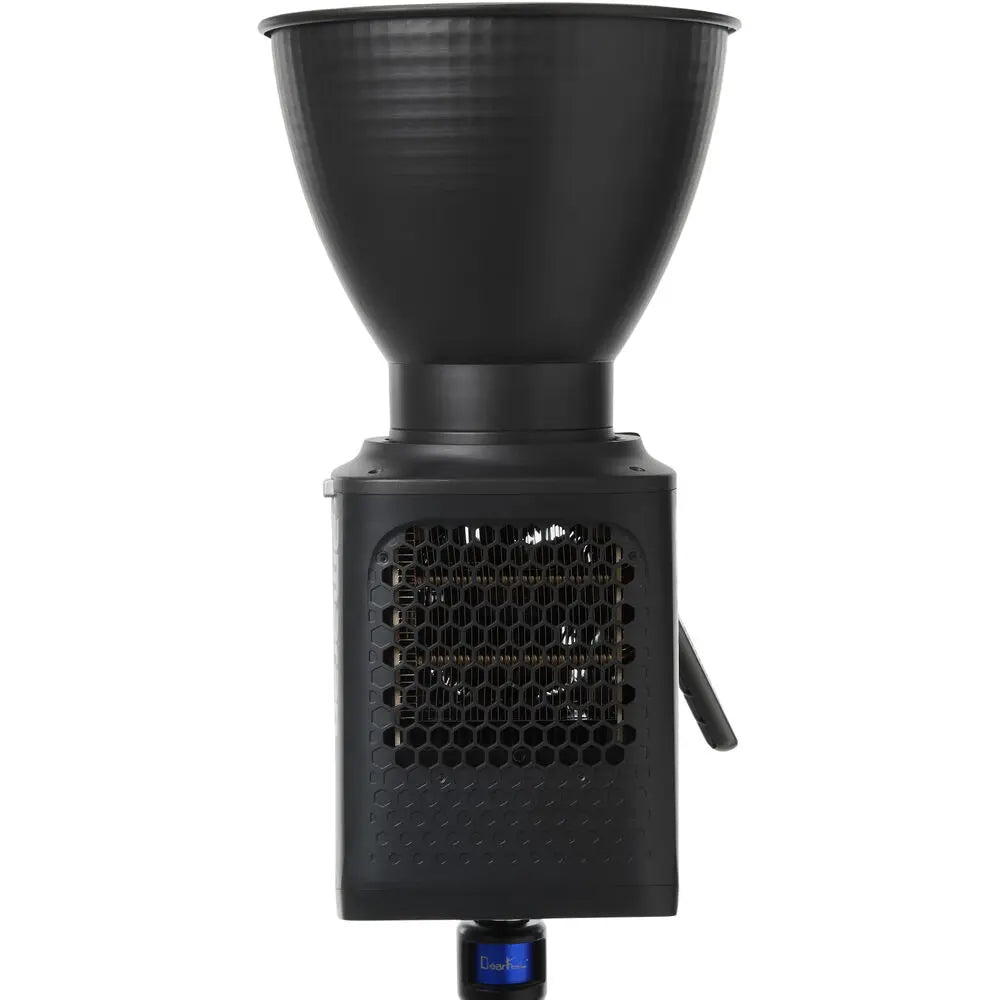

• Included Light Modifier: 1× Reflector
• Included Storage Case: Yes
• Lumens: 23,174

Photometrics

• 70° at 3200K (Unmodified):
  • 1477 fc / 15,900 lux at 1 m
  • 171 fc / 1850 lux at 3 m
• 45° at 3200K (with Reflector):
  • 3883 fc / 41,800 lux at 1 m
  • 388 fc / 4180 lux at 3 m
• 70° at 5600K (Unmodified):
  • 1583 fc / 17,040 lux at 1 m
  • 183 fc / 1970 lux at 3 m
• 45° at 5600K (with Reflector):
  • 4143 fc / 44,600 lux at 1 m
  • 405 fc / 4360 lux at 3 m

Color

• Colour Temperature: 1800–20,000K; 2300–10,000K
• Colour Modes: RGB, Daylight, Tungsten
• Colour Accuracy:
  • CRI 95
  • TLCI 95
  • TM-30 Rf 94
  • TM-30 Rg 100
  • SSI 80 at 5600K
  • SSI 87 at 3200K
• Dimming: 0–100% (App-Controlled / Built-In / DMX)

Optical

• Cooling System: Fan
• Beam Angle: 70° Unmodified; 45° with Included Reflector
• Built-In Flash: No
• Preprogrammed Effects: Yes
• Umbrella Mount: Yes
• Front Accessory Mount: Bowens S

Connectivity

• Wireless Control: Bluetooth
• Mobile App Compatible: Yes (Android & iOS – “amaran” app)
• Functionality: Firmware Update, Remote Control
• Wireless Range: 80 m

Power & I/O

• Power Source: AC Power (Cable Included)
• Inputs/Outputs:
  • 1× Unspecified AC Power Input (100–240 VAC, 50/60 Hz)
  • 1× USB-C DMX/Firmware Input (*Adapter Required, Not Included)
• Input Power: 100–240 VAC, 50/60 Hz
• Included Adapter / Cable: 1× USA Type-A/B Plug to AC Cable (5 m)
• Inline Switch: No
• Power Pass-Thru: No
• Power Consumption: 410 W (Maximum)

Mounting

• Fixture Mounting: 1× 5/8" Receiver (via Swivel Mount)

General

• Display: LCD
• Environmental Resistance: Dust/Water-Resistant (IP54)
• Operating Conditions: –10 to 40°C
• Storage Conditions: –20 to 80°C
• Dimensions (Fixture): 25.5 × 16.51 × 14.81 cm
• Weight (Fixture): 3.3 kg
