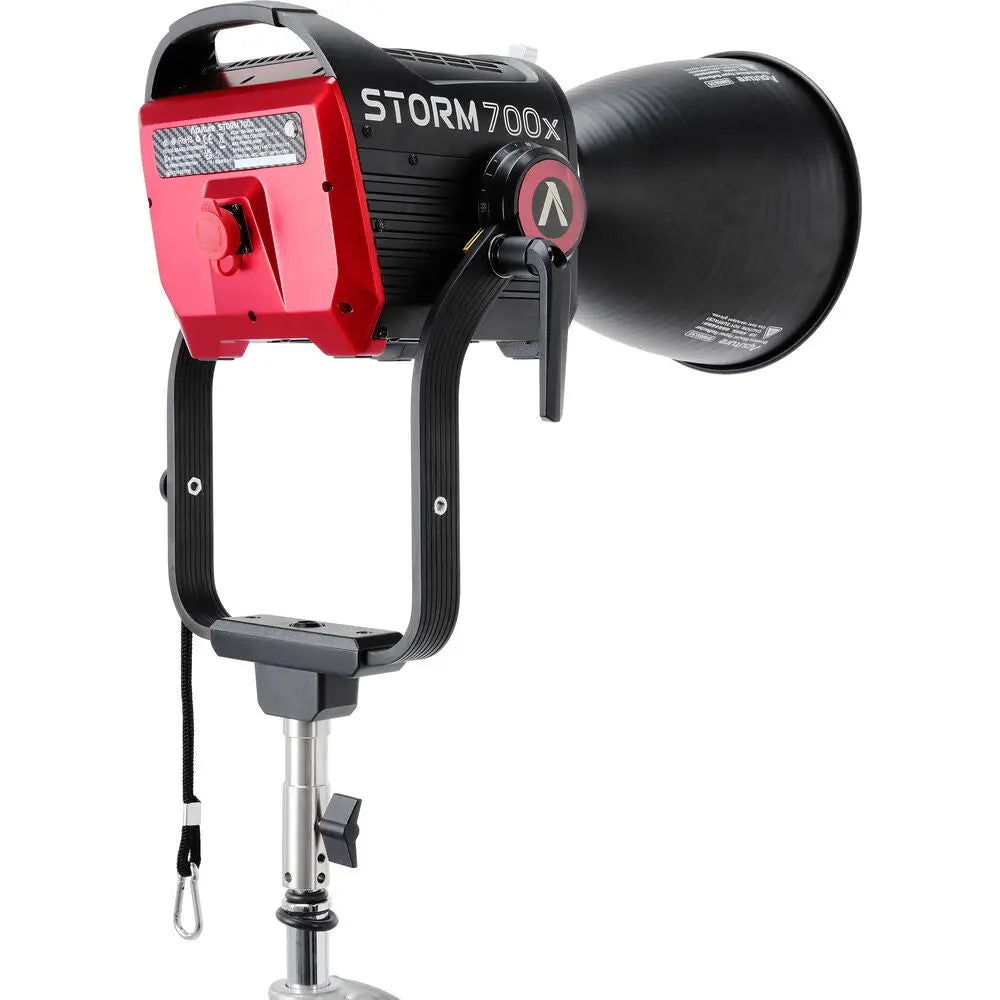

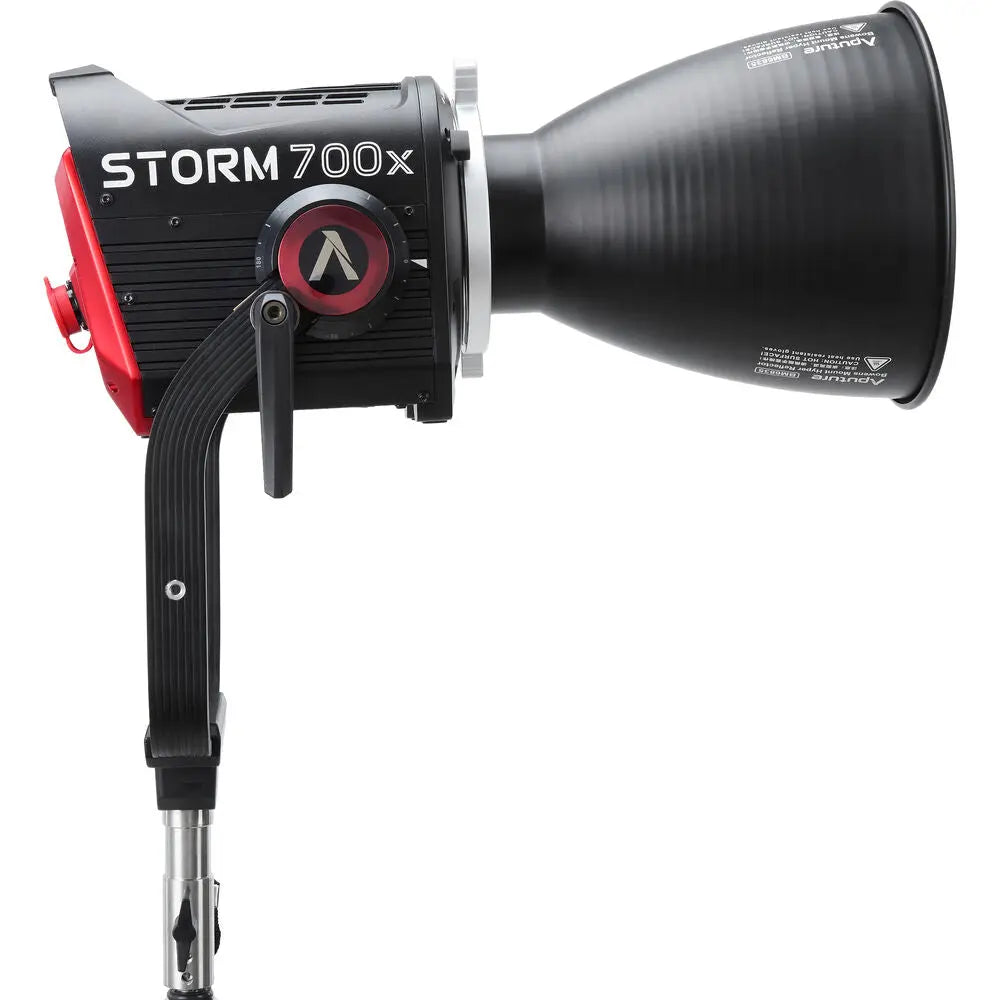

Aputure STORM 700x Tunable White LED Monolight

The STORM 700x Tunable White LED Monolight arrives as Aputure’s latest high-output point-source LED, building on the success of the STORM 1200x, XT52, and 400x fixtures. Designed around Aputure’s proprietary BLAIR light engine, the 700x delivers exceptional spectral quality, superior white-light accuracy, and excellent output performance in a more compact and streamlined form factor.

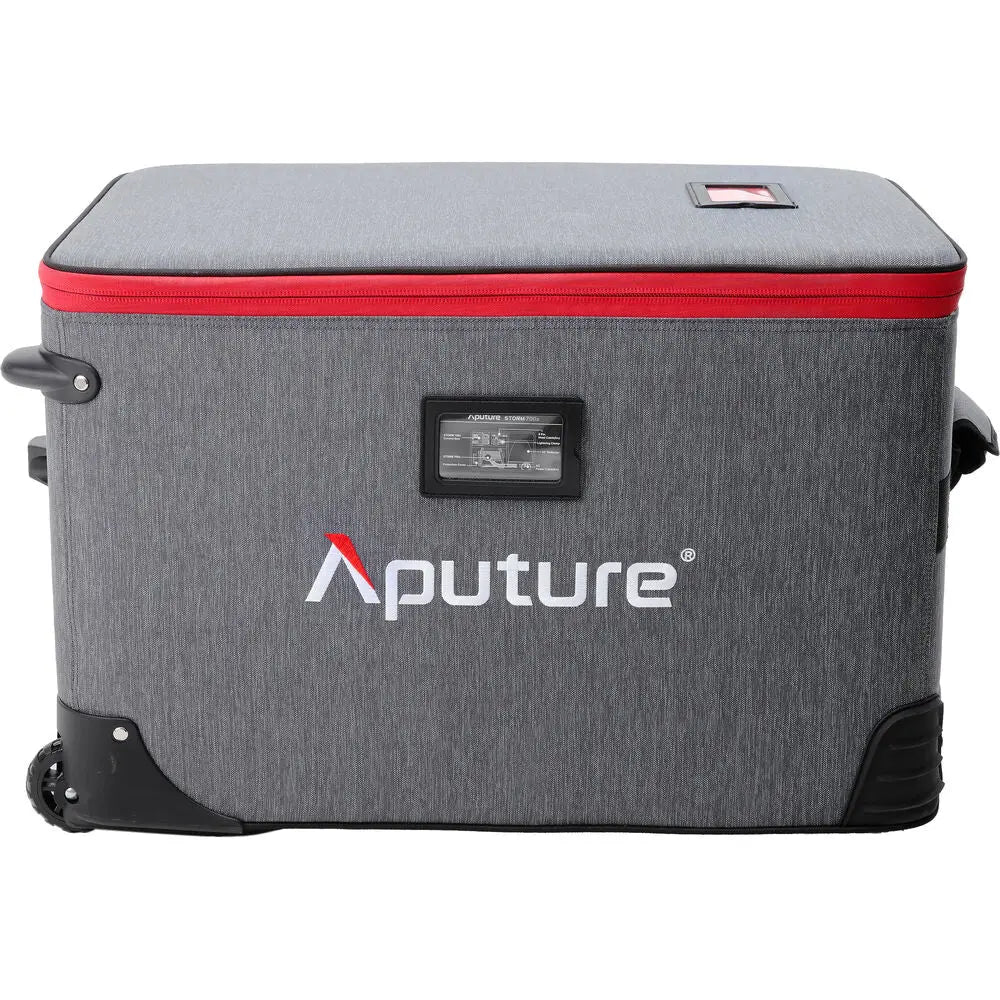

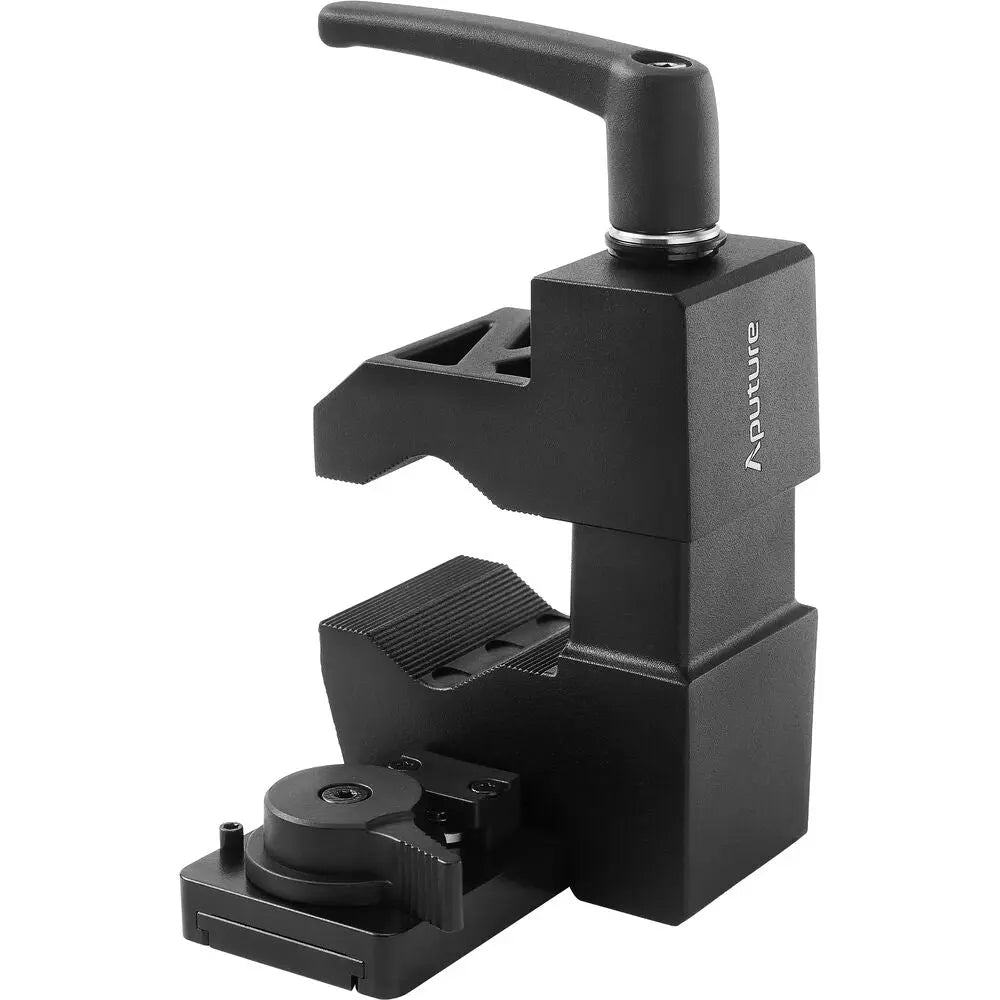

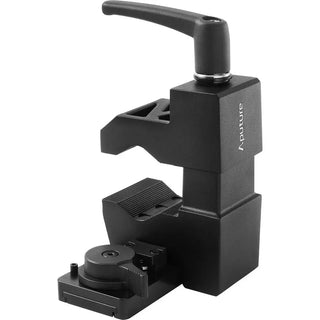

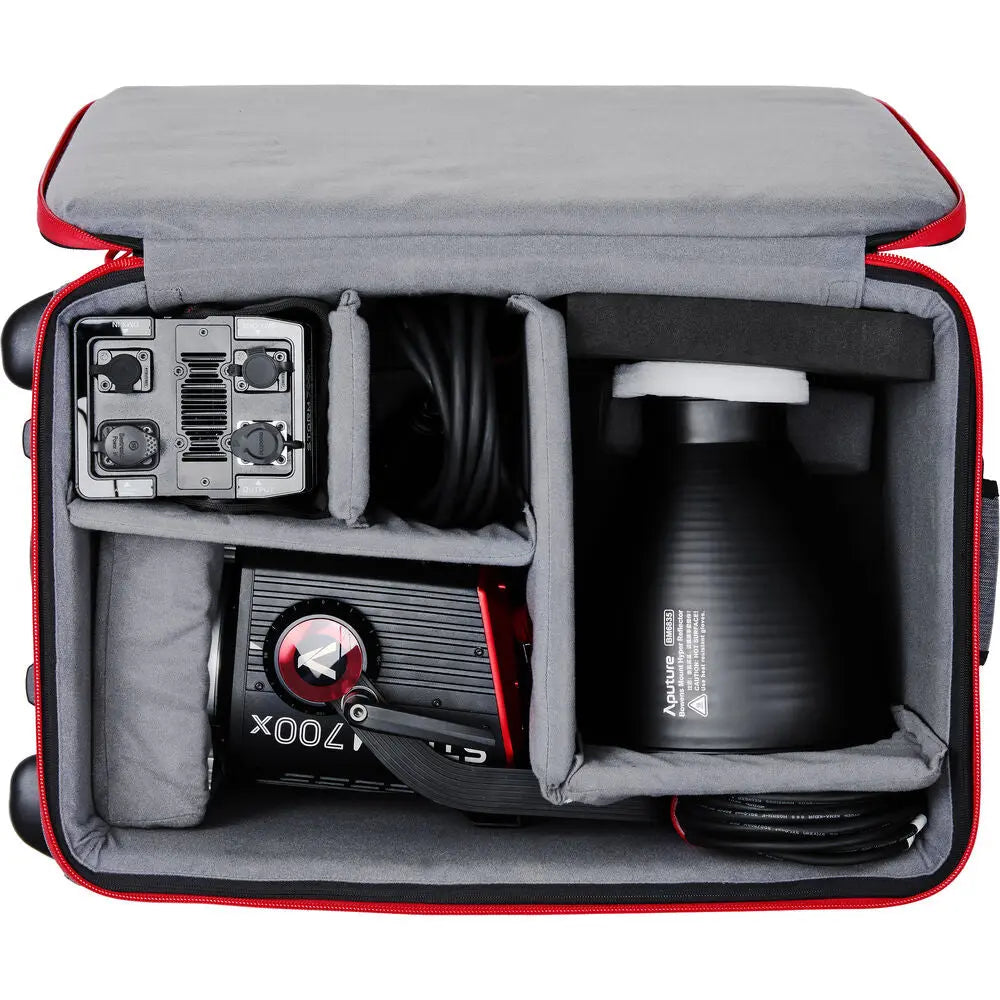

With a powerful 700W output, smooth dimming technology, multiple control protocols, and a rugged IP65-rated construction, the STORM 700x stands as a premium lighting solution for filmmakers, cinematographers, and professional lighting technicians who demand precision, durability, and flexibility. The fixture ships with a 35° reflector, a control box, ProLock Bowens mount, clamp, head and power cables, and a soft rolling case for efficient transport and setup on location.

BLAIR Light Engine Performance

At the core of the STORM 700x is Aputure’s advanced BLAIR chipset, combining five LED emitters—blue, lime, amber, indigo, and red—to deliver industry-leading spectral accuracy and color fidelity. This architecture achieves over 70% coverage of the Rec. 2020 color gamut, producing exceptionally clean whites and reliable color reproduction across a wide CCT range.

Key color metrics include:

• CRI 95

• TLCI 95

• SSI 87 at 3200K

• SSI 87 at 5600K

• TM-30 Rf 95

• TM-30 Rg 100

By improving colour-matching capabilities and expanding the tunable CCT range, the 700x outperforms traditional bi-colour systems, delivering accurate and consistent output in demanding professional environments.

Unmatched Flexibility & Output

The STORM 700x offers an expansive 2500K–10,000K CCT range enhanced by a full ±G 100% ASC-MITC green-magenta adjustment, ensuring precise white-point control for seamless integration into mixed-lighting conditions.

Performance highlights:

• 18,670 lux at 9.8' (5600K with 35° reflector)

• Multiple output modes: Max, Constant, High-Speed Photography, Lead-Follow, and Studio Mode

This flexible output architecture ensures reliable behaviour across various shooting scenarios, from dynamic high-speed setups to consistent studio lighting environments.

Advanced Control Ecosystem

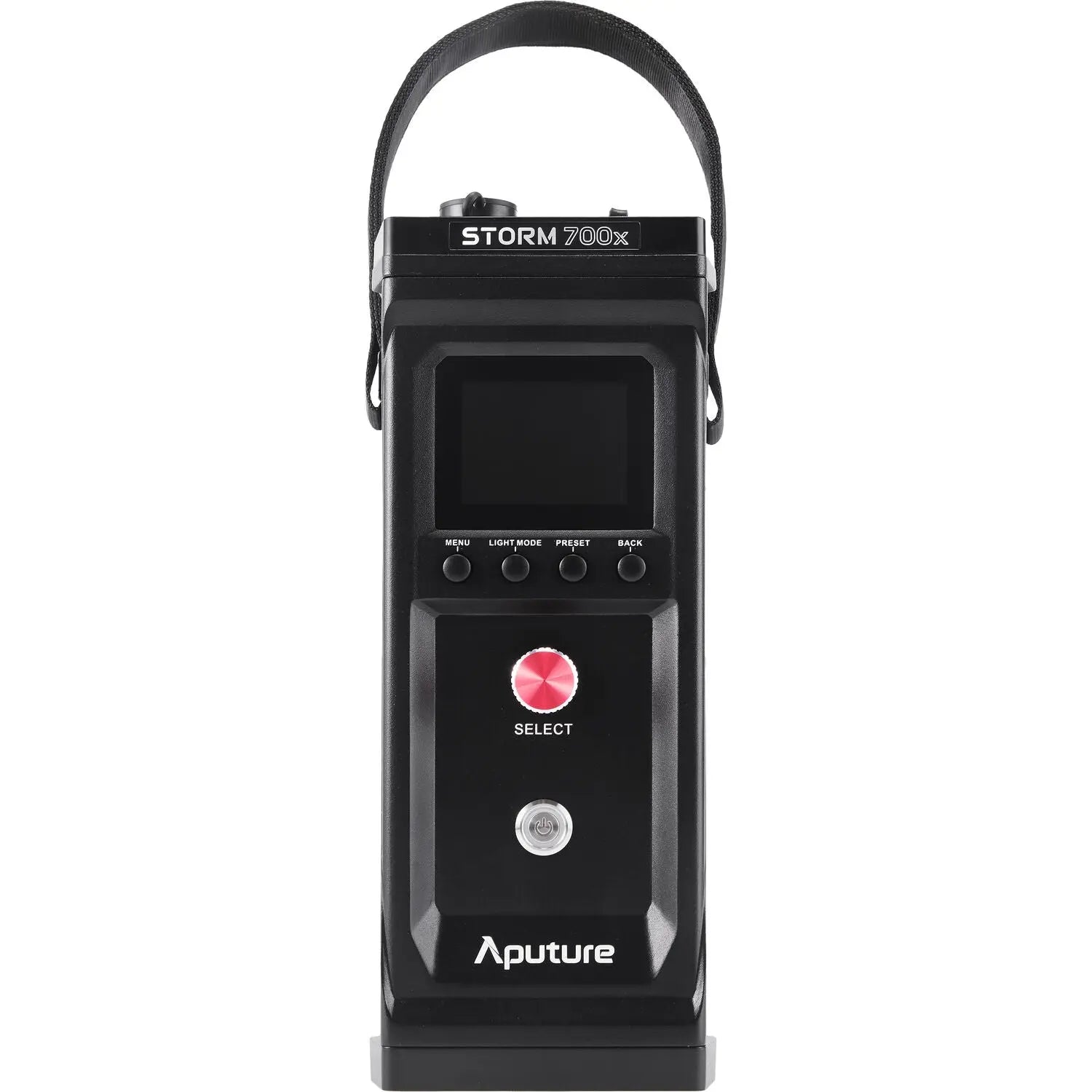

The included control box provides refined local operation with stepless dimming from 0.1% to 100% across four dimming curves—linear, exponential, logarithmic, and S-curve—allowing precise control over light transitions and intensity.

The STORM 700x supports professional-grade wired and wireless control:

• DMX / RDM

• CRMX (TimoTwo)

• Bluetooth control

• Sidus Link / Sidus Link Pro app integration

With 12 DMX control profiles, advanced dimming behaviors, and customizable responses to DMX signal loss, the fixture integrates seamlessly into complex lighting networks and production workflows.

Compact, Robust, Weather-Ready Design

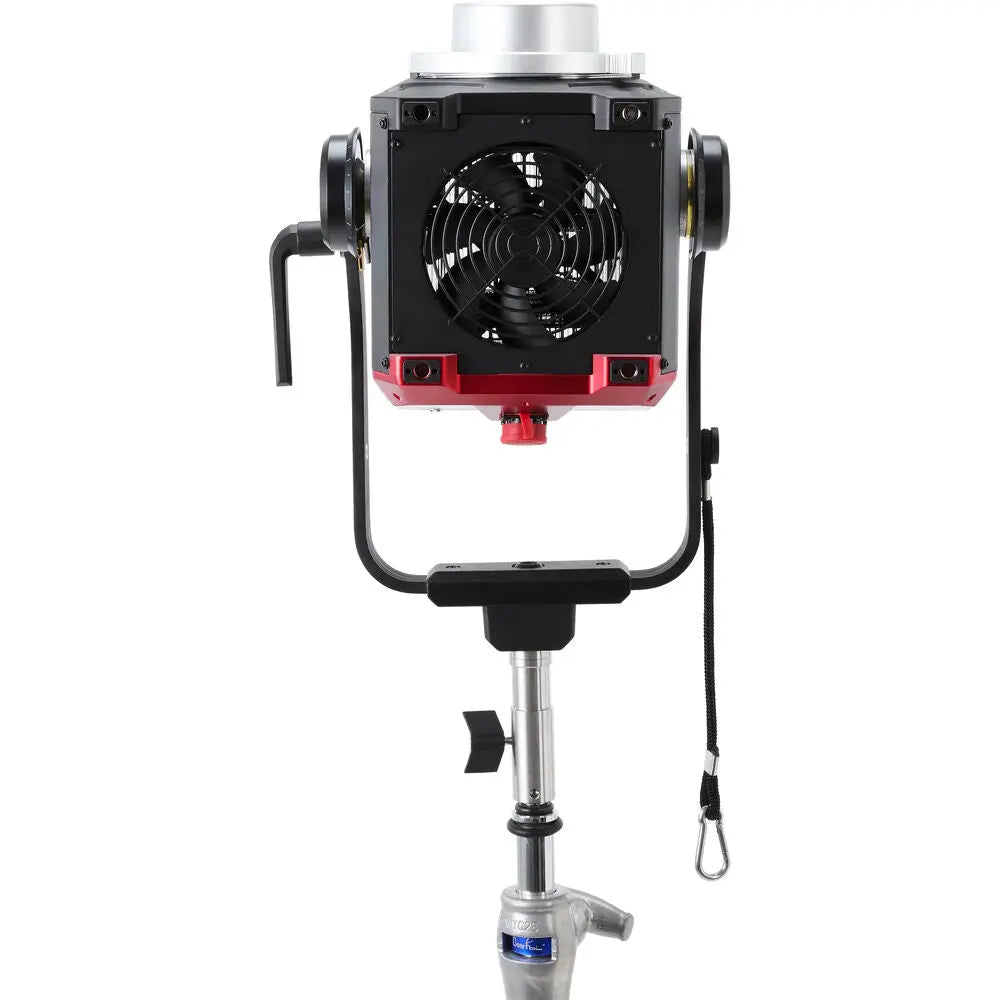

Engineered for reliability in high-demand environments, the STORM 700x features an IP65-rated chassis resistant to dust and weather. Its active cooling system offers four modes—Smart, High, Medium, and Silent—balancing performance, thermal management, and noise.

The enhanced ProLock Bowens accessory mount offers secure mechanical locking and precise optical alignment, opening access to a wide range of Aputure and third-party modifiers.

Additional design considerations:

• Native 58° COB beam angle

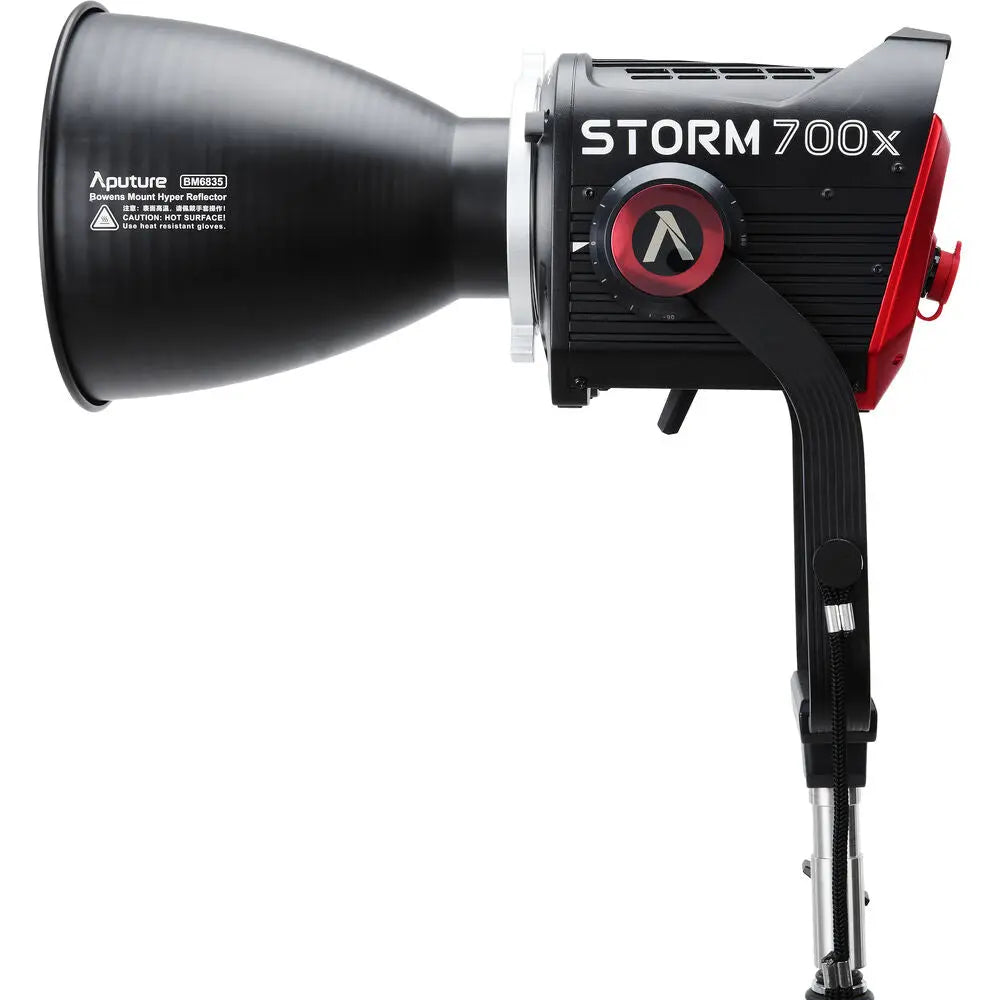

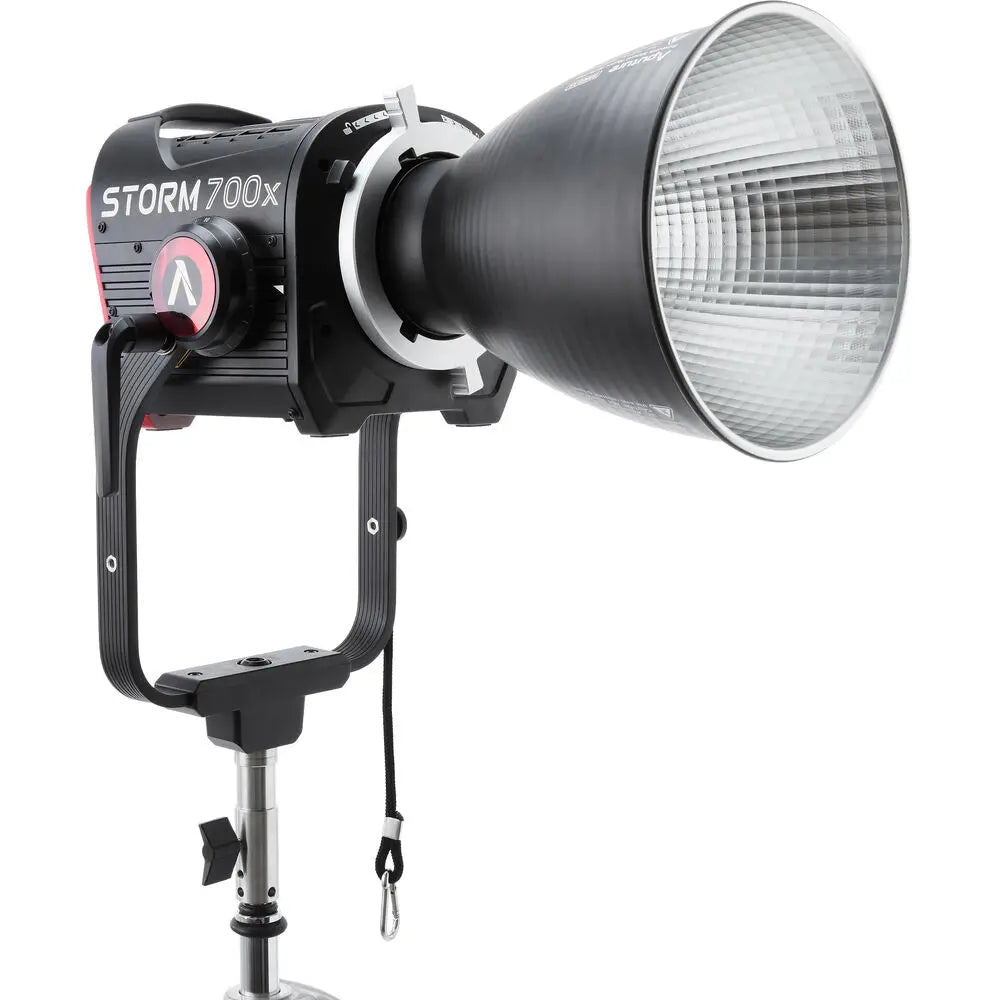

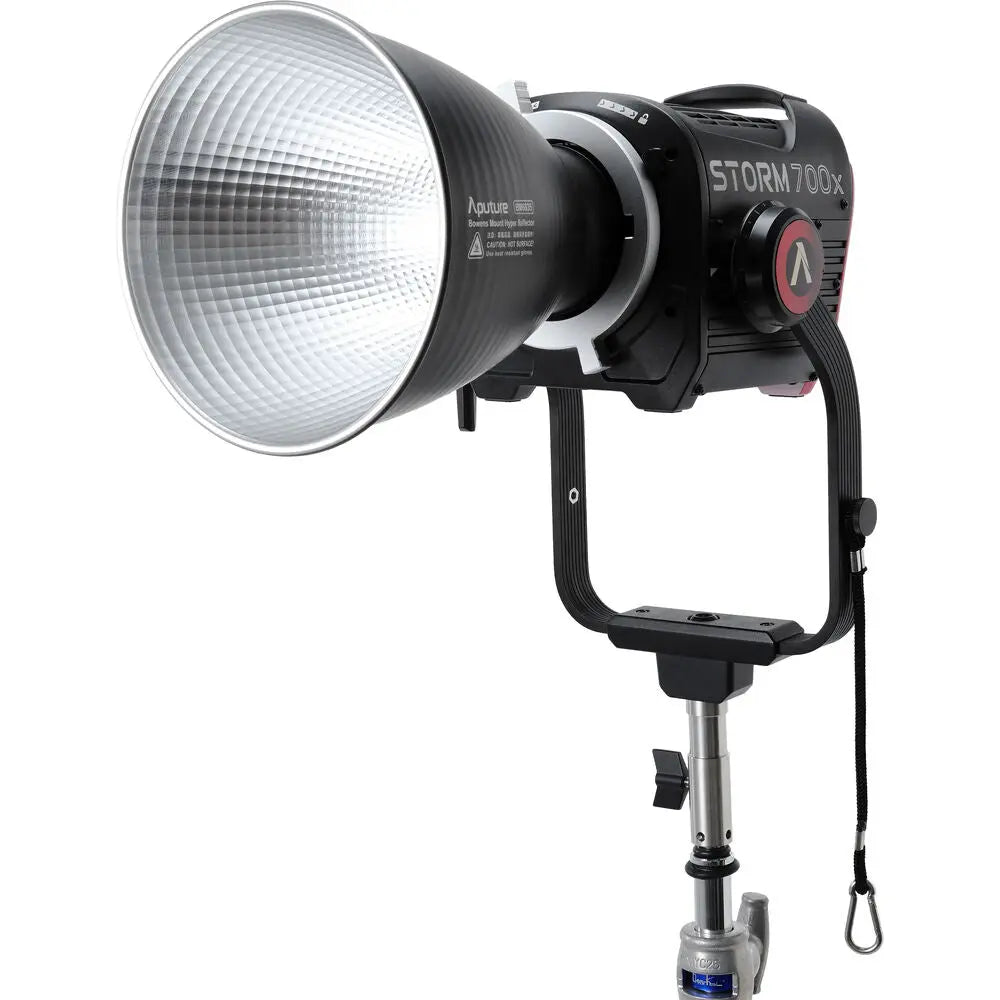

• Included 35° reflector

• Optional 25° reflector available

• Standard AC operation (100–240V) via included 19.6' power cable

Aputure STORM 700x – Light Fixture Specifications

General Specifications

• Item Type: 1x COB LED Monolight
• Included Light Modifier: 1x Reflector
• Included Storage Case: Yes

Light Performance

Photometrics

• 3200K (Unmodified):
  • 3.3' / 1 m: 4071 fc / 43,830 Lux*
  • 9.8' / 3 m: 452 fc / 4870 Lux
  • 16.4' / 5 m: 170 fc / 1839 Lux
• 3200K (35° Reflector):
  • 3.3' / 1 m: 12,064 fc / 129,870 Lux*
  • 9.8' / 3 m: 1340 fc / 14,430 Lux
  • 16.4' / 5 m: 411 fc / 4430 Lux
• 5600K (Unmodified):
  • 3.3' / 1 m: 5325 fc / 57,330 Lux*
  • 9.8' / 3 m: 591 fc / 6370 Lux
  • 16.4' / 5 m: 222 fc / 2394 Lux
• 5600K (35° Reflector):
  • 3.3' / 1 m: 15,609 fc / 168,030 Lux*
  • 9.8' / 3 m: 1734 fc / 18,670 Lux
  • 16.4' / 5 m: 500 fc / 5390 Lux

*Standardized measurement calculated internally based on closest distance.

Color Output

• Color Temperature: 2500–10,000K (CCT Mode)
• Color Modes: Daylight, Tungsten
• Color Accuracy:
  • CRI 95
  • TLCI 95
  • SSI 87 at 3200K
  • SSI 87 at 5600K
  • TM-30 Rf 95
  • TM-30 Rg 100
• Dimming: 0.1–100% (App, Controller, DMX, RDM)
• Beam Angle: 35° (with Reflector)
• Cooling: Active Fan
• Preprogrammed Effects: Yes
• Front Accessory Mount: Bowens S
• Umbrella Mount: No

Control & Communication

• Wireless Remote Control: Bluetooth, CRMX (TimoTwo)
• Mobile App: Sidus Link Pro (iOS & Android)
• Wireless Range: Up to 328.1' / 100 m

Power & I/O

• Power Source: AC (Cable Included); requires Power Supply/Controller (Included)
• Power Consumption: 700 W (Nominal); 850 W (Maximum)

Connections

• Light Fixture:
  • 1x Proprietary Power Input (to Power Supply/Controller)

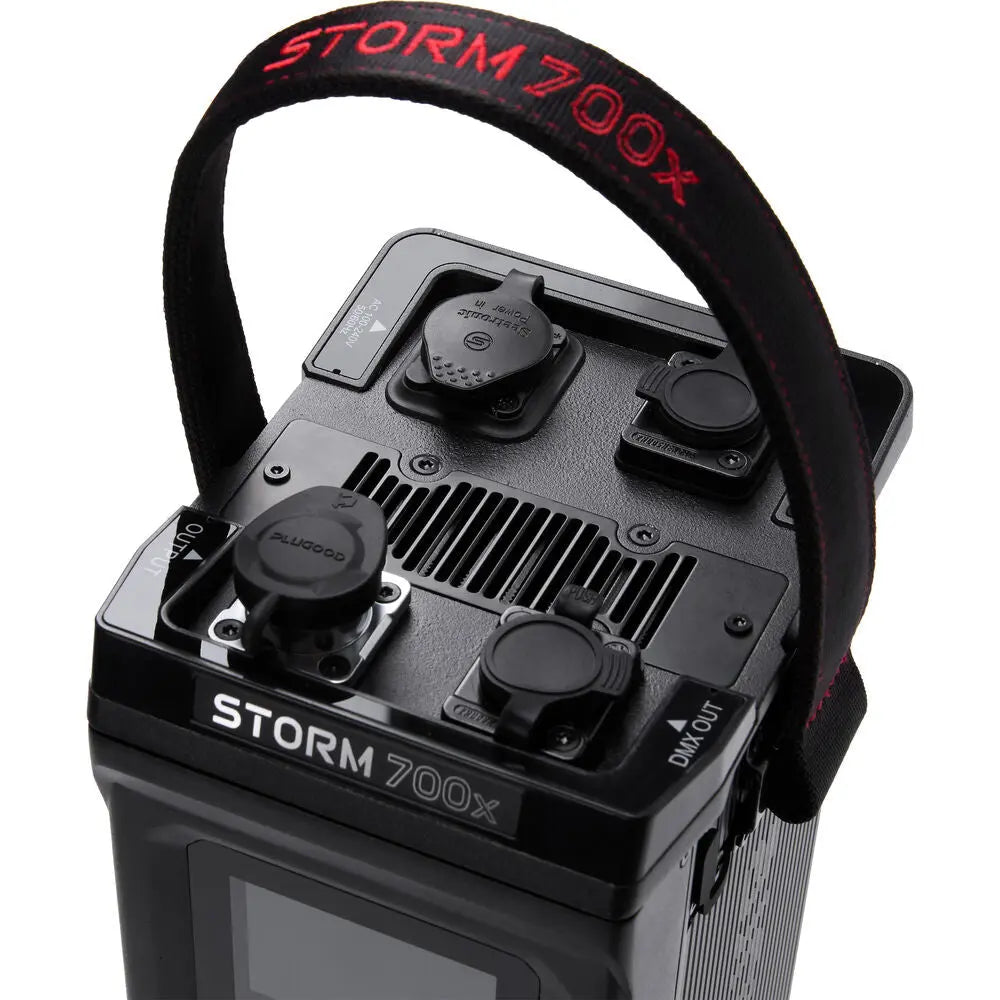

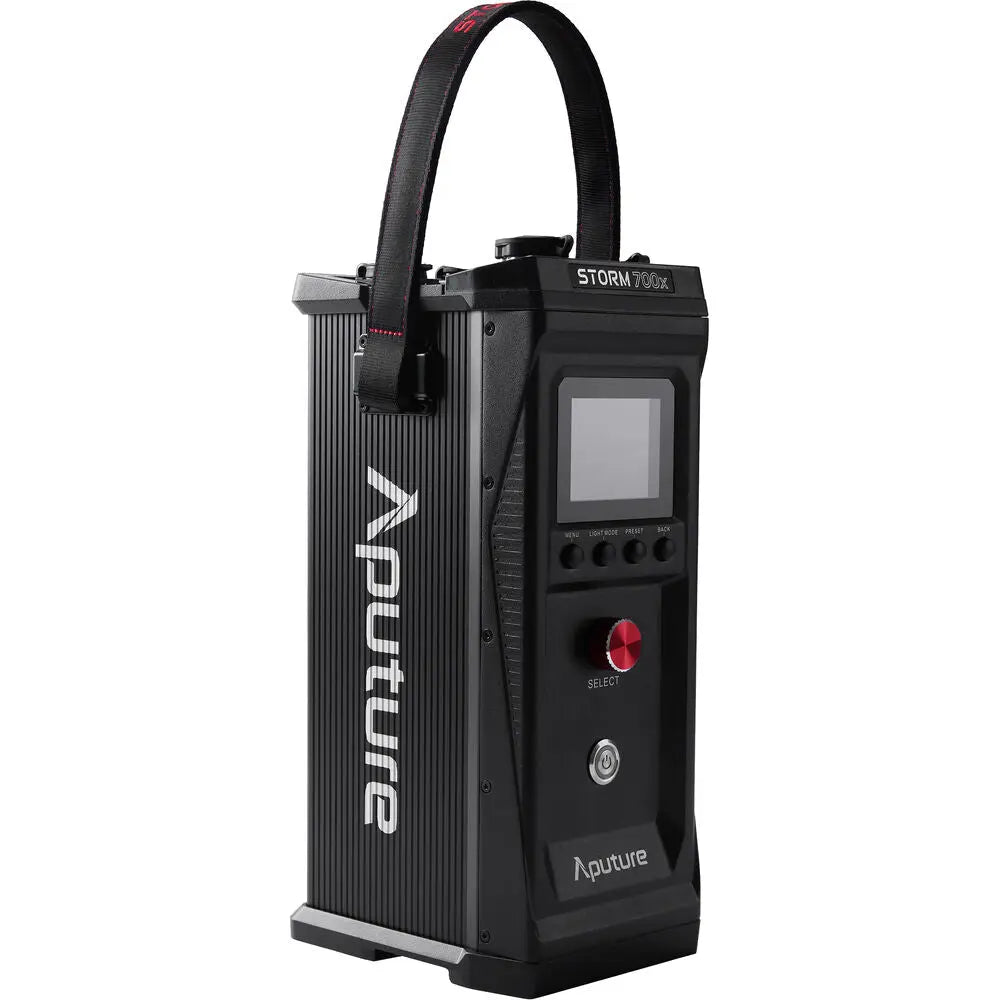

• Power Supply/Controller:
  • 1x Proprietary Power Output
  • 1x powerCON TRUE1 Male AC Input (100–240 VAC)
  • 1x XLR 5-Pin DMX Input
  • 1x XLR 5-Pin DMX Output
  • 1x USB-A (Firmware/Power 5 VDC at 0.5 A)
• Included Cables:
  • 1x USA Type-A/B to powerCON TRUE1 (19.7' / 6 m)

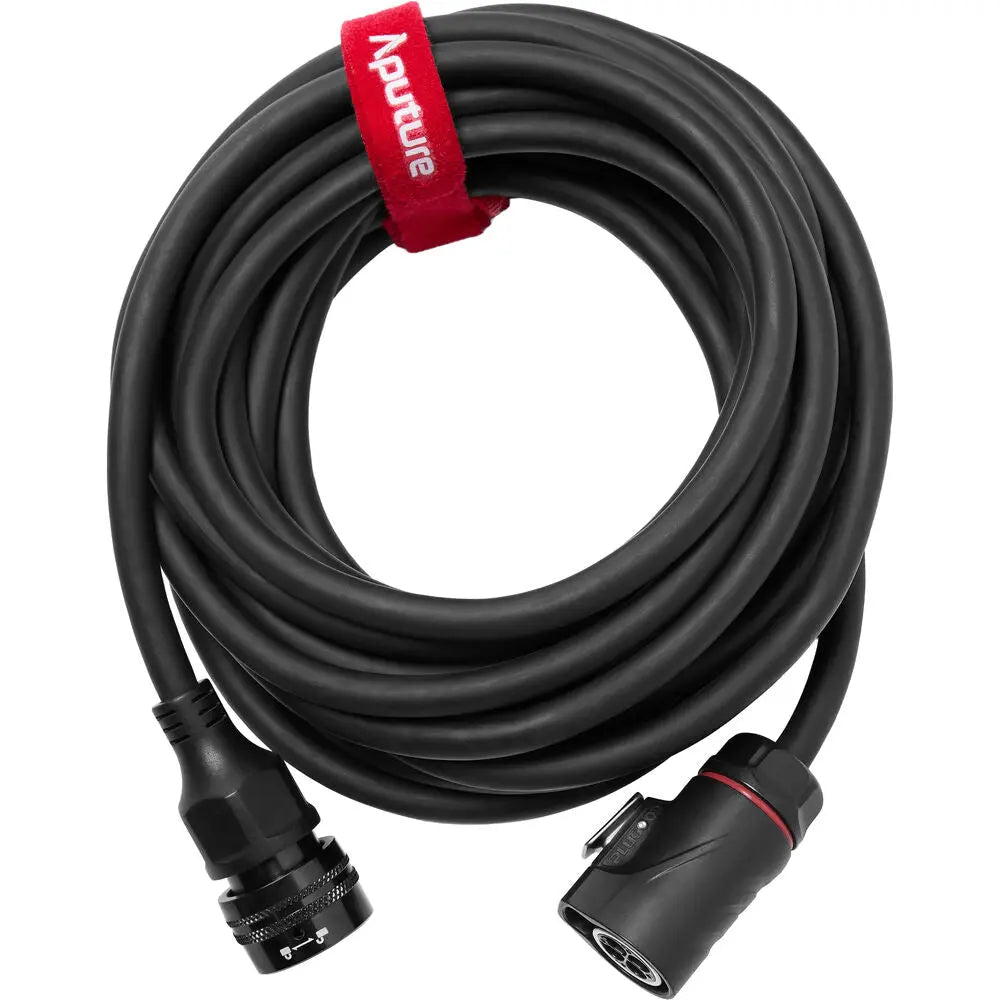

  • 1x Proprietary-to-Proprietary Cable (9.8' / 3 m)

Mounting

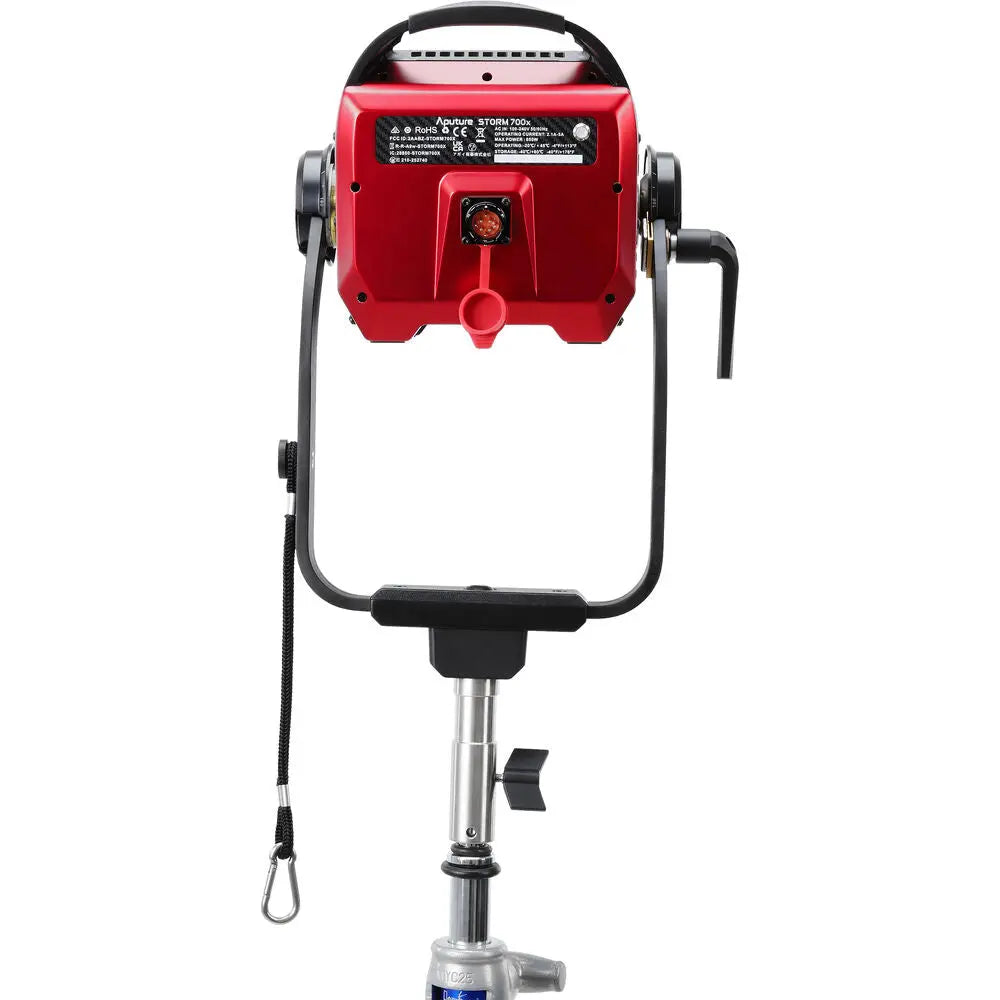

• Yoke Type: Manually-Operated
• Fixture Mounting: 1-1/8" Stud with 5/8" Receiver (via Yoke)

Physical

• Display: None
• Environmental Rating: Weather-Resistant (IP65)
• Operating Temperature: -4 to 113°F / -20 to 45°C
• Storage Temperature: -40 to 80°F / -40 to 26°C

Dimensions

• Fixture with Yoke: 19.8 x 10.8 x 10.7" / 50.3 x 27.4 x 27.2 cm
• Power Supply/Controller: 12.4 x 6.1 x 4.8" / 31.4 x 15.4 x 12.3 cm

Weight

• Fixture with Yoke: 11.35 lb / 5.15 kg
• Power Supply/Controller: 9.04 lb / 4.1 kg
