Accsoon CineView M7H 7" Smart HDMI Monitor with Wi-Fi Streaming

Accsoon CineView M7H 7" Smart HDMI Monitor with Wi-Fi Streaming Overview

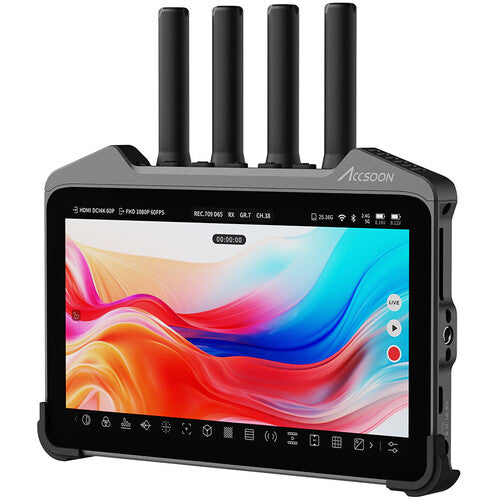

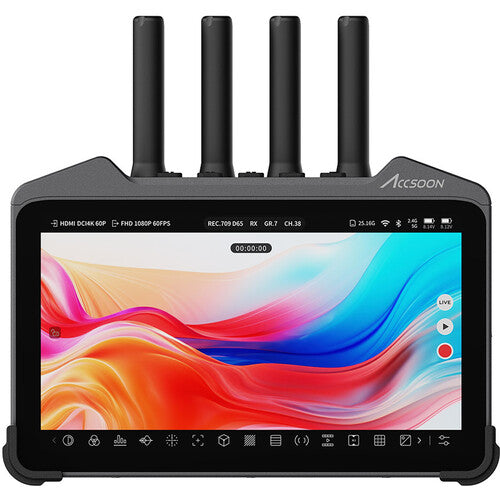

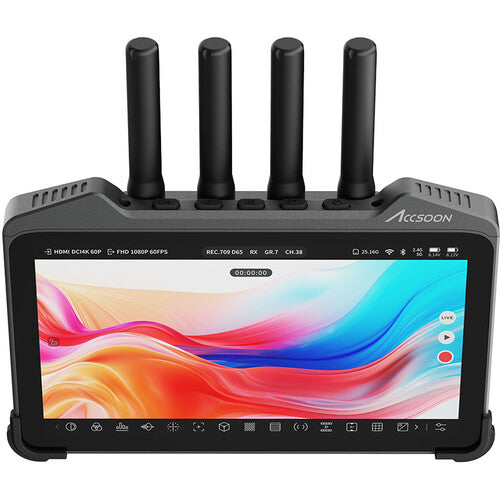

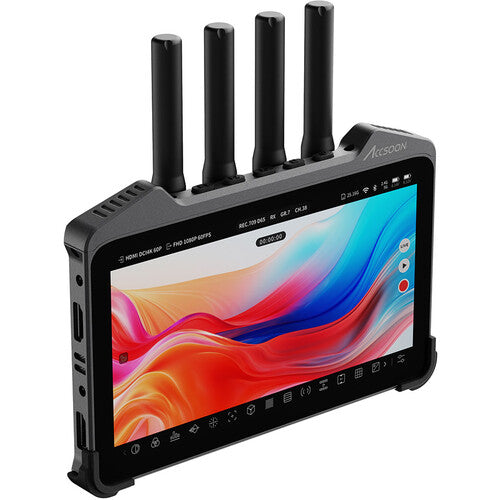

The Accsoon CineView M7H is a professional 7-inch smart monitor designed to give filmmakers and camera operators high-quality on-camera monitoring, wireless video capabilities, and a comprehensive suite of production tools. Its 1920 x 1080 touchscreen display offers 1000 nits of brightness, a wide 176° viewing angle, and factory calibration to Rec.709, providing accurate, easy-to-view images on set and in brighter environments.

With HDMI 2.0 input and output supporting up to DCI 4K60, the CineView M7H can handle high-resolution cinema footage while providing flexible connectivity for professional camera setups. The monitor also includes 3.5mm microphone and headphone connections, allowing you to embed audio into recordings or monitor both embedded and microphone audio.

The integrated smart operating system provides a wide range of professional monitoring tools, including waveform, histogram, vectorscope, false colour, zebras, gamma controls and 1D/3D LUT support. The monitor can also function as a LUT box, supporting custom LUTs for real-time colour management and grading workflows.

The CineView M7H also combines monitoring with wireless video and streaming capabilities. Its integrated dual-band wireless system can receive video from compatible transmitters, while Wi-Fi connectivity enables live streaming workflows using platforms and protocols such as RTMP and SRT.

For recording, the M7H can capture HDMI video internally at up to 4K60 using H.264 or H.265 compression, with recordings stored to an SD card, USB storage or compatible external SSD. The built-in file management system also lets you review and manage recordings directly from the monitor.

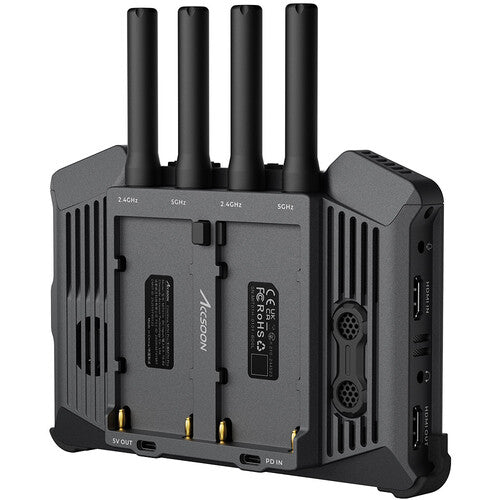

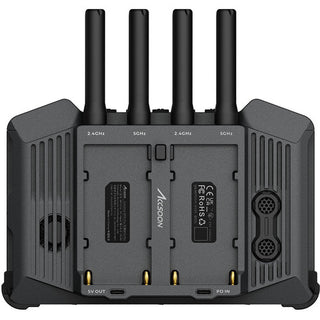

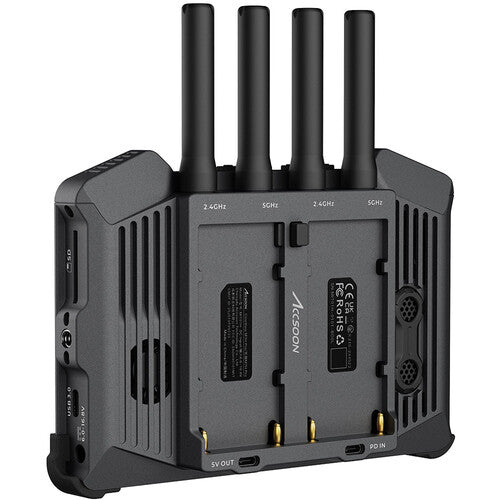

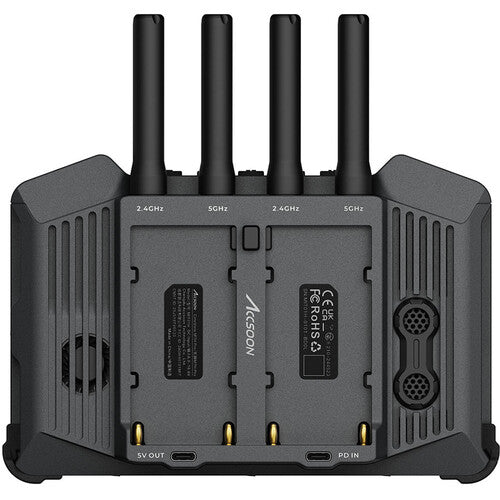

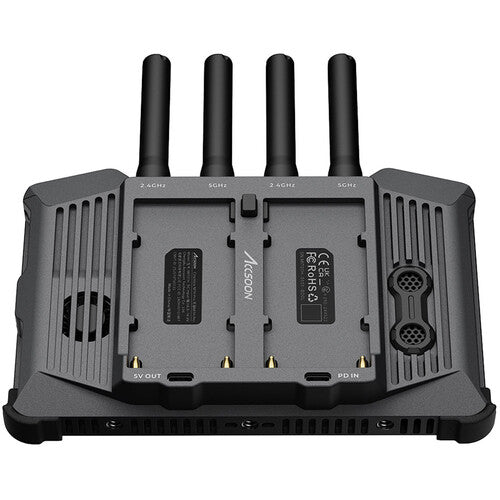

Power can be supplied through the dual NP-F battery slots, USB-C PD, or the 2.1mm DC input, while the USB-C output can power compatible external devices. The aircraft-grade aluminium chassis combines durability with effective heat dissipation, making the CineView M7H well suited to demanding production environments. According to Accsoon's specifications, the monitor weighs about 476 g without antennas and measures 182.2 x 120.7 x 31.5 mm.

Display Size: 7.0" / 17.8 cm

Panel Type: LCD

Native Resolution: 1920 x 1080

Aspect Ratio: 16:9

Viewing Angle: Horizontal: 176°; Vertical: 176°

Touchscreen: Yes

Maximum Brightness: 1000 nits / cd/m²

Contrast Ratio: 1000:1

HDR Support: Yes

Colour Gamut: 100% Rec. 709

LUT Support: Yes

Image Controls: Anamorphic De-Squeeze, False Colour, Focus Peaking, Histogram, Image Flip, Image Freeze, Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra

Video I/O: 1 x HDMI 2.0 Input, 1 x HDMI 2.0 Output

Embedded Audio: HDMI

Audio I/O: 1 x 3.5 mm Microphone Input; 1 x 3.5 mm Headphone Output

Built-In Speaker: No

Antenna I/O: 4 x RP-SMA Female

Power I/O: 1 x 2.1 mm Barrel (16.8 VDC) Input; 1 x USB-C (9 VDC / 3 A) Input; 1 x USB-C (5 VDC / 2 A) Output

Media/Memory Card Slot: Single SD Slot (Record/LUT/Firmware)

Wireless Range: 350 m (Line-of-Sight)

Latency: 60 ms

Wi-Fi: Dual-Band (2.4 & 5 GHz)

Bluetooth: Yes

Mobile App Compatible: No

Video Format: HDMI; DCI 4K up to 60 fps; UHD 4K up to 60 fps; 1080p up to 60 fps; 1080i up to 60 fps; 720p up to 60 fps

Audio Format: 2-Channel 16-Bit 48 kHz

Wireless Video Compression: Compressed

Timecode Support: No

Encoding Formats: Up to 4096 x 2160; H.264; H.265

Maximum Audio Tracks: 2

Pulldown Conversion: No

Camera Trigger: No

Pre-Roll Record: No

Input Power: 6 to 16.8 VDC; 9 to 15 VDC at 3 A

Battery: 2 x L-Series Mount on Fixed Plate

Tripod/Accessory Mounting: 2 x 1/4"-20 Female

Operating Conditions: -10 to 40°C

Material of Construction: Aluminium

Dimensions: 12.5 x 7.7 x 3.1 cm

Weight: 222 g (Excluding Antennas)
