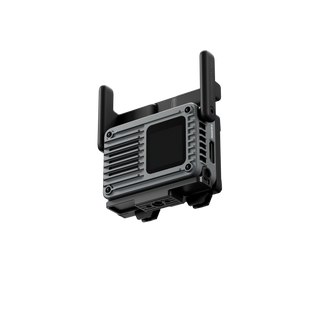

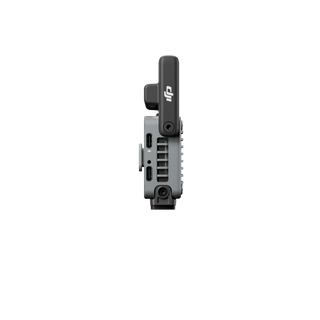

DJI SDR Transmission 2

SKU: CP.TR.00000055.04

Estimated dispatch: 3-5 business days Orders are typically shipped within this timeframe. We’ll keep you updated if anything changes.

Overview

The DJI SDR Transmission 2 supports 1 TX to 8 RX transmission with control, while multi-group transmission allows up to five transmitters and 40 receivers to operate simultaneously. Auto Channel 2.0 automatically scans and coordinates frequencies to help maintain a stable connection in environments with multiple wireless systems and potential...

Product Highlights

Professional wireless video transmission using upgraded SDR technology

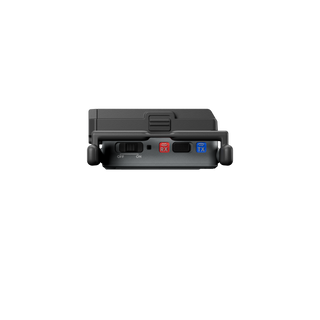

TX/RX switchable transceiver design
DCI 4K/60fps 10-bit HDR video transmission
H.265 video encoding
Up to 50 Mbps maximum encoding bitrate
Minimum 35ms video transmission latency
Up to 4 km transmission distance under controlled CE conditions
1 TX to 8 RX transmission with control
Multi-group transmission supporting up to 5 transmitters and 40 receivers
Auto Channel 2.0 for automatic frequency coordination and improved interference resistance
HDMI and USB-C video connectivity
DisplayPort video output via the bottom USB-C port
SDI connectivity available with the separately sold Expansion Plate
Supports monitoring via compatible smartphones and tablets
DJI Ronin monitoring and control compatibility
Compatible with DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels
Supports compatible DJI Osmo Action and Osmo Pocket devices
USB-C PD and NP-F battery power options
Approx. 136g transceiver weight including antennas
Designed for professional film, broadcast, live production and on-set monitoring workflows.

Read Full Description

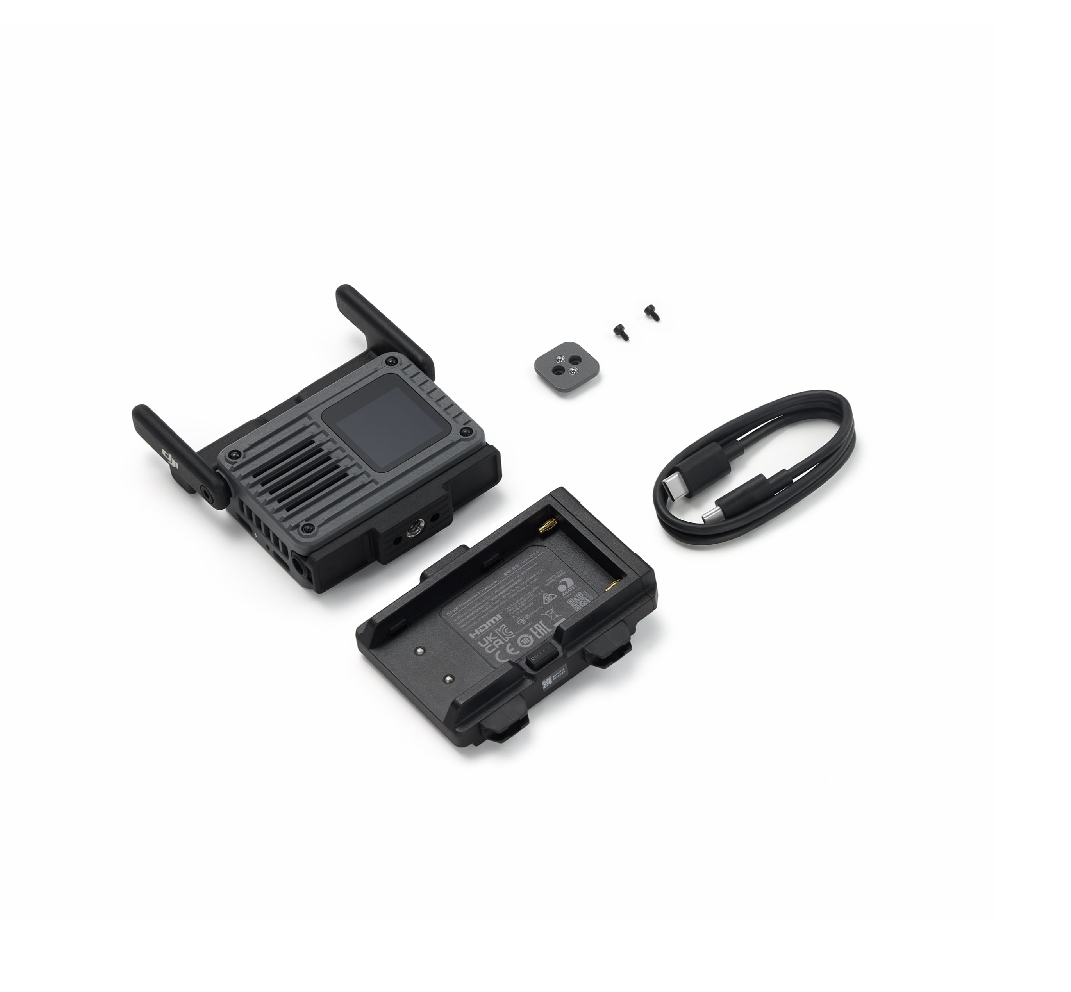

What's in the box

DJI SDR Transmission 2
1 × DJI SDR Transmission 2 Transceiver
1 x DJI SDR Transmission 2 Camera Cold Shoe Adapter

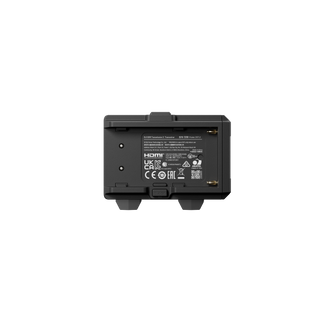

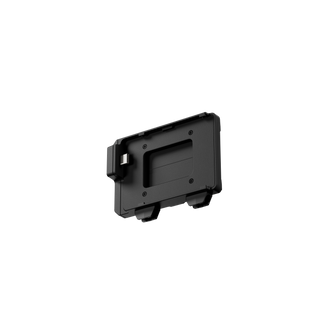

1 × DJI SDR Transmission 2 NP-F Battery Adapter
1 × Firmware Update Cable (USB-C to USB-C, 50 cm)

New

DJI SDR Transmission 2

Name: DJI SDR Transmission 2
Brand: DJI
SKU: CP.TR.00000055.04
Price: 569.0 AUD
Availability: InStock

SKU: CP.TR.00000055.04

Estimated dispatch: 3-5 business days Orders are typically shipped within this timeframe. We’ll keep you updated if anything changes.

Tax Included

$569.00

Unit price: per

Estimated dispatch: 3-5 business days Orders are typically shipped within this timeframe. We’ll keep you updated if anything changes.

Special Notice

DJI SDR Transmission 2 Camera Compatibility List

Tax Included

$569.00

Unit price: per

4 x

$142.25

from

$10

4 x

$142.25

Quantity

Tax included.Shipping calculated at checkout.

Write a Review

Ask a Question

Overview

Product Highlights

Professional wireless video transmission using upgraded SDR technology
TX/RX switchable transceiver design
DCI 4K/60fps 10-bit HDR video transmission
H.265 video encoding
Up to 50 Mbps maximum encoding bitrate
Minimum 35ms video transmission latency
Up to 4 km transmission distance under controlled CE conditions
1 TX to 8 RX transmission with control
Multi-group transmission supporting up to 5 transmitters and 40 receivers
Auto Channel 2.0 for automatic frequency coordination and improved interference resistance
HDMI and USB-C video connectivity
DisplayPort video output via the bottom USB-C port
SDI connectivity available with the separately sold Expansion Plate
Supports monitoring via compatible smartphones and tablets
DJI Ronin monitoring and control compatibility
Compatible with DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels
Supports compatible DJI Osmo Action and Osmo Pocket devices
USB-C PD and NP-F battery power options
Approx. 136g transceiver weight including antennas
Designed for professional film, broadcast, live production and on-set monitoring workflows.

Read Full Description

What's in the box

DJI SDR Transmission 2
1 × DJI SDR Transmission 2 Transceiver
1 x DJI SDR Transmission 2 Camera Cold Shoe Adapter
1 × DJI SDR Transmission 2 NP-F Battery Adapter
1 × Firmware Update Cable (USB-C to USB-C, 50 cm)

DJI SDR Transmission 2 Overview
The DJI SDR Transmission 2 supports 1 TX to 8 RX transmission with control, while multi-group transmission allows up to five transmitters and 40 receivers to operate simultaneously. Auto Channel 2.0 automatically scans and coordinates frequencies to help maintain a stable connection in environments with multiple wireless systems and potential interference.

For added flexibility on set, the transceiver provides HDMI, USB-C and DisplayPort video connectivity, with SDI available through the separately sold Expansion Plate. It also supports monitoring through compatible devices and integration with DJI Ronin equipment, including RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels. The system can also connect with compatible Osmo Action and Osmo Pocket devices for monitoring and power.

With its lightweight, approximately 136g transceiver body, flexible power options including USB-C PD and NP-F batteries, and TX/RX switchable design, the DJI SDR Transmission 2 is well suited to professional productions where compact equipment, reliable wireless monitoring and flexible on-set configuration are essential.
DJI SDR Transmission 2 Specifications

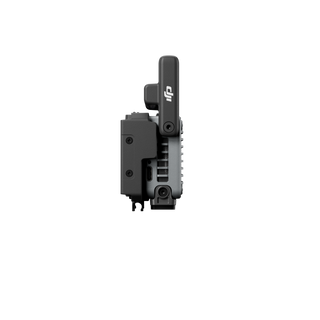

Transceiver

Weight: Approx. 136 g (including antennas)

Dimensions: 76 x 61 x 25 mm (L x W x H, excluding antennas and Cold Shoe Adapter)

Ports: HDMI Input/Output; USB-C (Top) for PD power input/output; USB-C (Bottom) for DP input/output, PD power input/output, device activation, firmware updates, log export, phone app connection, and connection to DJI Ronin, Osmo Action 6, and Osmo Pocket series devices

SDI: Available via the separately sold DJI SDR Transmission 2 Expansion Plate

Operating Frequency: 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.250-5.350 GHz, 5.470-5.725 GHz, and 5.725-5.850 GHz

Maximum Bandwidth: 40 MHz

Maximum Encoding Bitrate: 50 Mbps

Video Transmission System: SDR

Video Coding Format: H.265

Minimum Video Transmission Latency: 35 ms (camera and screen display latency not included)

Maximum Transmission Distance: 4 km (CE, measured with one TX and one RX under open, unobstructed, interference-free controlled conditions)

Operating Temperature: -10 to 40°C / 14 to 104°F

Transmitter Power (EIRP)

2.400-2.4835 GHz: < 20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz: < 23 dBm (SRRC/CE/MIC)

5.250-5.350 GHz: < 23 dBm (SRRC/CE/MIC)

5.470-5.725 GHz: < 26 dBm (CE/MIC)

5.725-5.850 GHz: < 30 dBm (SRRC), < 14 dBm (CE)

Power Consumption

Standby - Single Transmitter: Approx. 5.04 W

Standby - Single Receiver: Approx. 5.31 W

1T1R Transmission - Main Unit Transmitter: Approx. 8.52 W

1T1R Transmission - Main Unit Receiver: Approx. 7.58 W

1T1R Transmission - Expansion Plate Transmitter: Approx. 10.36 W

1T1R Transmission - Expansion Plate Receiver: Approx. 8.89 W

Power Supply

USB-C Power Supply Type 1: 15 V, 3 A (PD protocol)

USB-C Power Supply Type 2: 6.8-17.5 V DC

NP-F Battery Power Supply Voltage: 6.8-8.4 V

PD Power Adapter Requirement: 65 W or above

Video I/O Formats

DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps

4K UHD: 23.98/24/25/29.97/30/50/59.94/60 fps

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

1080i: 50/59.94/60 fps (Input only on main unit; input/output on Expansion Plate)

720p: 50/59.94/60 fps

4K Support: Supported via HDMI and bottom USB-C port of the transceiver main unit

Audio I/O Formats

Input Audio Format: SDI embedded, HDMI embedded, DP embedded

Output Audio Format: 16-bit, 48 kHz, stereo PCM

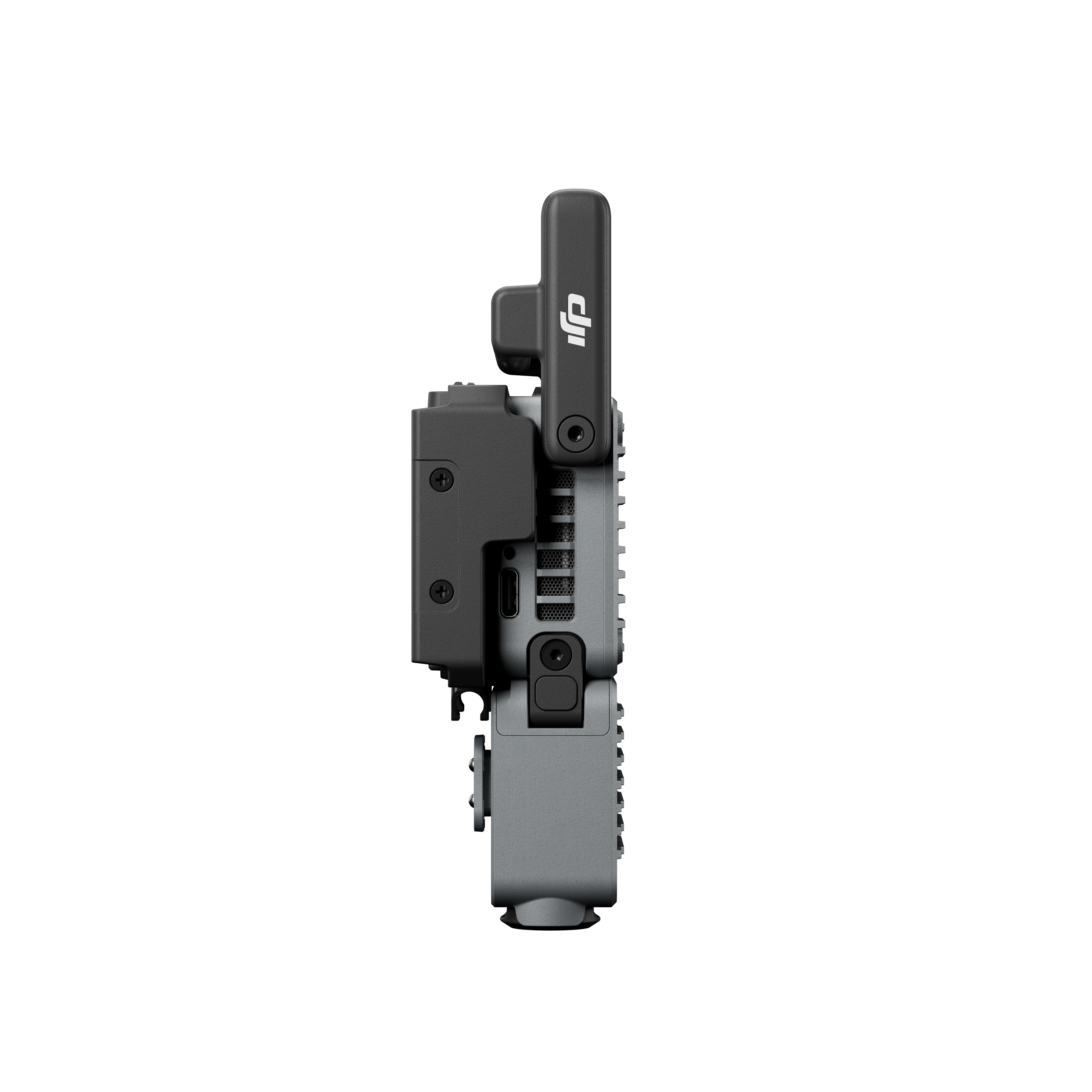

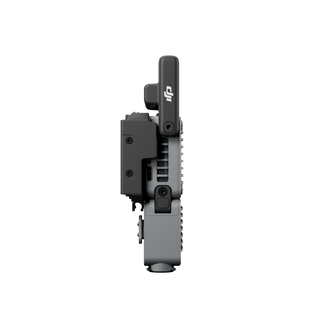

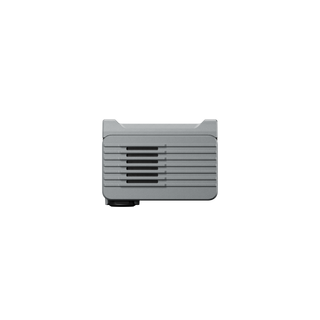

Expansion Plate

Weight: Approx. 105 g

Dimensions: 76 x 54 x 25 mm (L x W x H, excluding Cold Shoe Adapter)

Ports: HDMI Input/Output; USB-C (Right) for power supply and DJI RS 5 connection; USB-C (Bottom) for power supply, camera control, and connection to DJI Ronin series devices; SDI Input/Output

Power Supply Type 1: 15 V/9 V, 3 A (PD protocol)

Power Supply Type 2: 6.8-17.5 V DC

PD Power Adapter Requirement: 65 W or above

Operating Temperature: -10 to 40°C / 14 to 104°F

Transceiver Cage

Weight: Approx. 91 g

Dimensions: 124 x 110 x 49 mm (L x W x H)

Mounting: NATO port, 2x 1/4"-20 screw holes, 1x 3/8"-16 screw hole

Cable Management: HDMI cable clamp, USB-C cable clamp

Operating Temperature: -10 to 40°C / 14 to 104°F

Overview

DJI SDR Transmission 2 Overview

The DJI SDR Transmission 2 supports 1 TX to 8 RX transmission with control, while multi-group transmission allows up to five transmitters and 40 receivers to operate simultaneously. Auto Channel 2.0 automatically scans and coordinates frequencies to help maintain a stable connection in environments with multiple wireless systems and potential interference.

For added flexibility on set, the transceiver provides HDMI, USB-C and DisplayPort video connectivity, with SDI available through the separately sold Expansion Plate. It also supports monitoring through compatible devices and integration with DJI Ronin equipment, including RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2 and Master Wheels. The system can also connect with compatible Osmo Action and Osmo Pocket devices for monitoring and power.

With its lightweight, approximately 136g transceiver body, flexible power options including USB-C PD and NP-F batteries, and TX/RX switchable design, the DJI SDR Transmission 2 is well suited to professional productions where compact equipment, reliable wireless monitoring and flexible on-set configuration are essential.

Specifications

DJI SDR Transmission 2 Specifications

Transceiver

Weight: Approx. 136 g (including antennas)
Dimensions: 76 x 61 x 25 mm (L x W x H, excluding antennas and Cold Shoe Adapter)
Ports: HDMI Input/Output; USB-C (Top) for PD power input/output; USB-C (Bottom) for DP input/output, PD power input/output, device activation, firmware updates, log export, phone app connection, and connection to DJI Ronin, Osmo Action 6, and Osmo Pocket series devices
SDI: Available via the separately sold DJI SDR Transmission 2 Expansion Plate
Operating Frequency: 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.250-5.350 GHz, 5.470-5.725 GHz, and 5.725-5.850 GHz
Maximum Bandwidth: 40 MHz
Maximum Encoding Bitrate: 50 Mbps
Video Transmission System: SDR
Video Coding Format: H.265
Minimum Video Transmission Latency: 35 ms (camera and screen display latency not included)
Maximum Transmission Distance: 4 km (CE, measured with one TX and one RX under open, unobstructed, interference-free controlled conditions)
Operating Temperature: -10 to 40°C / 14 to 104°F

Transmitter Power (EIRP)

2.400-2.4835 GHz: < 20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz: < 23 dBm (SRRC/CE/MIC)
5.250-5.350 GHz: < 23 dBm (SRRC/CE/MIC)
5.470-5.725 GHz: < 26 dBm (CE/MIC)
5.725-5.850 GHz: < 30 dBm (SRRC), < 14 dBm (CE)

Power Consumption

Standby - Single Transmitter: Approx. 5.04 W
Standby - Single Receiver: Approx. 5.31 W
1T1R Transmission - Main Unit Transmitter: Approx. 8.52 W
1T1R Transmission - Main Unit Receiver: Approx. 7.58 W
1T1R Transmission - Expansion Plate Transmitter: Approx. 10.36 W
1T1R Transmission - Expansion Plate Receiver: Approx. 8.89 W

Power Supply

USB-C Power Supply Type 1: 15 V, 3 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.5 V DC
NP-F Battery Power Supply Voltage: 6.8-8.4 V
PD Power Adapter Requirement: 65 W or above

Video I/O Formats

DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
4K UHD: 23.98/24/25/29.97/30/50/59.94/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps (Input only on main unit; input/output on Expansion Plate)
720p: 50/59.94/60 fps
4K Support: Supported via HDMI and bottom USB-C port of the transceiver main unit

Audio I/O Formats

Input Audio Format: SDI embedded, HDMI embedded, DP embedded
Output Audio Format: 16-bit, 48 kHz, stereo PCM

Expansion Plate

Weight: Approx. 105 g
Dimensions: 76 x 54 x 25 mm (L x W x H, excluding Cold Shoe Adapter)
Ports: HDMI Input/Output; USB-C (Right) for power supply and DJI RS 5 connection; USB-C (Bottom) for power supply, camera control, and connection to DJI Ronin series devices; SDI Input/Output
Power Supply Type 1: 15 V/9 V, 3 A (PD protocol)
Power Supply Type 2: 6.8-17.5 V DC
PD Power Adapter Requirement: 65 W or above
Operating Temperature: -10 to 40°C / 14 to 104°F

Transceiver Cage

Weight: Approx. 91 g
Dimensions: 124 x 110 x 49 mm (L x W x H)
Mounting: NATO port, 2x 1/4"-20 screw holes, 1x 3/8"-16 screw hole
Cable Management: HDMI cable clamp, USB-C cable clamp
Operating Temperature: -10 to 40°C / 14 to 104°F
