Main Features
- Monitor Wireless Video up to 400m Away
- 7" Touchscreen 1920 x 1200 Display
- Transmitter & Receiver Mode Switching
- New Capsule Antennas & Record/Playback
- One Transmitter Can Send to 4 Receivers
- 1080p SDI Input; Up to UHD 4K30 via HDMI
- High 1200 Nits Brightness
- Auto Frequency Hopping, 2.4/5 GHz Bands
- RTMP Streaming, USB/SD Card Import/Save
- Built-In Dual L-Series Battery Plate
- Kit Configuration : One Monitor
- One Monitor
- Two Monitors
- Unit price
- / per
What's in the box
- 2 x Paddle Antenna
- SD Card
- USB-C Converter
- D-Tap to Locking DC Power Cable
- Limited 1-Year Manufacturer Warranty
Try these products
Adding product to your cart
Main Features
- Monitor Wireless Video up to 400m Away
- 7" Touchscreen 1920 x 1200 Display
- Transmitter & Receiver Mode Switching
- New Capsule Antennas & Record/Playback
- One Transmitter Can Send to 4 Receivers
- 1080p SDI Input; Up to UHD 4K30 via HDMI
- High 1200 Nits Brightness
- Auto Frequency Hopping, 2.4/5 GHz Bands
- RTMP Streaming, USB/SD Card Import/Save
- Built-In Dual L-Series Battery Plate
You may also like
You may also like
-

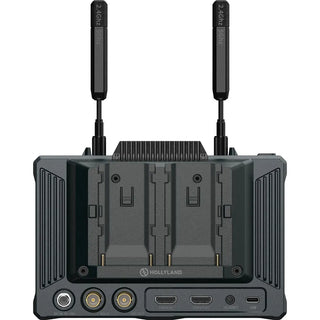

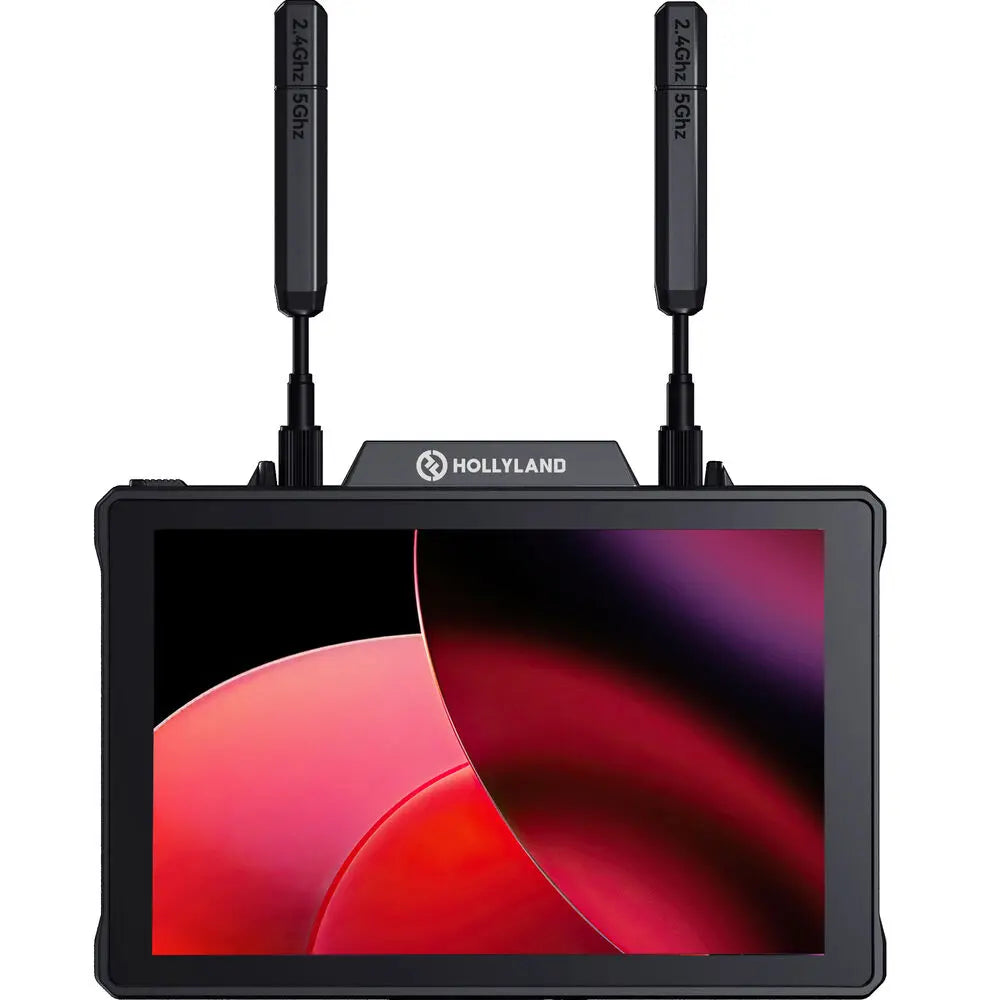

Hollyland Pyro 7 Wireless Transceiver Monitor
With Hollyland's adaptable Pyro 7 Wireless Transceiver Monitor, you can send, receive, and monitor high-quality wireless video transmissions. With its bright7" touchscreen display, dual L-series battery plate, wireless transmission up to 400m away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, and the ability to send to up to four receivers simultaneously, the Pyro 7 improves upon the previous M1 transceiver/monitor in every way.
Thanks to wireless broadcast technology, the Pyro 7 can connect a single transmitter to up to four receivers via stable, line-of-sight transmissions. When the transmitter is in broadcast mode, it can send signals to up to four receivers; when it is not in broadcast mode, it can send signals to two receivers and two mobile devices.

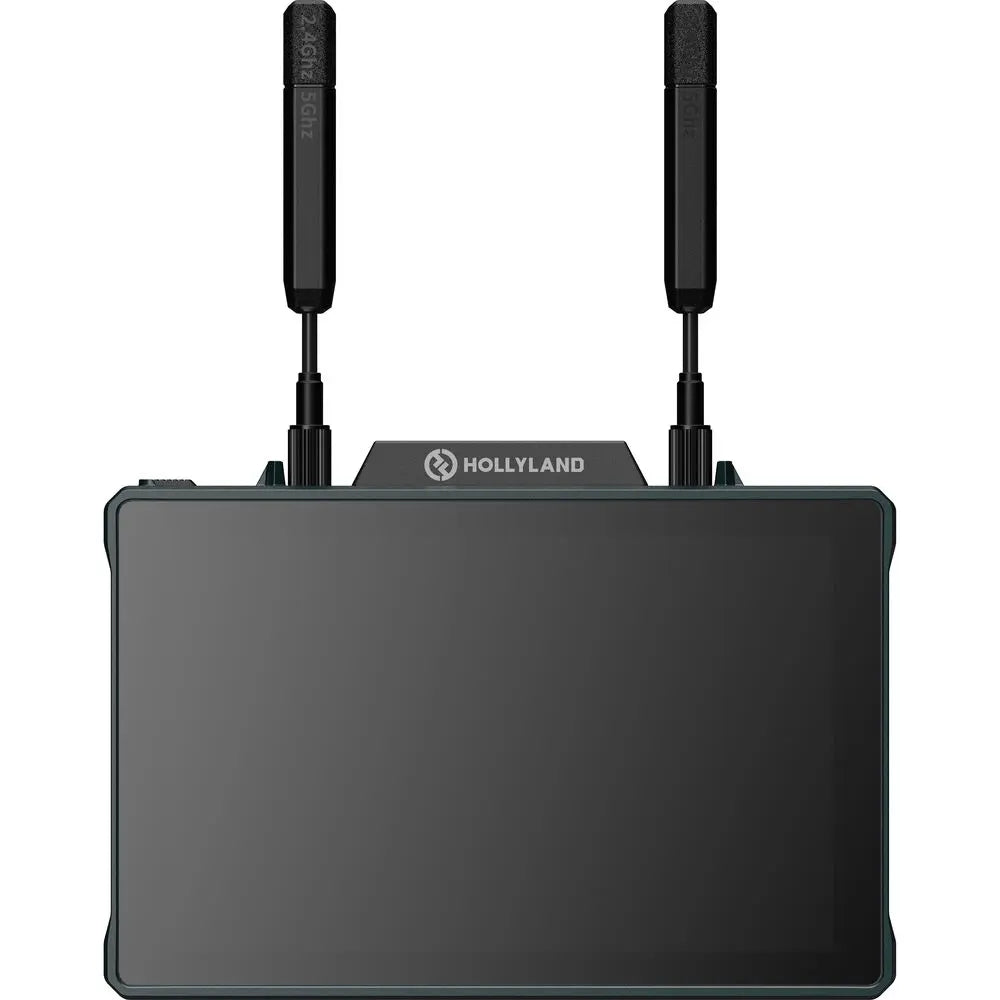

With a brightness of 1200 cd/m², the Pyro 7's 7" display makes it easy to see in bright and dim lighting conditions. To achieve the best results, the screen brightness can be changed.
You may switch between using the Pyro 7 as a transmitter and a receiver. When in transmitter mode, the monitor has one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it has one SDI loop output, one HDMI output, and one SDI output.
The transceiver facilitates easy connection with all Pyro series equipment using a grouping preset. Using two customised buttons, you can quickly switch between monitoring two cameras and grouping many devices.
The Pyro 7 has a reliable line-of-sight transmission range of up to 400m with a minimal transmission latency of 60ms and no image degradation because of its dual-band 2.4 and 5 GHz technology. Two transmission modes are available: HD mode optimizes the image with a consistent bitrate up to 12 Mb/s, even up to 400m distance. Smooth mode modifies the transmission for the lowest latency at extended distances.
Operating on both the 2.4 and 5 GHz bands, Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies enable the Pyro 7 to automatically select the clearest channel for dependable and continuous wireless video transmission. These approaches address common problems like low transmission efficiency, frequency congestion, and signal interference. The omnidirectional high-gain antennas also guarantee stable transmissions in every direction.
You can effortlessly stream video to well-known live broadcasting and conferencing services like Zoom, YouTube Live, Twitch, TikTok Live, and more, thanks to built-in RTMP streaming.

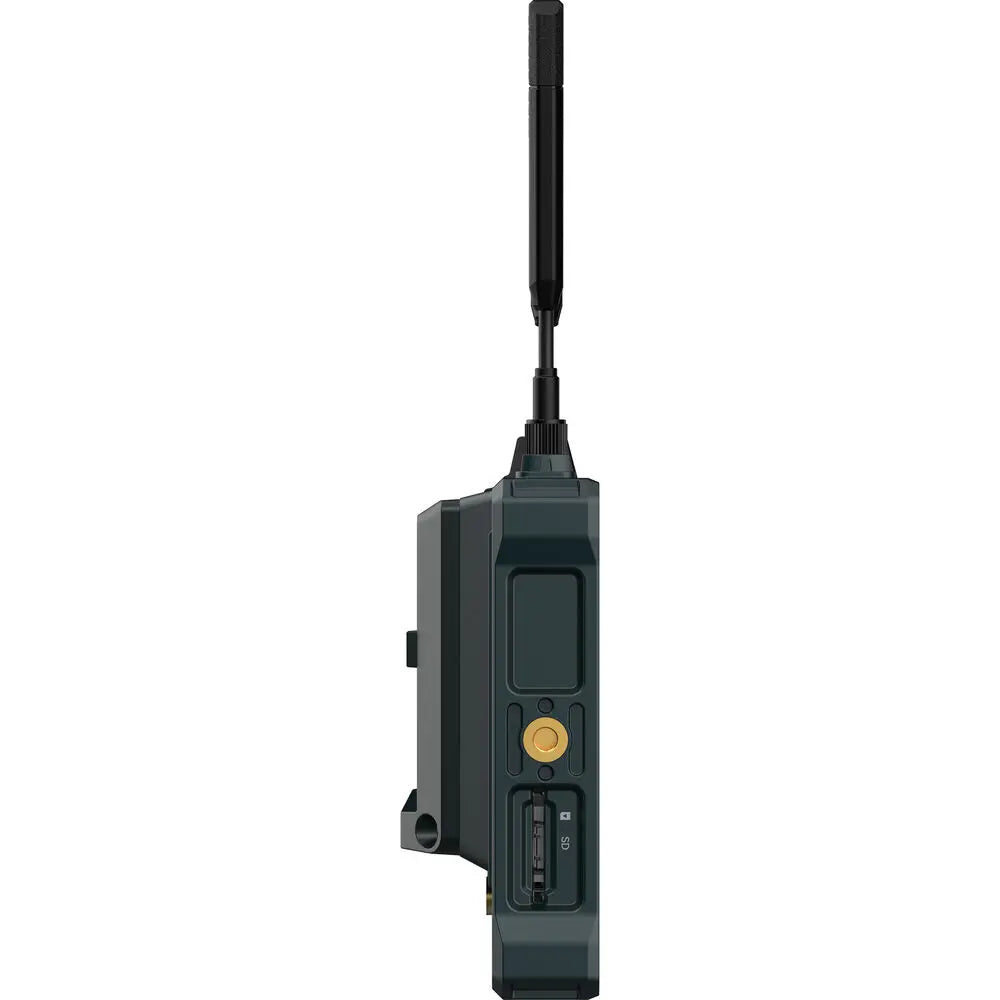

The Pyro 7's SD card slot allows for prolonged MP4 video recording, lasting up to 40 minutes in a single session, using an external standard SD card. You can also apply custom LUTs using an SD card when exporting videos. The SD card facilitates a more efficient editing workflow and has file organization capabilities. In addition, you can ingest on-set screenshots and import data from external devices to overlay them on the screen while recording to replicate or restore specific scenes.

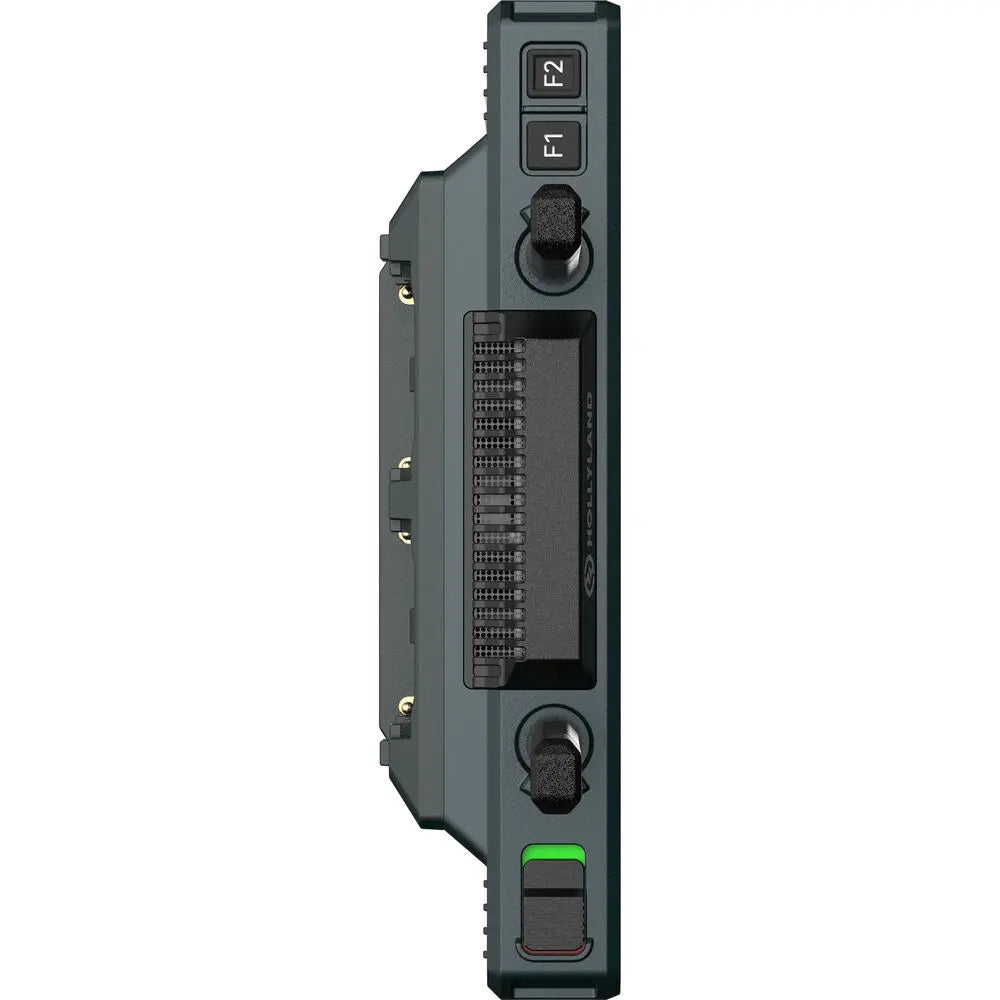

In addition to dual-view monitoring, the custom shortcut key functionality may also be used to quickly access picture utilities, including waveform, recording, focus assist, and other image analysis features.

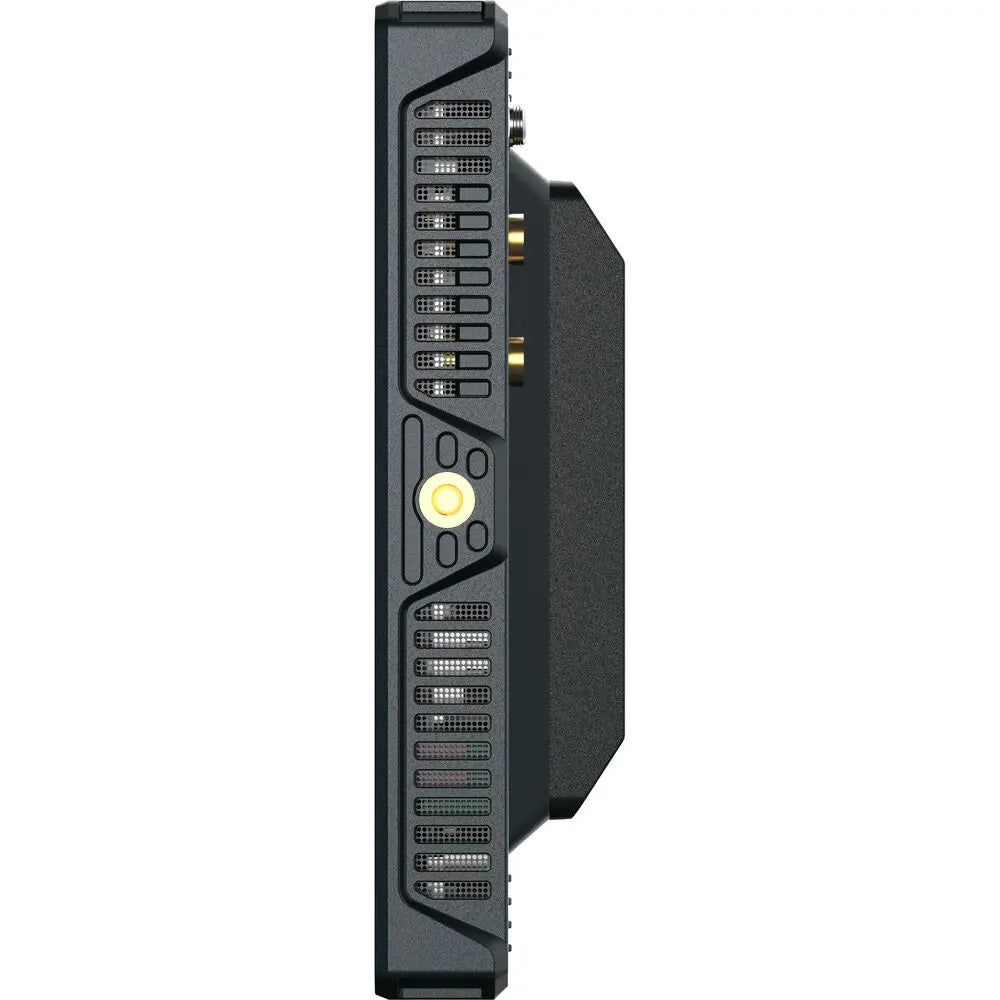

Aerospace-grade magnesium-aluminium alloy, which is 30% lighter and has superior heat dissipation than aluminium-only models, makes up the Pyro 7's sturdy, solid case.
-
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1200
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1200 Nits
Contrast Ratio
1000:1
HDR Support
No
Pixels Per Inch (ppi)
323 ppi
Response Time
50 ms
Real-Time LUT Monitoring
SDR
Image Controls
Focus Peaking, Waveform
Antenna I/O
2x RP-SMA Male

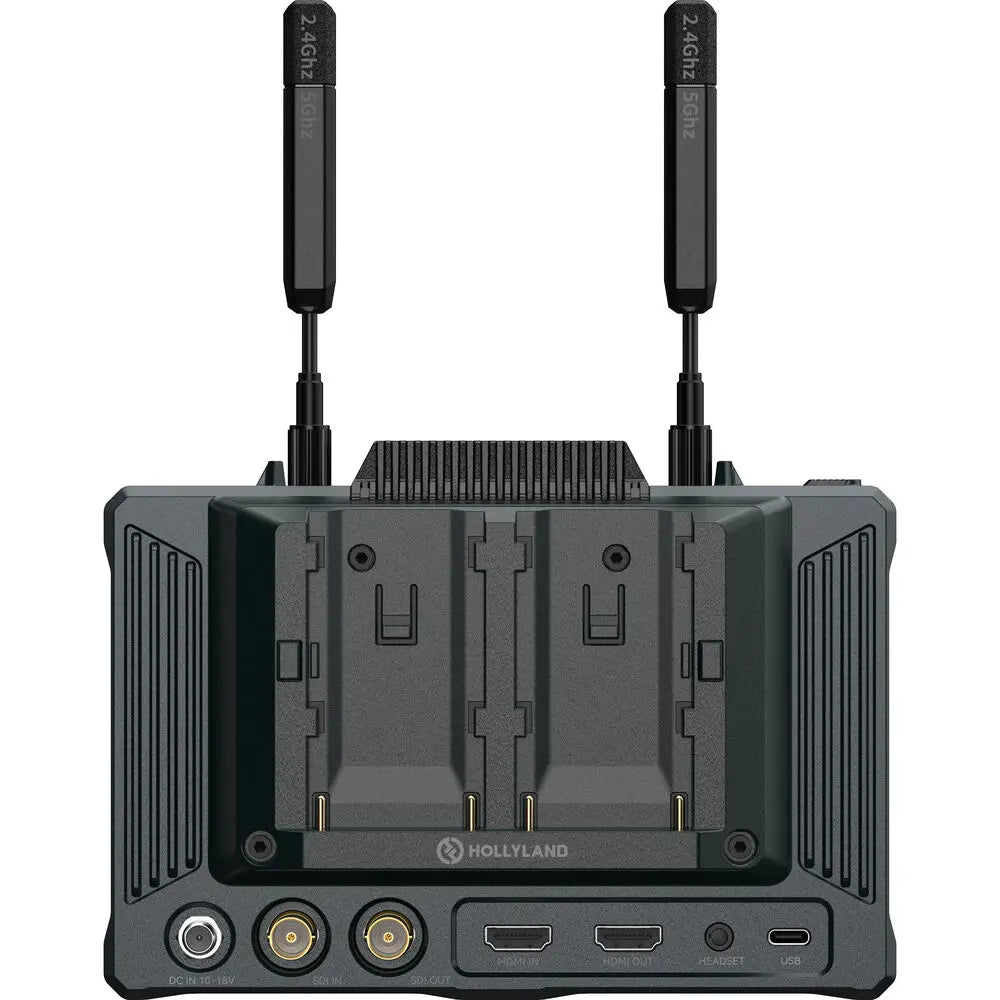

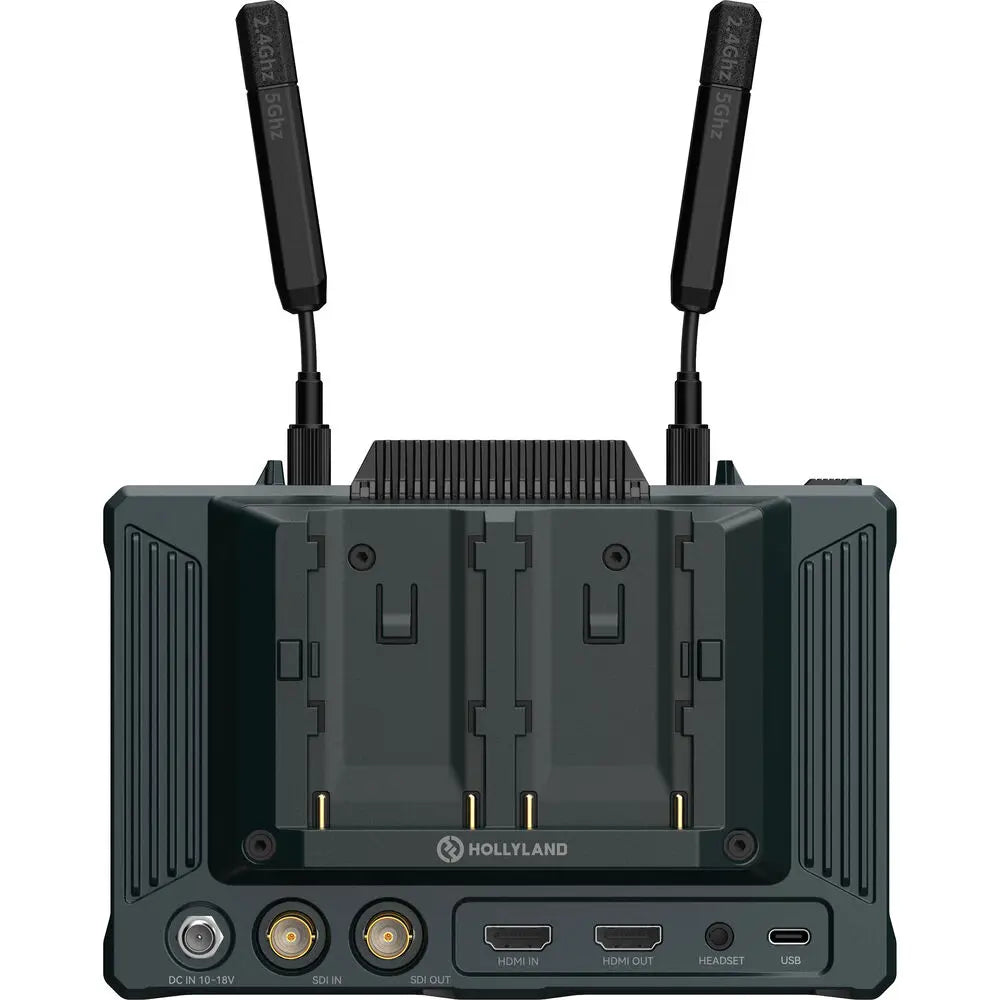

Video I/O
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
1x HDMI 1.4b Input
1x HDMI 1.4b OutputEmbedded Audio
HDMI/SDI: 8-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Power I/O
1x Barrel Input
Other I/O
1x USB-C (Firmware) Input
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Encryption
No
Wireless Range
400m (Line-of-Sight)
200mChannel Bandwidth
40 MHz, 20 MHz
Latency
60 ms
RF Power
23 dBm
RF Sensitivity
-80 dBm
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
Yes, Required: Android & iOS
App Name: HollyView
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live FeedVideo Format
HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50Audio Format
4-Channel
Wireless Video Compression
Compressed
Timecode Support
Yes
Input Power
10 to 18 VDC at 2.5 A
Built-In Battery
No
Battery Type
2x L-Series (Interchangeable Mount)
Power Consumption
22 W (Maximum)

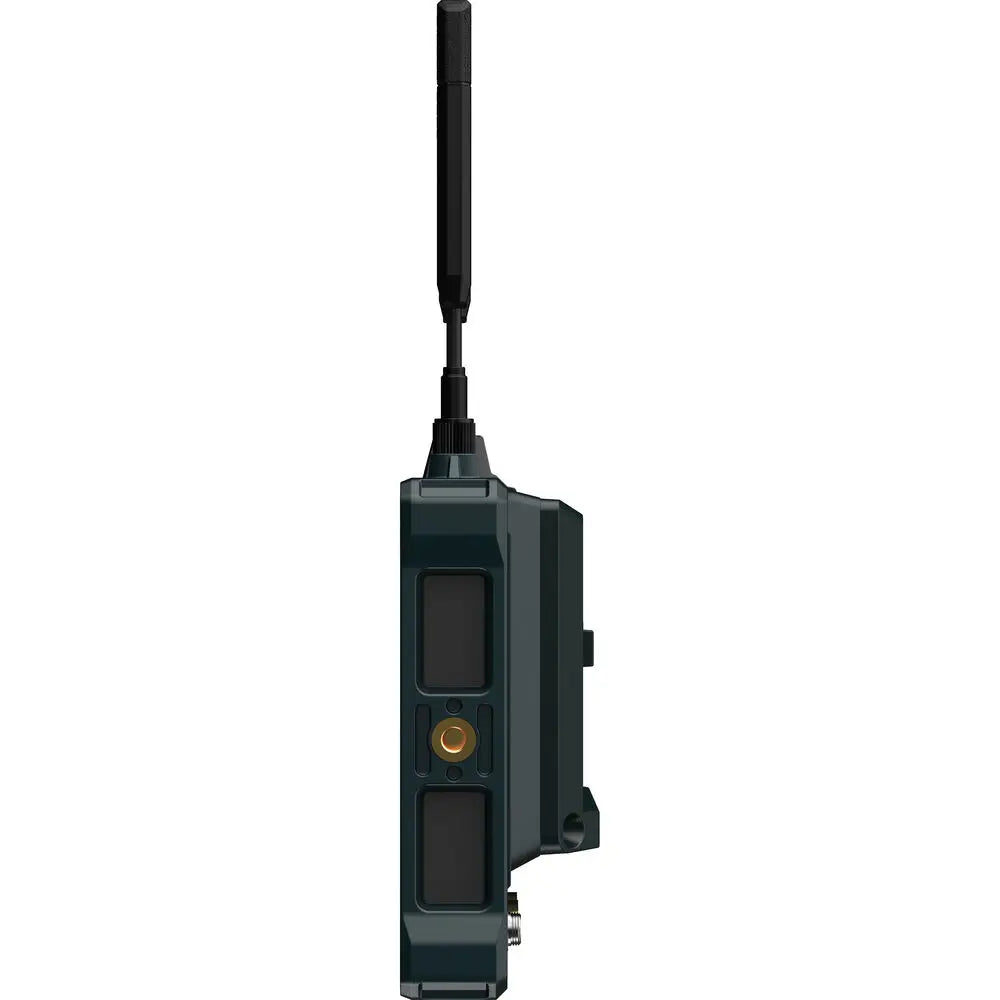

Mounting
1x 1/4"-20 Female (Left)
1x 1/4"-20 Female (Right)
1x 1/4"-20 Female (Bottom)Operating Temperature
-10 to 45°C
Storage Temperature
-40 to 60°C
Material of Construction
Aluminium, Magnesium
Dimensions
180 x 127 x 31.8 mm (Excluding Antenna)
Weight
545g, Excluding Antenna
-
-
