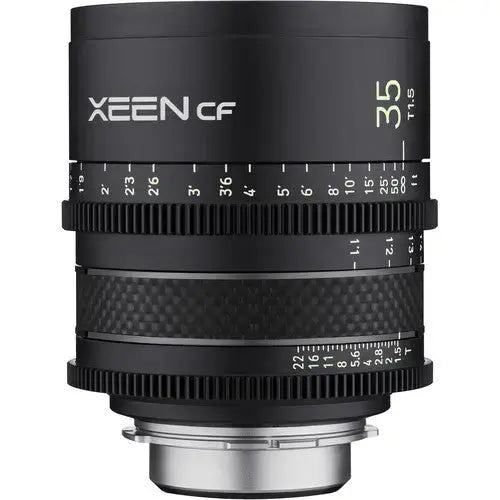

XEEN CF 35mm T1.5 Canon EF Full Frame Cinema Lens

XEEN CF 35mm T1.5 Canon EF Full Frame Cinema Lens

XEEN CF 35mm T1.5 Pro Cine Lens, in a Canon EF mount, features a lightweight carbon fibre housing and compact design while providing full-frame coverage for use with large sensor cameras. This lens supports resolutions up to 8K in a small and lightweight form, which is well suited for use with mechanical and electronic stabilizer systems, as well as for studio and location productions. The lenses in the XEEN CF series all benefit from X-Coating Technology, which provides the XEEN CF lenses with a distinct look. All lenses within the XEEN CF series are colour-matched to avoid shifts when swapping lenses, and the 11-blade iris allows for a natural-looking bokeh.

In addition to supporting 8K image capture, the lenses have been designed for ease of use while shooting, with each lens sharing the same 95mm outside front diameter and consistent lens gear positions for focus and iris gears. This makes for fast lens swaps when working with rod-mounted lens accessories. Accurate focus and iris scales on both sides of the lens make it easy for your assistant to work from either side of the camera, and the 200° focus rotation allows for accurate lens markings without having too long a throw. The lens markings are large and easy to read and use luminous paint, which helps when shooting in dim or dark environments.

Focal Length 35mm

Lens Mount Canon EF

Format Full Frame

Image Circle 43.3 mm

Maximum T-Stop T1.5

Minimum T-Stop T22

Diagonal Angle of View Full Frame: 63.1° Super35: 46.9°

Minimum Focus Distance From : 12.99" / 0.33 m

Iris Blades 11

Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch

Front Diameter 95 mm

Focus Scales Imperial

Focus Rotation 200°

Iris Rotation 40°

Length 4.79" / 121.7 mm

Weight 2.4 lb / 1.09 kg
