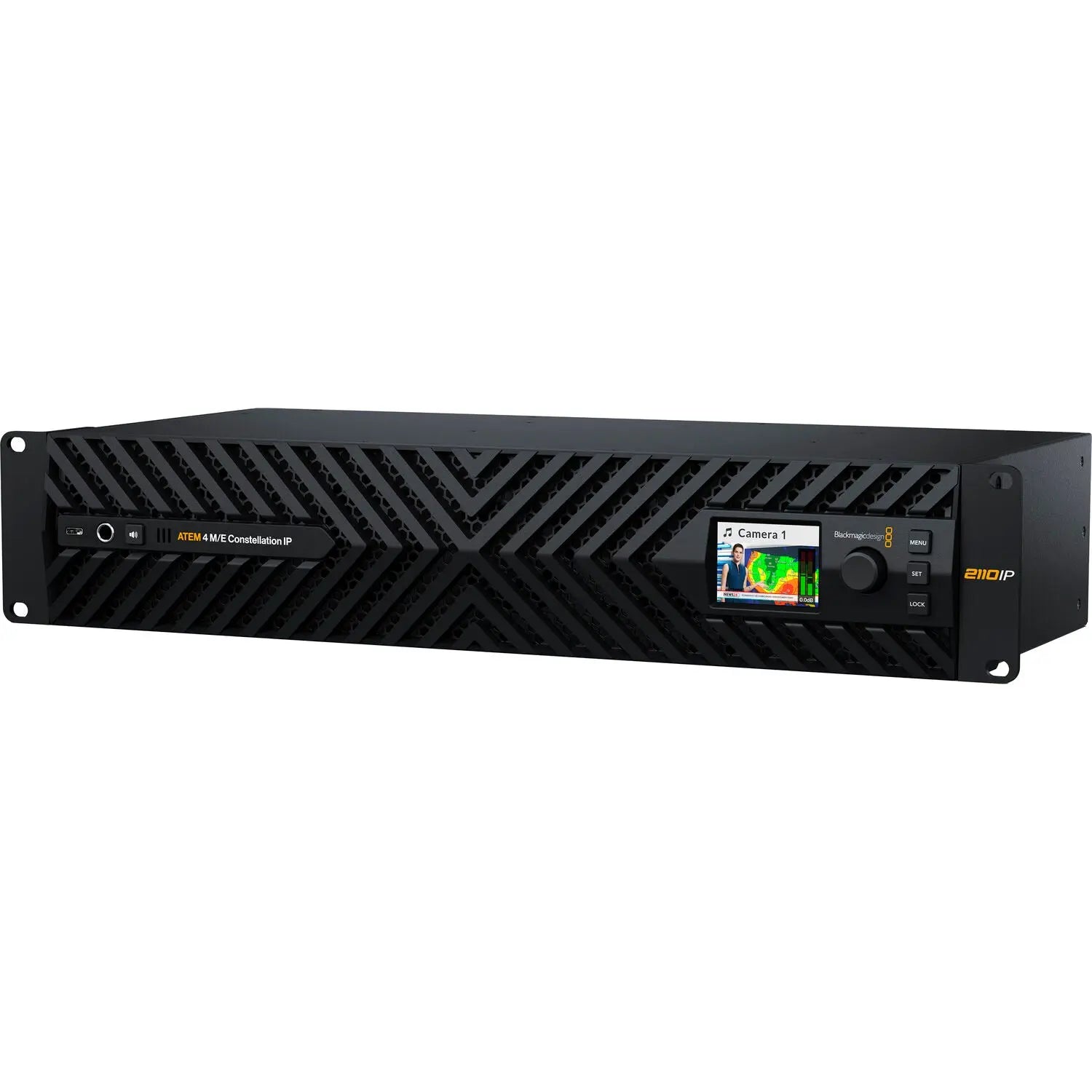

Blackmagic Design ATEM 4 M/E Constellation IP Switcher
SKU: SWATEMSCN2/3ME4/IP
Main Features
- 32 IP Inputs, 28 Outputs with Multiview
- Frame Rate/Format Converter per Input
- Redundant 100G Fibre Ethernet Ports
- SMPTE 2110 Reference Ports
- Redundant Power, 4 Cooling Fans
- 2 SuperSource Processors, 12 Total DVEs
The Blackmagic Design ATEM 4 M/E Constellation IP Switcher is a powerful 2RU live production switcher built for high-end broadcast environments, delivering advanced SMPTE 2110 IP workflows in a compact rackmount design. Featuring 32 native SMPTE 2110 IP inputs and 28 outputs via...
More Details
Blackmagic Design ATEM 4 M/E Constellation IP Switcher
SKU: SWATEMSCN2/3ME4/IP
Fast Shipping
Secure payment
- Inputs/Outputs : 32 Inputs / 24 Outputs
- 32 Inputs / 24 Outputs
- 64 Inputs / 48 Outputs
Tax Included
Tax included.
What's in the box
- Limited 1-Year Manufacturer Warranty
Write a Review
Ask a Question
Main Features
- 32 IP Inputs, 28 Outputs with Multiview
- Frame Rate/Format Converter per Input
- Redundant 100G Fibre Ethernet Ports
- SMPTE 2110 Reference Ports
- Redundant Power, 4 Cooling Fans
- 2 SuperSource Processors, 12 Total DVEs
The Blackmagic Design ATEM 4 M/E Constellation IP Switcher is a powerful 2RU live production switcher built for high-end broadcast environments, delivering advanced SMPTE 2110 IP workflows in a compact rackmount design. Featuring 32 native SMPTE 2110 IP inputs and 28 outputs via...
More Details
-
Blackmagic Design ATEM 4 M/E Constellation IP Switcher
The Blackmagic Design ATEM 4 M/E Constellation IP Switcher is a powerful 2RU live production switcher built for high-end broadcast environments, delivering advanced SMPTE 2110 IP workflows in a compact rackmount design. Featuring 32 native SMPTE 2110 IP inputs and 28 outputs via redundant 100G Ethernet connections, this switcher provides exceptional flexibility and reliability for live production, studio, and event applications.

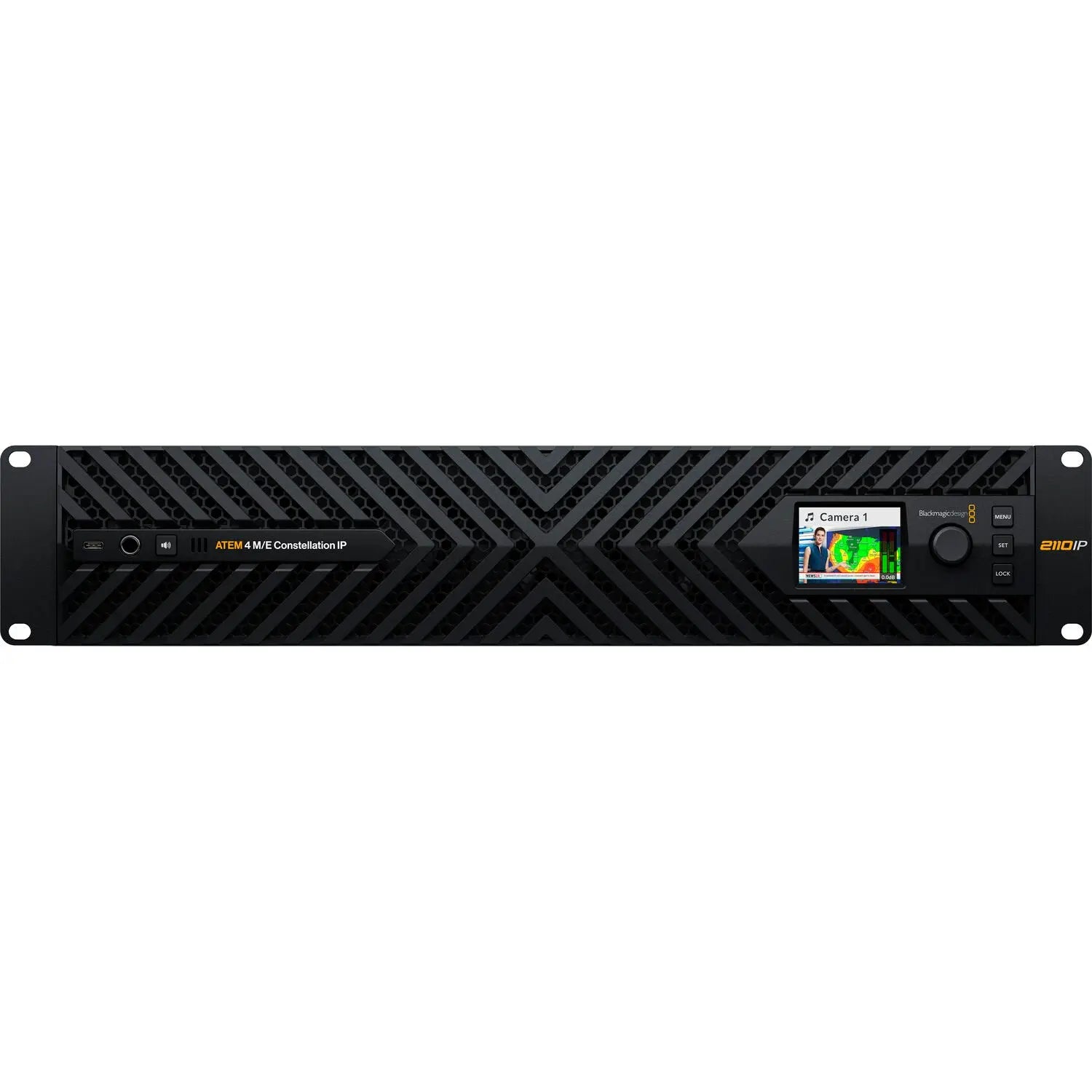

Designed with professional broadcasters in mind, the Constellation IP incorporates full SMPTE 2022-7 redundancy across all video ports, along with redundant control and PTP Ethernet connections for seamless operation. Each input includes built-in standards conversion, allowing you to mix and match SD, HD, UHD, 4K, and 8K sources without compatibility concerns. The unit also features a front-panel LCD for system status and settings, along with a headphone output and built-in speaker for local monitoring.
This 4 M/E model offers extensive creative control with 16 ATEM Advanced Keyers, four multiview outputs, and two SuperSource processors, delivering a total of 12 DVEs for complex compositions and picture-in-picture effects. Broadcast-style program/preview switching is supported via the included ATEM Software Control app or optional hardware panels, providing intuitive operation for both live and studio workflows.
The integrated multiview system allows you to monitor up to 64 sources across four displays, with customisable layouts, tally indicators, source labels, and audio meters. Built-in transitions, chroma keying, and a media pool supporting stills and animations make it easy to create professional broadcast graphics and virtual sets.
For streaming and conferencing, a USB-C webcam output enables direct integration with software such as Zoom or Microsoft Teams, delivering high-quality multicamera video. The switcher also supports advanced audio workflows with Fairlight Live integration, offering powerful mixing capabilities for complex productions.
With its robust design, quiet cooling system, comprehensive redundancy, and industry-standard IP connectivity, the ATEM 4 M/E Constellation IP is a future-ready solution for demanding live broadcast and production environments.
Blackmagic Design ATEM 4 M/E Constellation IP Switcher
The Blackmagic Design ATEM 4 M/E Constellation IP Switcher is a powerful 2RU live production switcher built for high-end broadcast environments, delivering advanced SMPTE 2110 IP workflows in a compact rackmount design. Featuring 32 native SMPTE 2110 IP inputs and 28 outputs via redundant 100G Ethernet connections, this switcher provides exceptional flexibility and reliability for live production, studio, and event applications.
Designed with professional broadcasters in mind, the Constellation IP incorporates full SMPTE 2022-7 redundancy across all video ports, along with redundant control and PTP Ethernet connections for seamless operation. Each input includes built-in standards conversion, allowing you to mix and match SD, HD, UHD, 4K, and 8K sources without compatibility concerns. The unit also features a front-panel LCD for system status and settings, along with a headphone output and built-in speaker for local monitoring.
This 4 M/E model offers extensive creative control with 16 ATEM Advanced Keyers, four multiview outputs, and two SuperSource processors, delivering a total of 12 DVEs for complex compositions and picture-in-picture effects. Broadcast-style program/preview switching is supported via the included ATEM Software Control app or optional hardware panels, providing intuitive operation for both live and studio workflows.
The integrated multiview system allows you to monitor up to 64 sources across four displays, with customisable layouts, tally indicators, source labels, and audio meters. Built-in transitions, chroma keying, and a media pool supporting stills and animations make it easy to create professional broadcast graphics and virtual sets.
For streaming and conferencing, a USB-C webcam output enables direct integration with software such as Zoom or Microsoft Teams, delivering high-quality multicamera video. The switcher also supports advanced audio workflows with Fairlight Live integration, offering powerful mixing capabilities for complex productions.
With its robust design, quiet cooling system, comprehensive redundancy, and industry-standard IP connectivity, the ATEM 4 M/E Constellation IP is a future-ready solution for demanding live broadcast and production environments.
