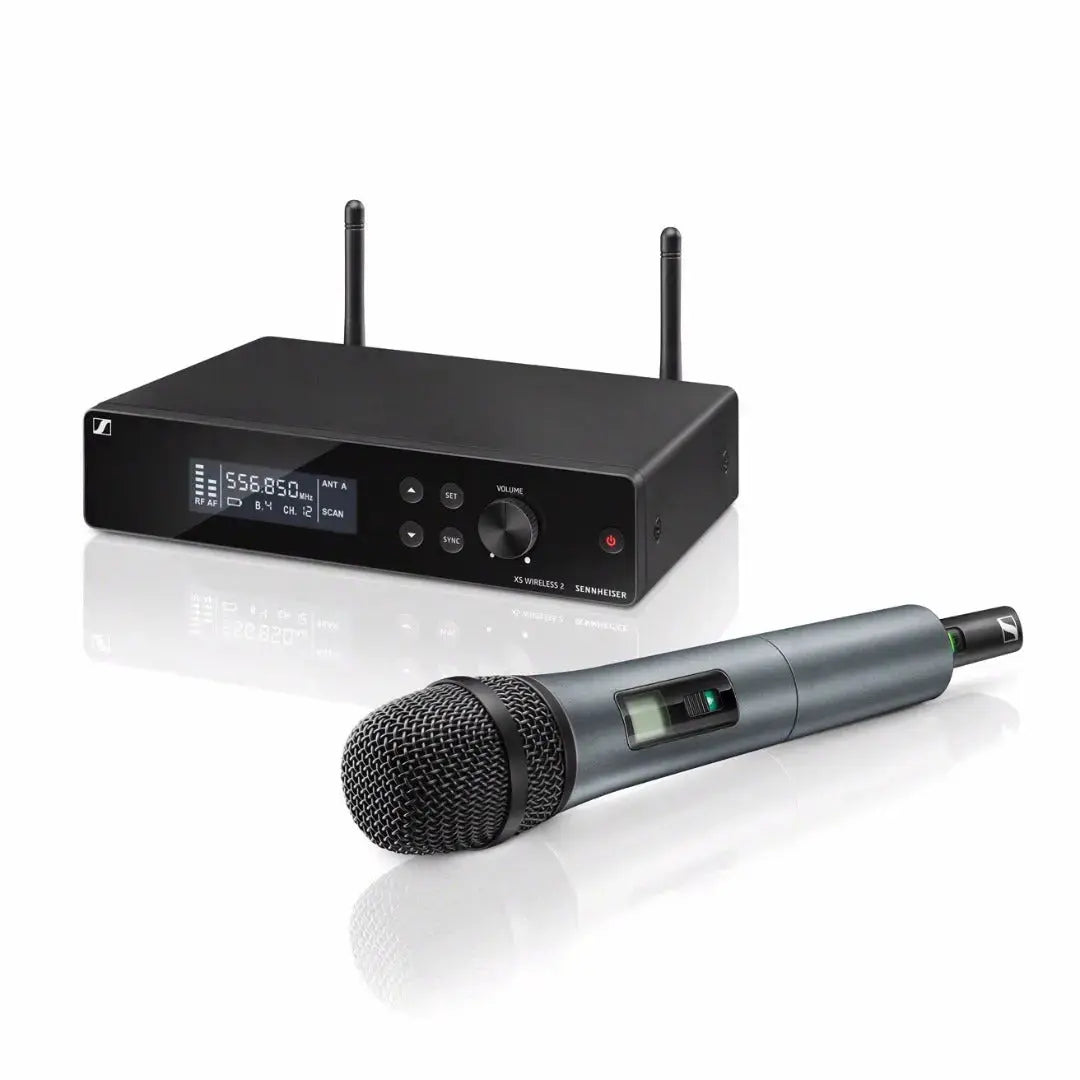

Sennheiser XSW 2-835-B Wireless Handheld Microphone System with e835 Capsule (B: 614 to 638 MHz)

Sennheiser XSW 2-835-B Wireless Handheld Microphone System with e835 Capsule (B: 614 to 638 MHz)

Raise your voice. High flexibility for those willing to go a step further.

XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure.

True Diversity receiver in a metal housing and rackmount kit included.

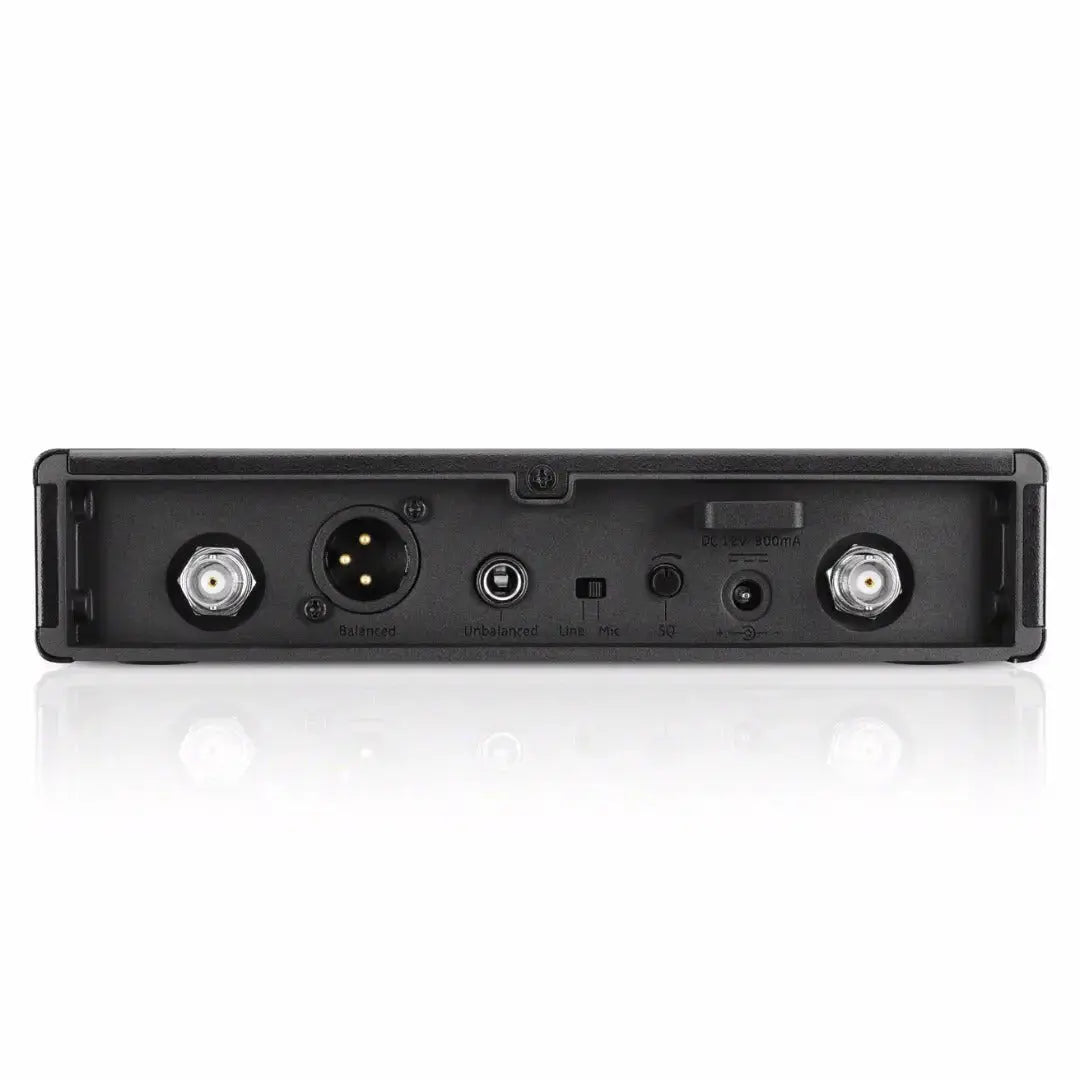

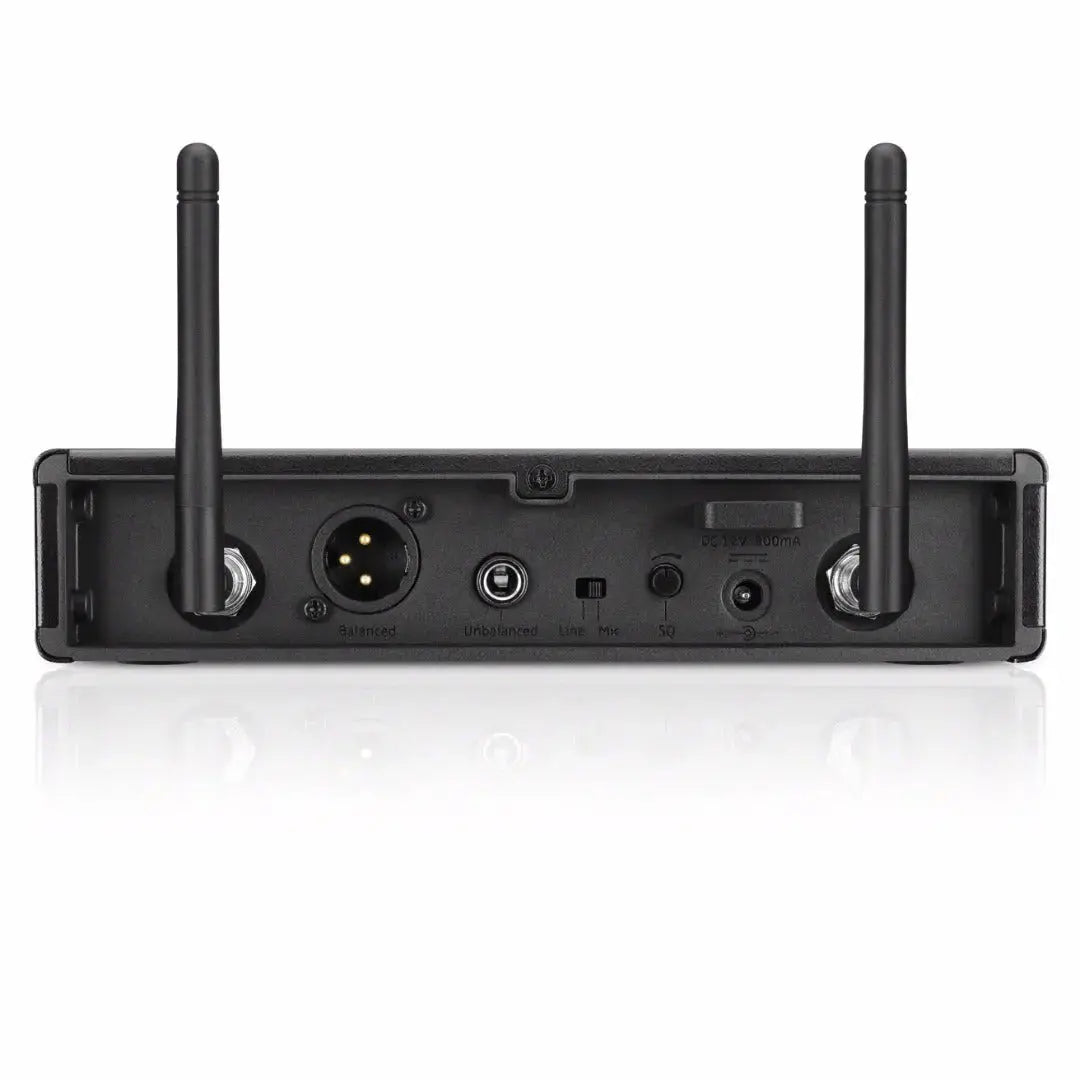

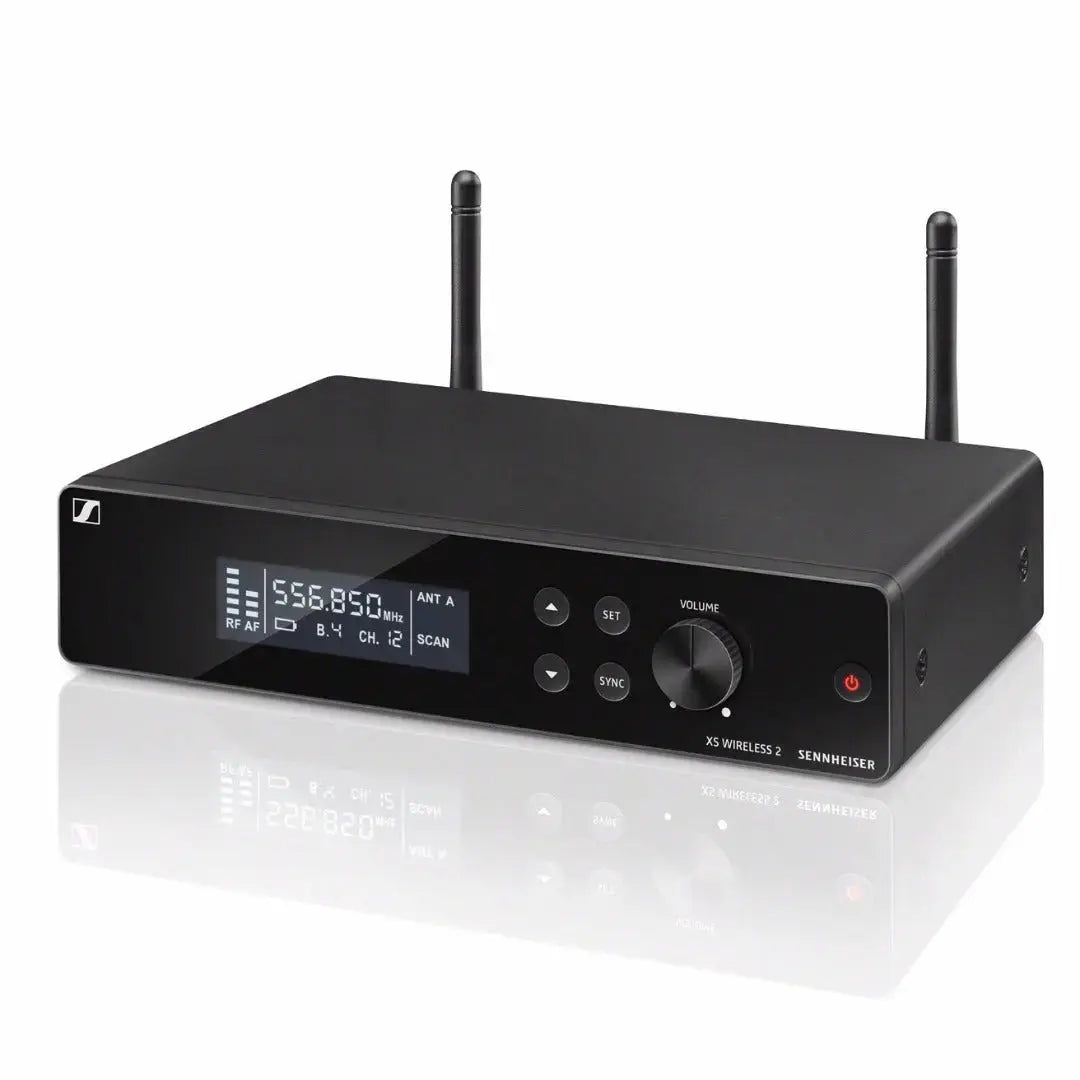

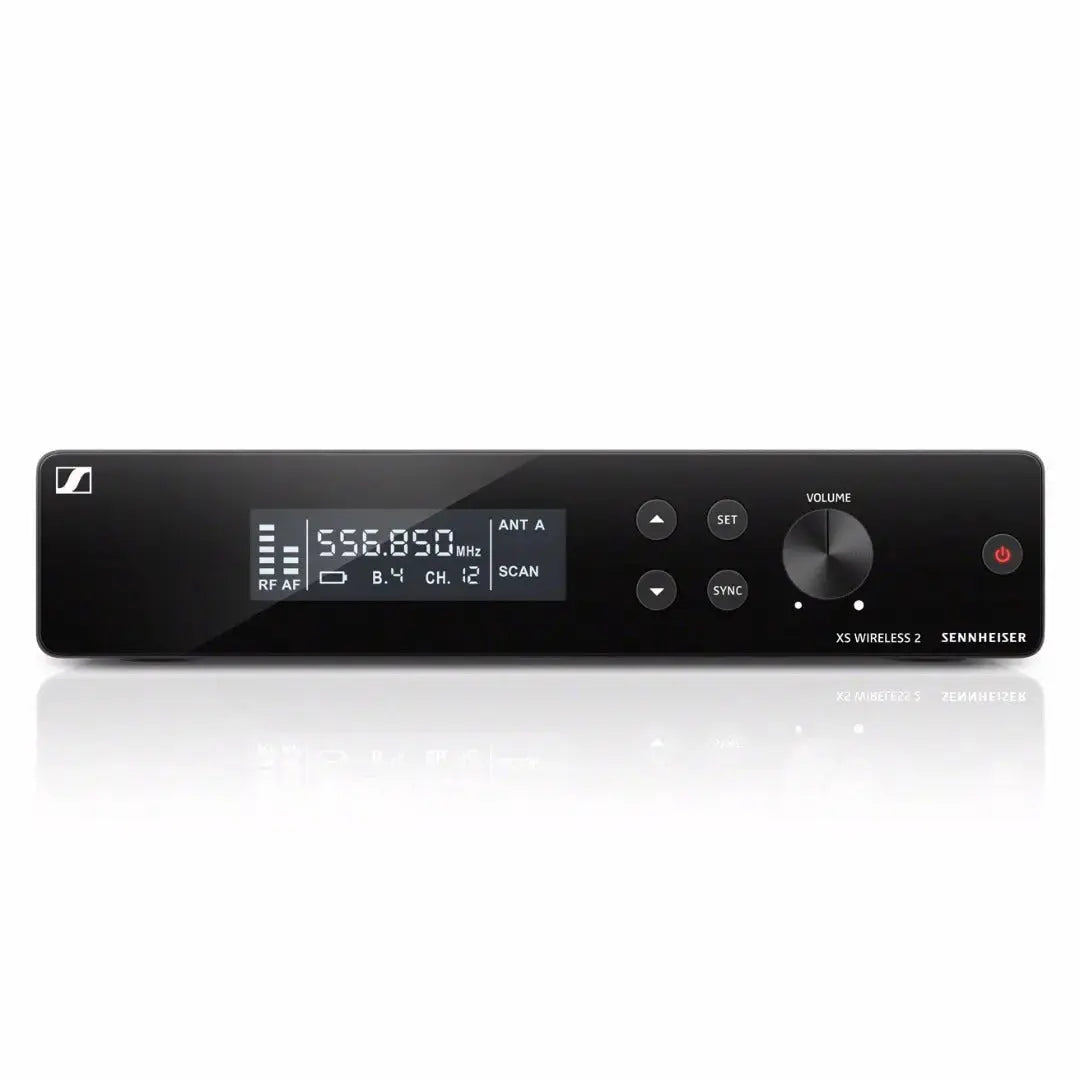

Receiver

Dimensions approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
Weight approx. 680g
Power supply 12 V DC nom. / 300 mA
Housing Metal, microphone: robust ABS
AF frequency response 50 to 16,000 Hz (–3 dB)

Microphone dynamic
Frequency response 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern cardioid
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Frequency 8 frequency banks, each with up to 12 factory-preset channels
Frequency range B: 614-638 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Line 20 dB, switchable
Input sensitivity 1.5 mV / Pa
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 40 dB, adjustable in 5-dB steps
Temperature Range operation: 0°C to +40°C
storage: –20°C to +70°C
Receiver Principle double superheterodyne
Diversity principle True Diversity

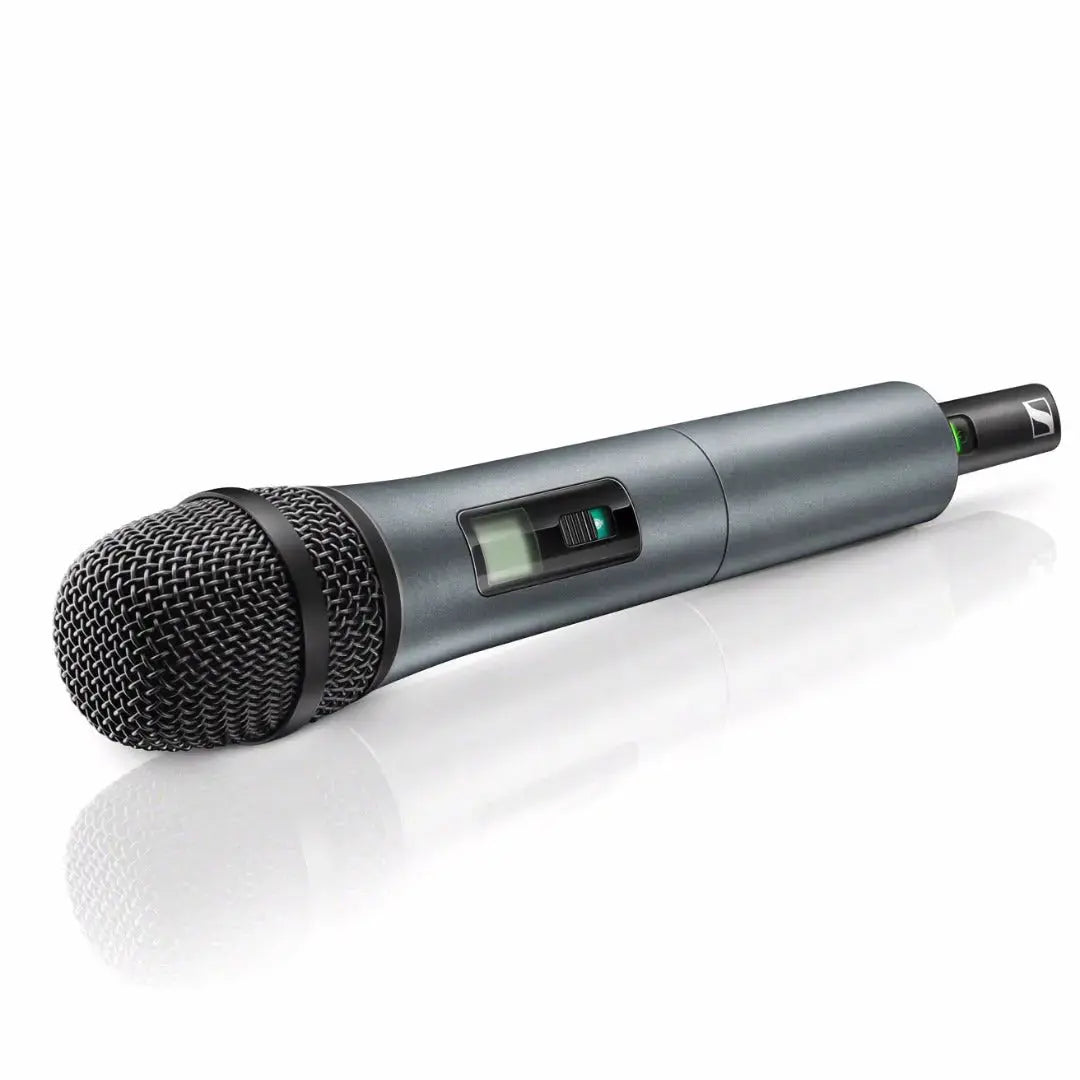

Microphone

Weight approx. 245g
Power supply 2 AA size batteries, 1.5 V
AF frequency response 80-14,000 Hz
