Sennheiser XSW 2-ME2-B Wireless Lavalier Microphone System (B: 614 to 638 MHz)

Sennheiser XSW 2-ME2-B Wireless Lavalier Microphone System (B: 614 to 638 MHz)

Inspire your audience with the Sennheiser XSW 2-ME2-B LAVALIER SET

High flexibility for those willing to go a step further.

XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation.

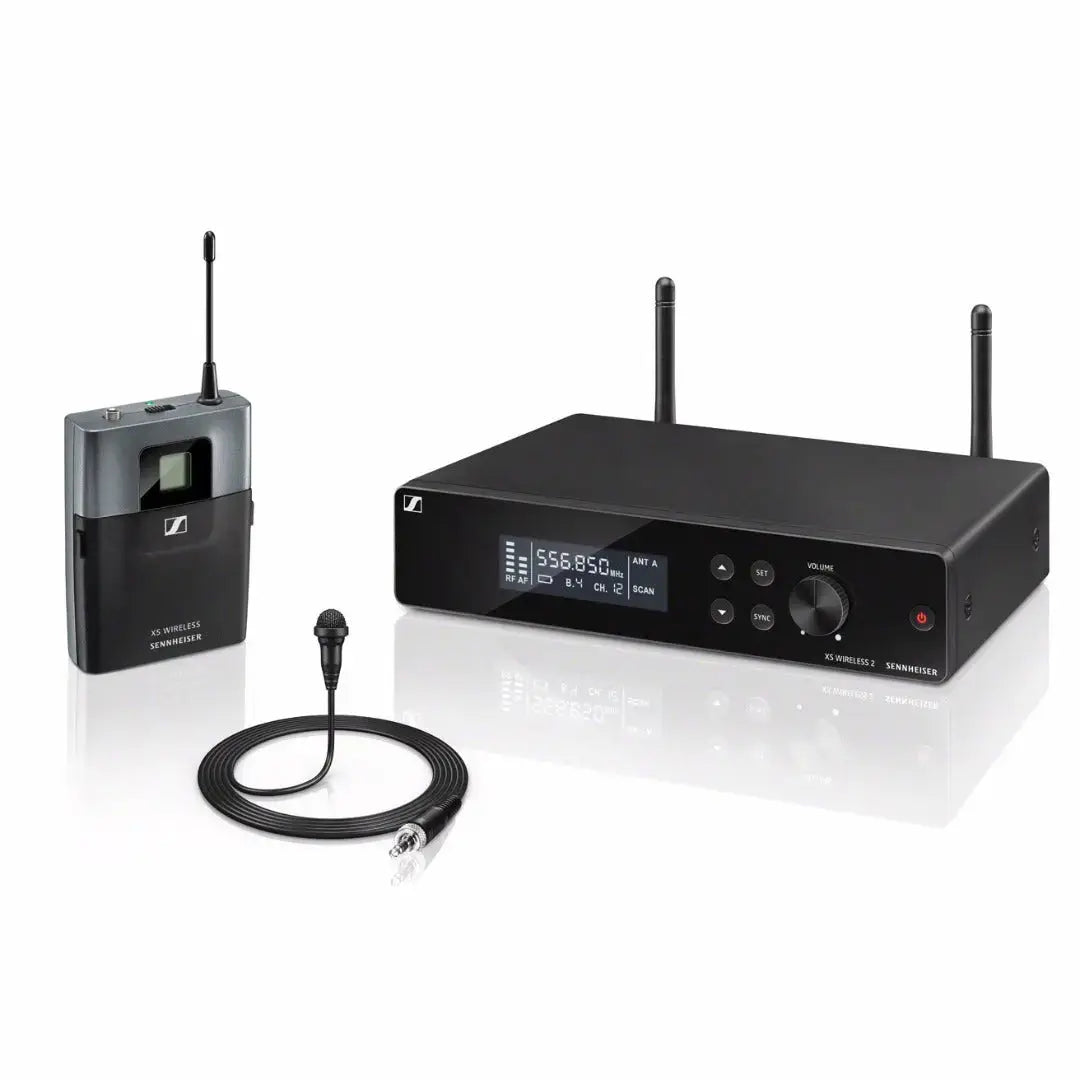

The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Metal receiver housing and rackmount kit included.

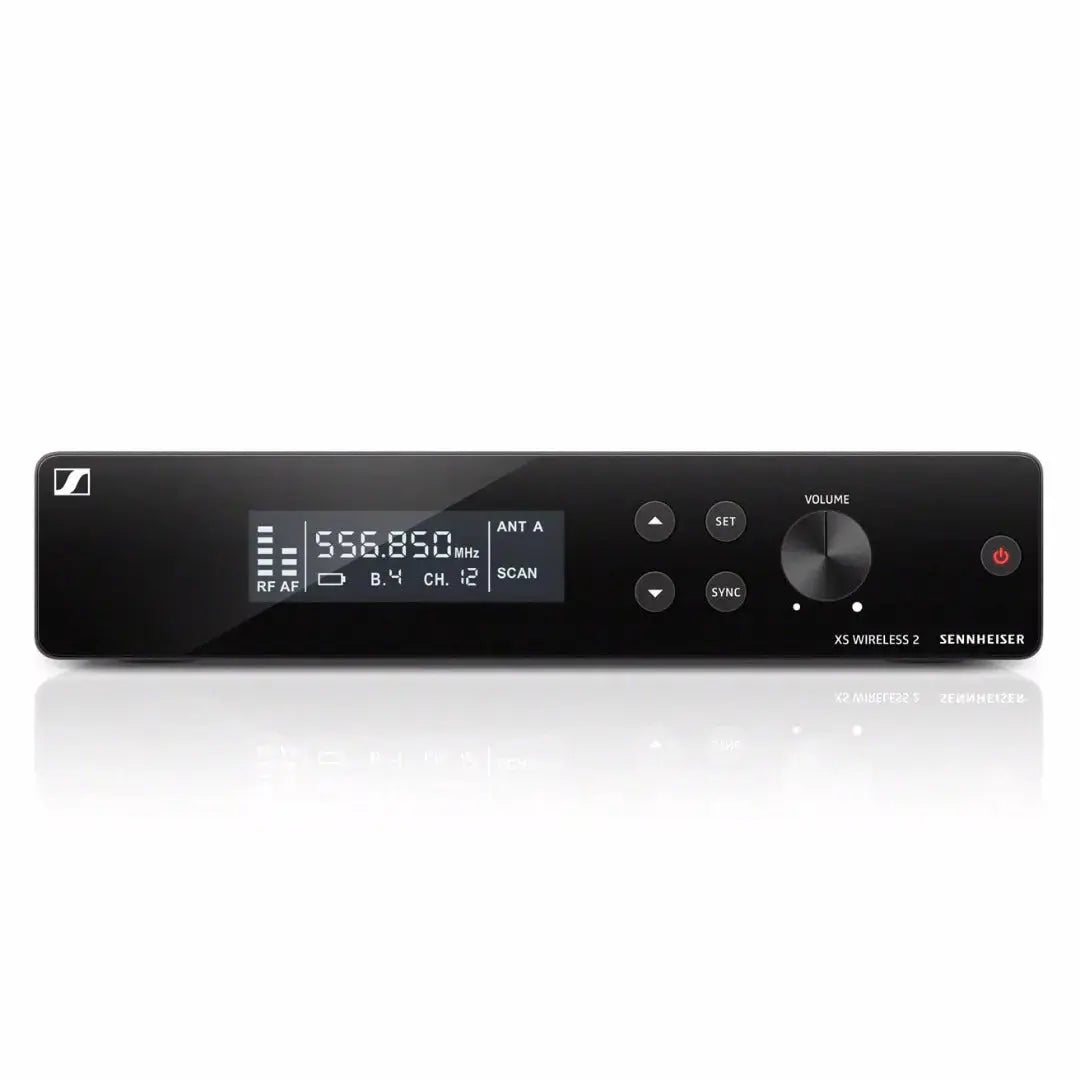

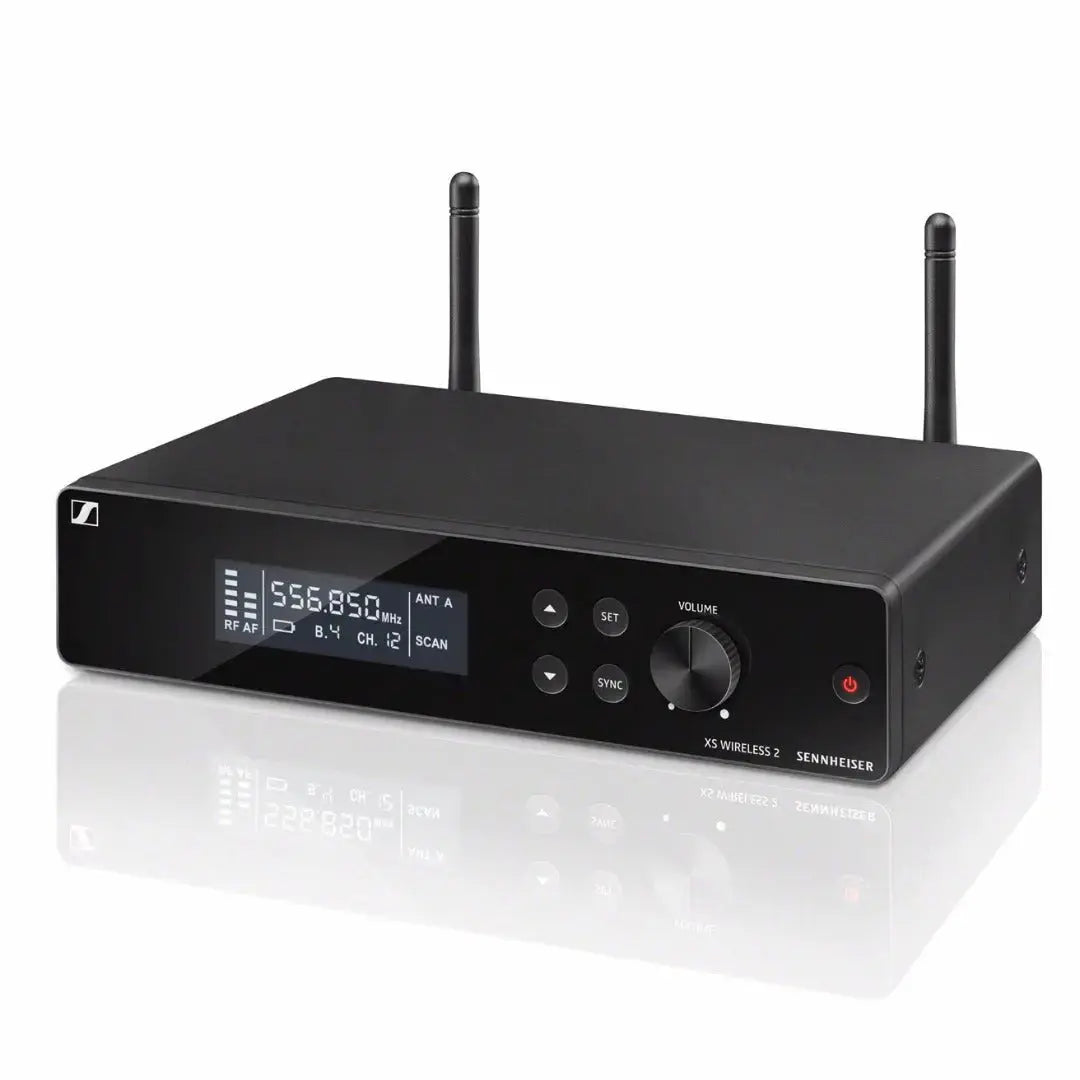

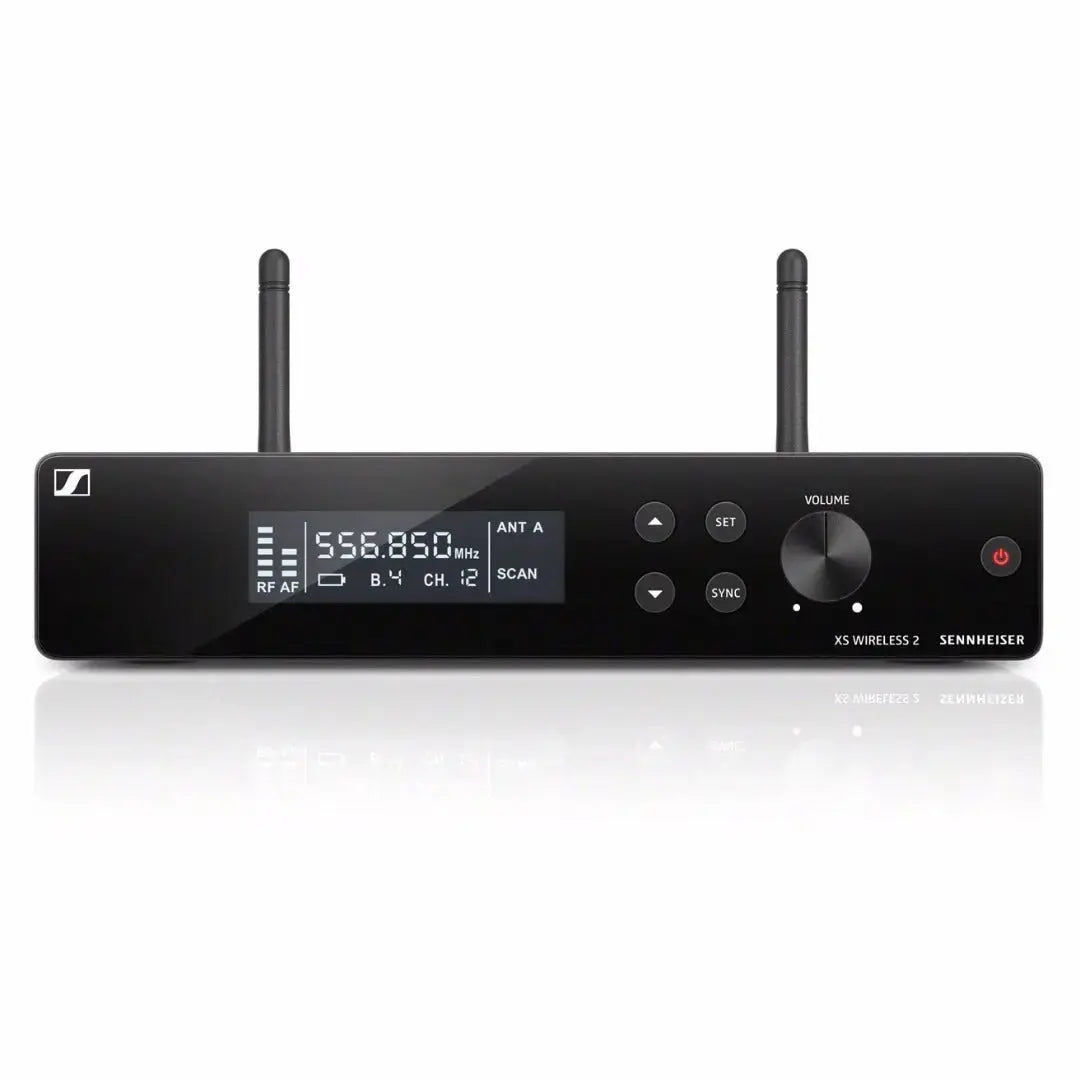

Receivers

Dimensions approx. 200 x 42 x 127 mm
Weight approx. 680g
Power supply 12 V DC nom. / 300 mA
Housing Metal
AF frequency response 50 to 16,000 Hz

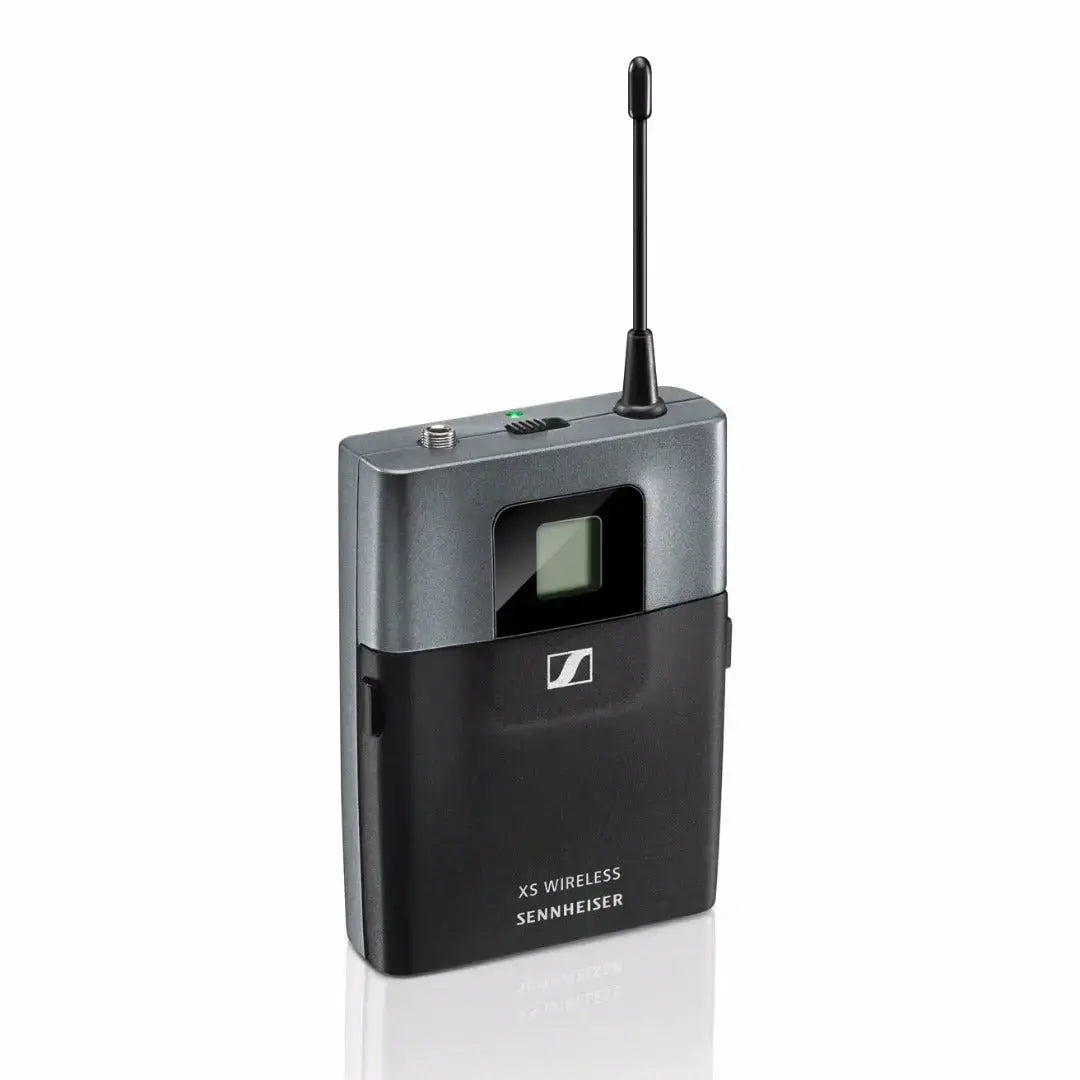

Transmitter

Dimensions approx. 71 x 96 x 28 mm
Weight approx. 95g
Operating time approx. 10 hrs
Power supply 2 AA size batteries, 1.5 V
Housing Robust ABS
AF frequency response 50 to 16,000 Hz (–3 dB)

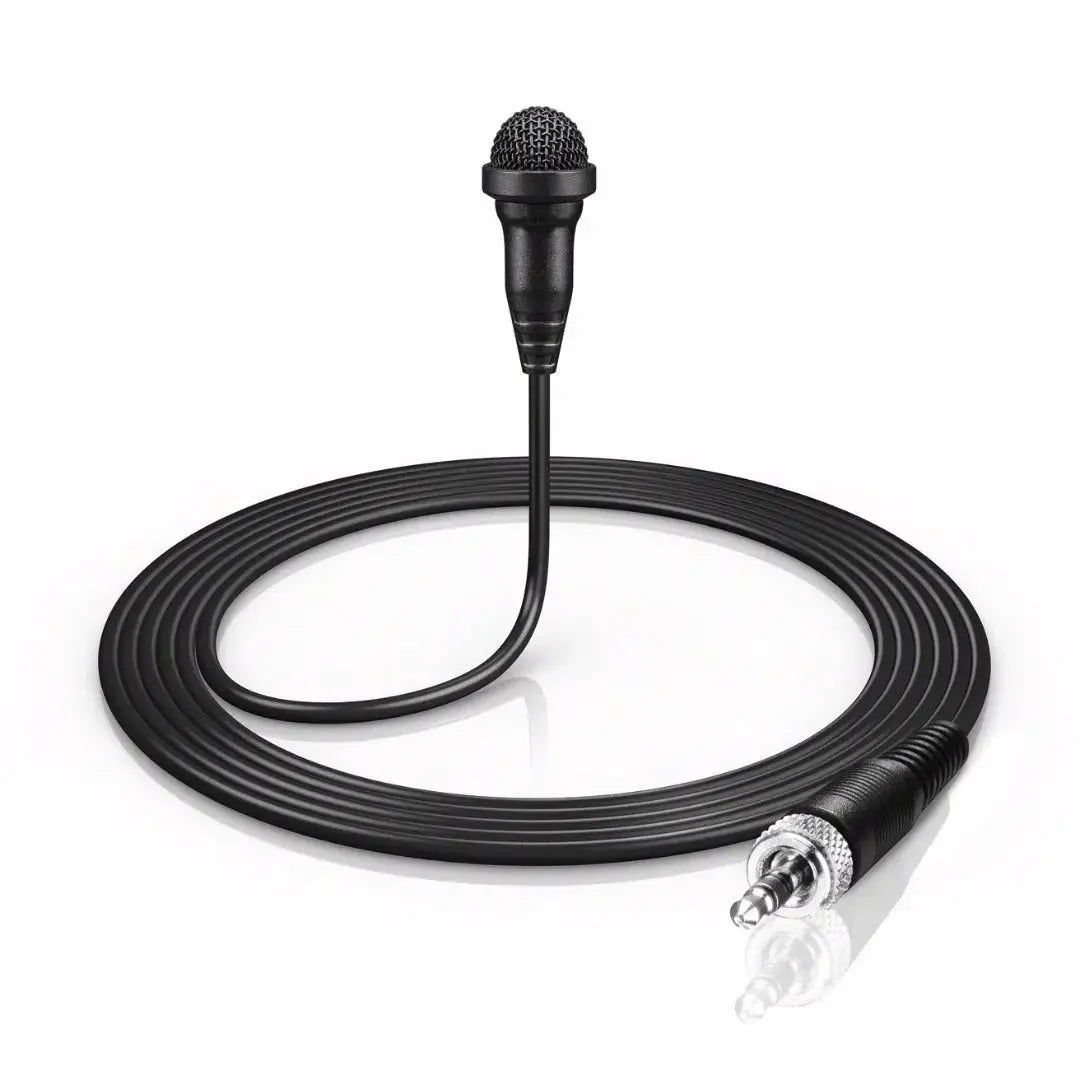

Microphone Condenser
Frequency response 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern Omni-directional
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Modulation Wideband FM

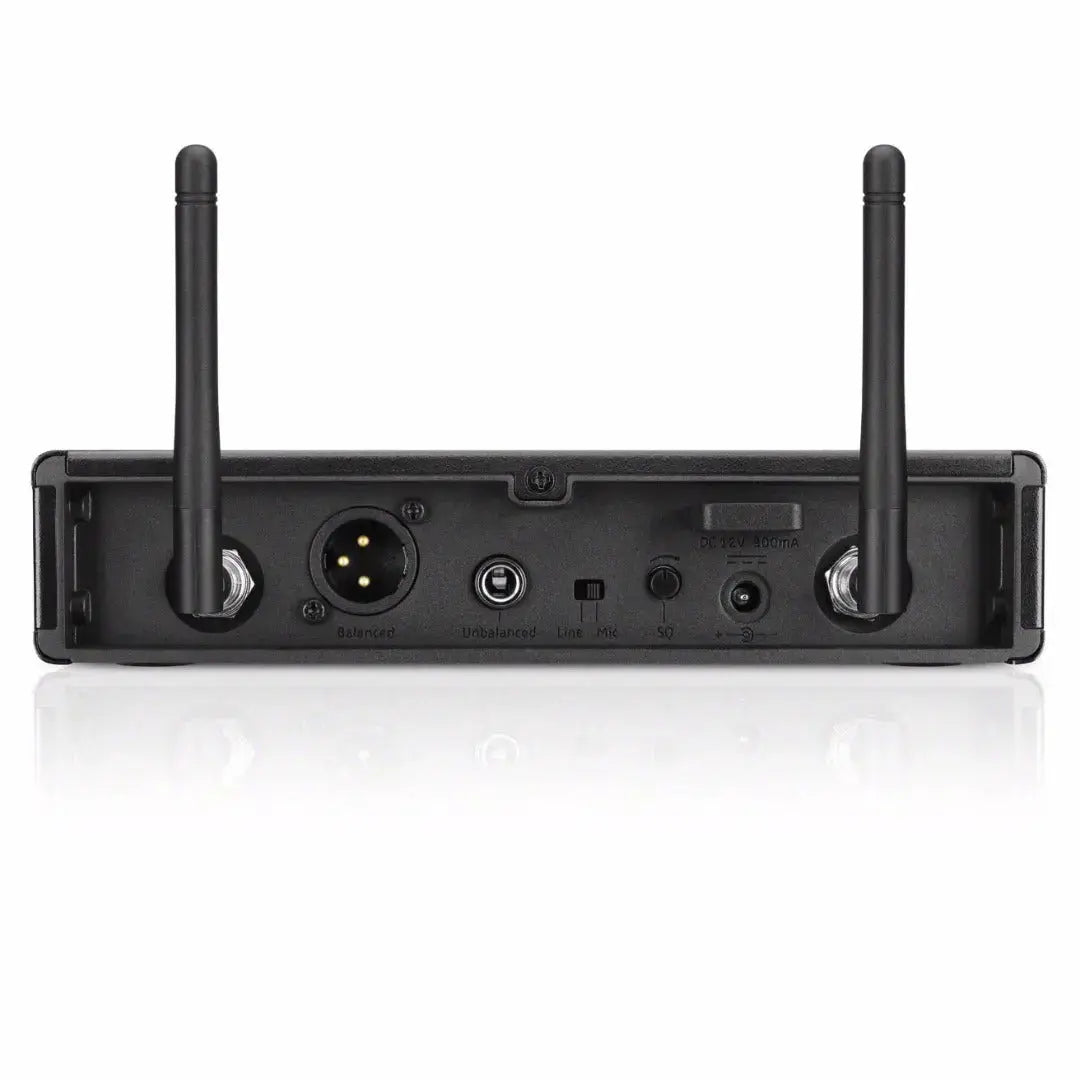

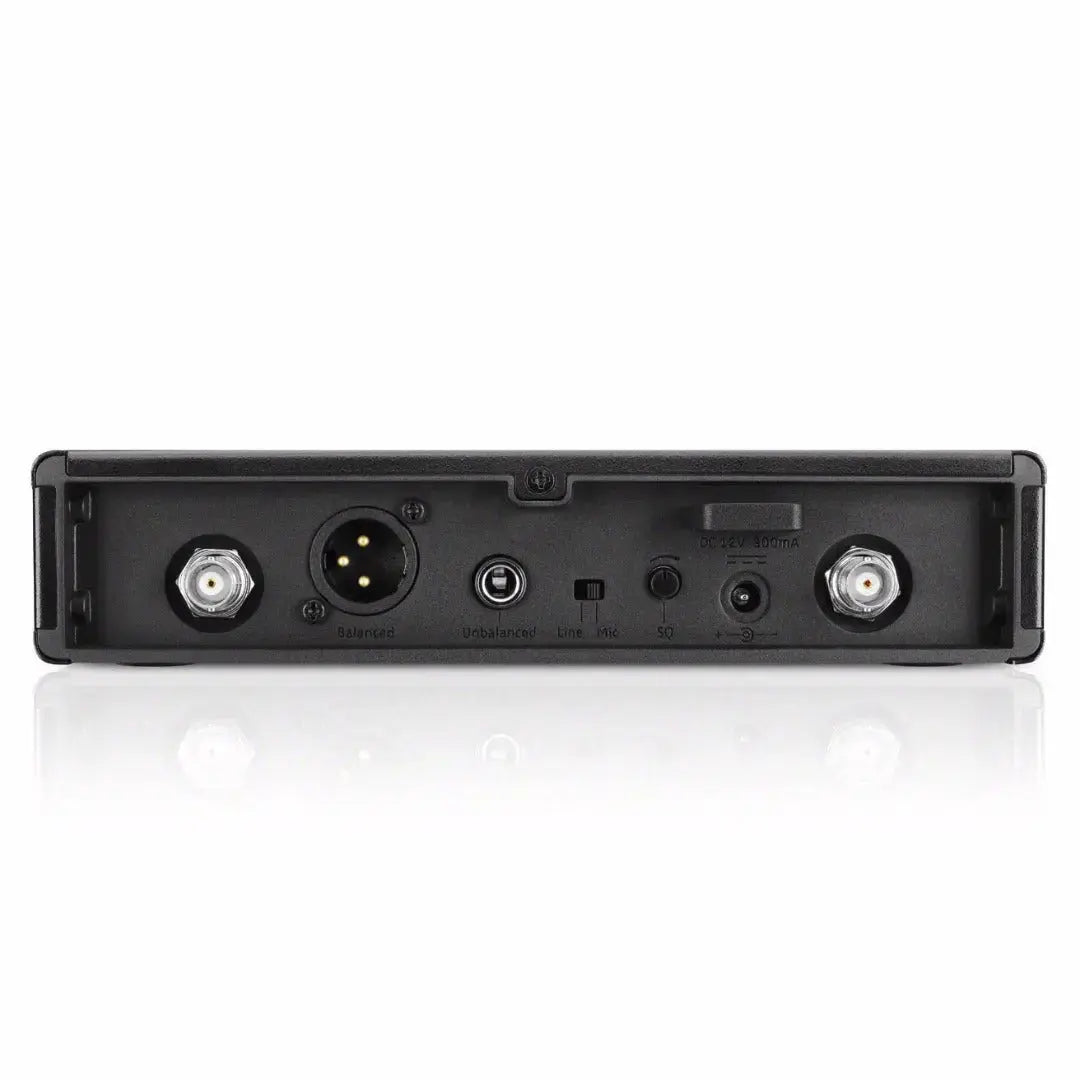

Output voltage '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception True Diversity
Frequency 8 frequency banks, each with up to 12 factory-preset channels
Frequency range B: 614-638 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 40 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle double superheterodyne
